REVERSE FLOW ZERO HOLD UP TYPE : Here the direction of flow of liquid is exactly opposite to the flow in standard filter i.e. the impure liquid to be filtered enters the filter from the bottom into the center channel & goes to the top of each plate. The clear filtrate flows out from openings on side of plates to the shell & then to the outlet. This flow ensure almost 100% filtration of the liquid which is not so with the standard flow type.

MODULAR DESIGN OF DECKS WITH EASILY FITTED CLAMPS SUITABLE FOR WIDEST RANGE OF MATERIAL LESS POWER CONSUMPTION, VARIABLE FLOW PATTERN DUST FREE ARRANGEMENT, LEAD FREE SIEVES EASY DISMANTLING AND CLEANING OUTPUT 80 TO 200 Kgshr DEPEND UPON CHARACTERISTIC OF MATERIAL M.O.C.S.S. 304316316L RUBBER MOULDED SIEVE AS OPTIONAL BALL TRAY ARRANGEMENT (FOR CHOCKING OF SIEVES) FREED TRAY ARRANGEMENT (FOR SMOOTH FLOW OF MATERIALS) CGMP MODEL WITH DOCUMENTATION (IQ, DQ, PQ, OQ) - AS OPTION

Standard flow type : the impure liquid to be filtered is fed to the filter shell by pump. It arrives on top of each plate through opening on the sides of plates. As liquid pressure increases, the filter media (paperfabric) holds back the impurities & allows the crystal clear filtrate to pass through the central channel (formed by interlocking cups) which takes the filtrate to the outlet of filter. This filter most commonly used to obtain clear liquid. However if required, the cake formed between the plates can be obtained. Filtration is continued until its rate becomes very slow due to increased cake resistance.

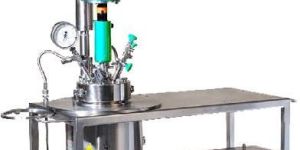

Autocalve Salient Features : Sizes from 100 ml to 100 Litre Material of construction SS 316, SS 316 L, Hastellay C, Zirconium, Inconel, Monel etc. Standard design pressure upto 100 bar & temperature upto 600°C Accessories - Flameproof Control Panel, Auto cooling system, Digital Pressure Indicator, Safty Relief Valve, Flameproof, Chain pully arrangement etc. Skid mounted Hydrogenator pilot plant. High mass transfer area Faster reaction Shorter batch time Lesser catalyst loading Minimum impurities High yields Better product economy

CAPACITY 25 LTRS TO 1000 LTRS DUAL SPEED IMPELLER AND CHOPPER SUITABLE FOR EFFICIENT & FAST MIXING OF GRANULATION OF INGREDIENTS MATERIAL HANDLING SYSTEM IS PROVIDED FOR LOADING OF MATERIAL CIP SYSTEM WILL BE PROVIDED WITH PUMP AS OPTIONAL M.O.C. S.S. 304316316L CONSISTANT QUALITY IN EACH BATCH FULLY HYGIENIC MIXING. OPTION - ARRANGEMENT FOR BINDING SPRAY MACHINE WITH PLC SYSTEM AS AN OPTIONAL CGMP MODEL WITH DOCUMENTATION (IQ, DQ, PQ, OQ) - AS OPTION

STANDARD MODEL, HOPPER CAPACITY 34 LTRS. THE BODY OF THE MACHINE IS "L" SHAPED STRUCTURE SCREEN AREA 12.6" x 14.5" DRUM SIZE 5.4" DIA x 14.4" LENGTH OUTPUT 30 TO 200 Kgshr (APP. FOR DAMP. MATERIALS) 200 TO 500 Kgshr (APP FOR DRY MATERIALS) OUTPUT DEPENDS ON THE CHARACTERISTIC OF PARTICLE PRODUCT AND THE REDUCTIONS REQUIRED IN SIZE. POWER SUPPLY - 2HP, 1440 RPM 440 VOLTS 3 PHASE 50 CYCLES A.C. NET WEIGHT 250 Kgs. APPROX GROSS WEIGH 400 Kgs APPROX OVERALL DIMENSION - 32" x 18" x 49" (H) COMPACT & STURDY UNIT CGMP MODEL WITH DOCUMENTATION (IQ, DQ, PQ, OQ) - AS OPTION

SUITABLE FOR QUICK AND EFFICIENT MIXING FOR A COMPLETE RANGE OF POWDERS, PARTICULATE AND GRANULAR MATERIALS. HOMOGENEOUS MIX. GENTLE TUMBLING ACTION WITH A SPECIALLY DESIGNED BAFFLE. EASY CHARGING OF MATERIALS THROUGH S.S. BINS. CAPACITY - 20 LTRS. TO 4000 LTRS. MOC - S.S. 304 316 316 L SHAPE OF CONTAINER - POLYGON SHAPED FRUSTUM. S.S. OCTAGON TYPE BODY WITH RECTANGULAR CENTRAL PORTION TOP AND CIRCULAR BOTTOM WITH A BUTTERFLY VALVE. CGMP MODEL WITH DOCUMENTATION (IQ, DQ, PQ, OQ) - AS OPTION

SUITABLE FOR DRY GRANULATION PULVERISING SHREDDING & CHOPPING OF MATERIALS MULTI SPEED DRIVE FOR VARIOUS PRODUCT GRADING EASY DISMANTLING AND CLEANING OUTPUT 100 TO 250 Kgshr DEPEND UPON CHARACTERISTIC OF PRODUCT & THE SCREEN SIZE EASY MANOUEVARABILITY WITH THE HELP OF CASTOR WHEELS MOC S.S. 304 316 316 L MOTOR - 3 HP 1440 RPM, ROTOR DIA - 250 MM APPROX BEATERS - 12 NOS WITH KNIFE IMPACT EDGE AND 2 SCRAPPER BLADES. ROTOR SPEED - 720 1500 2100 3000 RPM APPROX OVERALL DIA - 900 L x 800 W x 1700H (IN MM) CGMP MODEL WITH DOCUMENTATION (IQ, DQ, PQ, OQ) - AS OPTION

SUITABLE FOR MIXING WET AND DRY POWDERS PADDLE TYPE BLADES PROVIDED WITH LEAK PROOF SEAL TILTING ARRANGEMENT, LIMIT SWITCH WITH S.S. GRILL S.S. 304 316 QUALITY AND MIRROR POLISHED UNIT WITH SUITABLE MOTOR AND GEAR BOX MANUAL TILTING ARRANGEMENT MODEL 25, 50, 100, 200 & 250 Kgs. CGMP MODEL WITH DOCUMENTATION (IQ, DQ, PQ, OQ) - AS OPTION

Autocalve Salient Features : Sizes from 100 ml to 100 Litre Material of construction SS 316, SS 316 L, Hastellay C, Zirconium, Inconel, Monel etc. Standard design pressure upto 100 bar & temperature upto 600°C Accessories - Flameproof Control Panel, Auto cooling system, Digital Pressure Indicator, Safty Relief Valve, Flameproof, Chain pully arrangement etc. Skid mounted Hydrogenator pilot plant. High mass transfer area Faster reaction Shorter batch time Lesser catalyst loading Minimum impurities High yields Better product economy

VERY VERSATILE PROCESS EQUIPMENT FOR UNIFORM AND EFFICIENT DRYING OF PRODUCTS. FULLY AUTOMATIC OPERATION BASED ON PLC CONTROL WITHOUT PLC CONTROL MINIMUM HANDLING AND MORE HYGIENIC LIFTING & TILTING DEVICE OF PRODUCT CONTAINER FOR EASY HANDLING CAPACITY AVAILABLE FROM 5 Kgs to 500 Kgs. FLP MODELS AVAILABLE AS OPTION MOC S.S. 304 316 316L OPTION - STEAM HEATED OR ELECTRIC HEATED BLOWER CGMP MODEL WITH DOCUMENTATION (IQ, DQ, PQ, OQ) - AS OPTION.

MODELS AVAILABLE 12, 24, 48, 96 & 192 TRAYS DOUBLE WALL CONSTRUCTION RIGID S.S. FRAME WORK GLASS WOOL INSULATED HEATING MEDIA - ELECRIC STEAM FOR UNIFORM DRYING UNIT WITH AIR INLET, AIR FILTER ADJUSTABLE DAMPER (OUTLET) SINGLE INSULATED AND SELF LOCKING DOOR, ONE FAN FOR AIR CIRCULATION INSIDE THE AREA (FLP MOTOR AVAILABLE AS OPTION) M.O.C. S.S. 304 316 SOPHISTICATED CONTROL PANEL WITH ONOFF PUSH BUTTONS, INDICATING LAMPS CGMP MODEL WITH DOCUMENTATION (IQ, DQ, PQ, OQ) - AS OPTION

EFFICIENT & VERSATILE MIXER. IDEAL FOR MIXING POWDERS AND HOMOGENEOUS LUBRICATION OF GRANULES MOC S.S. 304 316 316 L S.S. BAFFLES ARE PROVIDED SAFETY GUARDS PROVIDED WITH LIMIT SWITCH INTERLOCKED TO MOTOR CAPACITY 20 LTRS. TO 2500 LTRS. AUTOMATIC LOADING & UNLOADING FACILITIES AVAILABLE (OPTION) CGMP MODEL WITH DOCUMENTATION (IQ, DQ, PQ, OQ) - AS OPTION

EASY TO OPERATE AND CLEAN TOTALLY CLOSED OPERATION TO AVOID DUSTING EASY FOR CONTINUOUS DISCHARGE EASY TO CLAMP WITH FLUID BED DRYER BOWL MOC SS 304 316 HYDRAULIC POWER PACK ARRANGEMENT FOR SMOOTH JERK FREE LIFTING TROUBLE FREE TILTING ARRANGEMENT STRUDY UNIT WITH S.S. CONSTRUCTION CGMP MODEL WITH DOCUMENTATION (IQ, DQ, PQ, OQ) - AS OPTION

SUITABLE FOR COATING OF TABLETS & CONFECTIONERIES (SUGAR FILM COAT) MODELS AVAILABLE FROM 12" TO 72" SUITABLE EXHAUST BLOWER AVAILABLE HEATERS & BLOWER MOTOR IS ELECTRICALLY INTERLOCKED MOC S.S. 304 316 316L ANGLE INCLINATION OF 45 AND CAN BE ADJUSTED AS PRE REQUIREMENT DRIVE UNIT WITH REDUCTION GEAR BOX PROVIDED S.S. STRUCTURE WITH ADEQUATE OPENING FOR EASY MAINTENANCE CGMP MODEL WITH DOCUMENTATION (IQ, DQ, PQ, OQ)- AS OPTION

SALIENT FEATURES : * Easy to maintain and simple to operate. * Automatic Powder level maintaining system for maintaining constant level of powder to facilitate minimum weight variation. * Minimum space requirement. * Present revolution control with digital display for quick setting of fill weight. * No mechanical settings, hence can be set & operated by unskilled operator. * Instant Brake mechanism for precise fill weight. * Weight variation within + 2% * Table model - compact & easily movable from place to place. * Versatile, can handle dry syrup powder filling. * Quick interchangeability in minutes for changeover of product. * All powder contact parts are made of stainless steel 316 or non contact parts are made from stainless steel 304 quality as per customer's requirement.
