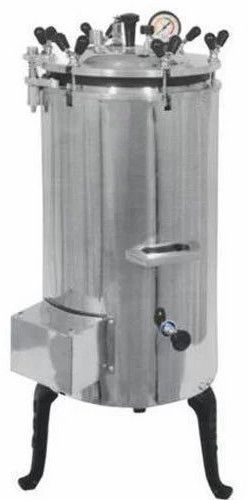

High Pressure Autoclave
Get Price Quote
The Sterilizers designed for a standard working pressure of 1.2 kg/cm i.e., 121°C or an optional High Speed (flash) working pressure of 2.1kg/cm i.e., 134°C Which substantially reduces cycle time.
Our high efficiency Steam Sterilizers are designed for maximum thermodynamic efficiency and robust in construction built with an inner chamber of AISI 304/316 grade stainless steel, jacket of AISI 304 grade stainless steel, door of AISI 304 grade stainless steel, the strong argon arc welded chamber and jacket ensure a leak proof construction. Mounted on a corrosion resistant stand further ensures greater durability.
Working on the principle of downward displacement of air, the sterilizer assure you that only a minimal quantity of water and steam are required for optimism sterilization. A steam trap is provided for effective, economical removal of air and condensate from the chamber. This help to achieve sterilization temperature quicker. The option of a steam generator feed water pump assits uninterrupted operation.
A powerful ejector fitted in the multi-port operating valve circulate air in the chamber for vacuum drying. With minimum heat loss the sterilizer enables a pleasant, comfortable, working environment.
Multi-port operating valve / Solenoid valve, control for the entire cycle of the operation.
Self locking safety door cannot be opened while chamber is under pressure.
Gauge glass tube with automatic closing safety valve.
Heat resistant SILICONE door gasket.
Pressure switches (on electric models) economize power consumption.
Low water protection system, to protect the electric heaters.
Temperature gauge / Diigtal temp. Indicators / controllers (optional).
Vaccum breaker / dryer.
Safety valve for the Jacket / boiler.
Hydraulically test to 2.5 times the designed working pressure.
