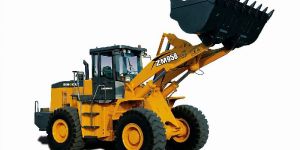

Heavy construction equipment With vast experience, constant study & market research, Spartan has achieved this enviable position of being India’s No. 1 manufacturer.

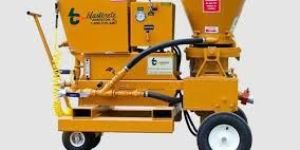

Guniting Hopper refers to the dry-mix process, in which the dry cementitious mixture is blown through a hose to the nozzle, where water is injected immediately before application.. The concrete is blasted by pneumatic pressure from a gun, hence "gun"-ite. Guniting means blowing dry material out of a hose with compressed air, wetting it as it was released. This was later used to patch weak parts in old buildings. Guniting Hopper or "cement gun" is the equipment used, and "gunite", the material that was produced. The dry mix method involves placing the dry ingredients into a hopper and then conveying them pneumatically through a hose to the nozzle. The nozzleman controls the addition of water at the nozzle. The water and the dry mixture is not completely mixed, but is completed as the mixture hits the receiving surface. This requires a skilled nozzleman, especially in the case of thick or heavily reinforced sections. Advantages of the dry mix process are that the water content can be adjusted instantaneously by the nozzleman, allowing more effective placement in overhead and vertical applications without using accelerators. The dry mix process is useful in repair applications when it is necessary to stop frequently, as the dry material is easily discharged from the hose.

- Egg Laying type Hydraulic Concrete Block Making Machine on wheels. - Lays blocks on the concrete floor and moves to the next laying. - Any type of concrete block can be produced by fixing different type of mould and ram - Triple Vibrator System

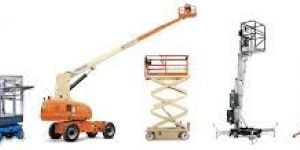

Requirement of SWL (Safe Working Load): Single or Double Mast Vertical lift is a platform which has only vertical reach and no horizontal reach. It is used for light duty work in factories, shopping malls, Hotel Lobbies, Airport. Usage is continuous (like cleaning work) frequent movement limited.

Concrete blocks have existed for decades, but today concrete products have infinite uses, forms, textures and colours, which are very different from the traditional grey walls of concrete blocks. Whether you're producing bricks, pavers, slabs, retaining wall and specialty products, or standard concrete blocks, all the shapes, textures and colours that you or your customers want can be created on a single Columbia concrete products machine. Columbia is renowned for designing the most versatile machines and concrete block manufacturing equipment in the industry. You can produce this entire range of products with a simple and fast mould change, keeping costs down and prices competitive.

The KILLICKS Standard Grout Pump is a simple but efficient low cost equipment ideally suited for grouting cable ducts in small and m e d i u m s i z e d p r e s t r e s s e d concrete members. It is a hand operated stirrup pump of the diaphragm type in which grout is drawn up the suction pipe past a simple non return ball valve, and on the pressure stroke is driven forward into the feed hose through 'a similar non-return valve. Site trials of grouting of ducts in normal beams have shown that the KILLICKS Standard Grout Pump can supply 130 liters of neat cement grout per hour of pumping time, which means it is a pump having a fairly large capacity. The maximum working pressure is 3 Kgcm2 (40 psi).

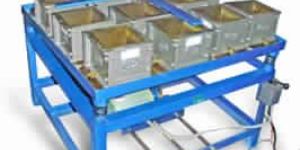

For compaction of concrete Cubes, Cylinders & Beams. The table deck has stops along its edges to prevent moulds from walking off the table during operation. The variable pitch pulley arrangement permits the frequency to be varied step-less between a maximum of 3600 vibrations down to 2600 vibrations per minute. A speed regulation handle is provided for increasing or decreasing the frequency. The vibrator is mounted on cushioned Steel vibrating deck. A switch is provided for starting the motor. Operation on 440 V, three phase, AC supply.

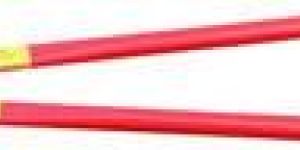

Item No. : RCA Special designed for cutting concrete mesh. Recommendable maximum hardness of material to be cut... Brinell 450-Rockwell C48-162 kg-mm2.

Electromagnetic vibrating table consist of solid base plate and a vibrating top. The top platform vibrates at 3000 vibrations per minute through an electromagnet housed inside. Each table is supplied with a control panel, which supplies pulsating current to electromagnet and also controls the amplitude of vibration. Control panel operates on 230 V.A.C. single phase Used for packing of products. Testing of welding joints. Eleminating vords in moulded parts. Achieving uniformity in ceramic moulded parts.
