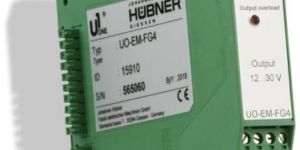

Supply voltage 12-30 VDC Signal outputs/Interfaces - HTL or TTL (0°, 90°, N, ERR and respective inverted) - Pulse rate: 1024 - Maximum frequency: 100 kHz - LED indicator: Overload at outputs Electrical connection - Screw terminals to connect the incremental output signals - Series connectors to preceding and following modules (internal bus connection) Dimensions 99.5 x 22.5 x 114.5 mm (modular electronics housing for DIN rail) Device temperature range -25 °C to +70 °C Degree of protection IP20 (switchboard installation) Device options Combines with other modules belonging to the U-ONE System Mechanical options Special features and certificates UL/CSA

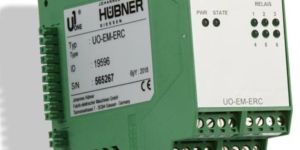

The electronic position switch with six programmable switching outputs (each with one on and one off switching points) are available with numerous functions. The number of bits for multiturn operations, singleturn or multiturn ranges as well as the switching range inputs with invert option are programmable. They determine hysteresis values, counting direction and the unit, identification, last change and conversion factor.

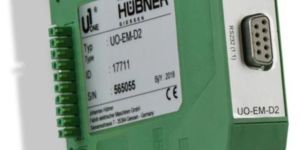

FOC decoder modules convert optical FOC signals from the basic units of the universal encoders to electric signals and feed them on to other function modules of the U-ONE system. The fiber optic cables are connected via ST connectors, the supply voltage via a terminal strip.

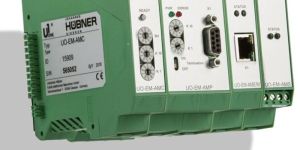

The absolute encoder modules output the absolute position values of the shaft being monitored. Depending on the version they are suitable for PROFIBUS, CAN bus, Ethernet Modbus and SSI interfaces. The programmable parameters reference the counting direction, the preset value as well as the lower and upper limit switches.

The controller modules of the U-ONE(-SAFETY) second generation monitor the status of the entire universal encoder system. The parameterization is carried out using input masks, meaning that complex SPS programming is not necessary. A digital preset input enables the system to be quickly activated and set. The controller module is also optionally available with an additional incremental output for the speed measurement, current output for real-time data, and is certified up to SIL 2 / PL d.

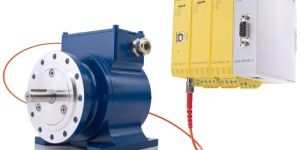

The innovative U-ONE(-SAFETY)-LWL universal encoder systems for speed and position monitoring improve performance by making optimal use of permitted speed ranges and fast and precise positioning. The LWL (FOC) systems are comprised of a basic unit and function modules in the switchboard. They are ideal for applications in which signal transmission via fiber optic cable is possible and there is sufficient space in the switchboard. The systems transmit signals over long distances of up to 1,000 meters with no interference and cost-effectively using just one fiber optic cable. Their multifunctional design type simplifies installation and connection. The all-in-one systems are directly mounted onto the shaft that needs to be monitored. They therefore require no additional mechanical components such as distribution gears, distribution couplings or speed increasing gears and additionally offer higher accuracy. The simple parameter input and preset function after maintenance work ensure high system availability. The systems are optionally available with all components certified for use in safety applications with requirements up to SIL 2 / PL d.

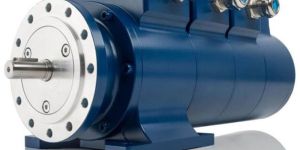

The compact U-ONE(-SAFETY)-Compact universal encoder systems for speed and position monitoring improve performance by making optimal use of permitted speed ranges and fast and precise positioning. They combine different functions in a robust housing and are therefore ideal for the simple modernization of existing solutions when continuing to make use of legacy cabling or when there is no space in the switchboard for electronic function modules. The all-in-one systems are directly mounted onto the shaft that needs to be monitored. They therefore require no additional mechanical components such as distribution gears, distribution couplings or speed increasing gears and additionally offer higher accuracy. The simple parameter input and preset function after maintenance work ensure high system availability. The systems are optionally available with all components certified for use in safety applications with requirements up to SIL 2 / PL d.

Construction made of steel tubular sections of suitable thickness, electrically welded, forming a strong load-bearing frame, capable of withstanding heavy mechanical loads and vibrations Cabin designed and manufactured with suitable materials to gain an excellent thermal and sound insulation, suitable to work in environments with low and high temperatures. Wide operative visibility Robust shock-absorbing system Opening windows with various solutions for excellent internal cabin ventilation Shutter-proof safety glasses Adjustable protections systems for sun irradiation Interior dimmable light Floor glasses designed to grant to the operator the maximum visibility and safety during operation, allowing their cleaning from inside the cabin. Split/inverter AC system Fresh air treatment system to keep the cab pressurized and avoid the entrance of dust/toxic elements in the cabin. Glass heating and defogging system (option) Door and windows provided with robust accessories designed and manufactured by Brieda Cabins to remarkably reduce the general maintenance operations. Maximum attention for the operator’s active and passive safety. The design of our cabins enable the installation of different types of control station to satisfy any end customer’s requirements.. Brieda Cabins has studied, also for this type of application, the ergonomical control station DYCS 044 certified according to the relevant ergonomics standards. Important technical solutions as robust adjustable supports, designed by Brieda Cabins, for CCTV monitors, HMI system and touch screen, communication systems etc. allowing the cabin to be prepared for the installation of all the new technical and cognitive effective solutions, to operate under total safety and control.

Application : industrial

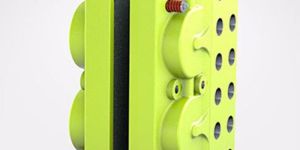

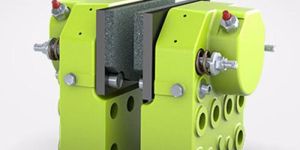

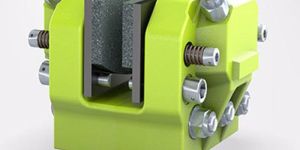

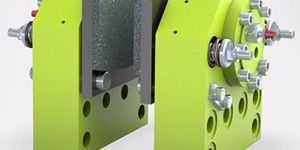

Active caliper brake, ready for operation, hydraulically applied, spring released No Failsafe function Sintered Linings Horiztonal Compenstation +/- 5mm Support for direct gear box mounting

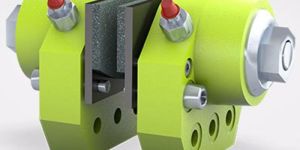

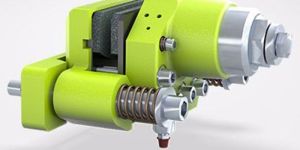

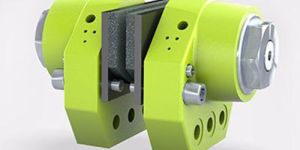

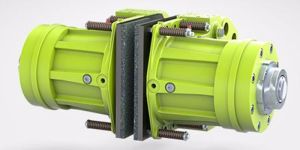

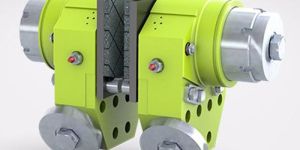

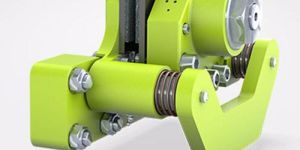

Spring Applied, Hydraulic Release Robust and easy maintained design with long life cycle Dual or Single housing configuration Easy adjustment (no special tools) Models with primary and secondary cylinder seals

Spring Applied, Hydraulic Release Robust and easy maintained design with long life cycle Dual or Single housing configuration Easy adjustment (no special tools) Models with primary and secondary cylinder seals

Spring Applied, Hydraulic Release Robust and easy maintained design with long life cycle Dual or Single housing configuration Easy adjustment (no special tools) Models with primary and secondary cylinder seals

Spring Applied, Hydraulic Release Robust and easy maintained design with long life cycle Dual or Single housing configuration Easy adjustment (no special tools) Models with primary and secondary cylinder seals

Spring Applied, Hydraulic Release Robust and easy maintained design with long life cycle Dual or Single housing configuration Easy adjustment (no special tools) Models with primary and secondary cylinder seals

Spring Applied, Hydraulic Release Robust and easy maintained design with long life cycle Dual or Single housing configuration Easy adjustment (no special tools) Models with primary and secondary cylinder seals

Spring Applied, Hydraulic Release Robust and easy maintained design with long life cycle Dual or Single housing configuration Easy adjustment (no special tools) Models with primary and secondary cylinder seals

Spring Applied, Hydraulic Release Robust and easy maintained design with long life cycle Dual or Single housing configuration Easy adjustment (no special tools) Models with primary and secondary cylinder seals

Hydraulic Applied, Spring Released Brake Pad Wear is atomically compensated Robust and easy maintained design with long life cycle Dual or Single housing configuration Easy adjustment (no special tools) Models with primary and secondary cylinder seals

Hydraulic Applied, Spring Released Brake Pad Wear is atomatically compensated Robust and easy maintained design with long life cycle Dual or Single housing configuration Easy adjustment (no special tools) Models with primary and secondary cylinder seals

Hydraulic Applied, Spring Released Brake Pad Wear is atomatically compensated Robust and easy maintained design with long life cycle Dual or Single housing configuration Easy adjustment (no special tools) Models with primary and secondary cylinder seals

Hydraulic Applied, Spring Released Brake Pad Wear is atomatically compensated Robust and easy maintained design with long life cycle Dual or Single housing configuration Easy adjustment (no special tools) Models with primary and secondary cylinder seals

Hydraulic Applied, Spring Released Brake Pad Wear is atomatically compensated Robust and easy maintained design with long life cycle Dual or Single housing configuration Easy adjustment (no special tools) Models with primary and secondary cylinder seals

Hydraulic Applied, Spring Released Brake Pad Wear is atomatically compensated Robust and easy maintained design with long life cycle Dual or Single housing configuration Easy adjustment (no special tools) Models with primary and secondary cylinder seals

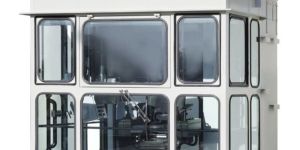

Construction made of steel tubular sections of suitable thickness, electrically welded, forming a strong load-bearing frame, capable of withstanding heavy mechanical loads and vibrations. Cabin designed and manufactured with suitable materials to gain an excellent thermal and sound insulation, suitable to work in environments with low and high temperatures. Wide operative visibility also thanks to the installation of a roof glass and the safe electrical opening of the lower front window. Robust shock-absorbing system Opening windows with various solutions for excellent internal cabin ventilation Shutter-proof safety glasses Adjustable protections systems for sun irradiation Interior dimmable light Floor glasses designed to grant to the operator the maximum visibility and safety during operation, allowing their cleaning from inside the cabin. Split/inverter AC system Glass heating and defogging system (option) Door and windows provided with robust accessories designed and manufactured by Brieda Cabins to remarkably reduce the general maintenance operations. Maximum attention to the operator’s active and passive safety. The design of our cabins enable the installation of different types of control station to satisfy any end customer’s requirements.. Brieda Cabins has studied, also for this type of application, the ergonomical control station DYCS 044 certified according to the relevant ergonomics standards. Important technical solutions as robust adjustable supports, designed by Brieda Cabins, for CCTV monitors, HMI system and touch screen, communication systems etc. allowing the cabin to be prepared for the installation of all the new technical and cognitive effective solutions, to operate under total safety and control.
