GREEN FIELD ENGINEERING Gorai, Mumbai, Maharashtra

 ® Vertical Membrane Diffuser VMD-250

Number Of Flower : Fine bubble tube diffuser-vertical mounting design.

Size : 90mm dia. X 250mm Length.

  Liquid Ring and Dry Type Vacuum Pumps These Pumps can be used as Vacuum Pump, Liquid Ring Compressor or vacuum and compressor in combine. These are available in choice of material of construction to suit different Gases. Can handle dirty, abrasive or corrosive gas mixture.   Simple design results in reliable operation, low maintenance. No contact, no wear.     Main applications Main industries Features and benefits Usable in every branch of industry – meets the highest requirements for compressor systems. Suitable for conveyance of almost all process gases. Pulp industry Sugar industry Process industry… and many more Low-wear and corrosion-resistant Robust and low-maintenance Easy to inspect Variable connections Extremely quiet

  Different types of Compressors like Rotary Vane, Screw , Centrifugal , reciprocating are available for different pressure, flow, gas and application. 1. Oil Fooded Compressors a) Rotary Vane Type Compressor These compressors have : High Volumetric efficiency, Constant efficiency across the complete control range, minimal energy cost, Self centering of the rotor due to two bearings, no axial force, Low speed, pulsation free air output, direct drive – maintenance free without loss of efficiency. Flow range 250 to 4000 m3/hr and pressure 3 bar g – 10 bar g   b) Oil Injected Rotary Screw Compressors   2. Oil free Compressors (refer "Oil Free Gardner Denver Industrial Products India.htm" ) a) Water Injected Screw Compressors b) Two stage Screw Compressors c) High Speed Centrifugal Compressors

 ® "SILCOX" Silicon Membrane Diffuser   Silicon material for plants which had potential problems with membrane failure such as fouling or chemical oxidation of rubber due to solvent exposure.

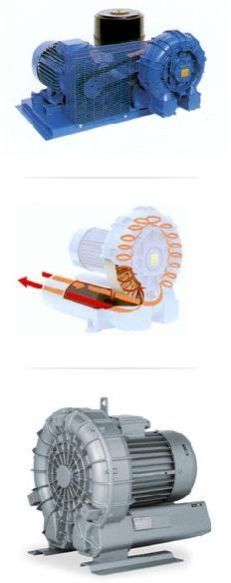

Direct or V Belt Driven Low Noise Special protection Coating Low Capital and Maintenance Cost Internal or External By-pass line 100% Oil Free Pulsation Free Simple Installation Non sparking material option Flow – 1200 m3/hr and pressure/ Vacuum to 500 mbar   Applications for Side Channel Blower Bottle filling machines in breweries Chocolate production Dairy processing Deaeration of mineral water Evacuation Filtration units Food preservation Fruit processing machines Humidification of tobacco Milking systems Gas analysis / Industrial vacuum cleaners/ central extraction systems / Laser printers Filling and closing machines Food packaging Forming Modified atmosphere packaging (MAP) Production of PET containers Tray sealing Trim removal Further applications Printing & Paper Pneumatic conveying Soil treatment Swimming pool technology/ jacuzzis

        These blowers are available in two lobe or tri version. Air Cooled water cooled version available Oil Splash, Grease, external cooled force lubrication as per requirement. Choice of Different material of construction or coating available. Flow range available upto 24,000 m3/hr and max pressure 1 bar Special packages can be designed for higher differential pressure. Can be used as vacuum application Some blower are having screw type rotors can be used for higher pressure of 2.5 bar flow range to 10,000 m3/hr

These filters are the most popular method for removal of turbidity from water. The Pressure Sand Filter consists of a multiple layer of sand with a variety in size and specific gravity. These Filters are designed to remove turbidity and suspended particles present in the feed water with minimum pressure drop. These Filters are custom designed to suit the process requirement. These filters are offered in Mild Steel, FRP or SS construction with face piping and associated Valves.

We are offering MBBR Media to our clients. They are made of the polymeric materials with the promoted additions of bio-enzyme. It improves the enzymatic catalysis. It is an advanced kind of suspension carriers. They are very easy to clean and require low maintenance. We serve them in lots of models and designs. It has a thermo form biofilm reactor and has strong ability to contaminant. MBBR technology provides cost-effective treatment with minimal maintenance since MBBR processes self-maintain an optimum level of productive biofilm. Additionally, the biofilm attached to the mobile biocarriers within the system automatically responds to load fluctuations.

Size : 67 Mm Dia X 2.2 Mtr Length ( Effective Length- 2 Mtr)

 ® “EPNOL” Standard Low Plasticizer EPDM Membrane   EPDM is a synthetic rubber which is custom moulded /specially blended for this application. The compound formulation and moulding/extruding technique are critical to ensure that the membraneDDS

The Dual Media Filter utilizes combination of Filter Media and Anthracite for higher flow rates with a smaller footprint. High filtration velocities are achieved by proper selection of Media, and designing of Distribution and collection systems. These filters are offered in Mild Steel, FRP or SS construction with face piping and associated Valves.

Refrigeration dryers A microprocessor based control device is an advanced solution for drying compressed air. Compressed air is fed into the dryer and precooled in the air-to-air heat exchanger by the cold compressed air. The pre-cooled air passes through the refrigerant-to-air heat exchanger where it is further cooled to the required pressure dew point. The moisture in the compressed air condenses and is collected and discharged automatically. Finally, the cold discharged air is re-warmed by the incoming compressed air. This saves energy and prevents any moisture from forming downstream of the dryer in the compressed air system. Advantages at a glance : Multi-functional display Load controlled energy consumption; reduction down to 10% of nominal energy consumption Load controlled drain Low voltage monitoring Optional dry contact for alarm signal and analog signal 0-10 V for dew point temperature Maximum operation parameters: inlet temperature 60° C, ambient temperature 50° C for the whole series One component refrigerant R 134a, ozone factor zero Compact and easy to install cabinets   Adsorption Dryers Purifying compressed air on demand, free of particles and condensate, helps decrease running costs. Equipment consisting of integrated pre- and after-filters and an electronically level-controlled drain ensure pure, dry and oil-free compressed air with no loss of compressed air from condensate drainage. Economical drying is guaranteed by an integrated microprocessor, which controls the adsorption and regeneration cycles. Heat regenerative driers can be offered with the following options: Explosion proof version Pressure dew points of -70° C Steam regeneration systems and dryers for higher pressures and higher flow rates All functions, sequences, operating states and faults are displayed by LEDs on flow charts and they are monitored continuously Control of the air recovery temperature

We have introduced our new Coarse Bubble Disc diffuser series with two different sizes. “JCB-80” and  “JCB-150”

100% oil free / pulsation free Silent operation and Very little maintenance Can be installed outdoor, without any shelter Simple in operation Flow Control through VFD or by Valve Choice of Material of construction available.- Aluminum– Cast Iron for spark free operation Sealing : Labyrinth Seal, Standard Carbon Ring, Mechanical Seals, Nitrogen Purged etc are also offered Performance – with flow ranges from 90 to 41,000 cfm (150 to 70,000 m3/hr ) and pressures to 22 psig (1.52 bar) and vacuum to 17.6" Hg (596 mbar)>   Applications of Multistage Centrifugal Blower: Aeration Aerobic digestion Air drying Air knife stripping Air scouring Biofuels - Ethanol Production Biogas Coal gasification Combustion air Digester gas boosters Explosive dust collection Landfill Gas Ore Flotation Pneumatic conveying Pulp dewatering Sulfur recovery Carbon black Gas recovery Gas boosting – O2, CO2, N2

The Activated carbon Filters are designed to remove free chlorine, organic matter, odour and Colour present in the raw water and waste water. Due to its high degree of micro porosity, activated carbons provide a huge surface area.Activated carbon filter operates through adsorption. Adsorption is directly related to the surface area of the media. This great surface area furnishes a huge adsorption area for organic as well as chlorine molecules to attach themselves. The Activated Carbon Filters consist of Activated carbon granules supported by very fine quartz filter media. Various grades of carbon are available for specialized treatments. Filtration is the most frequently used, robust method to remove suspended solids from water. The Filter consists of a multiple layer of sand/ Filter Media with a variety in size and specific gravity. The Filters are designed to remove turbidity and suspended particles present in the feed water with minimum pressure drop.

  For some critical atmosphere where noise level to be restricted below 85 db(A) at 1 m . For that we can offer Enclosures. These packages have built in instrumentation, check and pressure relief valves. We can offer some special Custom Engineered Packages for special application. Design, material of construction, seals, and auxiliary components can be selected to ensure performance and compatibility with the type of products and operating conditions of your application.   ACCOUSTIC ENCLOSURE WITH BLOWERS / COMPRESSORS They are designed for maximum service access while still meeting the specified sound levels. Each enclosure employs materials and manufacturing processes.
