Vibro separators are circular gyratory screens used to separate solids from solids and liquid from solid. Vibro Sifter consists of Specially Designed Motor mounted vertically at the center of the base plate of the Screen. The Screen is in between feeding hopper and bowl. The material is fed on to the centre of top screen. The undersize material passes rapidly through the screen during its travel to the periphery. The over size material get continuously discharged through a tangential outlet. This is achieved by specially designed Vibratory Motor along with eccentric Top and Bottom Weights.

V blender consists of two large diameter pipes cut to 80ºangle and welded together to form a V shaped body. Inlets are located on top of the body, outlet is at the bottom of V point where there is transition from an elliptical to cylindrical discharge port. Salient Features - Easy to clean. - Minimum maintenance. - The Bin charging system can also be incorporated in it which is a dust free closed system    for charging and discharging of powders or granules. - Material of construction S.S 316 Applications - Dry powder to powder mixing for tablets and capsules formulations. - Dry granules sub lots mixing to increase the batch size at bulk lubrication stage of tablet    granules. - Dry powder to wet mixing. Capacity : 10 Lto 5000 Ltrs.

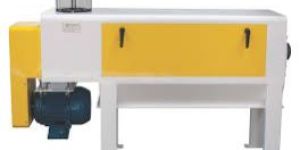

High productivity machine with a capacity of 4 to 10 Kgs. Output per minute. - It cab be easily dismantled, cleaned and reassembled in a short duration of 10 to 15 Min. - The sieve drums are available in 4 to 40 mesh sizes and can be, easily changed for different products. - It is portable and compact, mounted on a sturdy SS frame. - Feed and product discharge is continuous and has dust free transfer system, both for charging and discharging of product. - Complete vibration free and soundless.

Capacity : Tab. Per Min. : 600-800 The unit consists of drive 0.5HP/1440 RPM/3PH/415V/50CS AC Motor coupled to worm reducer variable pitch pulley arrangement and multipin clutch. Drive mechanism housed in MS fabricated body with necessary opening for inspection and maintenance. One set of sealing rollers Max. 140 mm sealing width with back gear and pin ring. Horizontal scissors action cutter is provided to cut the strip horizontally by cutting gear assembly to obtain desired cut length of strips.

Starch Paste Kettle will be made out of S.S. 304 Rectangular Pipes and will be an independent resting type frame work where no foundation will be required. The Kettle will be a hemispherical type bowl with either steam / Oil / Water heating Jacket will be provided. The Kettle will be manufactured from 2.5 mm thick S.S. 304 Sheet and The Jacket will be of 2.5 mm Mild Steel (In case of steam Jacket the thickness will be 4 mm) There will be oil / water heated fitted at the back bottom side of the Kettle. The Kettle Will be having a worm type arrangement for tilting. A temperature controller & a temp Indicator will be provided for temp control & Indication. The Kettle will be Insulated with 50 Mm thick glass wool

Starch Paste Kettle will be made out of S.S. 304 Rectangular Pipes and will be an independent resting type frame work where no foundation will be required. The Kettle will be a hemispherical type bowl with either steam / Oil / Water heating Jacket will be provided. The Kettle will be manufactured from 2.5 mm thick S.S. 304 Sheet and The Jacket will be of 2.5 mm Mild Steel (In case of steam Jacket the thickness will be 4 mm) There will be oil / water heated fitted at the back bottom side of the Kettle. The Kettle Will be having a worm type arrangement for tilting. A temperature controller & a temp Indicator will be provided for temp control & Indication. The Kettle will be Insulated with 50 Mm thick glass wool

S.S. Butterfly Valve and S.S. Soft Flap Valve for Tablet Container The sanitary butterfly valve is designed to handle powders and granules and can be installed on bins or vessels, containers and pipes Capacity : Dia. – 75 mm. to 400 mm.

S.S. Bin , S.S. IPC and Tablet Container , S.S. Blender Bin Capacity : 2.5 Ltrs to 2000 Ltrs. Bin (IPC) is a container made from SS 316 sheets having cylindrical Body and taper bottom. A lid is provided on top. The lid is big so that complete washing the IPC is easy. The Bin is seated on a detachable stand or fixed leg made of SS 304 pipe stand, having forelegs and each leg is fitted with heavy duty castor wheel of special design with ball bearing and SS side frame (2 nos. fixed and 2 Nos swiveling).

High detail RMG (Rail Mounted Gantry Crane) container transport. As used in container ports and warehouses worldwide. Part of a range of consistently authored related industrial vehicles. See our other models in this range.

high quality milk/ egg mixer/ blender, perfect supply the material for cake, milk, tea, coffee, etc, 5l and 7l. capacity : 500 to 5000 ltrs..

The packing conveyor belt is having stainless steel table top with moving endless sandwich belt in the center. Tabletop is fixed to the same structure made out of SS square pipe and supported on adjustable bolts. Tabletop is of 12 inches working space on both side of the conveyor belt for final visual inspection dn packing.

Industrial drum mixers are ones where the drum is rotating and the blades are stationary. Its design of the blades is given such that the powders are mixed homogeneously. Capacity : 25 kg to 500 Kgs batch

The Double Cone Blender is an efficient and versatile machine for mixing dry powder and granules homogeneously. Salient Features - The conical shape at both ends enables uniform mixing and easy discharge. - The cone is statically balanced to avoid any excessive load on the gear box and motor. - While the power can be loaded into the cone through a wider opening, it can be discharged    through a butterfly or slide valve. - Depending upon the characteristic of the product, paddle type baffles can be provided on    the shaft for better mixing. - The contact parts are made of either S.S.304 or S.S.316. - Flame proof electricals can be provided as optional. - Capacity available 20 L to 3000 L. - The working capacity can be exchanged to 70 % of gross capacity by validated study. - ‘Slant’ designed (off centre) CLIN CONE BLENDER is also available. - Variable speed option available 70 %. - Cantilever model on request. - Dust free bin charging system on request. Applications - Dry powder to powder mixing for tablets and capsules formulations. - Dry granules sub lots mixing to increase the batch size at bulk lubrication stage of tablet    granules. Capacity : 10 Ltrs. to 5000 Ltrs.

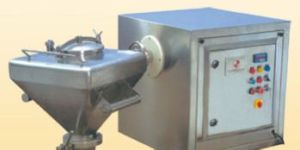

For Mixing Solid with Solid For Blending Granules with Lubricants Capacity : 2.5 Ltrs. up to 1200 Ltrs. Conta Blender Conta blenders are used mainly for blending of dry powders for capsule plant, for blending and homogenizing of dried granules for tablet production. Conta blender is latest cGMP concept with an emphasis on the dust free transfer of powders and granules at different stages from sizing /dispensing to compression / filling of tablets or capsules.The process involves collecting the sized granules in a container, wheeling it to the blender, engage the same with clamping system, lift and tumble for the prevalidated time in set number of rotation.
