Radix Electrosystems Private Limited Andheri West, Mumbai, Maharashtra

Wireless Transmitter - Receiver system is designed to measure temperature and relative humidity and to send it across wirelessly to the receiver station for data logging and monitoring purpose.An Hastle free, easy to install system comprises of wireless sensors / transmitter covering all standard thermocouples and RTDs along with repeaters and receiver unit. It comes with free utility software and has full featured SCADA option available.Ideal for HVAC, Cleanroom, DAQ system, BMS system etc. the system covers wide range of applications where wiring is difficuit.

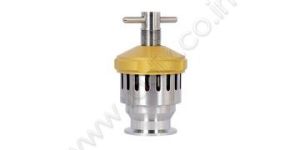

The stainless steel Feedthru is simple, orderly and compact, and is ideally suited to thermocouple applications in high pressure or vacuum environments such as steam autoclaves, process piping, etc. Up to 18 individual thermocouples can be used in the implementation, mounted on an elegant, securely-interlocking bayonet clasp.Suitable for autoclave validation, it has a robust leak proof design and easy to use assembly. Individual slots for upto 18 RTD/thermocouples Gland body : SS316L Mounting : 1.5” Tri-clamp connection Capacity : upto 18 RTD / Thermocouples Pressure rating : 3 bar Temperature rating : 150 deg.C (max) Sealant : Medical grade Silicon rubber, FDA USP Class IV CAP : Barstock brass Compression disc & screw : SS304 'Y' or 'T' adaptor for doubling the quantity Optional : Expander, Mounting clamp & gasket

RH+T+DP+RTC 3 x Remote, No Integral RH+T 85~265 V AC, 50/60 Hz Display : 3-3-3-4 RS485 / MODBUS RTU No. of inputs 3 (RH, T, DP) Input RH a) Integral, radix RH+T sensor b) 0-1 V DC c) 0-10 V DC d) 4~20 mA e) RH signal from Radix RH+T sensor (SHT20, SHT30, etc) Input T a) Integral, radix RH+T sensor b) 0-1 V DC c) 0-10 V DC d) 4~20 mA e) RH signal from Radix RH+T sensor (SHT20, SHT30, etc) Input DP a) 0-1 V DC b) 0-10 V DC c) 4~20 mA d) Integral Radix DP sensor

Material : Non-toxic Polypropylene

Brand Name : Radix

Country of Origin : Made in India

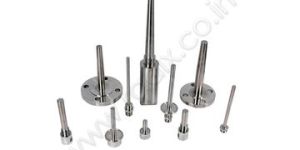

Thermowells and protection tubes are used to protect temperature sensors such as thermocouplesand RTDs. It is selected in accordance with temperature measuring point conditions and desired measurement accuracy in a given application. It should withstand the temperature, pressure, vibration and shock for long, stable operation. Radix offers a vide range of BARSTOCK (monolithic drilled well of bar material) and FABRICATED (protection tube weld sealed at the end of drawn metal pipe) thermowells and protection tubes. Fabricated wells are used in low pressure applications and Barstock wells in applications subjected to significantly large stresses such as high pressure gases and high speed fluids, with suitably selected shape, size and material appropriate to the temperature and operating conditions.

Radix flameproof and explosion proof RTD sensors are made of robust die cast aluminum head with mineral insulation. They can also be made of cast-iron, SS304 and SS316. Our standard RTD sensors are certified flameproof for gas groups I, IIA and IIB. An assembly certified for gas group IIC (Hydrogen) can also be constructed.

The Main purpose of this panel is to Test Instrument like single phase three phase motor, thyristorstransformers, various parameters like current, voltage, resistances etc.Acting as a 24 Vdc power supply, DOL(direct online starter) starter, star delta starter, Radical calibrator, multimeter, variac, 110V DC supply,  etcC To Test 3 phase and single phase motor in DOL and Star Delta mode Soldiering and Desoldering 3 phase and single phase variac to vary voltage for testing of thyristors and transformers. Digital Multimeter Source Meter 24V dc power supply

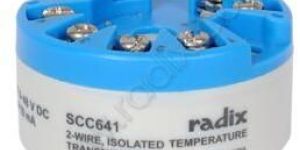

Radix Manufactures fleet of Temperature transmitters like DIN Rail, Head Mounted or Pipe Mounted etc.Transmitters convert low-level input signals from field sensors into a proportional 4 - 20 mA output that is ideal for driving other control instrumentation.

Radix custom designs and manufactures RTDs (Resistance Temperature Detectors) to perfectly fit your requirements. Utilizing PT100 to PT1000 elements, our sensors have a reputation for stability, repeatability and accuracy. From simple applications to the most unforgiving environments, we can build anything you need. Browse our sample set of applications below to get an idea of the wide range we cater to! Radix RTD sensors are generally chosen over our thermocouples in applications which require a higher accuracy and higher repeatability of temperature measurements. Due to their design, our RTDs are also easier to install and calibrate.

Radix custom designs and manufactures RTDs (Resistance Temperature Detectors) to perfectly fit your requirements. Utilizing PT100 to PT1000 elements, our sensors have a reputation for stability, repeatability and accuracy. From simple applications to the most unforgiving environments, we can build anything you need. Browse our sample set of applications below to get an idea of the wide range we cater to! Radix RTD sensors are generally chosen over our thermocouples in applications which require a higher accuracy and higher repeatability of temperature measurements. Due to their design, our RTDs are also easier to install and calibrate.

Radix Manufactures Temperature Controllers of all shapes, sizes and costs. Choose from Autotune PID Controllers, ON-OFF Controllers, Programmable Temperature Controllers, Digital Temperature Controllers and Blind Temperature Controllers. Most of our temperature controllers have universal input and can interface with a wide array of field instruments and signals. We have also incorporated Time-Proportional Control our controllers, a form of pulse-width modulation that makes a ON-OFF or discrete actuator mimic a continuous actuator. As useful is sensor break indication; our temperature

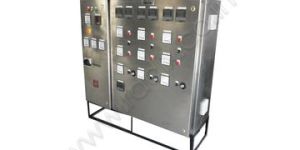

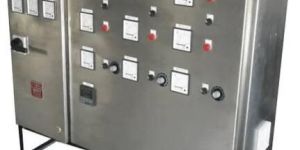

Ideal for Pharma Industry 14 SWG (Doors) 16 SWG (Body) IP44, IP52, IP55 and IP65 protection classes RAL7032 and RAL7035 paint shades

Quality measurement and good equipment are very important parameter to achive Signal integrity. However, even with the best equipment, signals can be of inferior quality if the equipment is not properly installed or it is not protected by signal isolators / signal conditioners. Radix design competency in signal isolation is one of the finest to be found. Radix signal isolators are an outstanding combination of accuracy, frequency response and signal handling. Choose from loop-powered isolators which require no external power supply and have very low loop drops, 3-port signal isolators which not only isolate input signals, but also act as signal multipliers and multiply signals to send to multple field instruments. Some of our signal isolators are HART compatible for effortless two-way field communication, that is achieved through superimposition of digital communication on top of the 4-20 mA signal. Signal isolation devices are use to eliminate ground loop errors caused by noise (ground) and other such signal interference problems.  Signal isolators use one of many electronic methods to interrupt the connections between two grounds while passing the correct signal with little or no loss of accuracy. Without a way for ground currents to flow, these currents can't induce signal errors caused by ground noise.

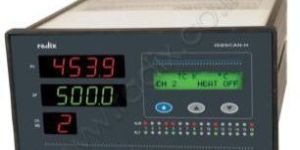

Scanners are highly versatile instruments. Receiving multiple inputs from many different sources, scanners can group those signals to perform intelligent control operations or simply trigger alarms. Choose from the 16-channel ISOSCAN or 8-channel ISOTHERM.Also availabe with FDA 21CFR SCADA version.

Radix Mineral Induslated RTD sensors are made with compacted magnesium oxide (MgO) that make our sensors durable and vibration resistant. This range of products is widely used in industries like chemicals, food and pharmaceuticals. The measuring element in Mineral Insulated RTD can be designed in several configurations and conforms to the IEC 751 standard for RTD sensors. The sensors are made with weatherproof aluminium heads that protect the inner construction. As per the application, these mineral insulated RTD sensors can be constructed of Pt50, Pt100, Pt200, Pt500 or Pt1000; with 2, 3 or 4 wire single or dual assembly; and in Class A or B. Radix Mineral Insulated RTDs with Terminal Head offer high-utility by virtue of the mineral insulated sheaths which can be very long and bent or coiled as per the application. Choose from standard assemblies, free rotating fittings, hex nipples, round nipple connections, NUN assemblies, adjustable compression fittings, fixed flange connections or adjustable flange connections.  Variety of measuring element configurations Bendable sheath up to 50 meters long 50 mm long non bendable tip Temperature range: -50 to 400°C range 3, 4, 5, 6 and 8 mm diameters Different types of terminal heads available SS316L sheath material Copper or Nickel conductors

Radix manufactures two RH+T ON-OFF Controllers, HTC96 and HX96A, for applications involving humidity and temperature control, and two RH Wet and Dry bulb controllers, RHC201 and RHC301, for pure humidity control.

Our reliable rate-indicators are ideally suited for applications involving the measurement of motor speeds, shaft speeds and the like. Receiving input from a wide range of sources such as proximity switches, photoelectric switches, voltage pulses, limit switches and electromagnetic pickups amongst others, these rate-indicators are also easy to program on the shop floor, highly accurate and retransmit isolated outputs.

We are the leading exporter and supplier of this products.

Brand Name : Radix

Choose from our three ranges of multifunction programmable timers; Memory, Non-Memory and Cyclic Timers, that automatically operate a time-based process, counting upwards or downwards. Memory timers have non-volatile memory that stores process information even when the instrument is powered down, or in case of a power outage. Cyclic timers can be programmed for periodical counting. Operators can easily set upto two set-points using membrane keys or push-wheels on the front panel of the timer. All Radix Timers are accurate to 0.01% of a quartz crystal.

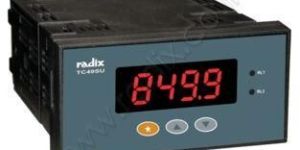

TC49SU is a mid-range programmable temperature controller; feature-rich and cost-effective at the same time. It accepts input from 8 types of thermocouples (B, E, J, K, N, R, S, T), Pt100 3-wire RTD sensors and optionally, 0 - 10 V DC and 4-20 mA or 0 - 20 mA linear inputs. A large LED display on the front of the temperature controller indicates the process value while 2 additional LEDs indicate the status of each of the two relays. Buttons on the front of TC49SU allow operators to easily program up to 2 setpoints for the process value. With an error of only 0.1% of full-scale value, this is a temperature controller of superior accuracy. TC49SU's two electromagnetic relays trigger heating, cooling or full-scale high and low alarms. It also retransmits an isolated current or voltage output signal to other devices such as a Programmable Logic Controller (PLC) or Solid-State Relay (SSR). Signal isolation protects your devices and machines downstream of our instruments from damaging fluctuations in the input signal. TC49SU is conventionally an ON-OFF controller that outputs a discrete signal, but can also be used in Time-Proportioning Mode which turns the actuator on and off for periods proportional to the desired control effort, to emulate a continuous actuator that can generate a control effort between 0 and 100%. This product features Radix's proprietary sensor-break indication technology.

RADIX offers various kind of state of the art Process indicator, suitable for different Industrial applications. The indicator selection criteria varies and depends on many factors like parameter to be measured (like temperature, humidity etc), application like rate indication, totalization etc. and various other factors. Chose from our range of various Process Indicators like Temperature Indicator, Flow rate indicator, Humidity, flow rate indicator, Differrential Pressure etc. All Indicators manufactured meets best of standards and are tested in Industrial Conditions

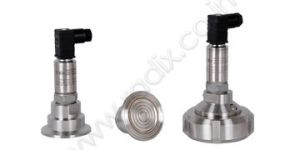

Radix brings onward brings onwards, one of the most excellent quality of Pressure transmitters. The pressure transmitter are used in several applications like- leak testing, flow sensing, level/depth sensing, altitude sensing, pressure sensing etc. we offer these pressure transmitters with an affordable range of price. Used in various types of Industries for measurement and transmission of pressure data  Pump & compressor control Hydraulics Pneumatics Industrial Process Control External tank level monitoring Test equipment Agricultural equipment Refrigeration stand P to I converters Listed Below are the specialized transmitter with different kinds of Process Connections suitable for specific applications.

Radix manufactured Pressure sensors are specially designed fot the optimal solution for the widest range of applications, there is a choice of measuring systems in Bourdon tube, diaphragm element and capsule element technologies. For the various requirements in industrial and process instrumentationthere are pressure elements in copper alloy, stainless steel or special materials available. These instruments cover scale ranges from 0 … 25 mbar to 0 … 1000kgs , and indication accuracies of up to 0.1 %.
