SANDEEP MACHINE TOOLS Sion, Mumbai, Maharashtra

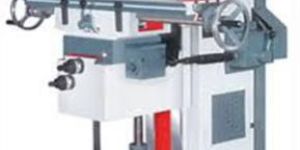

Machine is Suitable for Mass Production Purpose. Auto Feed is provided in both directions for Longitudinal movement of table, Vertical & Cross Movement are hand operated

This is a Mild Steel Fabricated Body heavy duty yet easy to operate Hand operated Manual CMT type Sheet Folding machine having capacity to fold upto 1250mm length x 1.6mm thickness mild steel sheets. The machinie is very versatile with excellent design features making the operation of this folding machine easy and adjustable to suit the job requirement. The upper beam is supported by operating handle on one side and adjustable counter weight on the other side. The lower beam has the operating lifting handle which moves easily & smoothly. The entire hand folding machine is mounted on suitable fabricated stand for proper height for ease of operation. The fabricated stand is wider at the base for added stability. The sheet folding machine is supplied with one full length standard finger and others as per requirement can be supplied.

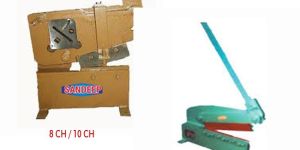

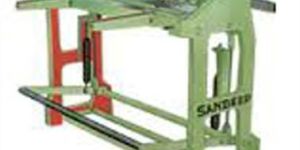

FOOT / TREADLE SHEARING MACHINE

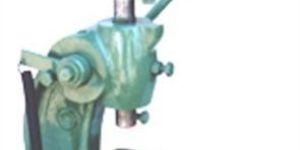

"SANDEEP" heavy duty hand operatred round rack spring controlled arbour press ideally suitable for pressing solid, hollow and eyelet rivelting, staking, flaring, numbering, marking, assembling etc., hence it is extremly useful in all light engineering industries. The press is provided with adjustable stroke automatic spring return of spindle, adjustable spring tensioning device and T slotted base surface.

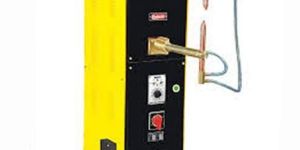

APPLICATIONS - Spot Welding, electro-brazing, cross wire welding resistance heating and soldering. The machines are also capable of welding stainless steel, brass, phosphor, bronze, alloy steels, etc. Specific details can be sought on request.

Rigid Construction hence smooth and Vibration free operation. Fine grained castings and duly Seasoned. All gears are Machine cut and Properly fitted. Extra Accessories : Rotary Table with 36:1 Ration (250mm). Electric Motor True Chuck Switch V-belt

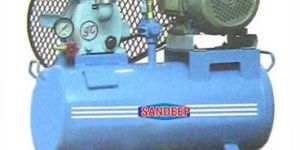

SINGLE STAGE COMPRESSOR

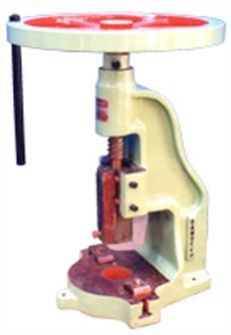

SINGLE BODY FLY PRESS

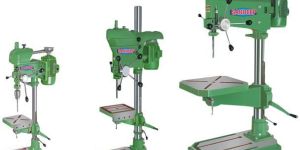

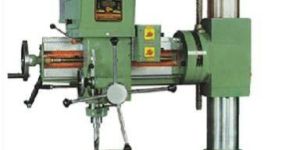

Column, Arm, Work Head & Gears are made out of Closed Grain. Parts Properly Balanced. Prior Assembling of Main Gear & Pully. Parts finished on imported Grinding M/c. All Moving Parts Finished to Close Tolerance. Spindle Ram is made out of Alloy Steel. Main Spindle & Pinon are Made out of EN Forged Steel.

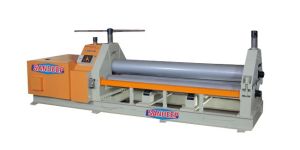

The PBM series 3 Roll Pyramid Type Mechanical Plate bending are designed to cater the basic requirements of bending & forming of metal plates. In this machine, the bottom roles are driven by electric motor & gear box. The upper roll is having manual up & down adjustment to achieve desired bending radius. This is a very simple robust design machine suitable for light to medium jobs.

We are offering rustic tilespower press heavy duty (steel body) 3 ton to 200 ton capacity single and double gear useful to bending , cutting , embossing , punching , deep drawing etc. Etc. Work

Parts Properly Balanced Prior Assembling of Main Gear & Pully Parts finished on imported Grinding M/c. All Moving Parts Finished to Close Tolerance. Main Spindle & Pinon are Made out of EN Forged Steel. Spindle Ram is made out of Alloy Steel.

Applications : Plastic Industries - PET Bottles manufacturing unitsPower Sector - Circuit breaking / making in electricity board & start up apphcaton for D.G. Sets

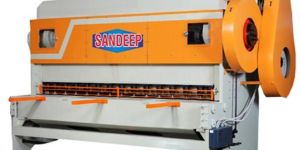

STANDARD ACCESSORIES Foot Paddle Fly Wheel & Gear Guard A Pair of Four edge Shear Blade Setf Lubrication System Motor Pulley Front Gauge Back Gauge OPTIONAL ACCESSORIES Motorized Back Gauge Automatic Lubrication System Squaring Gauge System Vee-Belt Electric Motor & Starter / Control Panel Board Extension Squaring Arm Foundation Bolts

FRAME CONSTRUCTION : Frame Is Made of steel fabricated construction of interlocked robust design, machines are constructed with safeguard against undesired deflections and breakage. The frame distributes the stresses, supporting the bed directly on the frame. The double support shoe of frame gap provides extremely high rigidity, alignment, accuracy and keeps frames structure at right angles to the bed. RAM & BED : Ram and bed are straight and parallel of both the working surface under the rated load. The bed is accurately machined and upper surface is grinded to keep the die in correct alignment. The ram is guided and supported throughout the stroke by accurately machined guide ways. STANDARD ACCESSORIES Foot Pedal and Die Block Lifting Link Self lubricant System Motor Pulley Fly wheel & Gear guard Stroke COunter Standard "V" Block Punch Motor Mounting Bracket OPTIONAL ACCESSORIES Motorized Back Gauge Automatic Lubricant System Vee-Belts Electric Motor & Starter / Control Panel Board Various Type of Die & Punch Foundation Bolts

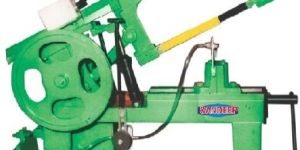

MECHANICAL HACKSAW

Vibration-free and noiseless working. Precised engineering and simple easily accessible controls mean time saving and accurate operation. The Grinding Accuracy on the machine is Guranteed and controls of the machine are within the easy reach of the operator.

Stand. Accessories: Chuck Plate • Gear Set • Centre Adaptor • Dead Centers • Dial Indicator • Square Tool Post • Tool Post Key Optional Accessories: Steady Rest • Follow Rest • Norton Gear Box • Electrical Fittings • True Chuck & Dog Chuck •Quick Change Tool Post • Tapper Turning Attachment • Coolant Pump with Tank & Fittings •Face Plate • Machine Lamp • Rear Tool Post • Key way Milling Attachment • Tool Post Grinder

Machine S bed has unique design in which the Table and the Upright are aligned exactly at right angles. Saddle Is guided on ground V-ways resting for high precision and smooth operations. Wheel Head is mounted On a constructed vertically column Supported by Preloaded precision bearings.Driving pulleys are dynamically balanced.

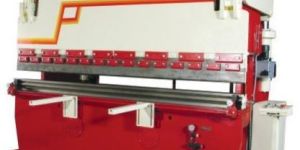

The Stable robust welded steel frame made of ultrasonically tested IS 2062 Plates as per guidelines of lMTMA Standards. Fast approach & fast return speed to save cycle time, slow pressing speed for better stroke control & bending accuracy, ensures high productivity. Compact Cylinders & low pressure system due to rear cylinders. Better rigidity & load carrying capacity against fatigue failure. Positive synchronisation of cylinders with welded torque tube. Moving work station with ON/OFF Controls, Emergency push button & selector for Manual, Semi-Auto & Automatic mode for easy operation & Safety. Better Safety for operator & machine. Low power consumption. NC upgradation available. Low Noise & Smooth Operation give higher efficiency of operator.

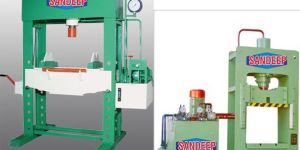

STRUCTURE The Presses have good rigid structure for accurate works POWER PACK UNIT: Our Presses are powered by specially designed Power Pack Unit having Oil Breather (Hydroline), Oil Level Indicator (Hydroline), Suction Strainer (Hydroline), Gear Pump (Bosch Rexroth), Flexible Coupling (Jeck Tech), Electric Motor (Crompton / Siemens), Hand Lever operated Direction Control Valve (Bosch Rexroth), Pressure Gauge (Air Master), Return Line Filter (Hydroline), Oil Tank (without oil), Internal & External Pipe Line etc. HYDRAULIC CYLINDER: Our Presses are powered by specially designed Double Acting Hydraulic Cylinders. Cylinders manufactured out of quality steel. Cylinder Bores will be honed to mirror finish or long life of piston seals. All chevron seals & bronze strip used for leak proof performance Ram will be made from EN-8 material & surface ground hardened for long life of seals & corrosion resistance.

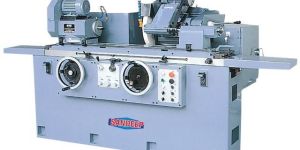

HYDRAULIC CYLINDRICAL GRINDER MACHINE

Size 6 No. & 10 No. A special heavy duty fly press will be fabricated as per the customer’s requirement of peculiar press work. Availability of higher centre distance for the operation. Assurance of high working efficiency and accuracy over longer period of service. SpeciaI Features Easy to Operate & maintain. Sound Construction. Accurate & Precise mechanism. Reliable performance & Price.
