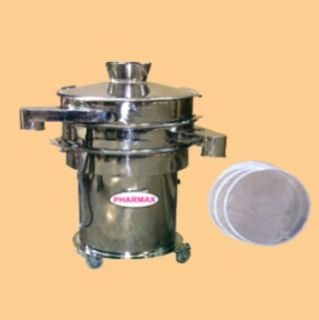

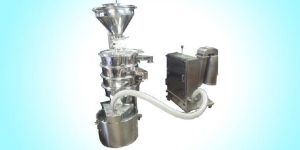

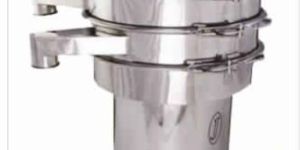

Vibro sifter consists of an assembly of screens with variable mesh size which is ideal for separation and gradation of powder, granules etc. as per the particle size.The machine is designed to achieve vibrations in multiple planes accompanied by a suitable assembly of a vibratory motor having an eccentric weight at the top and bottom ends of the motor shaft. The motor rests vertically at the center of the screen assembly, on a circular base by means of springs which allow for free vibration of the unit. The top weight causes vibrations in the horizontal plane which causes the material to move across the screen towards the periphery of the screen. The bottom weight tilts the unit which causes vibrations in the vertical tangential axis. The angle of lead of the lower weight with respect to the upper weight provides variable control of the screening pattern. Thus the material moves across the screens and also in the vertical and tangential planes enabling maximum screening.           Applications : Pharmaceuticals Chemical Food industry Spices     Salient Features : Ideal for gradation and separation of powder, granules etc Available in various models providing screening diameter of 12”, 20”, 24”, 30”, 36”, 48" Portable and compact design. MOC SS304/316/316L material SS lid with charging ports Easy dismantling and cleaning Wide range of screen sizes 4-300 mesh Double decker arrangement available on request Noiseless operation

SALIENT FEATURES : High capacity & optimum use of space. Process adaptability. Low operating and maintenance cost. Long screen life. Easy for assembly & dis assembly for cleaning & change over of screens. Springs amplify the vibrations leading to reduced motor HP, maintenance & operational cost. Compact unit for easy of operations. Available in two, three & four deck also. TECHNICAL SPECIFICATION : Model : 20" / 30" / 40" Drive Motor : 0.5 / 0.75 / 1.0 HP. Screen diameter : 500 / 750 / 990 mm ( approx.) All contact parts are made out of SS304 quality material. ( SS316 Optional ) D.O.L. starter provided with the unit. Out put : 20" : up to 150 Kgs./ Hr.                  30" : up to 250 Kgs./ Hr.                  40" : up to 380 Kgs./ Hr. ( Depending upon the material properties and the screen size ) Optional : Contact parts are made out of SS316 quality material instead of SS304. Single Deck / Double Deck / Three Deck. Recommended : Wide range of seaves available in sizes from 4 mesh to 150 mesh.

The gas stream enters the Cyclone Separator tangentially. This starts a cyclone action throwing the liquids to the wall of the vessel. The gas comes down to the vortex finder plate, and reverses back up to the gas outlet pipe. In the centre of the vortex finder plate is a hole connected to the top sealed section by a recycle pipe. As the gas goes out, a low pressure area is created by the cyclone effect. This low pressure area is transmitted to the sealed section by the recycle line, and has a suction effect on the gap in the outlet pipe. Any remaining liquids are pulled through this gap and returned to the lower portion of the vessel by the recycle tube. These separators will remove 99.9% of all free liquids and solids 5 microns and larger when operated under design conditions.

A] Air Compressor - Spare Parts 1] INGERSOLL-RAND :- [ IR- T-30 SS NL LPG Series ] 2] INGERSOLL-RAND :- [IR- ESV ESH IHE PHE LLE HSE XLE- Series ] 3] ELGI Compressors : - [ ELGI- SC TC THPC HV SS TS HP Series ] B] Other Air Compressors- Spare Parts 1] FOUJI :- [ FOUJI- MB SMB FI FID MBD ] 2] AIR-MARSHAL :- [AIR- MARSHAL- GC-305V , GC-294 , GC-7150 , GC-2595 ] 3] BOSS :- [ BOSS- MB SS SD ST TD TT HT HP ] 4] INDO-AIR :- [INDO-AIR- IA IAV ] 5] JK PNEUM :- [JK PNEUM- 25S , 50S , 75L , 100L , 75H , 150H ] 6] PARKEEN :- [ PARKEEN- SA SB SF SS SV TCA TCB TCI TCK ] 7] PNEUMECH :- [ PNEUMECH- PM PMF ] 8] ZEN AIR :- [ ZEN- 75H 150HH 75L 125L 25S 50S ] C] Screw Compressor - Spare Parts 1] Ingersoll-Rand ELGI Atlas - Copco CP Kirloskar Khosla Kaser Sullair Boge D] Refrigeration Chilling Compressor - Spare Parts 1] Accel Sabroe Carrier Voltas Grasso Kirloskar Stal Thermoking Trane Vilter All the Models Refrigeration Chilling Compressor Spare Parts E] Marine Compressor - Spare Parts 1] Sperre Tanabe Hatlapa Hamworthy All the Models Marine Compressor Spare Parts We do Export our product to Asian countries, Middle East, America, Canada, Europe etc. Countries. We aim to explore new avenues and conquer new frontiers. SUBHADRA ENGG. CORPORATION.

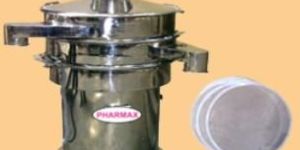

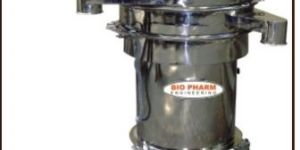

The Vibro Sifters are widely used in chemical, food processing and other Industries, for continuous gradation. This equipment’s are based on the principle of systematic Gyratory movement of the particles on vibrating screens. The structuring of the machine has been designed in order to achieve the multiple plane vibration by suitable assembly of the specially designed Vibratory motor (constructed for this purpose) having eccentric weight at the top and bottom ends of the motor shaft. The motor is mounted vertically at the centre of the screening assembly, on a circular base by means of springs, which allow the Unit to vibrate freely. The springs absorb the vibrations and prevent them to be transmitted on the floor.

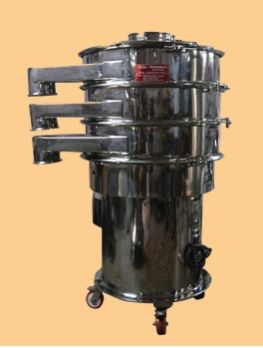

The D.P. Vibro Sifter is a circular highly efficient gyratory screen with adjustable multiplane three component mechanical vibration. The heart of Vibro Sifter is the robust specially made vibrator motor which is designed for long trouble free continuous operation. The vibrator motor has double extended shaft fitted at each end with variable eccentric weight. Motor is rigidly mounted on circular vibrating table on rugged springs. Number of interchangeable spacing frames having discharge outlets along with tensions rings fitted with screens cloth can be mounted one on top of the other, on the Vibrating table with the help of clamp rings. D.P. Vibro Sifter is the most efficient screening machine for any dry and wet sieving application.

Vinayak�s Cyclone Separator is simple, low cost and efficiently designed for high performance. These are generally used for removing dry solid particle from air without the use of filters through vortex separation. We offer high quality Cyclone Separator that is appreciated by our clients across the globe. They are mainly divided into two classes: Single cycloneMultiple cyclone Working Principle : High speed rotating (air) flow is established within a cylinder and conical container to separate mixtures of solids and fluids. Air flows in a spiral pattern, beginning at the top inside the cylindrical shape and ending at the bottom inside the conical shape. Solid particle losses its velocity before exiting the cyclone from the top and solid particle gets collected at the bottom , only clean air exit from the center. Application : Rubber industriesPlastic IndustriesPharmaceutical industriesFood and related industriesChemical industries Benefits : Removing dry solid particle from air the use of filtersEasy to useLow operating cost

Coin Sorting Machine, Royal Mahogany Door, Fire Resisting Record Cabine

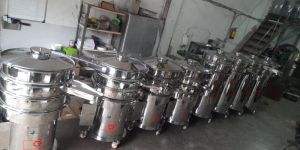

Vibro Sifter Machine, Pharmaceutical Machine

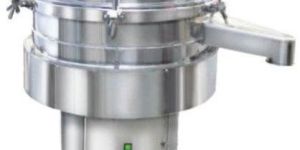

Owing to perfection and quality oriented approach, we have carved niche in the industry by offering an enormous grade array of vibro sifter. Offered powder section products are manufactured using high grade factor input and advance technology by our skilled professionals.

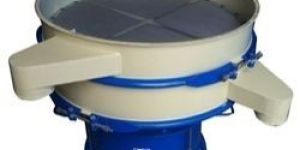

Gyro Screen, Sieve Tray, Vibro Scree

Coating Pan, Vacuum Tray Dryer, Double Planetary Mixe

Easy dismantling and cleaning. High degree of surface finish. Double Deck arrangement can be provided. MOC SS 304 316 316L. CGMP With documentation.

Nozzles, Brass Product, Fire Extinguishers, Fire Hydrants, Gas Manifold

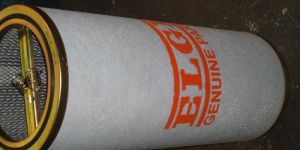

Air Compressor Separator, Air Compressor Gaskets, Helical Speed Reducer
