Separating Machines Dealers in Vile Parle, Mumbai

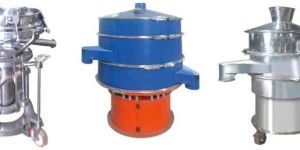

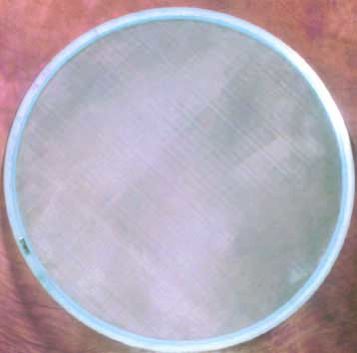

We are engaged in manufacturing of Vibro sifter machines & Vibro sifter clamps in various sizes & MOC according to the clients requirement. The basic application of Vibro sifter machine is for separation purpose of dry & Solid liquid which can used accordingly as per clients requirement for various purpose for separation or clarification of liquids. Vibro sifter are used in various industries such as Process Industries, Food Industries, Chemical Industries etc. The use of Vibro sifter extensively depends on client needs. Product Specification : MVS24 : Size - 24’’ Screen - SS304 & SS316(Size according to client requirement) Capacity Charging Height Discharging Height Motor - Electric Vibratory motor. Vibro Clamp - SS304 & SS316(According to client requirement) Gasket - Teflon/ Food Grade Neoprene Net Weight Machine Dimension Power Supply MOC - SS304 or SS316.(According to clients requirement).   MVS30 : Size - 30’’ Screen - SS304 & SS316(Size according to client requirement) Capacity Charging Height Discharging Height Motor - Electric Vibratory motor. Vibro Clamp - SS304 & SS316(According to client requirement) Gasket - Teflon/ Food Grade Neoprene Net Weight Machine Dimension Power Supply MOC - SS304 or SS316.(According to clients requirement).  MVS48 : Size - 48’’ Screen - SS304 & SS316(Size according to client requirement) Capacity Charging Height Discharging Height Motor - Electric Vibratory motor. Vibro Clamp - SS304 & SS316(According to client requirement) Gasket - Teflon/ Food Grade Neoprene Net Weight Machine Dimension Power Supply MOC - SS304 or SS316.(According to clients requirement).  MVS60 : Size - 60’’ Screen - SS304 & SS316(According to client requirement) Capacity Charging Height Discharging Height Motor - Electric Vibratory motor. Vibro Clamp - SS304 & SS316(According to client requirement) Gasket - Teflon/ Food Grade Neoprene Net Weight Machine Dimension Power Supply MOC - SS304 or SS316.(According to clients requirement).

Centifugal Seperator, Cyclone Seperator & Sand Seperator Cyclone Separators are also known as Sand Separators or Centrifugal Separators. They require a minimum operating pressure of 2 kg/cm2. This filter does not contain any moving part or any filtration media hence there is zero maintenance and no choking of filter which leads to extremely low to zero pressure drop values.

Vinayak�s Cyclone Separator is simple, low cost and efficiently designed for high performance. These are generally used for removing dry solid particle from air without the use of filters through vortex separation. We offer high quality Cyclone Separator that is appreciated by our clients across the globe. They are mainly divided into two classes: Single cycloneMultiple cyclone Working Principle : High speed rotating (air) flow is established within a cylinder and conical container to separate mixtures of solids and fluids. Air flows in a spiral pattern, beginning at the top inside the cylindrical shape and ending at the bottom inside the conical shape. Solid particle losses its velocity before exiting the cyclone from the top and solid particle gets collected at the bottom , only clean air exit from the center. Application : Rubber industriesPlastic IndustriesPharmaceutical industriesFood and related industriesChemical industries Benefits : Removing dry solid particle from air the use of filtersEasy to useLow operating cost

Cyclonic separation is a method of removing particulates from an air, gas or liquid stream, without the use of filters, through vortex separation. Rotational effects and gravity are used to separate mixtures of solids and fluids. The method can also be used to separate fine droplets of liquid from a gaseous stream. Dust laden gas or air enters the collector tangentially and follows a spiral path to the bottom of the cone. The centrifugal force created by the circular flow throws the dust particles toward the wall of the cyclone. After striking the wall, the combination of the gravitational and swirling forces causes the dust to move downward to the dust outlet. Pressure drop for normal operation is about 3 – 4 inches of water. They are very efficient in collecting dust particles down to 30 microns in size. Efficiency of the equipment depends on the material being conveyed, material/air flow rates, and cyclone design. Depending upon the application, cyclone separator can be designed in single, twin and quad arrangement and multiclone. Applications • Steel Industry Blast Furnace, Electric Arc Furnace, BOF, etc • Fertilizer Industry Phosphate Rock Dryers & Calciners, Dryers • Non-Ferrous Copper Reverberatory Furnace, Laea Blast Furnace • Pulp & Paper Lime Kilns, Back Liquor Recovery, Bark Boilers • Sugar Industry Boiler Flue Gas, Bagging Section • Mineral Products Asphalt Stone Dryers, Cement Kilns • Pharmaceuticals Tablet Coating Fans, etc

Seperation of solids from solids, liquids from solids and gradation of materials in accordance with their sizes have always presented problems, especially when large quantity of material is to be processed through finer screens.

The gas stream enters the Cyclone Separator tangentially. This starts a cyclone action throwing the liquids to the wall of the vessel. The gas comes down to the vortex finder plate, and reverses back up to the gas outlet pipe. In the centre of the vortex finder plate is a hole connected to the top sealed section by a recycle pipe. As the gas goes out, a low pressure area is created by the cyclone effect. This low pressure area is transmitted to the sealed section by the recycle line, and has a suction effect on the gap in the outlet pipe. Any remaining liquids are pulled through this gap and returned to the lower portion of the vessel by the recycle tube. These separators will remove 99.9% of all free liquids and solids 5 microns and larger when operated under design conditions.

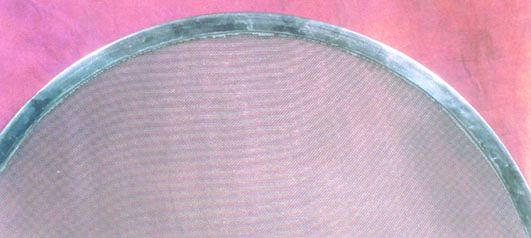

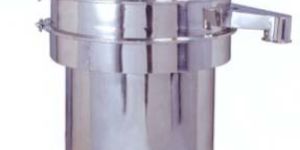

Improved mechanical sieving unit with newly designed spring mechanism facilitates free movement of the particle  on the screen. Gradation will take place according to the mesh size of the screens provided. Mostly Used For: Pharmaceutical Powders, Cosmetics, Bulk Drugs, Metal and Ceramic Product, Food Products, Liquid Slurries, Paints, Granules, straining of suspended particles from liquid etc. Sizes Available: 300 mm, 500 mm, 750 mm, 900 mm, 1200mm, 1500 mm in single deck, double deck, triple deck etc.

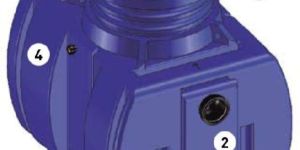

Classes of separators: There are 2 classes of separators:  Class 1: with coalescing filterResidual content lower than 5 mg/l according to essay standard EN 858.Class 2: without coalescing filter Residual content lower than 100 mg/l according to essay standard EN 858. Choice of the treatment    The tank Advantages 1. High mecanical resistance: tank in HDPE round shaped. Wall thickness between 8 and 12 mm.2. In and outlets in HDPE adaptable to PVC.3. Round extension shafts Ø 630 mm: easier to inspect. One single cover for all sizes of separators.4. Sludge trap really proportionned according to standards EN858-1.5. Filter is easily removable from the outside (without entering the separator). Greater ease of handling thanks to frame and handle in stainless steel. Hydrocarbons have a longer way inside the separator: filter is off-centered. Hydrocarbons rejects < 5 mg/l.6. “Intelligent” patented float: no human interference for filling operation. Float with low water inlet: better output (patent 2002/0538).7. Waterproof guarantee: no outer screws (internal screws thanks to inserts).8. Pre set-up of the sampling unit (option).9. Handles.10. Lifting eye bolt.

SIFTERSuitable for separation of solids from solids,  liquid from solids & can be used for gradation of material in accordance to their practical sizes. Machine Is useful in Chemical, Pharmaceutical, Dye stuff, Pigments Cosmetics, Food, Resins, Fertilizers, Points, Minerals Industries.Available Size  12” TO 72” MOC:-MS,SS 304, SS316, SS316L

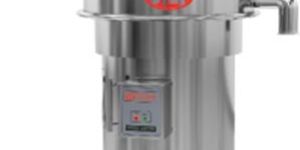

We are engaged in manufacturing and supplying vibro sifter. Applications: Abrasives, Biscuits, Cattle Feed, Ceramics, Chemicals, Cellulose Powder, Detergent Powder, Edible Oil, Effluents, Fertilizers, Food Industry, Metal Powder/Shot & Grits, Pharmaceuticals, Polymer Resin/Plastic, Paper, Paints, Refractory, Starch Slurry, Sand & Glass, Spices, Salt, Tea etc.

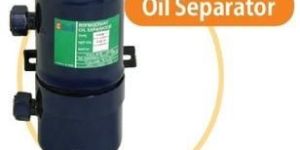

Oil Separators are designed for installations on commercial refrigeration systems and on civil and industrial Air conditioning plants.

Newly improved mechanical sieving unit – 1 and new designed spring action transfers the movement of the particle and tries to move as per the patterns which are formed on the screen. Gradation will take place according to the mesh size of the screens provided.   Mostly Used For : Pharmaceutical powders, cosmetics, Bulk drugs Metal and ceramic product , food products, liquid slurries, paints, granules chips straining of suspended particles from liquid etc.   Sizes Available : 300 mm , 500 mm, 750 mm , 900 mm , 1200mm, 1500 mm in  single deck, double deck, triple deck etc.  Advantage :  Energy  Saving, Maintenance Free, Easy Dismantling and Assembly, No Rubber Parts, Useful for continues Process, Better out put.

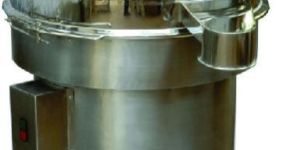

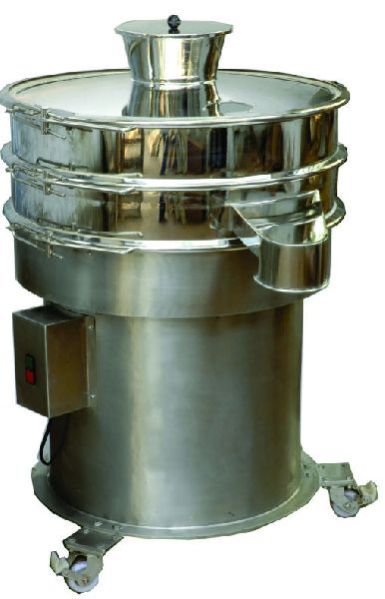

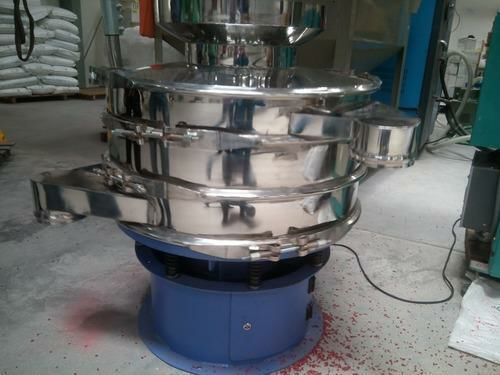

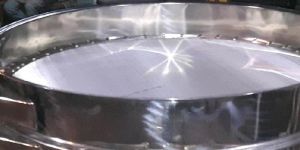

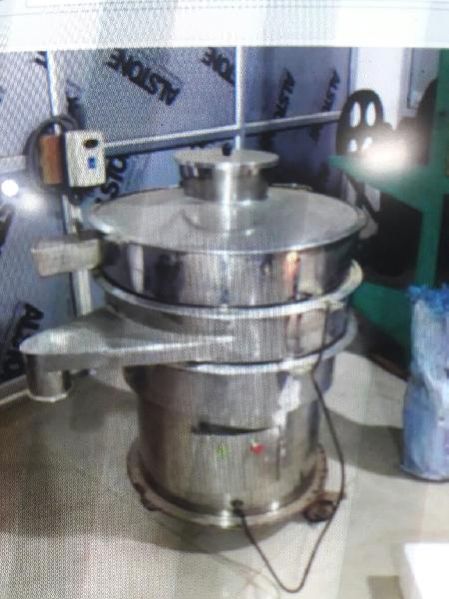

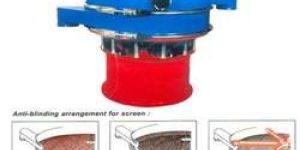

Vibro separators are circular gyratory screens used to separate solids from solids and liquid from solid. Vibro Sifter consists of Specially Designed Motor mounted vertically at the center of the base plate of the Screen. The Screen is in between feeding hopper and bowl. The material is fed on to the centre of top screen. The undersize material passes rapidly through the screen during its travel to the periphery. The over size material get continuously discharged through a tangential outlet. This is achieved by specially designed Vibratory Motor along with eccentric Top and Bottom Weights.

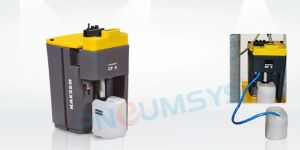

  The Kaeser aquamat oil water separator helps in the removal of scattered oil with an acceptance from Deutsche Institute for Bautechnik (DIBt). The organization authorize legalized amenable treatment for condensate directly where it appear and without any energy consumption. Some of the incredible attributes of this industrial air compressor oil water separator are :  The electronic level sensors manufactured by us are equipped with compressor blow down oil water separator along with experimented oil pans and frost protection heaters to cater systematized installation necessities. The air compressor oil water separator is designed in such a way that it cuts off the disposal cost to almost 90%. This best air compressor oil water separator can be easily picked up and can be treated by professionals with ease. The aquamat oil water separator enables to dispose fewer amounts of toxins and hence minimizes the typical disposal cost by 90 %. Enhanced Filter Service Life- The entire industrial compressor oil water separator is equipped with robust synthetic fiber a filter that has maximum filtration volume. The exclusive model of CF9 casts an upstream settling chamber which aids the collection of floating oil in an external container by an overflow and hence minimizes the load on the filter and also gives prolonged internal service. Easy Handling- There’s a reference turbidity set that can access the standard of the refined waste water. The model of oil water separator is equipped with a principal filter cartridge and is environment friendly because it can easily be pulled out by the use of handles and can be fixed at a certain place to let it dry clean and operate easily. You can easily buy the separator online and can get myriad benefits and discounts on your purchase. Also you can get comprehensive information regarding its features and can see the customers’ reviews before buying it which can ensure your satisfaction to a large extent.
