Temperature Indicators Dealers in Mumbai

PRODUCT ADVANTAGES Easy to use Most Economical Accurate Can be used by skilled persons Can be used where other methods are obsolete. Stroke work piece with proper THERMOPEN from time to time during heating. Below its temperature rating. the THERMOPEN leaves a dry chalk mark. When the rated temperature is reached the THERMOPENS leave a liquid smear. Alternatively the work piece can be marked with appropriate THERMOPEN before heating begins. When its stated temperature is reached the mark turns to a liquid smear.

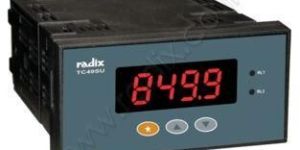

Digitech Instruments Presents Accurately Designed Digital Temperature Indicators. the Digital Temperature Indicator is Manufactured as per the International Standards. We Use Only Finest Quality of Raw Materials to Manufacture These Digital Indicators for Measuring Temperature. We are Acknowledged among the Leading Digital Temperature Indicators Manufacturers and Suppliers.

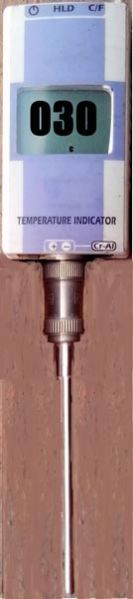

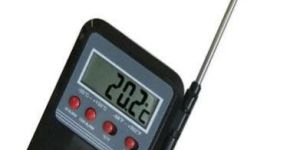

We bring forth Portable Digital Temperature Indicators, which are basically a field thermometer suitable for solar field installations and maintenance jobs. A wide range of fast response thermocouple probes are available to suit any specific needs. The instrument is housed in a molded plastic case and leather pouch.Specifications : Range : 0 - 1200°C cral, 50 - 400°C pt-100 Display : 3 - 12 Digit lcd Resolution : 0 - 200°C, 0.1°C, 1°C above 200°C Accuracy : - + 1%, + 1 digit Cold Junction : Solid State Automatic Compensation Power : Dry Cell 9v dc Battery Low : Indication Available Power Consumption : 400 m watts

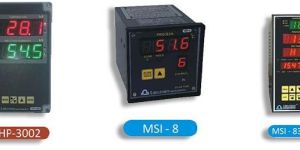

Libratherm offers model THP-300X, micro-controller based (T + Rh + DP) Indicator cum Transmitter with 1” high digital display for long distance visibility and 4-20mA retransmission outputs for T, Rh and DP each. These instruments are specially designed for monitoring and real time data logging of clean room environment conditions. Models are also available without data logging facility i.e. without real time clock and built in memory. Digital interface such as RS-485 or Ethernet are integrated in the hardware to communicate with PC or PLC or HMI. All three types of indicators have built in memory and real time clock to store the T+RH+DP values at regular and programmable time interval. The stored data can be downloaded onto the computer via RS485 or LAN connection. Libratherm offers Window based PC software to monitor and store the data in continuous or batch format for on line or off line viewing and analysis in tabular or graphical format. The software allows user to prepare the batch report with desired fields such as product name, batch name, customer name etc. The THP series has built in flash memory to store real time 20000+ records.

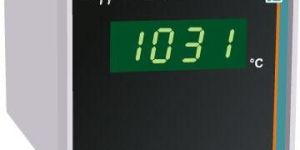

Winding temperature indicator : the winding is the component with highest temperature within the transformer and, above all, the one subject to the fastest temperature increase as the load increases. Thus to have total control of the temperature parameter within transformer, the temperature of the winding as well as top oil, must be measured. An indirect system is used to measure winding temperature, since it is dangerous to place a sensor close to winding due to the high voltage. The indirect measurement is done by means of a built-in thermal image.

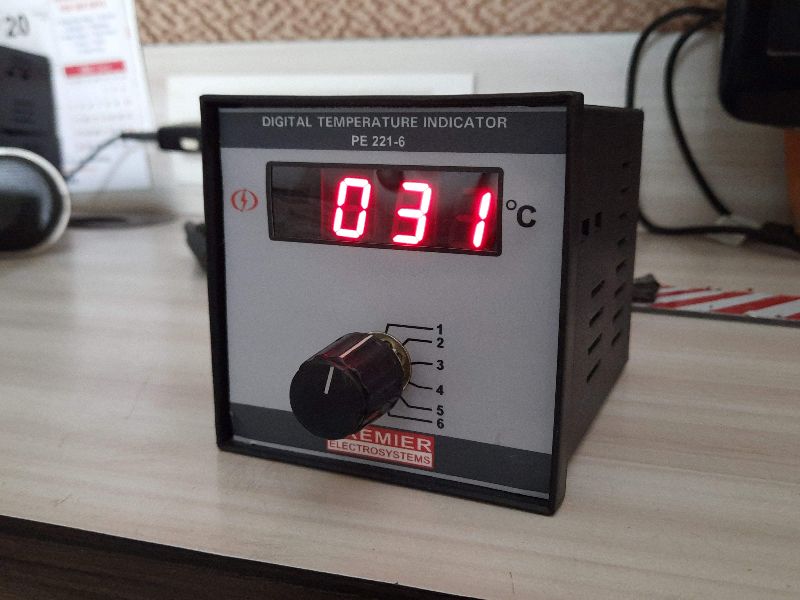

Six point selection switch is available to select the channels. The selector switch is heavy duty & zero contact resistance. Highly accurate & reliable Glass Epoxy single board design Thermocouples, RTD's & other inputs Wide temperature range

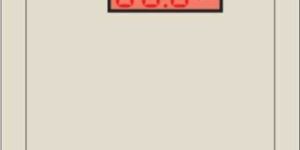

We Offer Humidity & Temperature Indicator. HTI-01 is a unit, which provides an integrated measurement solution for HVAC control systems. The unit interfaces directly with a humidity sensor and temperature input provides local indication of Humidity & Temperature. Feature • Input 1 : 0-10V DC Humidity sensor proportional to 0 to 100% RH. Impedance > 100 Kilo ohm. • Input 2 : 0-10V DC Temperature sensor. Range 0 to 50oC. • Display : Two separate display for indicating Humidity and Temperature. • Resolution : 0.17 Rh & 0.1oC. • Accuracy : 1.0%. • Auxiliary Supply: 24V AC or 240V AC, 3VA max. • Dimension: 120mm x 210mm x 50mm

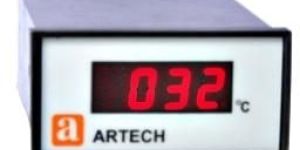

INTRODUCTION  Normally any process industry requires measurement, monitoring and control of various process parameters such as temperatures, pressure, flow etc. DIGITAL TEMPERATURE INDICATORS These are resistance temperature detectors with PT100 sensor. The display is digital LED display with 31/2 digit output and resolution of 0.1 o C. There are available with total range 0-999.9 o C. Flame proof and none two point controllers are also available. One point and two point controllers are also available for annunciation or for on/off controls.

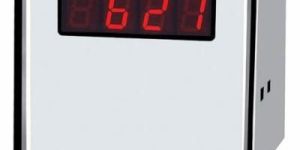

Libratherm offers Linearized Temperature IndicatorController for very accurate indication and control of temperature within the accuracy of ± 1oC or ± 0.1oC using software linearization technique. The non linear curve of the temperature sensor is linearized by computer generated software and are stored in the high density EPROM. All versions of controls like ONOFF, Time Proportional or Proportional action are available.ApplicationHeat treatment Furnace Oven control Star Delta change over of heating coils Police protection with PIDProgram controller Constant temp. bath Environmental chambers Research & Dev. Centers for CRYOGENIC applications. Cold storage and Chilling plants Laboratory equipment …..etc.

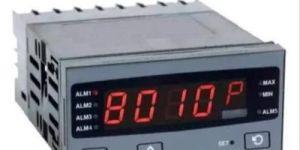

EK490 is a Digital Temperature Indicator accepting J and K type thermocouples, Pt100 RTDs, millivolt and 4 - 20 mA current input. The large 3½-digit display indicates process temperature. EK490 is accurate to 1% for thermocouples, 0.2% for RTDs and 0.1% for linear (current or voltage) input. The indicator has zero wiring, a very reliable and stable design.

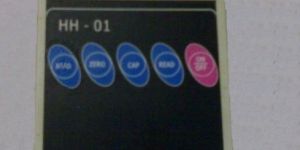

Display: 2 Line LCD module with backlights Unit: Programmable as required Selectable filter: Upto 8 Degree Input: Full bridge , 4 to 20mA, Voltage upto 10V, Half bridge Function: Mode, Zero, Unit , Maxmin, Peak etc Output 1: RS232 Internal Power: 9V PP3 battery MOC: ABS PC Power Supply: 190VAC to 250VAC for SMPS adapter No. of Key : 5 No. Firmware: Programmable as per requirement.

We have carved a niche in the industry for our finest quality of Digital Temperature Indicator, and we pride in offering a diverse range of Digital Temperature Indicator at low market cost. Our team of skilled experts efficiently processes the Digital Temperature Indicator using advanced technology, and latest equipments. Due to their outstanding features and unmatched quality, these Digital Temperature Indicators are in high demand, and widely loved by the clients across the globe. While the Digital Temperature Indicators quality tested, and guarantee reliable and hassle-free performance, we source them from trusted and reliable vendors in the market. We are located in Maharashtra, India.   Features : Engineered designs Quality tested Reliable performance  Other Information : Pay Mode Terms - L/C (Letter of Credit), T/T (Bank Transfer) Port of Dispatch - Ahmedabad, India Delivery Time - As per the Order Packaging Details - Export Packing (As per the Suitable in Air/Shipping/Cargo Consignment)

On exposure to 0 deg.C / 32 deg.F, irreversible center circle window color changes from Green to Red. Users can see when a freeze event or descending temperature breach. Freeze Check - Irreversible Descending or Freezing Temperature Indicator quickly provide a clear visual alert when products have been exposed to temperatures that have fallen below 0 deg.C or 32 deg.F.   Ease of UseFreeze Check temperature indicators are small, efficient, self activating and easy to use.When the indicator has been kept above the threshold temperature, the indication window remains green. CommunicationThe label 's indicator changes irreversibly from clear to white and the green check mark is no longer visible, so you can tell with a quick glance if the product has been exposed to sub-freezing temperatures. Designed with a flexible, self-adhesive label, they easily apply to any number of surfaces for an economical, yet high quality solution
