Ball Valves Dealers in Goregaon East, Mumbai

With the leading market standards and customers' demands, we have developed a system that allows the clients to pay in online and offline as per their preferences. Stay rest assured for the products that we offer as they will remain damage free. For this, we make use of only premium packaging material for the packing of the products. Features: Positive shut off Longer life Quick in action No lubrication

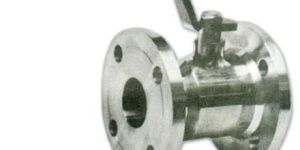

We are one of the well known Stainless Steel Flanged End Ball Valve Manufacturers in India. Our Flanged End Ball Valve is of superb quality and finish. Stainless Steel Flanged End Ball Valve has a compact design, full port, reduce port (as per the requirement of the client), and mirror finish smooth ball. Our One Piece Flanged End Ball Valve is made of solid S.S./ M.S. material, has P.T.F.E. seat and available in size of 1/2" to 2". Our Flanged End Ball Valve is widely used in chemical, dyeing, jute mills, cement, and other capital industries. Details Size : 1/2" To 2" in FLANGED.Type : Full port & Reduce port.Seat : P.T. F.E.Material : Solid S. S. / M. S.End Connection : B. S. 10, CLASS - 150.

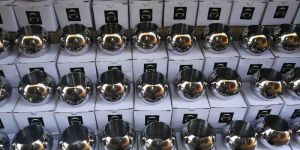

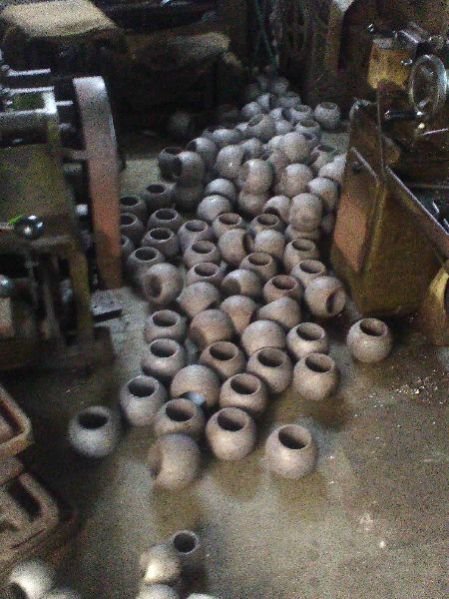

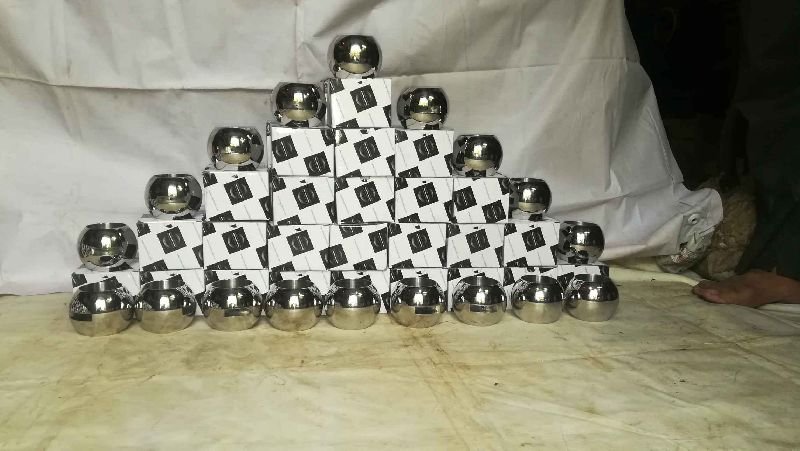

We make Balls for Ball Valves from IC Casting or from S.S bar stock. For different OD Size and ID Size. Different pressure.Any material like stainless steel, Ferrous Casting, Non-Ferrous Casting, Brass, Monal, Aluminium, Copper, Gunmetal, Teflon Etc.

Body Materials: SS 316, SS 316L, SS 321, Duplex 2205, Titanium, Alloy 400, Alloy 625, Alloy C-276. Pressure Rating: 3000psig (203 bar), 6000psig (413 bar), 10000psig (690 bar) @ 38°C (100°F). Temperature Rating: -53°C (-65°F) to 232°C (450°F) with standard PTFE packing, up to 648°C (1200°F) with Grafoil packing. Size: 1/4″ to 1″, End Connection: NPTM/NPTF, Tube to Tube. Threads with smooth surface finish avoid galling and help to extend the fitting service life.

Delivering the best in class products, we ensure that the range is in compliance with the International Norms. Each consignment of ours is packaged carefully utilizing premium packaging supplies and technologies in order to maintain the products' environment and quality during shipping and handling.   Our Features : Design  -  Two piece ball valve Fire safe Blow out proof stem construction Material - CS ASTM A 216 Gr. WCB, LCB, LCC, CF8, CF8 M etc. Ball & trims - SS 304, 304L,316,316L,monel Seat - PTFE, GFT, CFT Action - Manual, Lever, Gear operated with pneumatic Actuator Rating - ASA 150, 300, 600, 900, 1500, 2500, Ends conn. - Flanged ends but weld Port - Full & Reduce Mfg. - BS 5351/B16.34 /API 6D - ISO 14313/ API 609/MSS SP 72 Testing - API 598 / BS 6755 Application - Air, Gas, Water, chemicals, Pharma, oil, acid, steam, Foods, vacuum, heat treatment ,paper & sugar industries

Available with a T or L-drilled ball. Female/Female/Female threads Lever handle in aluminium Body in nickel-plated brass Minimum and maximum working temperatures: -20°C, 150°C, in absence of steamThreads: ISO228 (equivalent to DIN259 and BS2779)

We offer Hydrogen Service Ball Valve. Model BL-F-2-RF-F-A1A2 Size 15-150mm Bore Regular Full bore Seat PTFE RPTFE PEEK Ratings 150 & 300 Class Ends Flanged

A range of stainless steel ball valves for sanitary applications in Pharma,Drug,Food, Beverage, Cosmetics, Dairy and Allied Industries.Ball valves are engineered to be a true process piping component to specifically meet the demanding processes found in the pharmaceutical industries which are designed to specifically meet the demanding process where microbial, particle generation and contamination can threaten the outcome of the product. DESIGN FEATURES Manufactured from SS316/SS316L barstock. Two piece and three Piece designs. End connections can be Tri Clover, Burrweld, Flange Thread. Free from uncleanable pockets. Full flow body minimizes line turbulence and pressure drop. Encapsulated teflon seat ensure no contamination.

Jacketed Valves, Hose Pipes, Hydraulic Cylinder, Pipe Bending Machine

Our expertise lies in successfully handling the demands of a wide range of ball valves including High Pressure Ball Valve, Low Pressure Ball Valve and Instrumentation Ball Valve. Backed by well developed manufacturing facilities as well as services of experienced industry professionals, we can deliver these in both standard and customized specifications.

Gemels – industrial ball valve size range: 14'' to 10'' available is ss and cs for low and high pressure 2way 3way 4way ball valves pressure classes ansi 150 to 1500 and api 3000 to 5000, flanged to ansi, uni, and din standards. Fire safe valves

Ball vlaves are available in a variety of body styles, including one - piece, two - piece, three - piece and flanged body construction. Each of these ball valve forms offers specific advantages depending upon the given application. Similarly, they are designed using a wide variety of materials, as required by their application.

Jacketed Ball Valves With Two Oversize Flange Model : BL-J-1-F-F-A1 (150#) , BL-J-1-F-F-A2 (300#) Size : 15-150 mm Bore : Full bore Material : Carbon Steel, Stainless Steel and Alloy Steel Seat : RPTFE PEEK Ratings : 150 & 300 Class Ends : Flanged

The "Tiger" Ball Valves are designed to applicable standard. Only a quarter turn operation is require to close the valve from fully open condition and vice-versa. The inside ball moves on Teflon seals and stem faces contact with the teflon rings. There is low operating torque in the operation of valve for long time. FEATURES One Piece and Three Piece Design, Two Way, Three Way, Five Way Designs. Available in a variety of end connections. They are used in two way as well as three way design with bottom entry and other outlet ports in the same plane. Panel mounting available as an option. Low operating torque. Floating ball design to ensure leak proof shut off at high pressure. Integral Ball Stem is machined from one single piece for switching model. Hydraulic Test Pressure: (BODY) up to 210 Kg/Cm², (Seat) up to 150 Kg/Cm². Pneumatic Test Pressure: 7 Kg/Cm². Their compact design is ideal for applications that require minimum carry over fluid when switching from port to another. These valves are also used for static and vehicular CNG (compressed Natural gas) applications.  PMI (Positive Material Identification) Test available on request. Standards Followed: ASME B16.11/API 598/608/BS 5351/ISO 17292/ASME B1.20.1/BS 4368 Part IV/BS 5351. Marking and Identification on Valves as per MSS-SP-25. It is used in many hydrocarbon process applications. It is used for throttling gases and vapors and especially for low flow situations. It is used for isolating the flow. (Special requirements available on request)

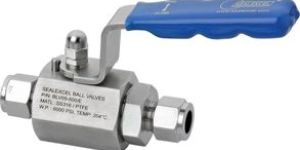

FEATURES       •  Available in SS316•  Heat Code Traceable to certified material test report•  Two piece body design, Bi-directional Flow•  PTFE or PEEK Ball Seat, Bubble tight shut-off•  Anti blow-out stem, Low torque operation•  Floating ball design provides seat wear compensation•  Quarter turn positive stop handle•  Connector thread environmentally sealed•  Variety of end configurations includes•  Variety of end configurations includes SEALEXCEL®     Well-Lok™  Tube Fittings, Male/Female NPT, BSPT pipe     connection•  10 mm bore ball•  Every valve is factory tested OPERATING PARAMETERS Pressure Rating   : upto 4000 psig (272 bar) at CWP with PTFE packing and seat                                 : upto 6000 psig (408 bar) at CWP with PTFE packing and Peek seatTemperature Rating   : -54ºC to 204ºC with PTFE packing and seat                                          -54ºC to 232ºC with PTFE packing and Peek seat
