Butterfly Valves Dealers in Jogeshwari, Mumbai

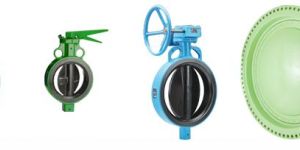

Aquaseal: Integrally-moulded Butterfly Valve in PN 10 Aquaseal - PN 10 – Wafer Type – Size 2”-24”   Aquaseal: Integrally-moulded Butterfly Valve in PN 16 Wafer Type – Size 2”- 24” Lugged Type – Size 2”- 24” Flanged Type- Size 6”- 36”   Aquaseal Plus - Integrally-moulded Butterfly Valve - Class 150 Wafer Type – Size 2”- 24” Lugged Type – Size 2”- 24” Flanged Type- Size 6”- 36”   Aquaseal 25 - Integrally-moulded Butterfly Valve – PN 25   For More Details Please Click Here.   Aquaseal Max - Large-size Fabricated Steel Butterfly Valve   For More Details Please Click Here.   Aquaseal Chek – Dual-Plate (Wafer Type) PN10 – Size 2”- 8” PN16 – Size 2”- 8” Class 125 – Size 2”- 8”   Aquaseal FabChek ( Fabricated Steel Check Valve) PN6 – Size upto 120” PN10 – Size upto 120” PN16 – Size upto 12

Diaphragm Operated Butterfly Valve, which we offer is greatly acknowledged for fine finishing, reliable performance and durability. The valve is made of metals, like SS 304, SS 316, Alloy 20 and Monnel that are known for their ability to withstand pressure and corrosion resistance. Our valued clients can avail butterfly valves in different specifications, suiting their requirements. Owing to our advanced manufacturing facilities, we are capable enough to undertake bulk production assignment.  Specifications : Type : Diaphragm Operated Butterfly Valve Size : From 2" to 36" Design Pressure : Design Pressure Design temperature : Up to 650 Dig. C Body Material : C. I.,C. S., SS 304, SS 316, Alloy 20, Monnel Trim Materials : AISI 410 / 304 / 316 End Connection : Wafer Type Design Actuator Type Spring Diaphragm Cylinder

The Split Butterfly Valves are designed a to minimize atmospheric contamination during transfers of powders. High containment can be achieved during powder charging, discharging, and sampling . This applies particularly to dust free charging and discharging of laboratory, pilot scale and production process.Construction and Working The Split Butterfly Valvesconsists of two separate halves : a driving half (Active) and a driven half (Passive). The System is such that any passive will fit into any Active (non-pressure rated or pressure rated ) of the same size.Within the Active and passive assemblies are two halves of the butterfly type disc. The two halves (Active and Passive) mate together along their axis of rotation. Sealing between the discs is achieved via a metal-to-metal seal at the outside edge of the discs. The disc and shaft design of each half is a solid one-piece component, eliminating crevices and increasing strength when coupled.The coupling process is achieved by inserting the Passive into the Active unit. This can only be successfully carried out in one orientation, as there are four, non equi-spaced pegs about the circumference of the Passive, which locate within slots in the Active body. When the Passive is correctly sitting in the Active, a sprung pin is depressed by one of the Passive pegs, this allows the locking ring to be rotated into the operating position. The locking ring is machined with four cam angles, which force the Passive further down into the active body. This enables the seats on the Passive & Active to come together to form a seal. The disc sealing element is elastomeric which precisely locates into the body and is not bonded, enabling easy removal, cleaning, and replacement Both Active and Passive units are fitted with mechanical safety interlocks, which in normal operation prevent either Active or Passive from being opened when the two halves are not coupled together. Both manual wrench or actuation designs are offered.Advantages of the contamination free isolation valve systems :•Full protection for operator, product and environment. •No cross-contamination . •Reproducible containment levels over long periods. •Quick docking and undocking cycle (

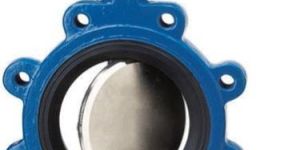

We provide complete range of  Butterfly Valve with different sizes and material to our leading clients.  Butterfly valves are heavy duty material and is used with CI and SS Disc.  AUDCO,SPIRAX,KSB,etc butterfly valve are in ready stock. Features: Optimal performance Sturdy construction Superb finish

Butterfly valves can be welded,screwed,clamped or flange-fitted into the stainless steel lines and can be actuated manually or automatically as needed.Wide choice of end fittings in male/butt-weld combinations to keep installation costs to a minimum while offering maximum flexibility for maintenance.Butterfly Valves offer great durability and ease of use for a wide range of services. Easy to install and maintain, butterfly valves close under pressure to form a leak-tight seal. End Connections: IDF,SMS,DIN,TC Clamp,butt-weld;(special design with mating flanges that butt-weld to the tube). Material: Machined from SS 304,SS 304L,SS 316L bar stock,fully polished as standard.The standard handle or air actuator is also made from stainless steel.Other actuators available to special order. Sizes:To suit tube outside diameters of 1",1½",2",2½"and 4".

We are strongly backed by a smart logistics network owing to which we are capable to deliver the product range in safe and timely manner. We efficiently cater to the varied demands of the clients and offer them personalized packaging options as well. We ensure that the products are packed sternly using quality packaging material to evade loss.   Details : Standard : BS 5155 / MSS Sp.67/Api 709 Rating : 150 Class Type : Sleeve And Linned Body & Flap Options : SS 316 And SS 304 Sleeve Options : Nirile, Neoprene, Butyle, Epdm, Hypalon Silicon, Viton, PTFE, etc.

Rubber Lined Valves, Butterfly Valves, Dual Plate Check Valve

Pneumatic Actuated Butterfly Valves, Solenoid Valve Coil

Air Operated Manual Valves, Dual Press Valve, High Pressure Pneumatic Valv

We are the supplier of this product.

Handle Level Butterfly Valve, PVDF Magnetic Pump, Electrophoretic Membrane

J+j uk offer a range of air operated butterfly from competitively priced cast iron butterfly valves through to double eccentric high specification butterfly valves. With many options available for discs and liners, our air actuated butterfly valves used in a wide range of applications.

AUDCO Slimseal Butterfly Valves, Audco Ball Valve
