Wire Making Machines Dealers in Mumbai

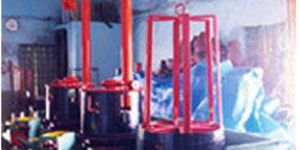

Intermediate Wet Wire Drawing Machines for Aluminium and Copper Wires with inlet of 10 gauge (3.25 mm) and finished wire of 22 gauge (0.7 mm), Die Boxes fitted separately in front of the Step Pulley Type Capstans, Final Winding Drum synchronized in speed and driven by Sprocket Chain.

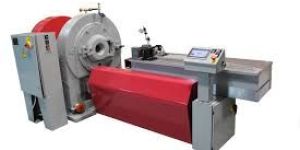

Universal swaging machine is designed for various operations such as swaging, wiring, flanging, jennying, necking or jogging and closing. Arranged for bench or floor mounting. Hand operated or motorized. The bottom spindle is adjustable in the horizontal plane, giving perfect alignment, with a lock to retain the adjustment. Pressure on the rolls is obtained by a hand wheel and screw on the top spindle. Each roll is recessed on the outside face, so that the nuts on the spindle with suitable speed reduction Gears, mounted on stand provided with motorization attachment.

The Drum Twister machine is designed for Laying up of Power cables round, sectorial, preformed or straight. Telephone cables in groups with out limit to the number. The machine consist of 4 Rotating Pay Offs, trumpets for core guiding, sector sensing unit, rotating die holder, taping units, filler bobbin pay-offs flange diameter 630 DIN 46395 with shoe type brake, rotating caterpillar and a rotating take up. Reel Sizes upto 4000 mm flange , both on pay off and take up can be designed, with a maximum weight of 10-15 tons. Reel loading by hydraulic lift platform mechanical.

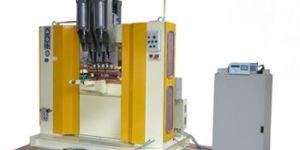

Wire Condenser Welding Machines Salient Features: High Speed of Operation:Specially designed three head design offers very high speeds of operation. Lower Current demand:Three heads operate sequentially covering the complete width of condenser. As a net result of which the number of wires getting welded at any point of time are 1/3rd the normal projection welding machine & thus electrical load is much lower Accuracy of Set down:Welding Heads are specially designed to operate with controlled stroke which helps in getting the desired set down with out damaging the tube and at the same time offers consistent weld quality. Uniform Welding Quality:Force & stoke settable welding heads along with uniform distribution of secondary current gives distribution of Current, pressure & thus consistent weld quality.  Lesser consumption of Electrodes:Design & shape of electrodes is such that maintaining uniform gap between electrodes becomes easy. And thus re machining of electrodes is drastically reduced , which results in higher life. Lower maintenance:All the parts of machine are easily accessible & are designed for long life. As a net result of which maintenance& replacement are down to minimum. Operation & sequence:Fixture provided with machine for a particular design of wire condenser, helps user to locate tube & wires accurately & quickly in position. Light weight design of fixture along with well designed guiding system allows operator to index the fixture manually through the machine line by line with out much effort during operation of machine. After every indexing , three welding heads weld one line in a sequential manner resulting in high quality & consistent weld. After every weld cycle operator can index fixture manually to next weld line. In this way complete wire condenser will get welded in shortest possible time. Machine control: The machine is controlled by a PLC which gives optimized time for each weld, thus improving the speed of the machine, and providing easy diagnostic facility for the machine. The welding is controlled through mechelonic enginerrs make 400 series microprocessor based welding controller with constant current facility thus providing consistent welding quality. The controller has a in built facility for line voltage compensation for fluctuating line voltage     Note :: Machine is normally provided with three welding heads & one 75 KVA transformers, If any particular requirement for 4 welding heads & more than one welding transformers is felt the same can be given. Also as a standerd single phase AC transformer is give, but un option of 3 phase DC transformer is also available.

Foil Winding machine is fully customized to meet the requirements of special designs of dry type and oil cooled transformers. The integrated modular design allows various configurations with multiple foils insulation types coil shapes and material processing functions. This machine has a programmable control system with remote troubleshooting available integrated cold weld and tig weld system upto 2 foils of copper or aluminum. It also have servo of vector main drive system with automatic or manual run features.

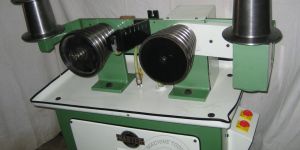

Wire Drawing Machines are available from 3 Blocks to 11 Blocks & 300MM to 600 MM dia. DOUBLE BOX TYPE CONTINUOUS WIRE DRAWING MACHINE FOR NO TWIST can also be offered. All Drawing Blocks are internally water cooled by multi jet spray. The Blocks are manufactured from special quality cast iron.

Saminder Singh Saan the son of Respected Mr Joginder Singh Saan is B.E.(HONS) in Mechanical Engg from London ,UK following the legacy of the family adding a new dimension to the organisation. Taking care of International Business and introducing the new concept of Machine Designing and manufacturing as per the European Standards. This machine produces cotton bail wire knots using striaghtened cut wires as raw material.

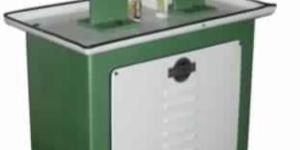

Six pass wire drawing machine for reducing the wire guage of gold and silver wires for use with jewelry. this is an ideal geared type floor model motorized wire drawing machine with arrangement to hold six wire drawing dies at one time. It is the ideal machine for goldsmiths and gold chain manufacturers having requirement for thin wires in large quantity. it is fitted with special self-adjusting wire winding system so that the wire does not break during operation. It is fitted with motorized coolant pump to keep the drawing dies cool for better finish & longer die life. we also have a bench model single pass two speed motorized wire drawing machine. It is supplied with 0.5 hp 220 volt single phase ac elec., motor, switch & v belt. This machine also has a thread twisting arrangement. we also offer motorised draw bench to draw wires and tubes with or without copper insert for making hollow chains and other similar use in gold jewellery and chain production. kindly ask for details.

the production of compression springs. Flexible, powerful, and CNC-controlled, the spring coiling machine is designed for the production of high-precision compression springs in the medium wire diameter range. An economic alternative for the production of all common compression springs, even the basic configuration of the machine is a full-value, highly functional and precise manufacturing device. The modular machine concept allows the individual configuration of equipment to match the production of a wide variety of parts. The electronic spring coiling machine can be upgraded or downgraded to fulfil a specific purpose and can be customised to fit space requirements. For the integration into pre-existing production lines for example. Capable of upgrading to include sorting-flaps combined with camera measuring systems - a conventional camera for spring length measurement or an advanced camera for spring length and diameter measurement - for the purpose of quality control within the scope of zero-error production, the compression springs the machine makes, find application in suspension springs, valve springs, contact springs, garage door springs, springs for the automotive industry, for the electronic industry, for the white goods industry, for medical technology, for mechanical engineering.

Knitted wire mesh machine of the same diameter. Aluminum & Fiber glass are widely used in doors & windows for insect & mosquito prevention. Application of Mesh & Specification of Wire Composition like Mild Steel, Galvanised, Stainless Steel, Monel, Inconel, Titanium, Phosphorus Bronze, Silver & many more along with Diameter varies from Industry to Industry.
