Coil Winders Dealers in Mumbai (33 products available)

• Type: Layer Winding Machine
• Certification: CE
• Weight: 2000-3000kg
• Color: Green
• Voltage: 440V
• Condition: New
• Automatic Grade: Semi Automatic
• Power: 32 Kw
• Driven Type: Electric
• Warranty: 1year
• Brand Name: Jiangsu Bamboo
• Conductor Material: Na
• Insulation Material: Na
• After-Sales Service Provided: Yes
• Conductor Type: Na
• Product Name mig layer winding machine: For 0.80 to 2.0 mm

• Country of Origin: Made in India
• Voltage: 230 V
• Power: 2 HP
• Power Source: Electric
• Body Material: Mild Steel
• Surface Finish: Color Coated
• Automation Grade: Automatic
• Frequency: 50 Hz
• Capacity: 150 m/min

• Type: Cnc Coil Winding Machine
• Weight: 100-1000kg, 1000-2000kg, 2000-3000kg
• Color: Grey, Light White
• Voltage: 220V, 380V, 440V
• Condition: New, Used
• Application: Coil Winding
• Power: 1-3kw, 3-6kw
• Driven Type: Electric
• Warranty: 1year, 2years

• Speed: 1200 RPM

ire Diameter(mm):0.06 to 1.50, 0.06 to 2.50, Wire Diameter(mm):0.06 to 1.50,100, Bobbin Diameter(mm):150,125, Speed: 50003000 RPM 1200 RPM, Motor:0.25 HP DC, 0.25 HP DC.

• Coil Range: Max diameter
• 200mm: Max Length
• 200mm: Min. Length
• 9mm: Wire range (CU & AL):
• 18 to 48 swg*: Centre dist.
• 200mm: Motor
• 1/4 H.P.I. Phase 1440 r.p.m.: Winding Speed
• 375 to 1490 (in 6 steps): Max wt. bet centres
• 5 kgs.: Reel Carriers
• Wire range: (CU & AL) 18 to 40 swg
• Max dia: 150 mm
• Max length: 125 mm
• Max wt. of spool: 5 kgs
• Max coil dia: 200 mm
• Max winding length: 300 mm
• Min. Length: 9 mm
• Wire range (AL&CU): 18 to 48 swg*
• Max Centre dist.: 430 mm
• Motor: 1/2 H.P.I. Phase 140r.p.m.
• Winding Speed: 375 to 1490 (in 6 steps)
• Max wt. bet centres: 10 kgs.

We are engaged in offering Coil Winding Machine, which comes with a digital counter to calculate the number of turns with auto stop and facility of auto traverse for lateral movement. Manufactured using advanced machines based on the latest technology, these coil winding machines provide an appropriate layer by layer winding. Offered machines are automatic and designed to have a longer functional life.   Features : Auto traverse for lateral movement Digital counter to count number of turns with Auto stop Dual spool so that at a time 2 parallel coil also can be made Auto stop if wire breaks or joints in the spool Machine details: Auto lateral traverse movement, can handle wire from 12 swg to 36 swg Drive Motor-1.5 HP Maximum Coil width-80 mm Maximum Coil diameter-350 mm

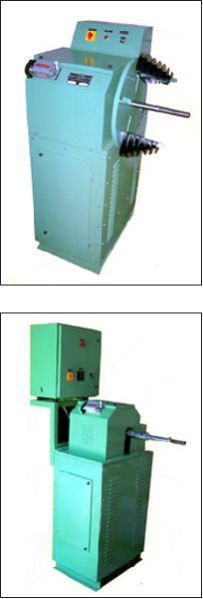

Model MD-1 , Medium Duty coil winding machine for Motor coils upto about 100 KW Automatic stop at pre-set no. of turns. Speed Reduction gears & an electromagnetic clutches are used. It can handle winding fixture AJ-1 with concentric Arbour type UW & type U.Specifications for Medium Motor Winding Machine.→ Face Plate Diameter : 400 mm with 4 slots→ Shaft Extension : 250 mm→ 1 H.P. Motor 3 Phase with electro magnetic D.C. Brake with rectifier.→ Five digit mechanical revolution counter.→ Centre Height : 900 mm→ Vertical type carrier with fibre ring tension device.→ Eleven Pairs of Type "H" Arbours / Fixtures. Model MD-1 , Medium Duty coil winding machine for Motor coils upto about 100 KW Automatic stop at pre-set no. of turns. Speed Reduction gears & an electromagnetic clutches are used. It can handle winding fixture AJ-1 with concentric Arbour type UW & type U.   Specifications for Medium Motor Winding Machine→ Face Plate Diameter : 400 mm with 4 slots→ Suitable Gear Boxes with 2 H.P. Motor 3 Phase with electro magnetic D.C. Brake→ Five digit mechanical revolution counter.→ Centre Height : 900 mm→ Vertical type carrier with fibre ring tension device.→ Eleven Pairs of Type "H" Arbours / Fixtures.

This machine is ideally suited for rewinders. It can wind universal motor armatures (mixer,portable tools,pumps etc.) and ceiling fan stators. The armature winding head is adjustable so is the head for ceiling fan. The machine can handle wire gauges from 22 swg to 38 swg. The number of turns are controlled with an electronic preset counter. The mode selector switch allow you to select the armatureceiling fan mode. This controls the direction of winding for ceiling fan automatically. The main drive is PMDC motor and the winding speed is variable from 0 to 1500 RPM, The machine is easy to use and due to its rugged designed virtually maintenance free.

• Voltage: 440Volts
• Brand Name: GE
• Automation Grade: Semi-Automatic
• Design: Customized

• Functions: 3. The machine with small size, high accuracy, easy operation and high production.

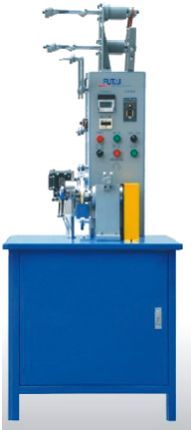

is used to wind a wire into a circular heater. It applies to wire with different diameters, and both single-wire or double-wire are ok.   functions : 1. the principal axis speed controlled by japan mitsubishi transducer. Continuously coils electric resistance and consistent clean-cut ends on the     coils. 2. the machine will produce coils with very consistent resistance values and with open inside diameters for assembly to the terminal pins. 3. when lack of wire or wire is broken, the machine would stop automatically. It also can accumulate the output automatically. 4. wire with small diameter is usually cut by galvanomagnetism while wire with large diameter is cut by cylinder. 5. this machine is of small size, easy to operate, no operator is required. 6. wire with large diameter can adopt double-pinch roller type.   main technical parameters 1. power supply : 220v,50hz 2. rated power : 500w 3. main axis speed : o -2134rpm 4. pinch roller speed : o -74rpm 5. accuracy : +/ ~ 1 % 6. i.d. Of element : 0.75mm -12.7mm 7. wire diamete : 0.1 omm - 0.85mm 8. size (lxwxh) : 1800x700x700 (mm ) 9. weight : 130kg

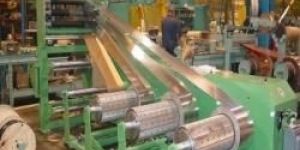

Foil Winding machine is fully customized to meet the requirements of special designs of dry type and oil cooled transformers. The integrated modular design allows various configurations with multiple foils insulation types coil shapes and material processing functions. This machine has a programmable control system with remote troubleshooting available integrated cold weld and tig weld system upto 2 foils of copper or aluminum. It also have servo of vector main drive system with automatic or manual run features.

• Max diameter: 200mm
• Max Length: 200mm
• Min. Length: 9mm
• Wire range (CU & AL):: 18 to 48 swg*
• Centre dist.: 200mm
• Motor: 1/4 H.P.I. Phase 1440 r.p.m.
• Winding Speed: 375 to 1490 (in 6 steps)
• Max wt. bet centres: 5 kgs.
• Wire range: (CU & AL) 18 to 40 swg
• Max dia: 150 mm
• Max length: 125 mm
• Max wt. of spool: 5 kgs
• Max coil dia: 200 mm
• Max winding length: 300 mm
• Min. Length: 9 mm
• Wire range (AL&CU): 18 to 48 swg*
• Max Centre dist.: 430 mm
• Motor: 1/2 H.P.I. Phase 140r.p.m.
• Winding Speed: 375 to 1490 (in 6 steps)
• Max wt. bet centres: 10 kgs.

MAIN TECHNICAL PARAMETERS 1. Power supply : 220V,50Hz 2. Rated power : 500W 3. Main axis speed : O -2134rpm 4. Pinch roller speed : O -74rpm 5. Accuracy : + ~ 1 % 6. I.D. of element : 0.75mm -12.7mm 7. Wire diamete : 0.1 Omm - 0.85mm 8. Size (LxWxH) : 1800x700x700 (mm ) 9. Weight : 130kg
