Conductivity Level Switch Dealers in Pune

(4 products available)
  • Premium

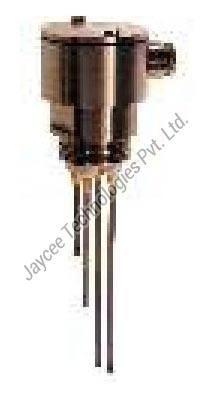

    Conductivity Point Level Switches

    Conductivity Point Level Switches

    Get Price Quote
    • MaterialStainless Steel
    • Ambient Temperature-20 To 60 Deg C
    • Material GradeSS 304 /SS 316
    • Measuring Range10mm To 30 Meter
    • Process Temperature-20 To 100 Deg C
    • FeaturesLonger life, Excellent finish, Superb design, Fine quality
    • UsesDetection Of Conductive Liquids Having Low conductivity.
    • We are known Manufacture, Exporter and Supplier of Conductivity Point Level Switches. The Conductivity Point Level Switches are pioneer work of our expert engineers. The Conductivity Point Level Switches are fabricated using high quality material as per the set industrial standards. We offer the matchless range of Conductivity Point Level Switches to our esteemed customers at very affordable rates. Primary Area of Application Conductivity Point Level Switches are used in processing plants for conductive liquids of conductivity  in Food, Power, Chemicals, Sugar, Detergents, Steel, Minerals, Textiles, WTP and ETP  and very low conductivity such as  DM water, as low as 1 micro siemens. Usage Switching 'OFF' pumps when tank is full, to avoid overflow for maintaining a constant level to avoid material wastage For switching 'OFF' pumps before running dry and indicating an empty tank to avoid wear and tear & production stoppage Measuring System A low Pulse  voltage is applied between the probe electrode and the tank wall (or reference electrode in case of insulated tank). When the liquid comes in contact with the electrode tip, a conductive path is established between the sense electrode and the tank wall / reference electrode. This current is sensed, amplified and made to operate a relay whose contact in turn can be used for annuniciation /control. Salient Features No moving part, free from maintenance No special cable required for signal transmission, economical to install Long cable connection permissible between probe and evaluation unit AC on probes for prevention of electrolytic deterioration of electrodes Low voltage on probe for operational safety Variety of control functions and installation system available, beside single point switching. Two point action for automatic pump control. Two point independent switching Three point switching, two points with pump control logic and one independent point. Four point switching having two-pump control logic Variety of probes available for various process conditions Multichannel , 1, 2,3 and 4 point independent switching available for various process conditions
    ...more
    www

    Jaycee Technologies Pvt. Ltd.

    Shivane, Pune
    GST 16 yrs 4.6 (30)
  • Conductivity Type Level Liquid Switch

    Conductivity Type Level Liquid Switch

    Get Price Quote
    We are listed amongst the most trusted manufacturer, exporter and suppliers of Conductivity Type Level Liquid Switch in Maharashtra, India. This simple and low cost point level controller is widely used for detection of conductive liquids which remains unaffected by liquid density or viscosity. This level liquid switch is suitable for interface level measurement between conductive and non-conductive liquid. This product is used in Process Industry, Sump, Reservoir, Cooling Tower, Water Treatment, and Building Automation & Filtration Systems.   Details : Simple, low cost point level controller for detection of conductive liquids, unaffected by liquid density or viscosity. Suitable for interface level measurement between conductive and non-conductive liquid. Range - 100 to 10000 mm Liquid Conductivity - ≥25 us Wtd Parts - SS304/316 Max Temp - 100oC Max Pressure - 5 Kg/cm2 Contacts - 5A, 250VAC x SPDT Enclosure - Cast Al x IP66, Ex-P IIB Applications : Process Industry, Sump, Reservoir, Cooling Tower, Water Treatment, Building Automation & Filtration Systems
    ...more

    Pune Techtrol Pvt. Ltd.

    Bhosari, Pune
    GST 23 yrs
  • Conductivity Level Switch

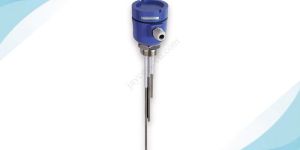

    Conductivity Level Switch

    Get Price Quote
    • Mounting OptionsSide Mount
    • Switch TypeConductivity
    • Media TypeLiquid
    • Country of OriginMade in India
    • Material/BodyStainless Steel
    • AC Voltage260 V
    • Max Temperature200 Degree Celsius
    ...more

    Jaycee Technologies Private Limited

    Shivane, Pune
    13 yrs
  • Conductivity Level Switch

    Conductivity Level Switch

    Get Price Quote
    Conductivity Level Switch, Displacer Level Switch, Capacitance Level Switc

    Sbem Pvt. Ltd.

    Satara Road, Pune
    17 yrs
