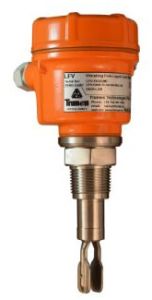

Vibrating Fork Level Switch Dealers in Pune

• Insertion Length: 200-3000 mm
• Wetted Parts: SS304/316
• Max Temp: Up to 200° C
• Max Pressure: 15KG/cm2
• Bulk Density: > 0.5KG/cm3
• Output: 5A, 250 VAC x 2 x SPDT
• Enclosure: Cast AI x IP66 or Ex-P IIB
• Options: Integral, Two part

We are ISO certified Vibrating Fork Level Switches manufacturer in India. We provide a complete guide for principles and usages of our products so that the users can get the best results out of it. Best points about Jaycee’s vibrating fork level switches Full electric auto-driven product. Long-lasting quality products. Available at the most competitive prices. Clear technical specifications. Description of working mechanism. Easy to use, even illiterate people can use this after trying once. GeneralJaycee technology is rapidly growing in order to cover domestic as well as international market for its products. Being prominent Vibrating Fork Level Switches manufacturer in India, our professionals keep the environment in consideration too. This way, our products are more eco-friendly than others and you can recycle our products too.Being the leading Vibrating Fork Level Switches supplier in India, we are the synonym of Quality products. Also, we are open to manufacture or design the product according to the needs of customers. The satisfaction level of our users and customers is our topmost priority. So, we work best in this direction to achieve it and set new benchmarks every year.Salient Features Fast and Easy Installation No Calibration. No effect of electrical properties of the Service material. High Reliability. Suitable for the highly dusty environment. Field selectable operation logic. Can be configured either for High or Low level point switching. Provides economical solutions, Various model not required. Reduces the Inventory cost. Building Industry: Cement, sand and lime (Particle size max 10mm) Function - The complete system, HARP 2000 series, consists of The sensing probe of Vibrating Fork and the Electronic Switching unit. The electronically stimulated fork vibrates at its mechanically resonance frequency of about 125-400 Hz (depending upon the model) when the fork is free of the service material. The resonance is caused by the piezoelectric crystals. One of the piezo crystals produces a small voltage which is transmitted to the switching amplifier. If the fork is covered by the bulk material, a damping effect is produced and the piezo crystal does not produce the voltage and the amplifier will switch and a corresponding signal output is actuated. The vibration of the fork has self-cleaning properties. Applications Pesticide Powder, Powder Dyes, Plastic Granules, Food grains. Cement, Sand and Lime. (Particle size Max. 10 mm) Free flowing application: food Grains Like Coffee Beans, wheat, Soya etc. and salt, Zinc Sulphate, etc. Powder: Milk Powder, Flour, Pesticide powder, powder dyes, Plastics Granules etc. Any free-flowing dry powder

• Operating voltage: 20 … 253 V AC, 50/60 Hz, 20 … 253 V DC
• Power consumption: Max. 0.5 W
• Load current: min. 10 mA/max. 250 mA
• Switching delay: 500 ms (on/off)
• Process-temperature (Standard): -40 … +100 °C (-40 … +212 °F)
• Process-temperature (High temperature version): -40 … +150 °C (-40 … +302 °F)
• Materials, wetted-parts: 316L
• Threaded-connection: ≥ G½, ≥ ½ NPT
• Seal-material: No media contact
• Process-pressure: -1 … +64 bar/-100 … +6400 kPa (-14.5 … +928 psig)
• Viscosity - dynamic: 0.1 … 10000 mPa s
• Density: 0.7 … 2.5 g/cm³ (0.025 … 0.09 lbs/in³)
• Ambient temperature on the housing: -40 … +70 °C (-40 … +158 °F)
• Storage and transport temperature: -40 … +80 °C (-40 … +176 °F)
• Hysteresis approx.: 2 mm (0.08 in) with vertical installation
• Process fitting: Thread from G½, ½ NPT, hygienic fittings
• Domestic current requirement: Approximately 3 mA (via load circuit)
