Electronet Series DPC-100 is Universal Input Process Indicator / Controller specially designed for various industrial applications.These can be used for monitoring and controlling parameters like Temperature, Humidity, Pressure, Flow,speed, Level etc. The measuring range and control points are settable through the keypad on front fascia and control output is available at the rear terminals. Retransmission output and communication port are additive features of DPC-100.

Specifications:- Input:- Thermocouples Pt-100(RTD) Range:- As per application. Indication:- Seven segment LED 3.5 digit 2″ Big Display. Accuracy:- ±0.5% of FSD Operating Temperature:- 0°c to 50°c Supply:- 230VAC 24VDC ±10% Interface:- RS232 Interface. Size:- 280mm×230mm×45mm (W×H×D)

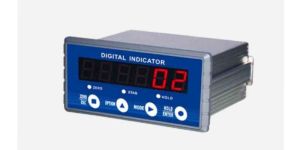

Weighing Capacity: 1 Kg Platform Size: 300*300 mm Display Type: Digital Automation Grade: Automatic I Deal In: New Only Digital Weighing Load Cells Indicator

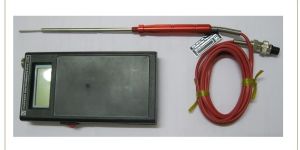

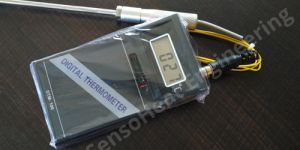

These hand held digital temperatures can be equipped with a Pt-100 RTD temperature sensor thermocouple Universal. We also supplies a wide range of other probes for this instrument. It typically runs on its standard 9VDC battery. A large 3.5 digit LCD display shows your reading. Very easy to operate..

ESD’s Temperature Sensor range includes standard, flameproof as well as mineral insulated type Platinum Resistance Bulbs and Thermocouples along with bar-stock and fabricated Thermowells.These Sensors and Thermowells are available in various shapes, sizes and sheath material for different applications.

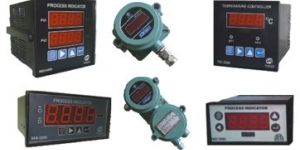

  PROCESS INDICATOR / CONTROLLER Series µCS 2000 Features Microcontroller Based Fully Programmable Universal Input Available with large display sizes Isolated Retransmission Built-in two-wire transmitter supply Field Calibration from front key pad Built-in square root extraction Various Cutouts and sizes Single Chip design for ruggedness and low cost

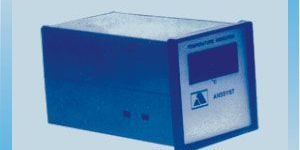

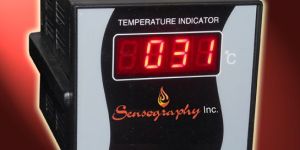

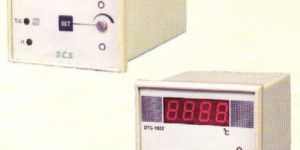

We are highly acclaimed amidst the clients for the excellent quality and reliability of our Digital Temperature Indicator. We have made a strong position in the market as the most credible Manufacturer and Supplier of Digital Temperature Indicator. Our Digital Temperature Indicator has many features such as high accuracy and efficiency, precise engineering, and it can also withstand maximum ambient temperature. Specifications Input sensorThermocoupleIron - constantan (Fe/con) : up to 400oC Chromel - Alumel (Cr/Al) : up to 1200oC and up to 1600oCRTD : Resistance Temperature Detector (Pt-100) low temperature & up to 400oCAccuracy : +/- 0.5% of FSDCompensation : cold junction compensation automatic for all thermocouple modelsRelay Output : one change over relay contact 5 AMP / 230 VAC ratingControl Action : on-off or time proportionalControl version : single set point or dual set pointPower supply : 230 VAC+/-105.50 HzMax. Ambient temp. : 55oCSetting : Keypad / Knob/Push to setSize : 48 x 48, 72 x 72, 96 x 96, 48 x 96

The PI - 100 D series is a compact sized Process Indicator, designed to accept input from any two wire or four wire Transmitter. It has a seven segment, ½”, bright LED Display to read the Process Value in terms of Engineering Units or percent as is desired. The alarms can be set anywhere from 0% to 100 % with both High or both Low or one High and one Low configuration. The Output , 4-20 mA proportional to PV is isolated from input and power connections   ADVANTAGES : • Compact in Size • Field Programmable Parameters. • Linear/ Square Root operation programmable. • 4 Digit Display available to monitor Process parameter • Value from -9999 to 9999. • Isolated 4-20mAD.C. output proportional to Process Variable. Process Indicator with Alarms, PI-100 series • Adjustable Two Alarm Settings with various options of Operation. • Transmitter Supply 24 Vdc suitable for • 2 wire as well as 4 wire Transmitter.   • Serial Interface with Computer through MODBUS RTU.

GENERAL DESCRIPTION The loop powered indicators are designed to display any process parameter like temp, flow,pressure,ph & others. These instruments accepts, 4 to 20 mA DC signal and generates the power from the signal it self. No external power or battery is required.The loop powered indicators are available in flame proof, weather proof, general purpose housing with wall mounting, panal mounting & 2" pipe mounting types. The CMRS certificates as per IS 2148 for flame proof versions are also available with the instrument. The state-of-the art of technology to display the parameter with high accuracy & linearity & low temp.Drift is employed. The range & decimal point are selectable on site with the help of DIP switch. FEATURES Range & Decimal point field selectable by DIP Switch. No need of external power. High accurancy & linearrity and low voltage drop. Flame proof, weather proof, Genaral purpose versions available. High accuracy & linearity. Low loop voltage drop. CONSTRUCTION & OPERATION The glass epoxy, Green mask with high quality component board is mounted on brass studs. The instrument is mounted on a MS plate & this plate with 2" U clamps are fitted on 2" pipe. DIP switch & LCD are visible from outside to adjust & read the ranges. Zero, span trimpots are accessible from outside for ON - line calibration for flame proof versions. The 4 to 20 mA signal generates the power for 1C, & a series resistance generating a voltage drop are fed to display the process parameter. The rangeability is added parameter. The rangeability is added with zero, span calibration trimpots. APPLICATIONS For local indication of process parameter in a huge plant Loop powered indicator is ideal since no power is required. These are used in steel, fertiliser, food, chemical, dairy, rubber & sugar industries.

With the help of our equipped manufacturing unit and skilled professionals, we are offering a comprehensive range of digital temperature indicators. These types of indicators are are especially designed for interfacing with specified rtd sensor and tc. Further, the range is available with following specifications as per the client's requirements.

We are offering process indicator. Protocontrol offers process indicator - controller type pi 350 ls specially developed for large process industries. This indicator displays are suitable for process parameters like flow, temperature, level, speed, ph etc. It accepts signal from field sensors and transmitters. The i/p can be 4- 20 m a, mv or any other. The indication is in the form of 0 - 100 % or any other engineering unit like rpm , pressure in bars, m / min , liters / min, amp, tons. Etc. Alarm and trip outputs are also available if some control action is required. Setting is done with a potentiometer, for this set parameter is indicated when push button is pressed. specification: supply voltage: 230 v ac, 50 hz, input : to be specified while ordering. i/ p: 4- 20 m a, 0 - 10 v dc, m v or resistance. display size : 1/ 2 inch, 1 inch, 2 inch or 4 inch or any other output : 0 -100 % or any other engineering unit setting facility : optional, 1 set point, 2 set point, out put contact: 1 c/o relay contact, 5 amp rating enclosure : front panel mounting / wall mounting

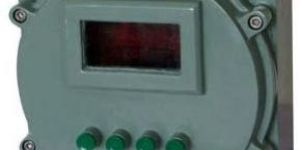

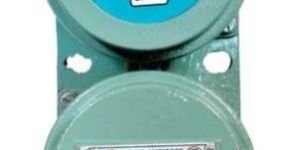

We offer a comprehensive range of flame proof indicators. These consists ammeters, switches, timers etc. They are made from high grade raw materials that are sourced from reliable vendors of the market. The range is made with latest trends of the market so that they will trouble free operations. Clients can avail these from us at market leading prices.

Specifications:  Display   4 digit non-contact (RPM indicator)   Bright red 0.5 seven segment display   Range 1 RPM to 9999 RPM Accuracy +1-1% of FS User programmable speed limit trip point with keypad 2 C/0 relay output rated for 5A@ 240VAC / 28VDC (Resistive) Accept NPN / PNP proximity switch inputs   Inputs 1 pulse per revolutions / Scale Factor Supply 110 V / 230VAC Dimensions

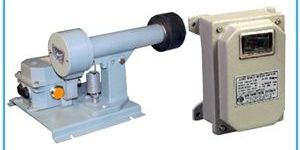

To decrease the pollution created by the dusty condition of the conveyor, Water spraying is done on the conveyor through the nozzles. when these nozzle are activated, Water is sprayed over the conveyor to settle down the dust. these nozzle are activated when the belt is in loaded condition. Hence, This belt loading monitor plays an important roll of ensuring the belt is running with the load and water is sprayed when the conveyor is running in loaded condition of the Belt.     Operation :   The extension stand of belt Loading Monitor is mounted in inclined position to the action of the spring. So that Rubber Roller remain upward & the proximity switch remain OFF. When the Belt is started with Load (material), The belt will press the Rubber Roller downward thereby lifting the Mechanical Flag in front of proxirnity switch. Than Proximity switch gives the signal that can be used as a sense of Belt Loading condition. This detection of the Roller is between 5mm to 30 mm

Offering the best quality Loop Powered Indicators which are manufactured using superior grade material and advanced technology. Our products are known for their accurate results, high efficiency and longer equipment life. We are one of the best known and trusted manufacturers, exporters and suppliers of Loop Powered Indicator all over the country and across international borders. These Loop Powered Indicators are available at competitive prices and with the promise of prompt delivery.

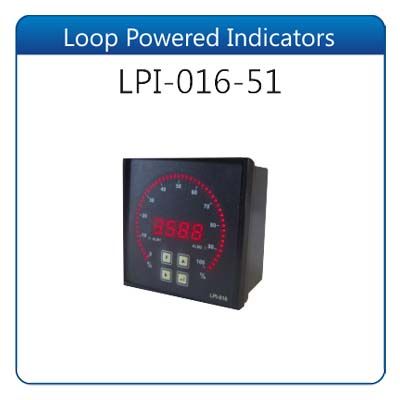

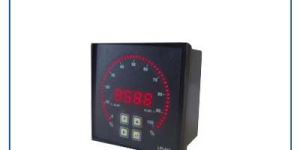

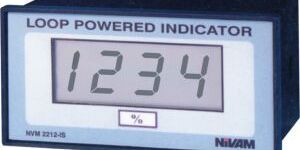

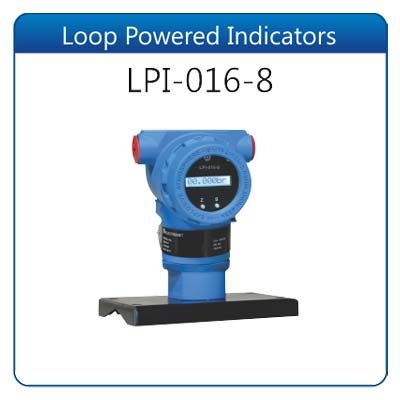

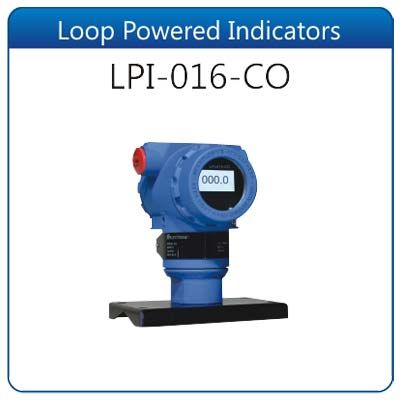

4 – 20 mA Input Loop Powered Indicators Intrinsically safe – Approved Voltage drop less than 1V – Typical Range settable Easy calibration, Span – Zero adjustable 3½ – digit 0.5” or 1” LCD or Available in 4½ Digit 0.43” LCD Available in Ex-Proof Enclosure

Our firm specializes in offering an excellent range of On And Off Controller.This product is mostly used in various domestic and commercial applications. This inventive range of controller is widely demanded in various industries for meeting diverse applications. To maintain previously set industry defined quality standards, the offered product is manufactured using quality proven raw materials and highly latest & advance technology. Also, the product is examined properly by our well educated quality controllers upon distinct parameters of quality.Features: Rust resistance Smooth performance Easy to install
