Sand Filters Dealers in Pune

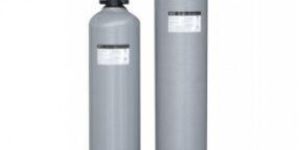

INTRODUCTION Emaux Deep Bed Filter is designed for filtering incoming water supply of domestic and light commercial usage. Undesired particles like rust, sand, dirt and other impurities found in water are trapped by the filter bed. It offers crystal clear filtered water for domestic and light commercial usage.

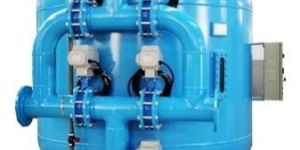

These filters are the most popular method for removal of turbidity from water. The Pressure Sand Filter consists of a multiple layer of sand with a variety in size and specific gravity. These Filters are designed to remove turbidity and suspended particles present in the feed water with minimum pressure drop. These Filters are custom designed to suit the process requirement. These filters are offered in Mild Steel, FRP or SS construction with face piping and associated Valves. Construction The Pressure sand filter consists of a pressure vessel either vertical or horizontal, with a set of frontal pipe work and valves, graded silica quartz sand supported by layers of graded under bed consisting of pebbles and gravels, a top distributor to distribute the incoming water uniformly throughout the cross section of the filter, and an under drain system to uniformly collect the filtered water. Process Raw water flows down wards through the filter bed and as the suspended matter, which is treated by addition of a coagulant like alum or poly electrolyte, is retained on the sand surface and between the sand grains immediately below the surface. There is steady rise in the loss of head over a period of time and the flow reduces once the pressure drop across the filter is excessive.The filter is then taken out of service and cleaning of the filter media is effected by flow reversal also called as backwash. To assist in cleaning the bed, the backwash operation is sometimes preceded by air scouring by way of agitation through the under drain system. The air scouring agitates the sand with a scrubbing action, which loosens the intercepted particles. The filter is now ready to be put back into service. We Offer the following Range of Pressure Sand Filters: FRP Pressure Sand Filters up to 2000 mm Diameter Vertical MS Pressure Sand Filters up to 5000 mm Diameter Horizontal MS Pressure Sand Filters up to 4000 mm Diameter Pressure Sand Filter - Salient Features: Efficient Turbidity Removal MOC - FRP, MSRL, MSEP & SS Standard and effective multi grade sand media. Low Pressure drop across the vessel Optional Air scouring available. Manual, Semi Automatic & Automatic Options Fluid Systems offers Chemical handling and Dosing Systems for dosing Coagulants like Lime. Ferrous Sulfate, PAC, Alum and Feed Conditioning chemicals like Anti-scalant, Antioxidant, Membrane cleaners etc. Dosing systems are Skid mounted, compact and rugged, engineered to handle and work efficiently under highly corrosive and varying conditions. The areas of application include Raw Water Treatment Waste Water Treatment Reverse Osmosis Ultra Filtration Cooling Water Treatment Boiler Feed Treatment Typical Dosing systems consist of Metering type pumps with varied material of construction to suit the chemical handling. All Dosing Systems can be upgraded to a high level of automation for link up to a localized PLC or client's DCS as required.Pre-engineered designs conform to International safety norms with respective to spillage and containment.

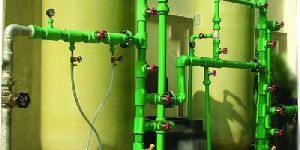

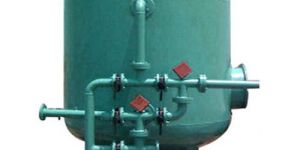

Pressure Sand Filter is highly recommended for the removal of suspended solids & undissolved impurities like dust particles & heavy metals etc. PSF reduces turbidity. Pressure Sand Filter is an ideal solution for the systems with high sediment, silt, sand, and turbidity. The sand filters are specially designed to take care of the range of suspended impurities.FRP, MSRL, MSEP & SS Vessel available.

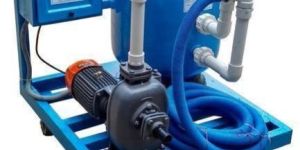

With an aim to fulfill varied requirements of our valued clients, we are engaged in offering commercial sand filter. This filter is manufactured at our end using top quality materials and innovative technology. The offered filter is used in swimming pools and pools for cleaning the water.

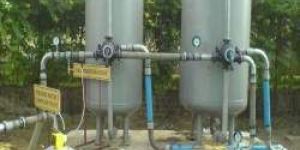

We are offering sand filter etc. We are one of the renowned manufacturers and suppliers of sand filter that is designed using optimum quality raw material and latest technology in line with the international standards. This sand filter is used to remove solids, turbidity and physical impurities from the water for industrial and domestic applications and is available in two types i.e. Frp pressure vessel and ms pressure vessels. This sand filter is tested on defined parameters in order to ensure reliable functionality and a perfect finish.

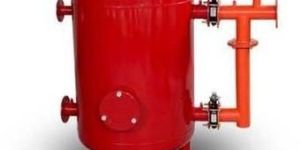

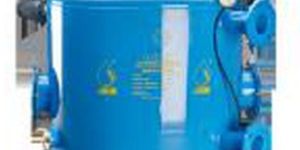

Sadgurruu Industrries is the most reliable name among the existing manufacturers and suppliers of Irrigation Sand Filters. We are stated on top in the market, based on the performance of our Irrigation Sand Filters. Use : To remove organic debris and particulates from waterFiltering water from ponds, creeks or irrigation ditchesCleaningWashing Benefits : Hygiene way of filtrationEnvironment friendlySmooth functioningLess time taking Properties : Simple & effectiveRequire very little attentionSand-filled tank to trap the sand particlesSignals when the tank needs to be back flushed by reversing the water flowMake the dust harder for the water to pass throughCauses the pressure in the tank to riseAccumulates dirt in the space between the sand particlesCleaning is done by back washing so that back-wash water must be filtered Applications : Power plantsRe-factoriesMetal industries

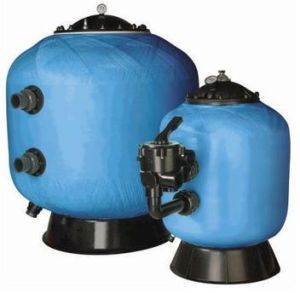

Bobbin-wound fiberglass reinforced tank is still the most popular standard in the industry after all. With uv-resistant surface finish, it is able to operate under prolong sunlight for years of reliability. Sand filters filters are equipped with a six-position, 1.5", 2", & 2.5" multiport valve and abs laterals.

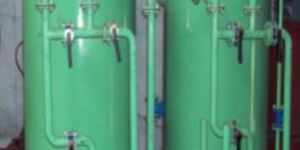

We offer a wide range of high pressure sand filter that we extensively used to remove suspended particle, iron, color and odor from water and waste water. The filters are widely appreciated for their reliable performance and efficiency. The entire range of water treatment systems can also be customized as per the specification detailed by the clients.

Extremely efficient sand filter with cent percent accuracy can be procured from us at very reasonable price. Our sand filters used in the treatment of sewage. In our sand filters, sand traps residual suspended material and bacteria and provides a physical matrix for bacterial decomposition of nitrogenous materials like ammonia and nitrates into nitrogen gas. features cost effectivesuperior qualityrobust designlong working life suitable for removal of residual suspended materialbacterial decomposition of nitrogenous materials.

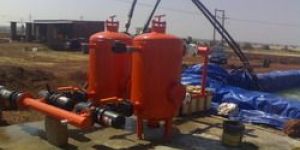

Sand filtration is frequently used and very robust method to remove suspended solids from water. The filtration medium consists of a multiple layer of sand with a variety in size and specific gravity. Sand filters can be supplied in different sizes and materials both hand operated or fully automatically. Raw water pump is used for generating necessary operating pressure in the pressure sand filter. Raw water is passed through CHEMTRONICS Multigrade Sand Filter at a pressure of 3.5 kg cm ² to reduce the suspended solids present in the raw water.

In order to ensure zero damage during transit, we have adopted modern facility for meticulously packaging our offerings. And, we also ensure that the used material is of high quality. We meticulously pack the entire lot for ensuring safe and secure deliveries across the boundaries.   Price Range : 27,510 to 45,925/Rs

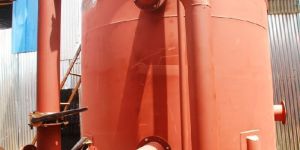

Sand and Activated Carbon filters; The Sand filters Today the modern industry standard of  Industrial Water Filtration is Pressure Sand Filter or Dual media Filter consisting of  Carbon Steel, FRP, CS/RL ( Rube lined Carbon Steel) or even a SS material.The Filter is generally having Shell and Dished end arrangements, The Definite Advantage of Torrispherical or Ellipsoidal Dish end is , the great reduction in the Dish Thickness. We make these filter vessels in MS or MS (CS) R/L. Ranging in size from 500 mm Diameter up to 3000 mm Diameter.The Height of shell generally is in the range of  1500 mm to 2300 mm. the Media  for Filtration is Sand or Sand + Anthracite. The Purpose of Sand Media or Dual Media filter is to remove the suspended particles ranging form  1-2mm till 300 micron for example. ( Particularly Macro size visible particles)The design Velocities are : 8m/hr till 25m/hr* The inlet quality of Raw water may have turbidity range of  30-40 NTU, ( Nephlometric Turbidity Units)The Filters are subjected to get accumulated with the turbidity load, as the process is mostly DEAD END type, hence periodically the media is Backwashed with the help of AIR + Water Or Water Alone.The need for backwashing would be known from the Pressure Drop  that has caused due to Accumulation of Suspended solids.The Back Wash Could be set as per the Operation Cycle Duration Or on Pressure Drop.The output quality is generally Less than 5 NTU of suspended solids Activated Carbon Filter: The Activated Carbon Filters are constructionally very similar to Sand Filters except that the Media is under bed of Pebbles , Coarse aggregates and Major layer of  ACTIVATED CARBON Media ranging from 500 IV ( Iodine Value) to 1500 IV depending on the Customer requirements.Activated Carbon Media is good adsorbent of Odour, Color and it adsorbs Chlorine, and many more organic Compounds, Pesticides ect. Generally the Activated Carbon Filters are located AFTER the Sand Media filters.We make Activated carbon Filters Ranging from 500 mm Diameter  to 2000 mm Diameter for various Industrial Applications.

we excel in providing sand filter to our customers. The sand filter is necessary for purifying water thus prevent against water borne diseases. The sand filter is manufactured from high grade material to assure their optimum quality. Our sand filter matches up with the requirements to match up with the needs of the customers. why our sand filter? well designedlow maintenancelong lasting serviceeconomically priced used for water purification

We feel proud to introduce ourselves as the leading organization in this domain, engaged in presenting an excellent grade Sand Filter. Our professionals design and install different type of filter for water treatment for the use in filtering of suspended solids present in the water.

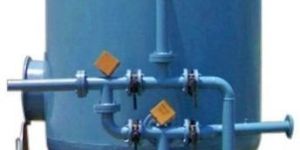

We offer a wide assortment of Pressure Sand Filter that we extensively used to filter water and remove suspended particle, color and odor from it. Pressure Sand Filter is an ideal solution for the systems with high sediment, silt, sand, and turbidity. The sand filters are specially designed to take care of the range of suspended impurities. The purpose of this filtration is to remove any particulate matter left over after flocculation and settling. The filter process operates based on two principles, mechanical straining and physical adsorption. Process : The filter is equipped with certain valves and device which are incorporated in the outlet pipe system the propose of the device is to maintain a constant rate of filtration an important components of the regulation system is the venture mater which meager the bad resistant or loss of head when the resistant built up the operator open the regulation valves so as to maintain a steady rate of filtration when the loss of head exceed 1.3 meter it is uneconomical to run the filter. Normally the filter may run weeks or even month without cleaning when the bed resistant increase to such an extant that the regulation valves has to be kept fully open it is time to clean the filter bed since any further increase is drained off and the sand bed is clean by scraping of the top portion of the sand layer to a depth of 1 or 2 cm this operation may be carried out by unskilled laborers using hand tool or by mechanical equipment after several year of operation and say 20 or 30 scraping the thickness of the sand bed will have reduced to about 0.5 to 0.8 meter then the plant is closed down and a new bed is constructed. The advantages of a slow sand filter are : Simple to construction and operation The cost of construction cheaper than that of rapid sand filters The physical chemical and bacteriological quality of filter water is very high when working ideally, slow sand filter have been shown to reduce total bacteria

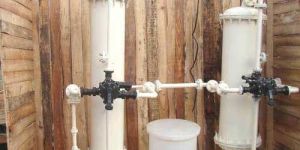

We offer sand filter.sand filtration is frequently used and very robust method to remove suspended solids from water. The filtration medium consists of a multiple layer of high silica sand with a variety in size and specific gravity. sand filters can be supplied in different sizes and materials both hand operated or fully automatically. A special application of a sand filter is the removal of iron in surface and ground or well water. An iron removal installation consists of a aeration to oxidise and precipitate the iron and manganese, followed by removal of the precipitated particles with the sand filter. During service water enters from the top, travels through the filtering media & goes out from the bottom. The suspended solids in the water get trapped in the filter & we get clean clear water at the outlet. This accumulated dirt (suspended solids) needs to be removed otherwise the filter will get choked & will result in less treatment flow, damage to the filter, damage to the pump, etc. The cleaning operation of the filter is called backwash. This backwash operation needs to done once the differential pressure across the filter reaches 0.8 kgcm2 or 24 hours of service cycle whichever is earlier.

With intention the best quality of Mineral Water, Filtration with pressure filters featuring various filtration mediums is applied in a wide range of applications during the processes of drinking water treatment, chemical disinfection and during the pH and EC regulation.Filtration taking place through the filtration bed of pressure filters [known as fine filtration] removes especially turbidity, colloid substances, undesirable colour or odour, microbiological contamination, ammonia ions, iron, manganese from water and it reduces water acidity as well...For the purpose of a proper removal of these substances from water and to obtain the requested quality of output water it is necessary to propose a suitable filtration process. The actual filtration through pressure filters is complemented with aeration, clarification, coagulation, static mixers, disinfection... The kind of the filtration medium used is very important as well. Upper Service Hole Filter Inlet Anthracite Layer Fine Sand Layer Coarse Sand Layer Filter Outlet Gravel Support Layer Filter Element Side Service Hole   With intention the best quality of Mineral Water, Activated Carbon Filter are designed and manufactured with dual filtering media like sand and activated carbon. These filters can be used as initial unit for industrial water treatment. It is also used as pretreatment and tertiary treatment of waste water. These filters comprises of a steel pressure vessels of FRP Vessels containing activated carbon granules as filter media. Activated carbon is porous carbon material. Due to its highly developed porous structure and huge specific surface area , activated carbon has very strong adsorption capacity. It removes bad odour of water. It is used as a catalyst or catalyst carrier, to find wide applications in industrial production, agriculture environmental protectionThese filters are fitted with no of valves for inlet, outlet, drain and backwash with suitable piping size to meet the specification of customer and capacity designed by customer. It is used in sugar industries, Distilleries, Food Industries, Water Boards etc.
