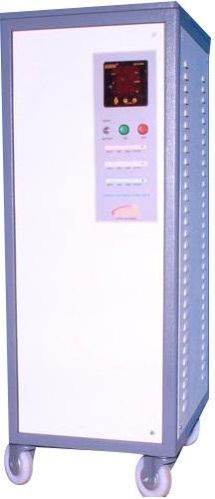

Servo Voltage Stabilizer Dealers in Pune

We are offering servo controlled voltage stabilizers. Features a complete solid-state design-using electronic control. fast rate of correction greater then 10 to 50 voltssec. efficiency is greater than 97%. synchronous motor drive for high reliability. waveform distortion is zero. excellent regulation as high as 1%. voltmeter to indicate either input voltage or output voltage. operating temperature range: 0 to 55 0 c. Optional facilities : (at extra cost) audio alarm at high low inputs. automatic highlow cut off. single phase preventer. mcbmccb for input output. digital voltmeter ammeter. Single-phase input voltage 170 v to 270 volts output voltage 230 v.a.c. 0.5% frequency 47 51 hz phase single line regulation 1% over load capacity 120% for 1 minute cooling airoil capacity 2 kva to 15 kva three-phase input voltage 300 v to 460 v.a.c. Output voltage 415 v.a.c 0.5% frequency 47-51 hz phase three line regulation 1% over load capacity 120% for 1 minute cooling airoil capacity 3 kva to 200 kva note: any voltage or current not included in this list can be manufactured as per specific requirement

Servo Voltage Stabilizers are used in industry for variety of  machines to perform better at stabilized voltages. Many CNC machines /  Computerised machines / medical- surgical machines, etc. require voltage accuracy as well as stability. Stabilizers ranging from 1 KVA to 600 KVA are made as per customer requirement. At higher ranges the stabilizers are OIL Cooled.

A servo voltage stabilizer is a stabilizer which constantly monitors the output voltage and controls variations in the input voltage by the movements of a motor. In other words, it automatically regulates the voltage. This motor decides the output voltage on the transformer. It is considered to be a cheap and good voltage stabilizer. This is a perfect solution to protect the appliances from voltage fluctuations. Enertech India the leaders in voltage stabilizer manufacturers, offers advanced micro controller based voltage stabilizers.

OIL COOLED VOLTAGE STABILIZERS : Our Oil Cooled Servo Stabilizers are designed keeping in mind the end user requirements and user friendliness. Oil is used as the cooling method in the Oil Cooled Stabilizers. We ensure that our Components are designed using the best quality components, to provice or clients with efficient functioning standards. SPECIFICATIONS Capacities From 5 KVA to 2000 KVA in Three Phase Capacities: From 5 KVA to 100 KVA in Single Phase Controller Type Micro-Controller based Input Voltage Range: Wide Range 280 V - 500 V Input Voltage Range: Wide Range 300 V – 460 V Input Voltage Range: Mid Range 340 V – 480 V Input Voltage Range: Narrow Range 360 V – 460 V Output Voltage 415 V 400 V with + - 1% accuracy. SPECIAL FEATURES Response Time 10 Milli Seconds Rate of correction 60 V sec for lower capacity Stabilizers & 30 V sec for higher capacity Stabilizers. Suitable for Balanced Load, Balanced Voltage Unbalanced Load, Unbalanced Voltage Protection Under Voltage & Over Voltage with Tripping and visual alarm. Protection Overload with Tripping through Micro-controller and visual alarm. Single Phase prevention. Display Digital Metering Voltmeter & Ammeter with suitable CTs Voltage Readout in each Phase Load current Readout in each Phase Switchgear MCCB MCB and Contactor Connection To Terminals through Cable glands from bottom Lifting Arrangement Lifting lugs Lifting Hooks Portability Unidirectional wheels Bi-directional wheels Enclosure Protection Level (Air cooled) IP 23 Enclosure Color (Air cooled) RAL 7035 Enclosure Color (Oil cooled) RAL 631 FEATURES Service Designed for long life and trouble free performance Losses Designed for lower losses and greater efficiencies Test Standards Designed for IS 9815. Value Designed for cost effectiveness and high reliability

We offer reliable corrections against the voltage fluctuations to the valuable devices connected to raw electricity SVR uses the advanced micro controller based digital controller to control the high speed MOSFET & IGBTs for the basic voltage correction rate & speed correction also. The complete absence of moving parts demand zero maintenance, enhance reliability thereby further reducing service trips & network down time man days. These true RMS based static stabilizers are specially design as per requirements & specifications of user.

Capacity range upto 200 KVA 3Ph   ParticularStandards Input Voltage Range 300 - 460V / 340 - 480V / 360 - 460V AC 3 Ph Operating Frequency 47 to 53Hz Operating Voltage Adjustable 380 to 415V AC in 3 Ph Output Voltage (3Ph) 415V AC 3 Ph System Unbalanced 4 wires: R Y B N Connections Star Overload Capacity 120 % Correction Rate 30 / 25V per Sec-3 Phase Output Voltage Regulation ± l% (No Load & Full Load) Short Circuit period & Percentage 300% for 250 Milli Sec. Waveform Distortion Nil Output Waveform True Reproduction of Input Insulation Class F Normal Operation Temperature 0° C to 45° C Type of Cooling Natural air cooled up to 200 KVA Climate Conditions 0% Rh Max. Non Condensing at 35°C Mode of System Fully Automatic System Construction As per IS : 9815 - 1991       Indications Programmable Controls • Input ON 3 LED Indications, • Display Scrolling - • 3ph output ON indication Auto / Manual • Phase Reversal indication • Start / Stop Buttons • Over Load indication Menu / Start / Stop / Reset / Log Button         Systems Indications in LCD Display • Single Phasing Preventor Output ON indication • Output Electronic Over Load Protection Output high Voltage Cut-off • Phase Reversal Protection Output low Voltage Cut-off • Input Short Circuit Protection with MCB/MCCB Micro Controller Technology. • Input Over Load Protection with MCB/MCCB   • Output Low Voltage Protection   • Output High Voltage Protection   High Reliability Uses Solid state control circuits, Synchrnous motor drive, No warm-up time, No relays, Professional grade ICs and components are used.   Trouble free operation Quick response time 10 millisec (half a cycle), Efficiency, Low losses, Low temp. rise and withstands in all climate conditions, Provides perfectly stable output power even under severe conditions of voltage fluctuations, Zero wave-form distortion, Unaffected by load power factor, Ruggedized construction Enclosure-IP32, Mounting- Floor Mounted/Free on Wheel, Servo Motor Drive- Rugged AC step synchronous motors.   • CNC Machines• Telecommunications Equipments• Bio Medical Equipments • Large Computer Installations • Printing Machinery• Scientist Equipments• Cell Phone Networks • Garments Equipments • Textile Machineries etc

For the safe storage of our offerings, we have installed our own storage facility. Laced with modern amenities, our facility helps us in furnishing urgent requirements of the clients at a time. Highly praised for presenting high-grade quality Servo Voltage Stabilizer, we are a celebrated Supplier in the market.

We are offering our clients with servo controlled voltage stabilizers at highly competitive prices. These are available to our clients in single. Two & three phase and are operated without noise due to nylon gears. These compact stabilizers can be provided to the clients in customized specifications as per their requirements.

Servo Voltage Stabilizer, 125 KVA Oil Cooled Servo Stabilize

We are leading manufacturer and supplier of huge range of Servo controlled Voltage Stabilizers.

Servo Voltage Stabilizer, Static Voltage Stabilize

Three Phase Servo Controlled Voltage Stabilize

Servo Controlled Voltage Stabilizers, Infra Voltage Stabilizer

Jindal Servo Voltage Stabilizer, Control Pane
