Stabilizers Dealers

ParticularStandards Input Voltage Range 170-270V AC, 50 Hz Output Voltage 230V AC 50 Hz 1Phase Output regulation ±1% Operating Frequency 47 to 53 Hz Wave-form distortion Nil Power factor effect Nil Line regulation ± 1% Load regulation ± 1% Type of cooling Natural Air-cooled System Construction As per IS:9815 Output wave -form True reproduction of Input Response Time 10 milli sec. Servo Motor Drive rugged ac step synchronous motor Efficiency 98.5% Enclosure IP32   ProtectionsIndication on Front Panel High voltage protection } with Relay / Contactor Input ON Low voltage protection } with Relay / Contactor Output ON Overload protection } with MCB Output CUT-OFF Short circuit protection } with MCB Input LOW   Input HIGH   0-300 V 72 Sq. mm analog meter to read output voltage

OIL COOLED VOLTAGE STABILIZERS : Our Oil Cooled Servo Stabilizers are designed keeping in mind the end user requirements and user friendliness. Oil is used as the cooling method in the Oil Cooled Stabilizers. We ensure that our Components are designed using the best quality components, to provice or clients with efficient functioning standards. SPECIFICATIONS Capacities From 5 KVA to 2000 KVA in Three Phase Capacities: From 5 KVA to 100 KVA in Single Phase Controller Type Micro-Controller based Input Voltage Range: Wide Range 280 V - 500 V Input Voltage Range: Wide Range 300 V – 460 V Input Voltage Range: Mid Range 340 V – 480 V Input Voltage Range: Narrow Range 360 V – 460 V Output Voltage 415 V 400 V with + - 1% accuracy. SPECIAL FEATURES Response Time 10 Milli Seconds Rate of correction 60 V sec for lower capacity Stabilizers & 30 V sec for higher capacity Stabilizers. Suitable for Balanced Load, Balanced Voltage Unbalanced Load, Unbalanced Voltage Protection Under Voltage & Over Voltage with Tripping and visual alarm. Protection Overload with Tripping through Micro-controller and visual alarm. Single Phase prevention. Display Digital Metering Voltmeter & Ammeter with suitable CTs Voltage Readout in each Phase Load current Readout in each Phase Switchgear MCCB MCB and Contactor Connection To Terminals through Cable glands from bottom Lifting Arrangement Lifting lugs Lifting Hooks Portability Unidirectional wheels Bi-directional wheels Enclosure Protection Level (Air cooled) IP 23 Enclosure Color (Air cooled) RAL 7035 Enclosure Color (Oil cooled) RAL 631 FEATURES Service Designed for long life and trouble free performance Losses Designed for lower losses and greater efficiencies Test Standards Designed for IS 9815. Value Designed for cost effectiveness and high reliability

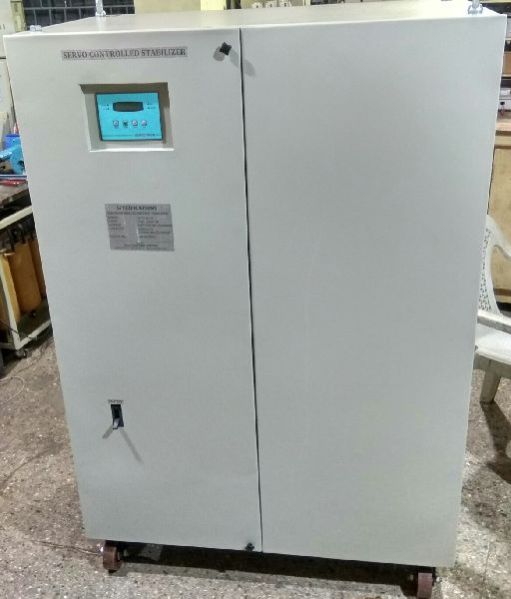

We are offering our clients with servo controlled voltage stabilizers at highly competitive prices. These are available to our clients in single. Two & three phase and are operated without noise due to nylon gears. These compact stabilizers can be provided to the clients in customized specifications as per their requirements.

We offer reliable corrections against the voltage fluctuations to the valuable devices connected to raw electricity SVR uses the advanced micro controller based digital controller to control the high speed MOSFET & IGBTs for the basic voltage correction rate & speed correction also. The complete absence of moving parts demand zero maintenance, enhance reliability thereby further reducing service trips & network down time man days. These true RMS based static stabilizers are specially design as per requirements & specifications of user.

Our products have the largest satisfied customer base. Dedicated to providing environment friendly quality solutions and commitment to delight customers with unique value propositions.

Applications : Computer Systems Communication Equipment Electro Medical and Laboratory Instruments CNC Machines Air Conditioning Systems Paper Copiers and Office Automation Products Radars and other Equipments Motors And Compressors Operation Theaters Textile Machines Packaging Machines Garment Industries Banking Terminals Defence and Nuclear Facilities Machines Tools and RoboticsFEATURES: Output voltage sensing for voltage correction & for U/V & O/V Trip. Overvoltage & undervoltage trip by means of contactor/ relay's. Short circuit & overload protection by means of MCB/Fuse/MCCB. Adjustment: Output voltages adjustment of ±5V/Phase will be provided by means of potential meter on front plate. Controls: Auto/manual incase of auto mode set output voltage through manual mode. SCVS Available for any Input Range and any Output voltage in air cooled version upto 500 KVA and oil cooled version upto 2000 KVA. SCVS Available for 3 dia/3 wire IN and 3 dia 4 wire OUT (This helps to adopt SCVS at locations where good neutral is not Available or neutral related problems are in systems). 1 Models available with Three phase / 3 wire Input and Single phase Voltmeter with selector switch to see input & output voltages. 1 Out door application models available in air cooled / oil cooled versions (IP 43/IP 54 construction). 1 Highly Efficient and Reliable

For the safe storage of our offerings, we have installed our own storage facility. Laced with modern amenities, our facility helps us in furnishing urgent requirements of the clients at a time. Highly praised for presenting high-grade quality Servo Voltage Stabilizer, we are a celebrated Supplier in the market.

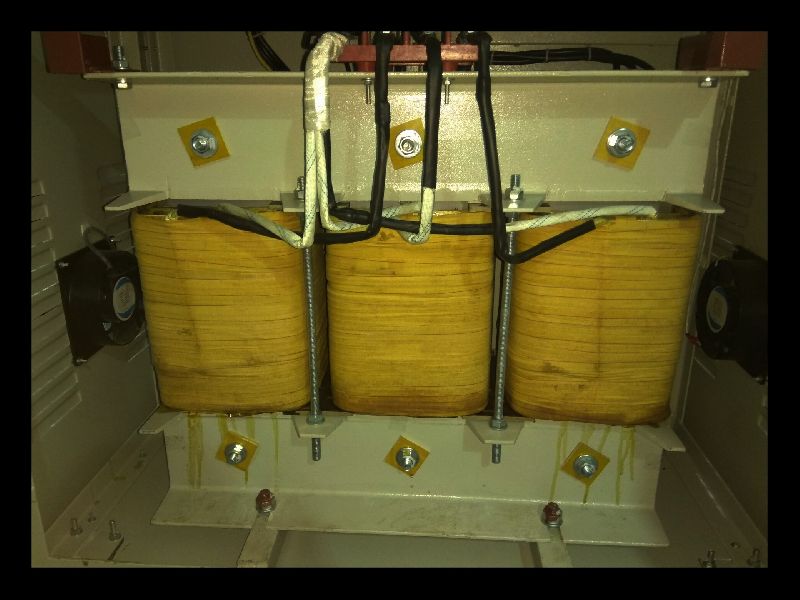

  The static stabilizer offers a reasonable improvement on slow servo controlled stabilizer as well as other static tap changing stabilizers. This technology does not cause di/dt problems as it does not switch the power path. The basic topology is with buck-boost transformer with high primary to secondary ratio for voltage correction of ± 25%. The control voltage is imposed on the primary of this buck-boost transformer. The voltage regulation with help of buck and boost topology is achieved electronically without the step changes in voltage that occur when the system regulates. This task is accomplished through a feedback and a control system implemented by using a microcontroller. The significant voltage fluctuations that occur on the electrical network simulates the premature ageing of the critical machines and even damages them in most cases. The solution to this type of problem is the use of voltage stabilizers which guarantee that the connected loads will always operate within safe limits at a better efficiency thereby avoiding energy loss.

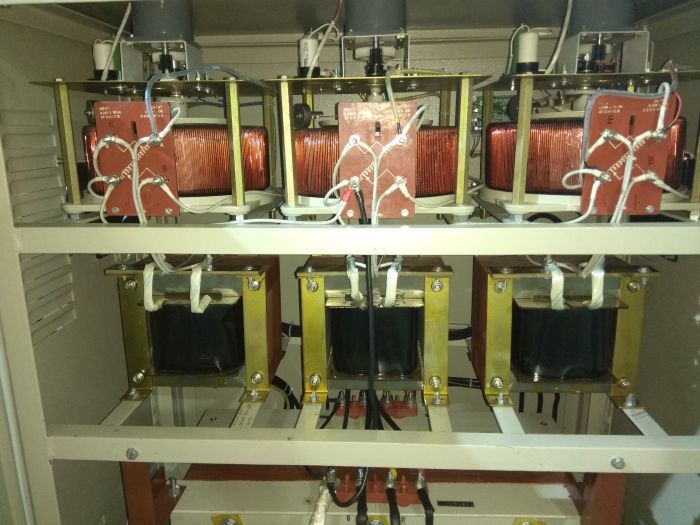

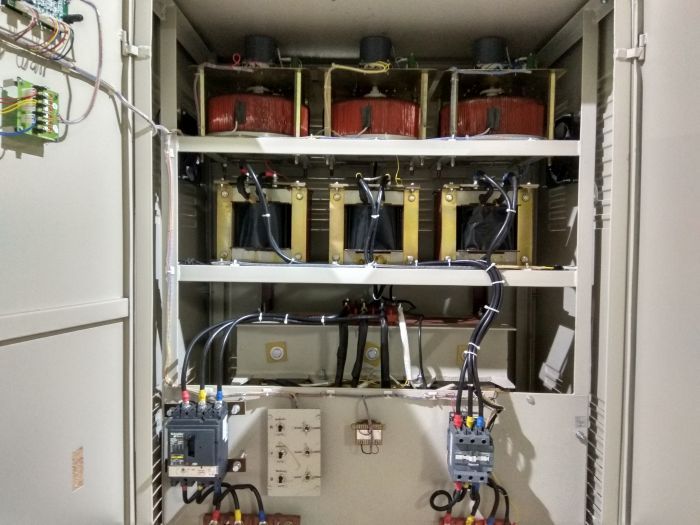

We are a notable name in the domain offering the best in class and quality 3 Phase Stabilizer. To handle both automated inbound and outbound orders, we have exceptional warehousing solutions. We keep the wide array of products sorted in the warehouse to make sure that the delivery commences systematically.
