Low Resistance Meters e.g. Micro Ohm Meter, Milli Ohm Meter work with the principle of 4 wire measurement. Two terminals provide test current and two terminals a re used for sensing voltage drop. It is very difficult to buy Low Resistance standards at affordable prices.ZEAL make, 4 Wire Low Resistance Standard serves the purpose of accuracy and economy. The resistance values are very stable over years. Low resistors of values of 10µΩ,50µΩ, 100µΩ, 1mΩ, 10mΩ, 100mΩ, 1Ω have been fitted in an enclosure with provision for each resistor’s current terminals and drop terminals.

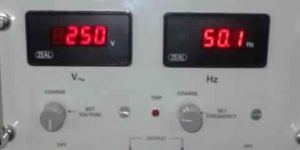

ZEAL Variable Voltage Variable Frequency Source has its output range from 30 to 300V with variable frequency 45 to 62 Hz. Output maximum power is 1kVA at FS. The regulation, stability, frequency response and accuracy of the voltage source are excellent. A source can be used for simulation of mains conditions of different parts of the world. Products can be tested at a different frequency.

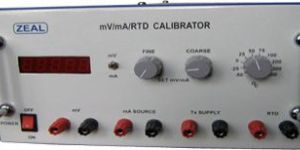

Make ZEAL Model ZMPCM INPUT POWER 230 V ± 10% AC single phase DIGITAL METER (4½dgt)LED DC Current source Range 0 to 20mA Accuracy 0.1 % ± 3 digits DC Voltage source Range 0 to 200 mV Accuracy 0.1 % ± 3 digits RTD(fix 10 positions)-50,-25, 0, 25, 50,75,100,200,300,400˚CTransmitter Power Supply DIMENSIONS 24V DC (272 x 150 x 200) mm WEIGHT 1.25 kg Approx ACCURACY OF RTD SOURCE 0.1% OF SET TEMPERATURE

Availability : 1.25 kg Approx

Accuracy : 0.1 % ± 3 digits

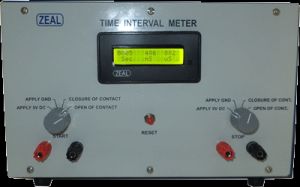

Make: ZEAL, Model: ZMTIM Input Voltage : 230V50 Hz AC (Supply Voltage) Test conditions: For both START and STOP (By selector switches) 1. Apply DC voltage (upto 24V Max) 2. Apply ground 3. Closure of contact 4. Opening of contact Display: 1. Display-16x2 LCD display 2. With Minutes (30 mins max) Miiliseconds(999ms) Microsecond(999µs)

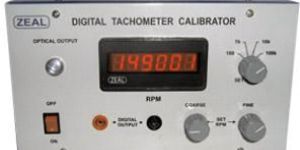

Make ZEAL Model ZMDTC Ranges 100, 1000, 10000, 100000 RPM Total Settable range 1 rpm to 1 lac rpm No. of Digits 6 digits for each range Accuracy ±2 digit Optical Pulse by high bright white LED Other Output 5 V pulse

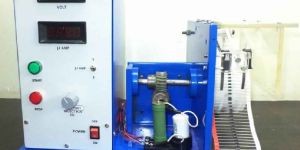

It is essential to carry out screening of diodes out of the strip particularly for reverse breakdown test at acceptable leakage current in µA. To take out diodes one by one and conduct tests will be a time consuming and fatigue prone process. The risk of DC high voltage for an operator is always there.Tester has motor driven geared mechanism to pull strip of diodes with test riders applying reverse voltage on the leads. Whenever leakage current exceeds than the acceptable limit, the motor comes to halt with audio/visual trip indication. Test voltage is removed. Operator has to take out the faulty diode and continue with the further testing.

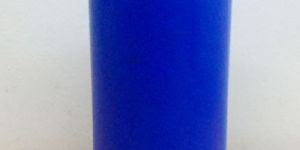

ZEAL supplies highest performance resistance standards. With a very low-temperature coefficient, these highest stability sealed resistance to make an ideal standard for precision applications inside or outside of laboratory environment. Because of the low-temperature coefficient, they require no oil-or-temperature bath. It is possible to maintain ZEAL resistance standards indefinitely. They are reliable due to their closed, rugged design.

Number Of Flower : Electrical

Material : Aluminium, Plastic

Certification : CE Certified

Country of Origin : 220V

Frequency : 50Hz

Phase : Double Phase, Single Phase

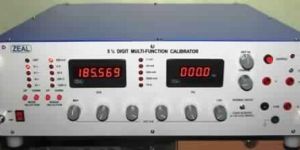

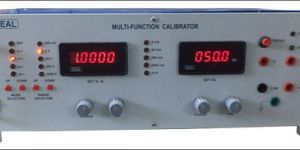

Overload and short circuit protection,Pure Sine wave with variable frequency,Setting by Multi turn potentiometers for VA in 4½ digit MFC,Frequency setting by potentiometer,Parameter and range selection by inbuilt micro controller based unit and relays. Bar of LEDs to indicate parameter and range,Separate output ports for V (Hi), mA (Hi), 10A(Hi) and com,Multi Function Calibrator is useful for calibration of Digital Multi meters, Clamp on Meters, Digital Panel Meters and Analog Panel Meters, It is basically a variable source with different ranges of DC Voltage, AC Voltage, DC Current, and AC Current. It has been designed to cover the calibration of maximum ranges of variety of models of Multimeters available in the market

Multifunction Calibrator is of high accuracy, stability & resolution. It is a good tool to calibrate analog & digital multimeters, clamp meters, and panel meters. It is a very popular choice to the calibration laboratories and measuring equipment manufacturers of all corners of India and world.

Model : ZMMFC5.5

Accuracy : DC Voltage

Make ZEAL Model ZM3ΦPEC Input 230 Volt AC Output Voltage Ranges 0 to 300 V (L-N) or 0 to 520 Phase to Phase Output Current Ranges 0 to 1.2 A & 0 to 6 A per phase Mode 3 Phase, 4 Wire Output ports Vr (Hi,Lo),Vy(Hi, Lo),Vb(Hi, Lo), Ir (Hi, Lo),Iy (Hi, Lo),Ib (Hi, Lo) PF Range 0.1 lag to Unity to 0.1 lead Compliance 20 VA, at FS on V ranges, Compliance: 20 VA, at FS on A channels Frequency 45 to 60 Hz With programmable timer counter to keep output ON for fix duration. Duration programmable in minute. Setting Voltage, current, frequency by potentiometer Power Factor by push button keys, timer by thumb wheel switches Metering Digital AC Voltmeter, Digital AC Ammeter , Universal meter to indicate PF, W, VA, VAr of each phase. Also average of all phases, WHr Programmable current display to accommodate any CT ratio Accuracy 0.15% FS±10 dgts for voltage & current , 0.05%± 1 dgts for PF , 0.3% FS for watt meter, 0.02% for time duration Whr: 0.35% Sinusoidal Outputs THD 1.5% Protections Overload and Short circuit Dimensions: W600 x D 600 x H 270 mmWeight: 40 kg without packing

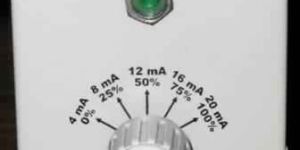

It simulates 2-wire transmitter to calibrate receivers, recorders, controllers, indicators. Loop power eliminates the need for batteries. Loop current is clamped at the key value you select. Accuracy is ±0.1% of 4 to 20 mA, even with changes in load and supply voltage. Switch settings of 0, 25, 50, 75 and 100% gives user fast, full range check out of UUC. The single rotary switch and light in weight case have been designed for simple, one-handed operation. Just insert the banana to crocodile cables in the banana sockets to the UUC. When you check out receivers, recorders or controllers in a 2-wire 4 to 20mA loop, simply disconnect the 2-wire transmitter and hook up a Model: ZMTCS. Flip a switch to get instant full scale and zero outputs. The calibrator operates just like a 2-wire transmitter by modulating the external power supply voltage into a 4 to 20mA signal.

Make : Zeal

Model Number : ZMLTS

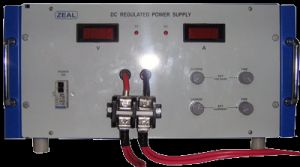

Our DC regulated power supplies are widely used in various industries and Educational Institutes. The output voltage produced by DC power supply ranges from 0 to 1000 V and output current ranges from 0 to 100 Amp. Power supply are provided with Digital Panel Meters for voltage and current . They are provided overload and short circuit protections.

These products are known by other names like Hi Pot Testers, Voltage Withstand Capability Testers or simply High Voltage Testers also! Designed with better features and accuracy, our offered range of Breakdown Tester is meant for testing the electrical insulation ability and electric strength. ZEAL make testers are ideal for performing high voltage breakdown tests in production, in the laboratory, and for type approvals also. The tester of this category is robustly designed.The standard accessory of the tester includes HV test probe, fully insulated crocodile clip & mains cord.

Wide distribution network, exceptional connectivity, reliable transportation facilities are some of the attributes that help us in delivering the goods on time. Ours is a well-established organization that is located in Maharashtra(India) and involved in catering to the customers based within and outside the boundaries.

Make Zeal Model ZMIRT Power 230V AC, ± 10 %, 50 Hz Test Voltage 0.50 kV to 5.00 kV DC ( Regulated), Ripple < 0.1% rms Test Voltage setting by coarse and fine potentiometers Resistance measurement Ranges 0-2.00 GΩ, 20.00 GΩ Range selection by toggle switch Metering 3 ½ digit Digital V and Resistance meter Accuracy V: 1.0% of reading ± 5 dgt @ 100MΩ, G Ω: 1.5% of FS ± 3 dgt Protection Against short circuit. Accessory Banana to crocodile (Fully insulated)Hi, Lo & Guard

Test Voltage DC : 0 to 5000 V continuously variable by multi turn potentiometer AC : 0 to 5000 V continuously variable by multi turn potentiometer (with AC or DC test voltage selector switch) Tripping Current Adjustable 1.0 to 30.0 mA by press to set switch and potentiometer on mA meter OR Test Voltage and leakage current programmable by external 0 to 10 V DC Accuracy class of Test Voltage ± 0.1%± 2 least count Resolution: 4½ digit Accuracy of leakage Current ± 0.5% ± 2 least count Resolution: 3½ digit Display Digital Voltage: 4½ digit , Current: 3½ digit Automatic Timer 1 to 999 second Settable by thumbwheel switches on 7 segment 3 digit display With timer ONOFF switch Indication for PassFail Audio (Buzzer) and visual (Neon) alarms when HV is ON, Output Trips when breakdown occurs i.e. leakage exceeds than set current. Test FAIL indicated by LED If device under test successfully handles the test voltage for the set time duration then Test PASS indicated by LED Power Supply 230V±10%, single phase, 50Hz

Make ZEAL Model ZMHVP Range 0 - 40 kV AC & DC Atteneuation Ratio 1:10000 Input Impedance > 100 MΩ Accuracy kV:1 % for DC kV:1.5 % for AC

Audio and Visual Alarm when HV ON and Off • Test ON and OFF Switch to start and Interrupt Test • Precise Trip Current Setting or Press to Set Switch for Leakage Current • Inbuilt timer with Selector Switch or variable by thumbwheel setting

The Ground Continuity Test is performed by measuring the resistance between the third pin (ground) and outside metal body of the product under test. The maximum acceptable value is generally 0.1 ohm. This test is generally carried out at a slightly higher current (e.g. 30A) so that the ground bond circuit maintains safe voltages on the chassis of the product, even at a high current, before the circuit breaker trips or fuse blows. This test is essential so that the product does not cause an electric shock resulting from insulation failure.

Resistance Measurement Range : 0 to 200 milli Ohm

Test Current : 30 A AC

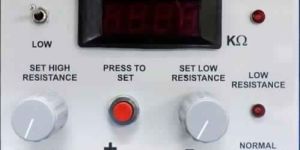

ZEAL make resistance meter is used to measure & sort resistances of winding of motors, alternators, transformers etc. Operator can set upper and lower limits of acceptance using the potentiometers on the panel. LEDs are there to indicate if the measurement is within acceptable limit or not. The product is very reliable and cost effective.

Power : 230V AC, 50Hz, ± 10%

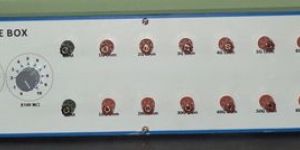

Accuracy ±5% for all decades and fixed resistors 10 Fix resistors 1 GΩ x 10 in series mounted on acrylic 10 Fix resistors 10GΩ x10 in series mounted on acrylic Rated maximum voltage 1000V : for 0.1 M Ω,1 M Ω,10 M Ω, 100 MΩ 5000V : for all fixed resistors Dials of 0.1 MΩ, 1 MΩ, 10 MΩ, and 100 MΩ can be used at 5000V when connected in series with any fixed resistor Power rating 1 Watt @50oC

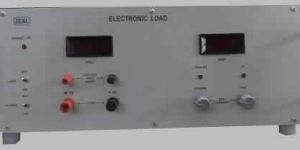

With excellent performance at an affordable price ! ZEAL make, DC Electronic Loads , superior voltage/current resolution ideal for testing a power source e.g. DC Regulated Power supplies, Batteries, SMPS etc. They are good to find out regulation of power supplies, conduct heat run tests of power sources. They can also be used to assess AH capacity of batteries.Settings Load adjustment by set of coarse and fine control multi turn potentiometer or by analog level ( 0 to 5V) as per requirement Meter With 3½ Digital DC Volt meter and DC Ammeter

Model : ZMEL200

Power : 230V AC, 50 Hz
