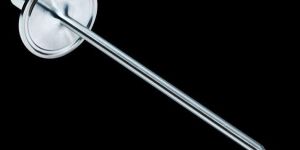

Process temperatureRefer to section "Operating conditions"
Pt100 accuracy class (EN 60751)B (± 0.3 °C at 0 °C),
± (0.3 + 0.005 × t)°C,
A (± 0.15 °C at 0 °C),
± (0.15 + 0.002 × t)°C,
1/3 B (± 0.1 °C at 0 °C),
± 1/3 × (0.3 + 0.005 × t)°C,
1/6 B (± 0.05 °C at 0 °C),
± 1/6 × (0.3 + 0.005 × t)°C
Thermal response time, T50< 1.5 s , Ø4 mm,
< 6.1 s , Ø6 mm,
≤ < 7.6 s , Ø8 mm
Process pressureRefer to section "Operating conditions"
Sensor length20 … 3000 mm
Sensor tube materialAISI 316L (1.4404)
Surface roughness wetted partsRa ≤ 0.8 µm
Degree of protection (EN 60529)IP 67
IP 69K , with appropriate cable
Humidity< 98 % RH , condensing
Vibration (sinusoidal) (EN 60068-2-6)1.6 mm p-p (2 … 25 Hz), 4 g (25 … 100 Hz), 1 octave / min.
Without transmitter1 x Pt100, 4-wire,
1 x Pt100, 4-wire,
2 x Pt100, 2-wire
With transmitter4 … 20 mA , 2-wire,
4 … 20 mA , 2-wire + HART®
EMCEN 61000-6-2,
EN 61000-6-3,
EN 61326-1
Hygiene3-A (74-07)
Explosion protectionATEX II 1G Ex ia IIC T4/T5,
ATEX II 3G Ex nA IIC T4/T5,
Ex ia Simple apparatus, gas and dust

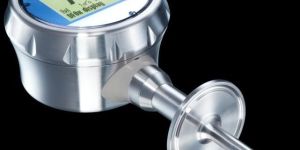

Process temperature115 … 135 °C , < 1 h
-40 … 115 °C , permanent
Output range-50 … 150 °C , programmable
Min. output span25 °C
Pt100 accuracy class (EN 60751)B (± 0.3 °C at 0 °C),
± (0.3 + 0.005 × t)°C,
A (± 0.15 °C at 0 °C),
± (0.15 + 0.002 × t)°C,
1/3 B (± 0.1 °C at 0 °C),
± 1/3 × (0.3 + 0.005 × t)°C,
1/6 B (± 0.05 °C at 0 °C),
± 1/6 × (0.3 + 0.005 × t)°C

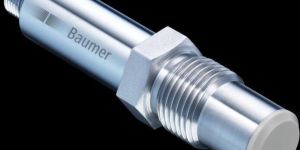

Process temperatureRefer to section "Operating conditions"
Pt100 accuracy class (EN 60751)B (± 0.3 °C at 0 °C),
± (0.3 + 0.005 × t)°C,
A (± 0.15 °C at 0 °C),
± (0.15 + 0.002 × t)°C,
1/3 B (± 0.1 °C at 0 °C),
± 1/3 × (0.3 + 0.005 × t)°C,
1/6 B (± 0.05 °C at 0 °C),
± 1/6 × (0.3 + 0.005 × t)°C,
Thermal response time, T50RTD element only-
≤ 1.0 s , conical sensor,
≤ 1.3 s , Ø3 mm,
≤ 2.5 s , Ø4 mm,
≤ 3.0 s , Ø6 mm,
Process pressureRefer to section "Operating conditions"
Sensor length≤ 3000 mm
Sensor tube materialAISI 316L (1.4404)
Surface roughness wetted partsRa ≤ 0.8 µm
Degree of protection (EN 60529)IP 65 , with DIN EN 175301-803 A (DIN 43650 A), 4-pin
IP 67 , with M12-A, 4-pin
Humidity≤ 100 % RH , condensing
Long-term test (transmitter)IEC 770 6.3.2
Vibration (sinusoidal) (EN 60068-2-6)1.6 mm p-p (2 … 25 Hz), 4 g (25 … 100 Hz), 1 octave / min.
Without transmitter1 x Pt100, 4-wire
With transmitter4 … 20 mA , 2-wire
EMCEN 61000-6-2,
EN 61000-6-3,
EN 61326-1,
NE21
HygieneFDA (21 CFR 177.2415)
3-A (74-07)
Railway applicationsEN 50155
Explosion protectionEx ia Simple apparatus, gas and dust

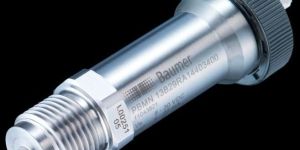

Standard error of measurement (BFSL)± 0.04 % FSR , up to 2:1 turndown ratio,
± 0.1 % FSR , up to 4:1 turndown ratio,
Including non-linearity, hysteresis and non-repeatability according BFSL
For turndown, multiply this value by the applied turndown ratio
Max. measuring error± 0.1 % FSR , up to 2:1 turndown ratio,
± 0.25 % FSR , up to 4:1 turndown ratio
Including zero-point and span error, nonlinearity (by terminal base line), hysteresis and non-repeatability (EN 61298-2)
For turndown, multiply this value by the ap
Temperature coefficient≤ 0.05 % FSR/10 K , measuring span
≤ 0.05 % FSR/10 K , zero point
Compensated temperature range-40 … 85 °C
Long term stability≤ 0.1 % FSR/a , IEC 770 6.3.2
Max. turndown ratio10:01:00 AM
Rise time (10 ... 90 %)≤ 0.3 s
Sample time≤ 0.3 s
Power-up time< 10 s
Explosion protectionATEX II 1D Ex ia IIIC T100 °C Da,
ATEX II 1G Ex ia IIC T5,
ATEX II 3G Ex nA IIC T5

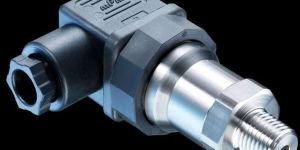

Standard error of measurement (BFSL) ± 0.3 % FSR , available for measuring spans > 1 bar ± 0.4 % FSR Including non-linearity, hysteresis and non-repeatability according BFSL
Max. measuring error ± 0.5 % FSR , available for measuring spans > 1 bar ± 1 % FSR Including zero-point and span error, nonlinearity (by terminal base line), hysteresis and non-repeatability (EN 61298-2)
Temperature coefficient ≤ 0.08 % FSR/10 K , measuring span ≤ 0.08 % FSR/10 K , zero point

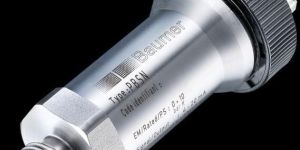

Standard error of measurement (BFSL) ± 0.04 % FSR
± 0.1 % FSR
Including non-linearity, hysteresis and non-repeatability according BFSL
Max. measuring error ± 0.1 % FSR
± 0.25 % FSR
Including zero-point and span error, nonlinearity (by terminal base line), hysteresis and non-repeatability (EN 61298-2)
For turndown, multiply this value by the applied turndown ratio
Temperature coefficient ≤ 0.03 % FSR/10 K , measuring span
≤ 0.03 % FSR/10 K , zero point
Compensated temperature range -40 … 85 °C
Long term stability ≤ 0.1 % FSR/a , measuring range > 1 bar
≤ 1 mbar , measuring range ≤ 1 bar
Max. turndown ratio 05:01:00 AM
Rise time (10 ... 90 %) ≤ 5 ms
IO-Link version 1.1
IO-Link port type Class A
Baud rate 38,4 kbaud (COM2)
Cycle time ≥ 2.3 ms
Process data length 24 bit
SIO-mode No
Process data (cyclic) Process pressure
Diagnostic data (acyclic) Process temperature
Explosion protection ATEX II 1/2G Ex ia IIC T4/T6 Ga/Gb
ATEX II 1D Ex ia IIIC T107 °C IP6X Da
ATEX II 1G Ex ia IIC T4/T6 Ga
Standard error of measurement (BFSL)0.04 % FSR,0.1 % FSR,
0.2 % FSR,Including non-linearity, hysteresis and non-repeatability according BFSL
For turndown, multiply this value by the applied turndown ratio
Max. measuring error± 0.1 % FSR,± 0.25 % FSR,
± 0.5 % FSR,Including zero-point and span error, nonlinearity (by terminal base line), hysteresis and non-repeatability (EN 61298-2)
For turndown, multiply this value by the applied turndown ratio
Temperature coefficient≤ 0.03 % FSR/10 K , measuring span,
≤ 0.03 % FSR/10 K , zero point
Compensated temperature range-40 … 85 °C
Long term stability≤ 0.1 % FSR/a
Max. turndown ratio05:01:00 AM
Rise time (10 ... 90 %)≤ 5 ms
Explosion protectionATEX II 1/2G Ex ia IIC T4/T6 Ga/Gb,
ATEX II 1D Ex ia IIIC T107 °C IP6X Da,
ATEX II 1G Ex ia IIC T4/T6 Ga
Standard error of measurement (BFSL) ± 0.04 % FSR ,± 0.1 % FSR ± 0.2 % FSR Including non-linearity, hysteresis and non-repeatability according BFSL For turndown, multiply this value by the applied turndown ratio
Max. measuring error ± 0.1 % FSR, ,± 0.25 % FSR ± 0.5 % FSR Including zero-point and span error, nonlinearity (by terminal base line), hysteresis and non-repeatability (EN 61298-2) For turndown, multiply this value by the applied turndown ratio
Temperature coefficient ≤ 0.03 % FSR/10 K , measuring span ≤ 0.03 % FSR/10 K , zero point
Compensated temperature range -40 … 85 °C
Long term stability ≤ 0.1 % FSR/a , measuring range > 1 bar ≤ 1 mbar , measuring range ≤ 1 bar

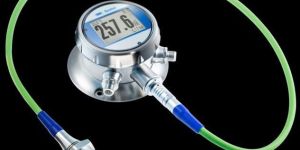

Customer defined mediaCustomer defined (30 point lookup table)
TemperatureFree programmable range
Measuring range-20 … 150 °C
Thermal response time, T90≤ 15 s
Max. measuring error± 0.4 K
Process temperature-20 … 140 °C , permanent 140 … 150 °C , max. t < 1 h
Process pressure≤ 25 bar
Connection variantsG 1 A hygienic
Wetted parts materialPEEK Natura
Surface roughness wetted partsRa ≤ 0.8 µm
PropertiesUniversal commands Common-practice commands Conductivity device family commands Device Specific Commands For more information please see ‚HART Field Device Specification‘
ProtocolHCF standard, Rev.7
IO-Link version1.1
Device profileSmart Sensor Profile
Baud rate38,4 kbaud (COM2)
Cycle time≥ 8,4 ms
Process data length128 bit
SIO-modeYes
Process data (cyclic)Switch state Signal analog output 1 Signal analog output 2 Temperature Unit temperature Conductivity Concentration Actual measuring range
Degree of protection (EN 60529)IP 67 IP 69K , with appropriate cable
Cable lengths10.0 m 5.0 m 2.5 m
Temperature-40 … 80 °C
EMCEN 61326-1
Hygiene3-A (74-07) EHEDG EL Class I FDA (21 CFR 177.2415)
Customer defined mediaCustomer defined (30 point lookup table)
TemperatureFree programmable range
Measuring range-20 … 150 °C
Thermal response time, T90≤ 15 s
Max. measuring error± 0.4 K
Process temperature-20 … 140 °C , permanent
140 … 150 °C , max. t < 1 h
Process pressure≤ 25 bar
Connection variantsG 1 A hygienic
Wetted parts materialPEEK Natura
Surface roughness wetted partsRa ≤ 0.8 µm
PropertiesUniversal commands
Common-practice commands
Conductivity device family commands
Device Specific Commands
For more information please see ‚HART Field Device Specification‘
ProtocolHCF standard, Rev.7
IO-Link version1.1
Device profileSmart Sensor Profile
Baud rate38,4 kbaud (COM2)
Cycle time≥ 8,4 ms
Process data length128 bit
SIO-modeYes
Process data (cyclic)Switch state
Signal analog output 1
Signal analog output 2
Temperature
Unit temperature
Conductivity
Concentration
Actual measuring range
Degree of protection (EN 60529)IP 67
IP 69K , with appropriate cable
EMCEN 61326-1
Hygiene3-A (74-07)
EHEDG EL Class I
FDA (21 CFR 177.2415)
