Power Press Dealers in Rajkot

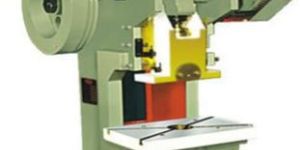

Frame :- Frame is of robust fabricated steel construction of rigid & interlocked design. It is strain-free and supports the ram and bed. Pneumatic Clutch & Combined Brake Linked with the flywheel engages every time when the foot switch or both hand is Pressed. Cranck Shaft :- It is made of special EN8 high tensile steel machined and ground to highest degree of accuracy. Bearings :- Bush Bearings of high grade Gunmetal machined to almost grade of accuracy with provision of oil grooves to ensure a proper fill of oil  lubricant for smooth running of the machine in all conditions. Knock Out :- Presses above 10 Tons capacity are fitted with knock-out Brackets for stopping down the parts drawn,thus facility the work. Ram :- Ram is of rigid construction of high tensile cast iron/cast steel with round die shanke hole and clamp.It can be tightend by means of the screws on the side.The slide can be adjust the stroke as desired with out hit and trial method. Stroke :- Power presses are manufactured with adjustable stroke. Amultiple Claw Sleeve with graduation is provided to get the required adjustment in the Stroke.Operator can adjust the stroke as desired without hit and trial method. Fly Wheel :- Made of high grade C.I. and designed to generated the maximum energy

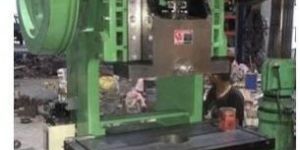

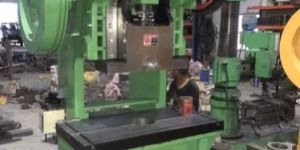

The Pillar Type Power Press we offer finds extensive usage in various industries. With total focus on quality and precision we take care to procure the best Pillar Type Power Press and supply it in prime condition. At market leading prices we offer the Pillar Type Power Press within the scheduled time frame. »Specifications MODELSSVPP-10SSVPP-20SSVPP-30SSVPP-50SSVPP-75SSVPP-100SSVPP-150SSVPP-200SSVPP-250Capacity10 TONS20 TONS30 TONS50 TONS75 TONS100 TONS150 TONS200 TONS250 TONSCrank Shaft Diameter63768395115127152160165Stroke Adjustment06/01/5010/01/6310/01/7613-10213-11513-12713-14013-15213-165Adjustment of Ram253838454551515151Distance Bed to Ram215255290355375420445470485Punch Hole in Ram25.43238384551516363Size of Bed (LR. X FB.)355x460457x508508x559559x610610x762660x813711x914762x965812x1016Fly Wheel Dia.425508558660812914101610651220Stroke Per Minute 706060555040303025Motor H.P. Required 12357.510152025 Note : Overall Dimensions are in Mili Meter, Approximate & May Be Changed Without Prior Notice.

We manufacture various types of hydraulic cold press machines as per the industry requirements such as,   Two Cylinder Hydraulic Cold Press Machine (50 Ton Capacity) Four Cylinder Hydraulic Cold Press Machine (100 Ton Capacity)   The application of hydraulic cold press is to press or combine the laminate sheets on to the plywood, doors, boards or block boards. Hydraulic cold press are widely used in the plywood industry, furniture making industries, to stick the laminate sheets on to the plywood, doors, boards or block boards. The main function of this machine is to make a instantaneous and nonstop pressure on work piece by using the PLC Controller. The I Beam welded structure provides the longer life to it. The press board dimension is 2500 mm x 1300 mm in all models. FEATURES OF HYDRAULIC COLD PLYWOOD PRESS Rigid frame of channel and ‘I’ beam construction Proper Pressure Distribution. Fully automated electrical system like push button / PLC based Upstroke or down stroke cylinder   APPLICATION OF HYDRAULIC COLD PRESS MACHINE   Hydraulic Cold Press for plywood is also known as Plywood Pre Press, Hydraulic Pre Press and Plywood Cold Press machine. This is a hydraulic cold press type machine. Hydraulic cold press is used for variety of application in plywood machinery. The main application of Hydraulic Cold Plywood press is to compress the material by pre press. Hydraulic Pre Press is used in making plywood items like,   Plywood MakingParticle Board MakingMDF Board makingHDF Board Making process for pre press application.   The other application of  hydraulic pre press machine is to press or combine the laminate sheets on to the plywood, doors, boards or block boards. These cold press for plywood are widely used in the plywood industry, furniture making industries, to stick the laminate sheets on to the plywood, doors, boards or block boards.    SHIV INDUSTRIES is a reliable supplier of fine quality hydraulic cold press for plywood based in Ahmedabad, Gujarat, India.

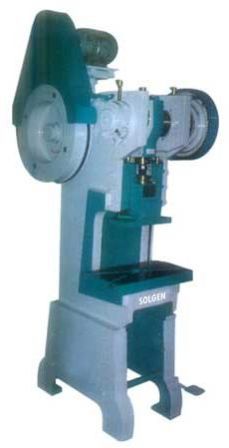

With the help of our crew of skilful and dedicated professionals, we present you a wide range of C Type Power Press.  We as a Manufacturer, Exporter and Supplier of C Type Power Press are stress on providing the client the finest quality. We manage to do so by putting the power press through a series of tests to ensure the quality is up to the mark.

We are staffed with dexterous team members and packaging experts; they ensure that the products are completely safe from the external damaging factors, and this is done by using quality-packaging material. We can carry out excellent supply chain management, as we have an ultramodern warehouse and the latest inventory control systems. Both help us meet bulk requirements and save us from stock out situations.

We are an experienced Manufacturer, Supplier, and Exporter of Inclinable Power Press Machine. We are well-equipped with the updated machinery and tools to manufacture the top most quality of Inclinable Power Press Machine. The entire production process is carried out under the supervision of our dexterous professionals, who abide by the latest industrial standards and norms. It is highly acknowledged for its robust construction, high durability, optimum functionality, and great performance.   Inclinable Power Press : 5 to 600Ton

50 Ton Power Press offered comes designed and developed using latest technology support with C-type steel-welded frame finish.Specifications : Wide body frame for eliminating vibration Rigid construction for ensuring exact die mating Six-side rectangle guides of slide for high moving precision and accuracy Providing for extended service life of die Advanced support gears operate in oil bath without any noise Provide for high accuracy, efficiency based operations Offering simple and convenient operations Press adopts low inertia combined dry pneumatic friction clutch and brake Offer reliable operation safety and flexible action

These guides are designed with extra length & surface area to provide best possible resistance to slide tipping caused by off center loading in the die and most suitable for highly precise pressing applications. This increases tool life. As per standards we provide PLC with an inbuilt display system, which shows faults and gives remedy as well. It helps for easy maintenance and reduced break down time.

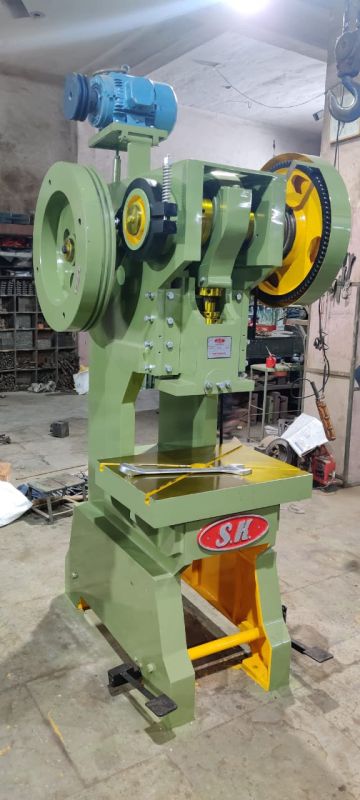

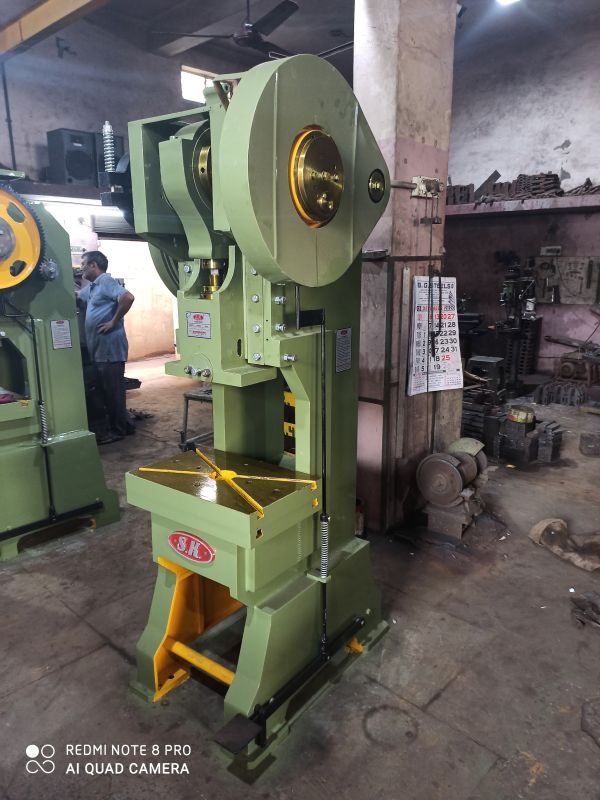

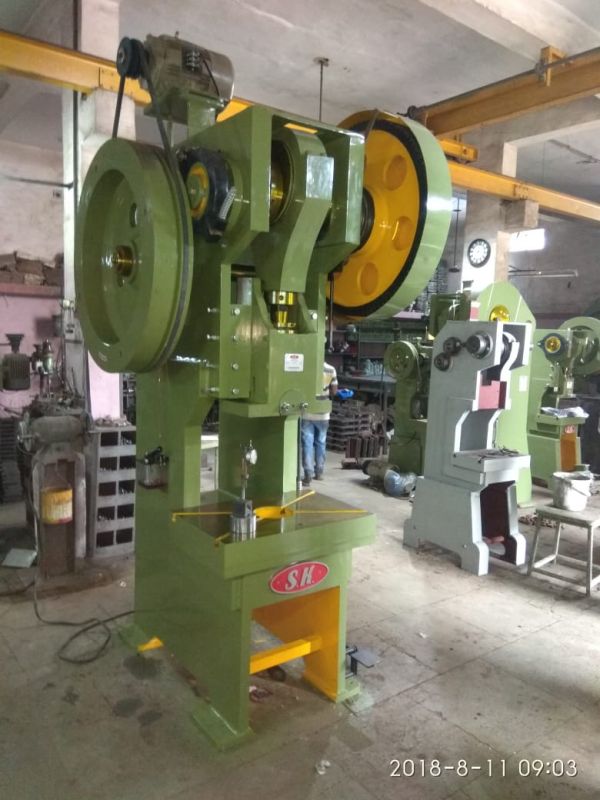

For our esteemed customers, we bring forth our considerable range of C Type Power Press. We are a leading Manufacturer and Supplier of C Type Power Press from Rajkot, Gujarat. Our range of C Type Power Press offers high tensile strength, durability and cost effectiveness. This C Type Power Press has been manufactured with premium quality of material under the guidance of skilled professionals. The offer high performance and longer life.

  WE HAVE WITH US THE 10 TON POWER PRESS IN SECOND HAND RUNNING CONDITIONWE ARE DEALING IN NEW POWER PRESS OF10 TON, 20 TON ,30 TON,50 TON ETC...

 Single point Suspension Non-Inclinable Double Action Power Press, having Steel Plate Fabricated Construction Duly Stress Relieved with 8 point Gibbing of Slide, Fitted with Pneumatically Operated Combined Single Disc. Friction Clutch and Brake.  With Standard Accessories:   Electrical, Control Panel & Production Counter. Hydraulic Overloaded Safety. Motorized Side with brake Motor & Die Height Indicator. ‘SMC/ FESTO’ make FRL & Pneumatic Fittings. Motorized Grease Lubrication. Slide Knockout Device, 4 way Cam Limit Switches, Anti Repeat Safety Device. PLC Control System. Misfeed Detector  Socket. ROSS/ Toyoki Japan Make Solenoid valve.

We are offering high speed precision power press from 125 & 200 tonne salient features: 1. Rigid and robust straight side frame design makes it angular deflection free and increase accuracy for progressive die. 2. Zero angle deflection of frame will reduce cost of tooling and maintenance for long life. Product range: hsd series 3. Pneumatically operated single disc combine clutch and brake to ensure minimum response time and enhance operation safety and noiseless operation. 4. 8 points extra long gibs fitted with sintered bronze linings gives long life accuracy 5. Turcite-b linear motion in slides for friction and vibration free smooth running and reduce worn out of slides. 6. Bearing temperature sensor will alarm for over heat and stop the machine. 7. Hardened and ground gear will give smooth and silent operation. 8. Built in hydraulic over load safety will gives safety against overload situation and stop the machine immediately 9. Dual solenoid valve enhance safety against failure of single valve. 10. Motorised slide adjustment reduce labor and increase yield. 11. Digital die height indicator increase accuracy of operation 12. Easy to operate plc panel with hmi in front panel for displays of faults, batch counter, preset counter, time totalize, lubrication counter, anti repeat timer. 13. Plunger guiding system allow precise adjustment of slide running clearance and enhance parallelism and squareness of travel accuracy and tooling life 14. Wide slide and bolster area

Specification : FRAME : The Frame Is Made From Steel Construction And Their Heavy Cross Section And Rigid Design Assured Minimum Deflection And Accurate Alignment Cast Iron Legs Will Be Supplied Up To 30 Ton Press. CRANK SHAFT : Crank Shaft Made From Special Alloy Steel To With Stand The Effective Load, It Is Fitted With Gun Metal Bushes For Smooth Working With High Accuracy. GEARS & CLUTCH : The Gears Are Made From Cast Steel Or Fabricated And Its Teeths Are Generated By Hobbing. The Clutch Is Provided Of Pin/ Rolling Key Type, It Is Also Rigid And Well Supported For The Mass Production. Clutch Can Give Continuous Stroke. FLYWHEEL : The Flywheel Is Made From Gradead Cast Iron For Strength And Is Balanced For Efficient And Releasing Adequate Energy For The Pressing Operations. LUBTICATION : A Lubrication System Has Been Provided For Lubrication The Sliding Surface And Moving Parts. TABLE & RAM : Table and Ram Are Made From High Grade Heavy Duty Cast Iron & Properly Seasoned. They Are Perfectly Aligned To Match Each Other To Obtain High Accuracy & Precision Press Operation.
