Turing Machine Dealers in Rajkot

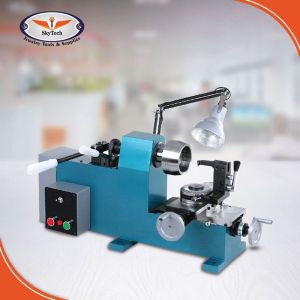

We offer bangle turning machine. Raj bangle & ring jewellery turning machine type rjt22, for perfect finishing of inside, face, outside and circular groove on bangles, rings, ear rings, pendants as will as pens, door knobs, decorative, knobs, buttons and other jewellery articles made from gold, silver, brass, aluminium and imitation jewellery materials (any non-ferrous metals) with diamond or carbide tools.

We are offering gt75 cnc turning center. capacity max turning dia:-100mm max turing length:-150mm swing over bed:-200mm std. Turning dia:-75mm main spindle:-a2-4 bore through spindle:-32mm bar capacity:-20mm chuck size:-135 x 3 jaw hydraulic chuck spindle drive spindle motor power:-5hp **servo spindle motor as option spindle rpm:- max upto 3000 axes slides x axis stroke:-200mm z axis stroke:-150mm rapid:- 15m/min x/z slides:- lm guides tooling type:-linear no. Of tools:-3 max boring bar dia:-32mm tool shank:-20 x 20 dimension:- 1700 x 1125 x 1500 weight:- approx. 1800kgs

Model : micro turn(200800) specification capacity 200800 swing over bed 500 maximum turning length 800 maximum dia. Between center 250 distance between center 850 standard turning dia. 200 chuck size 200 max. Turing dia. 300 x-axis travel 175 z-axis travel 850 rapid traverse 20 slide z axis ball screw 32 x 10 motor torque (z axis) 7nm x asix ball screw 32 x 10 motor torque (x axis) 7nm main spindle spindle motor 11 7. 5 spindle bore 55 spindle nose a2-6 maximum bar capacity 40 spindle speed range 50-3500 full power speed range 750-3500 turret btp-80 number of station 8 max. Boring bar dia. 40 tool size (cross section) 25 x 25 tailstock quill dia. 85 quill stroke 120 thrust (adjustable) kgf 500 others weight (approx) 3400 positioning accuracy (micron) 0. 010 repeatability (micron) 0. 005

TWIN SPINDLE - TURNING   GX 100 JR. TWIN In demanding times of machining accuracy and productivity, Macpower has addressed both the issues in Twin head single slide machines thereby offering solution to the valued customers instead of machines. Twin spindle linear tooling machines reduces idle time resulting in cumulative productivity with lesser manpower offering customers gain higher margins. Twin series suffices need of the hour of valued customers by offering range of machines resulting into higher choice with cost effective productive based solution for them. Standard Accessories Linear Motion Guide Ways AC Spindle Drive & AC Servo Drive Hydraulic Chuck with Actuating Hollow Cylinder Hydraulic Unit Coolant System Centralized Lubrication System Axial & Radial Blocks Boring Bar Blocks Patrol Light Load Meter Foot Switch Optional Accessories Chip Conveyor Stabilizer Hydraulic Collet Chuck Auto Door

45-degree slant bed design of one piece construction. Square induction hardened guideways bonded with Turcite-B material enable sound dynamic characteristics. Wide range AC servo motor is equipped in the main transmission system for big torque output at low speed. Big bore pneumatic driven chucks are fitted to both the front and rear end of the spindle. Tailstock with pneumatic driven quill and 8 station electric turrets are also equipped on this machine. It is an ideal machine for oil field, chemistry, engineering, etc industries, i.e.oil pipes, well drilling rods, etc.

Maximum reliability and top precision turning thanks to the strong base. A full range of available devices, to make the machine extremely versatile. Total safety machining with the transparent guard.

Turn Table   Turn Table System for transfer or movement of various type of Vials, Bottles, Jars on any Powder Filling, Liquid Filling or Tablet Bottle Packing Lines. Turn Table can be used with any machine for collection or feeding of products and also used to change the total line direction for “L” shape or “U” shape movement of line or for Linear movement of line but it can works as a buffer system, If any of machines stop during the online operation, Turn Table can collect the outfeed product from machine or similarly can feed the products to machine without interrupting the complete line. Turn Table is available in various diameter as per detail mentioned below of 600, 750, 900 or 1200 mm as per customers requirement. TT-24 : 600mm DiameterTT-30 : 750mm DiameterTT-36 : 900mm DiameterTT-48 : 1200mm DiameterMost commonly used size of Turn Table us 900mm Diameter. Turn Table frame is made from S.S. 304 Frame Structure duly supported with With heavy duty M.S. Material “C” profile for extra Support for Top Plate and Gear Box. Machine with S.S.304 Enclosures, Aluminimum Top Plate having Stainless Steel Cladding. Turn Table with A.C. Variable Frequency Drive System for smoother Start and Stop opetation for unstable products as well as speed control. Turn Table can also be made from Fully Stainless Steel Top Plate on request.

Wood Turning Lathe Machine, Hydraulic Press, Power Press Machin

Expanding Mandrels and Collets for CNC / SPM Turning Machines

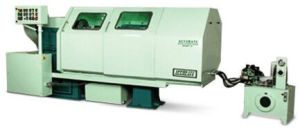

Single Spindle Automatic Turning Machine, Automatic Turning Lathe Machin

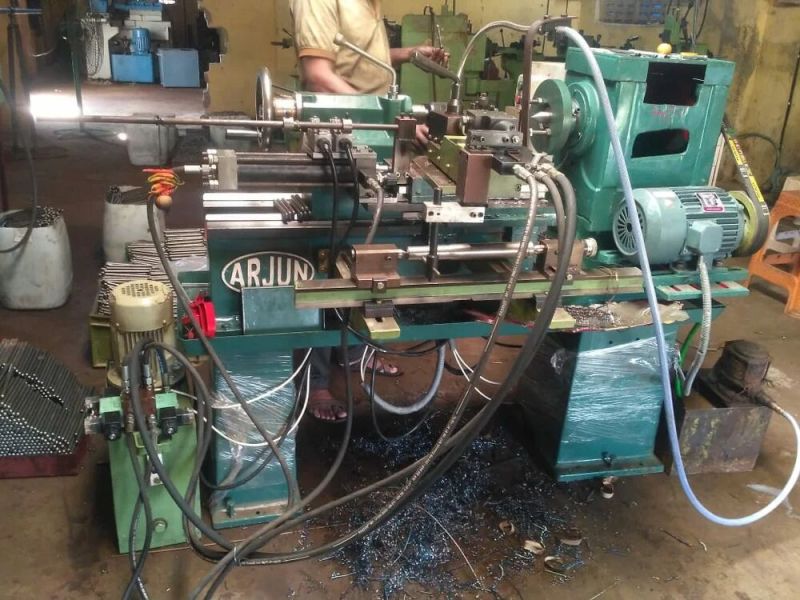

Copy Turning Lathe Machine, Jigs Fixture, Hydraulic Power Pac

We are offering Bangle Turning Machine
