Time interval meters are used for the measurement of time interval from 0.1 milli-sec. to 9999 secs.(2 hrs 45 mins.). This is ideally suited for measuring switching time of Relays, trip time & on time of circuit breakers, fusing time of fuse elements, travel time of switches and contactors etc. Type 1425 series can also be used as an accurate stopwatch.

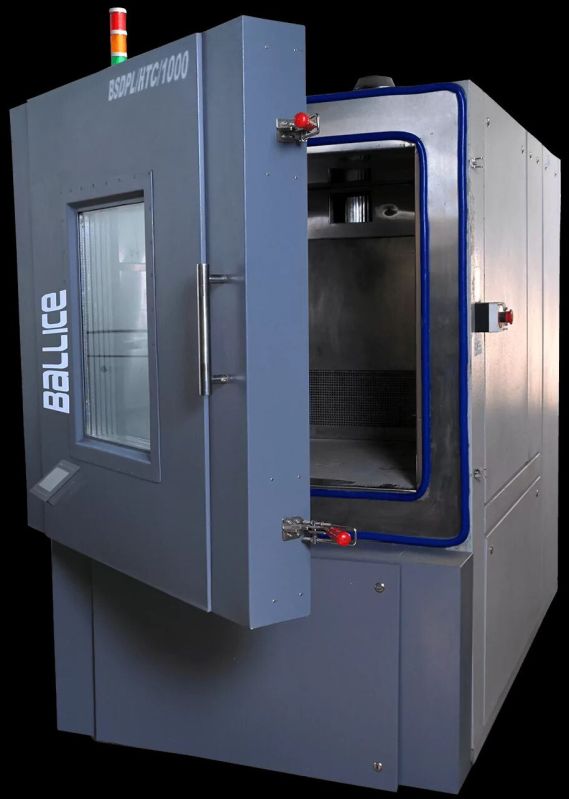

We are said to be one of the popular manufacturers, exporters and suppliers of the Rain Test Chamber based in Roorkey, Uttarakhand. These chambers that we offer have a test space capacity ranging from 216 litres to 8000 litres and are guaranteed to comply with the specifications set out in IS 9000, IS 10236 and more. Durable, strong and long-lasting are the features of all the products we offer.

We are offering brusting strngth tester - double head. This instrument is used for testing the bursting strength of the materials. The materials that can be tested by this are paper, paper boards, corrugated board and solid fiber boards. We manufacture this instrument with high quality materials that are tested for its accuracy. This instrument is easy to use and maintain. We manufacture this instrument with high quality materials that are tested for its accuracy. various standard pressure gauges supplied on demand: 0 - 10 kg/cm2 0 - 14 kg/cm2 0 - 21 kg/cm2 0 - 28 kg/cm2 0 - 35 kg/cm2.

A Core with in a roll of paper which has collapsed radically or the end is crushed axially from excessive thrust loads. Damage is due to hard impact received during handling & transit. Defective roll as a result it of surfacing rolls on end in an excessively high pile, which in turn causes the lower ends of the lower rolls to fail in axial direction. Specification:- • To test the tube pressure increase by the force of air pressure by the pneumatic cylinder with control hand operated valve. • Pressure shows by the pressure gauge with fixer pointer in unit kgcm2. • After rupture the conetube the fixer pointer stops and shows the gauge reading in kgcm2. • Different jig will be used for different size of conetube. • Maximum load capacity 1000 kgf.

The system consists of a weatherproof enclosure which contains the data logger and power supply, and comes complete with a solar panel, tripod stand and Leaf Wetness, Air Temperature & Humidity sensors (One each). For the most accurate disease prediction the leaf wetness sensor, designed to mimic the surface area of a leaf, use electrical resistance to measure the level of surface moisture on foliage, whether caused by rainfall, dew, or spray. The leaf wetness sensor enables the data logger to detect the presence of surface moisture on foliage and calculate the duration of wetness. When moisture is present, the sensor detects an electrical resistance change between the gold-plated elements of the grid. This is displayed and record by the data logger as a value between 0 (dry) and 15 (wet). moisture on foliage and calculate the duration of wetness. When moisture is present, the sensor detects an electrical resistance change between the gold-plated elements of the grid.

rightness, & Opacity Tester (ISO) The instrument measures brightness, opacity and color by diffused reflectance according to relevant ISO standards. It gives an instantaneous digital readout, which shows the Brightness, Opacity, Rx, Ry, Rz and ERIC values of pulp, paper, paperboard, coating agents, filter ,mineral and other similar materials. Made with imported opticals. Brightness, Opacity & Color Tester -ISO (Microprocessor based) The instrument measuring brightness, opacity and color by diffused reflectance according to relevant ISO standards. Gives out instantaneous digital read / printout, which compute worked out details such as CIE, Tri stimulus color, Rx, Ry, Rz, x,y,z, CIE Lab, Hunter Lab, ERIC values materials. It includes built-in/external Printer and different ranges of measurement routine. Made with imported Opticals.

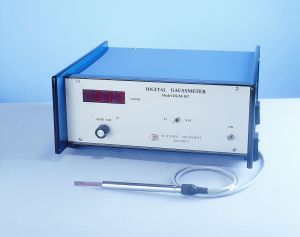

We offer Digital Gauss meter, it operates on the principle of Hall Effect in Semi-conductors. A semiconductor carrying current develops an electromotive force, when placed in a magnetic field, in a direction perpendicular to the direction of both electric current and magnetic field. The magnitude of this e.m.f. is proportional to the field intensity, if the current is kept constant. This e.m.f. is called the Hall Voltage. The small Hall Voltage is amplified through a high stability amplifier so that a millivoltmeter connected at the output of the amplifier can be calibrated directly in magnetic field unit (gauss). Features Mag. Field Measurement Excellent Linearity IC Controlled Circuit Excellent Stability Applications Wide application in industry where accurate measurements of magnetic field is required. Measurement of steady magnetic field e.g. in loud speakers, dynamos, moving coil instruments etc. Useful in laboratory experiments involving electromagnets. Specifications Range: 0-2KG & 0-20KG Resolution: 1G at 0-2KG range Accuracy: ±0.5% Temperature: Upto 50oC Display: 3½ digit, 7 segment LED DPM with auto polarity and over flow indication Power: 220V ±10%, 50Hz Transducer: Hall Probe – InAs Special Feature: Indicate the direction of the magnetic field Weight: 3Kg Dimensions: 280mm X 255mm X 120mm

Blaine's air permeability apparatus is used for determining the fineness of cement in terms of specific surface expressed as total surface area in square cm/gm of cement. This is a variable flow type air permeameter.

We are well-known for offering advanced Digital Panel Meter to the clients. The clients get the option in terms of Digital Panel Meter with LCD display or LED display. Our Digital Panel Meter is microcontroller based and is appreciated for its high accuracy and read rate. The best feature of our Digital Panel Meter is that the signal can be automatically captured and can be easily displayed by keyboard commands. Features 4.5 digit LED+/- 20000 counts5V DC operatedProgrammable UnitsTare FunctionRS232 outputProgrammable Decimal pointProgrammable UnitsReal time clockFour button key padUsed as a direct-reading DC voltmeterProgrammable calibration factorOther controls on connector include meter hold, meter resetMeasurement accuracy is +/- 0.1% of full scale ±1 countProvides a full-scale readout of ±20,000 counts

The company is a well-known Manufacturer and Supplier of Bursting Strength Tester (SGT-G004C). The Bursting Strength Tester (SGT-G004C) is intended for measuring strength of paperstrong paper board by submitting it to an increasing a uniform hydraulic pressure. The Bursting Strength Tester (SGT-G004C) is engineered to perfection and is durable and reliable. This instrument is designed to produce the result with high accuracy and repeatability by incorporating Electronics Automatic Pressure release system and conforms to international standards BS 3137, ISO 2759, TAPPI T 807 Om-82, T 810 Om-80, etc.Construction & WorkingPush switch operates ¼ horsepower motor, single phase 220250 volts AC and drives the hydraulic system and produce uniform increasing pressure of a rate of 170 mlmin± 15 mlmin. The test sample is clamped between two clamping parallel plate manually by tightened the screw, and pressure on the sample is transmitted through Rubber Diaphragm which causes the sample to expand into the upper clamping plate until it burst. After releasing the push switch pressure gets release automatically and optical sensor stops the motor, which is responsible to produce results with high accuracy and repeatability. Pressure gauge is fitted with a maximum reading drag point of sample burst, when the main pointer has return to the zero position.Specifications Pressure increasing speed 170 mlmin ± 15 mlmin. Standard Rubber Diaphragm diameter 76mm2 & 2.3mm ± 0.2mm thick. Range of pressure gauge : 0-7, 0-10, 0-21, 0-28, 0-35, 0-40 kgcm2.

We are one of the reliable Suppliers of Conductivity Meter, based in Roorkee, Uttarakhand. Based on advanced technology, Conductivity Meter offers accurate and precise measurement of electrical conductivity in water and other fluids. Conductivity Meter is available in different specifications to cater diverse demands of the clients.   Main Features : The portable conductivity meter provides fast, accurate readings, with digital readability and the convenience of a remote probe separately. Multi-measuring ranges : 199.9 uS, 1.999 mS, 19.99 mS. Data hold functions for stored the desired value on display. Large LCD display for low power consumption & clear read-out even in bright ambient light condition. Used the durable, long-lasting components, including a strong, lightweight ABS-plastic housing case

We are prominently engaged in providing Marshall Test Apparatus to the customers. This Marshall Test Apparatus method covers the measurement of the resistance to plastic flow of cylindrical specimens of Bituminous paying mixtures loaded on the lateral surface by means of the Marshall Apparatus. This Marshall Test Apparatus method is for used with hot mixtures containing asphalt or far and aggregate up to 25mm maximum size. Apparatus : Specimen Mould Assembly : Mould cylinders 4" (100mm) in diameter by 3 (76mm) in height, base plates, and extension collars shall confirm to the code. Three mould cylinders are recommendedSpecimen Extractor : A specimen extractor to remove the compacted specimen from the specimen moulds recommended. A suitable bar is required to transfer load from the extension collar through a circular steel plate (100mm dia x 12mm thick) supporting a steel rod of 25mm)Compaction Hammer : The compaction hammer shall have a flat, circular tamping face and a 103 B (4.5 kgs) sliding weight with a free fall of 18 inch, two compaction hammers are recommendedCompaction Pedestal : The compaction pedestal shall consists of a 8" x 8" wooden post capped with a 12" x 12" x 1" steel plate. The wooden post shall be oak, yellow pine or other wood having a dry weight of 42 to 48 LBS per cuft. The wooden post shall be secured by four angle iron brackets to a solid concrete slab. The steel cap shall be installed properly so that the post is plumb/straight and cap is levelSpecimen Holder : The specimen holder shall consists of a semi circular base and a circular ring to hold the specimen mould in place during compaction of the specimen, the top section shall be flanged to fit over the collar of the specimen mould and shall be provided in the base for mounting on the compaction pedestal. The specimen mould holder shall be mounted on the pedestal steel cap so that the center of the mould is over the postBreaking Head : The breaking head assembly shall consist of upper and lower cylindrical segment or test heads having an inside radius or curvature of 2" accurately machines. The lower segment shall be mounted on a base having two perpendicular guide rods or posts extending upward. Guide sleeves in the upper segment shall be in such a position as to direct the two segments together without appreciable binding or loss of motion on the guide rodsLoading Frame : The loading frame consists of a power operated screw jack mounted in a steel testing frame and shall produce a uniform vertical movement of 2" per minute the upward and downward movements are automatically controlled by Micro Switches. The testing (load) frame is also provided with a hand wheel (crank) for initialing adjustment or for applying loads in case of power failuresProving Ring Assembly : Own Proving Ring of 3000 kg capacity and sensitivity of 10 - 15 between and 2000 kg shall be equipped with micrometer dial. The micrometer shall be graduated in mms (0.002mm) Proving Ring attachments are required for fastening the Proving Ring to the testing frame and transmitting the load to the breaking head, suitable threads are provided in either side of the loading bosses of the Proving Ring for required fixing Miscellaneous Equipments : Oven or Hot Plate : Oven or Hot Bath should be provided for heating aggregate bituminous material specimen moulds, compaction base etc, and other equipments required or mixing and moulding temperatures. It should recommended that the required temperature with 5F controlled so as to maintain the required temperature within 51 (2.8C) suitable shields, baffle plates or sand baths shall be used on the surfaces of the hot plates so minimize localized over-heating or exposure to cool air in winterMixing Apparatus : Mechanical mixing is recommended. Any type of mechanical mixer may be used provided it can be maintained at the required mixing temperature and will produce a well coated, homogeneous mixture of the required amount in the allow-able time. A metal pan or bowl of sufficient capacity and hand mixing may also be used. Generally, specimen is prepared from the mixer of the hot plant or hot mix laid at siteWater Bath : The Water Bath shall be at least 15cm deep and shall be thermostatically controlled so as to maintain the bath at 140-188F (60oC) the tank shall have a perforated bottom or be equipped with a shelf for supporting specimen 5cm above the bottom of the bathContainers for heating bituminous material, either grill type tins, breakers pouring posts, or saucepans may be usedMixing tool-either steel trowel (Garden type) or spatula, for spreading and hand mixingThermometers of determining temperature of aggregates, bitumen and bituminous mixture. Armored glass thermometers or dial type with Metal stem are recommended. A range of 9.9 to 400/500 F (2 to 24oC) with sensitivity of 5F (2.8C) requiredThermometers for Water Bath with a range of 6F to 158F (20 to 70C) sensitive to 0.4F i.e. 0.2oCBalance 5 kg capacity, sensitive to 0.1gm for weighing molded specimensBalance 5 kg capacity, sensitive to 0.1gm for batching mixturesRubber gloves for removing specimens from water bathMarketing pencils for identifying specimensScoop flat bottom for batching aggregatesSpoon (large) for placing mixtures in specimen moulds Test Specimen : Number If Specimen : Prepare at least three specimens for each combination of aggregates and bitumen contentsPreparation Of Aggregates : Dry aggregates to constant weight at 221 to 231 F (105 to 110 C) and prepare the aggregates by dry sieving into the desired size fractions. The following size fractions are recommended 25mm- 20mm, 20mm to 12.5mm, 12.5mm to 4.75mm and passing 2.36mmDetermination Of Mixing : At compacting temperatures. The temperatures to which the asphalt must be heated to produce viscosity's of 85 to 10 sec saybolt favol and 140-15 sec saybolt farol shall be established as the mixing temperature and compaction temperature, respectively the corresponding viscosity's Farol shall be Englar specific viscosities of 25-3 for mixing and 40-5 for compactingPreparation Of Mixtures : Weight into separate pans for each test specimen, the amount to each size fraction required to produce a batch that will result in compact specimen 2.5"-3" in height (about 1200 G) place the pans on the hot plate or in the oven and that to a temperature of approximately 50 (27.8C) above the mixing bowl and with the heated aggregate and dry thoroughly, from a created in the dry blended aggregate and weight the required amount of a bituminous material into the mixture. At this point the temperature of the aggregate and bituminous material shall be within the limits of the mixing temperature established in paragraph below mix the aggregate and bituminous material rapidly until completely coatedCompaction Of Specimen : Thoroughly clean the specimen moiled assembly and the fact of the hot plate to temperature between 200 and 300 F (93.3 and 148.9C) place a piece of filter paper or paper toweling cut to size in the bottom of the mould before the mixtures is introduced. Place the entire batch in the mould space the mixture vigorously with a heated spatula or trowel to a slightly rounded shape. Temperature of the mixture immediately prior to a compaction shall be within the limits of the compacting temperature established a underPlace the collar and mould assembly on the compaction pedestal in the mould hold and unless otherwise specified, supply 50 blows with a compaction hammer with a free fall of 18 inch. Hold the axis of the compaction hammer perpendicular to the base of the mould assembly during compaction. Remove the base plate and collar and reverse the assembly of the mould. Apply the same number of compaction blows to the face of the reversed specimen. After compaction place the sample extractor plate on the end of the specimen. Place assembly with the extension collar down in the testing machine. Apply pressure by the load transfer bar and force the specimen into the extension collar. Lift the collar from the end of the specimen. Carefully transfer the specimen to smooth flat surface and allow it to stand overnight at room temperature. Weight measure and test the specimen. Table fans may be used. Mixtures that lack sufficient cohesion to result in the required cylindrical shape on removal from the mould immediately after compaction may be cooled, until rapidly cohesion has developed to result in the proper cylinder shape Procdure : Bring the specimens to the desired temperature by immersing them in Water Bath and place the lower segment of the Breaking Head and place the complete assembly in position on the testing machine. Place the dial gauge in position over the support and adjust the gauge at zero while holding in firmly against the upper segmentApply load to the specimen by means of the constant rate of movement of the load jack or testing machine head at 2 in per minute head of 2 inch indicated by the dial. Record the maximum reached load decreased as indicated by the dial. Record the maximum load sautéed on the testing machine or converted from the indicated flow. Recovery of test specimen from the Water Bath to the maximum load determination shall not exceed 30 secondsKeep the test sample in the Water Bath for 30 to 40 minutes, keep the samples in temperature at 140-188F for asphalt specimens and 100 to 118 F (37.8C) for tar specimen as in alternative the specimens may be brought to desired temperature by placing in an oven for minimum of 2 hours. Maintain the oven temperature at 140-188 F (60-70C) for asphalt specimen 100-108F (37.81C) for tar specimen. Thoroughly clean the guide rods and the inside surfaces for the test heads, proper to making the test and laborite the guide rods so that the upper test head slides freely over them. Remove the specimen from the water (for repeat test) and place in the breaking need assembly. Three samples (specimens) to be tested for each varying type mixtures Report (Result) : The report shall include the following information for each specimen tested : Weights of the test specimen. Average of three (3) to be takenMaximum load in kgs corrected when requiredFlow value in hundredth of a millimeterMixing temperatureCompacting temperature and testing temperature

We offer Plat Load Testing Apparatus, which is extremely acknowledged for its low maintenance, durability and dependability. Dimensional accuracy, sturdy construction and easy operation are some of the salient attributes that make our Plat Load Testing Apparatus highly popular among buyers. We manufacture Plat Load Testing Apparatus using premium raw material that ensures its durability. We are one of the prominent Manufacturers, Exporters and Suppliers of Plat Load Testing Apparatus from Uttarakhand, India.

We are actively engaged in providing Digital Planimeter to the clients. The quality of the Digital Planimeter is the outcome of the sophisticated technology and high grade material that are utilized for its manufacturing. The Digital Planimeter is suitable for a wide range of application including construction. The Digital Planimeter is properly packed in original case with instruction manual. With Re-chargeable adopter that allow you to take area and line measurement from maps and other sources with an accuracy within 2% suitable for a wide range of application including construction, packed in original case with instruction manual.

Specification:-It is used for the determination of the consistency of freshly mixed concrete, where the maximum size of the aggregate does not exceed 38mm.The slump cone has internal dia of 20cm at base and 10cm dia at top and 30cm height.
