Clarifier Dealers in Vapi

(6 products available)
Gidc
  • Premium
    Tube Settler System

    Tube Settler System

    100,000 - 1,000,000 / Piece
    • MOQ01 Piece(s)
    • Number Of FlowerLamella Gravity Settler
    • MaterialMetal, Plastic, Etc
    • FeatureCompact Design, Balanced Flow Distribution, Factory Assembled Units, Low Maintenance
    • Conventional clarification equipment requires 10 times more physical area to even begin to approach the same settling capacity of a Neotech Lamella Gravity Settler. This means faster settling in one-tenth space because the effective gravity settling area of the inclined plate design equals each plate are projected on a horizontal surface. Up to ten square feet of settling area becomes available for each square foot of physical area occupied by the unit. Loading rates normally used for the design of conventional settlers can be applied to the sizing of a Lamella Settler by substitution projected area for the surface settling area of a conventional clarifier. The compact design minimizes hydraulic disturbances caused by wind or temperature changes. Balanced flow distribution ensures equal flow to each plate and across the plate surface area preventing short-circuiting. Units and plate packs arrive at the job site factory assembled which reduces installation time and lowers installed costs. Minimal moving parts mean low maintenance costs. How it Works:Influent enters the lamella system and flows downward through the inlet chamber in the center of the unit and enters the plates through side – entry plate slots. The countercurrent design, unlike typical bottom feed designs, reduces the risk of disturbing previously settled solids. As the liquid flows upward, the solids settle on the inclined, parallel plates and sludge into the sludge hopper at the bottom. Further thickening of the sludge is achieved in the hopper due to compression in the quiescent zone achieved by the side feed design. The clarified liquid leaves the plate assembly through orifices or weirs at the top and is distributed into the collection channels leading to the clarified water outlet. This creates a pressure drop across the collection channels which ensure uniform flow distribution across the plates in order to utilize the full area for settling.
    ...more
    www
    NEOTECH WATER SOLUTIONS PRIVATE LIMITED
    Gidc, Vapi
    GST 12 yrs 4.4 (25)
  • Dissolved Air Floatation System

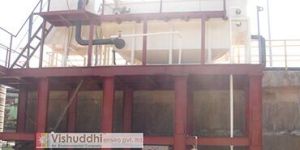

    Dissolved Air Floatation System

    Get Price Quote
    Dissolved Air Flotation (DAF) is a clarification process for the separation of solids, grease and oils. It works by producing a stream of micro-fine air bubbles that attach to solids and float them to the surface where they can be removed by a surface scraping mechanism. DAF is ideally suited to particles and flocs that are slow settling, neutral density or buoyant. This is particularly relevant to food and other industries where solids are light and voluminous and so not suited to settling. DAF also takes up considerably less space than settling methods, generally less than 25% equivalent surface area needed. Dissolved air flotation is very widely used in treating the industrial wastewater effluents from oil refineries, petrochemical and chemical plants, natural gas processing plants, paper mills, general water treatment and similar industrial facilities. A very similar process known as induced gas flotation is also used for wastewater treatment. Froth flotation is commonly used in the processing of mineral ores.   Mechanism of Dissolved Air Flotation: Solid particles in liquid suspension become attached to microscopic air bubbles. Waste flow or a portion of clarified effluent is pressurized to 3.4 – 4.8 bar in the presence of sufficient air to approach saturation. When pressurized air-liquid mixture is released to atmospheric pressure, minute air bubbles are released from the solution.Agglomerate rise to the surface to join other particles and form a blanket that can be removed mechanically. Flotation is used primarily to remove light suspended solids. Sludge flocs, suspended solids, oil globules are floated by the air bubbles which: Attach to floc particles Become enmeshed in floc particles. Further air-solid mixture is skimmed off from the surface. Clarified liquid is removed from the bottom. A portion of the effluent is recycled back to the pressure chamber. Benefits Simple in operation Less startup time Easily relocated One man inspection is sufficient Very compact, occupies very less space Less maintenance, low capital & operation cost
    ...more
    Vishuddhi Enviro Pvt. Ltd.
    Gidc, Vapi
    23 yrs
  • Solid Contact Clarifiers

    Solid Contact Clarifiers

    250,000 / Units
    • FeaturesHydraulic or Electrical Drive System, Low maintenance, High quality components, Indoor or Outdoor operation.
    • Treatment Capacity500 m3/hr
    • Operating TemperatureMax 80 Degree C
    • Tank Diameter5 m
    • BrandNeoTech
    • Bridge TypeFull Bridge
    • Number Of Flocculators1
    • Approximate Power Consumption1 HP
    ...more
    Neotech Water Solutions
    Gidc, Vapi
    9 yrs
  • Lamella Clarifier

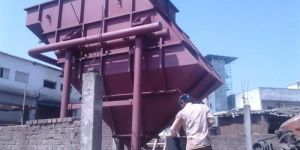

    Lamella Clarifier

    200,000 / UNIT
    • Country of OriginMade in India
    • Finishing TypeColor Coated
    • Bridge Width0.5 m
    • FeaturesSturdy build, Corrosion proof, Weather resistance
    Aaradhya Enviro Tech
    GIDC, Vapi
    9 yrs
  • Clarifier

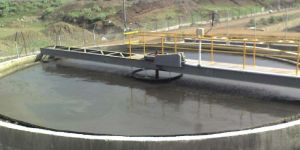

    Clarifier

    Get Price Quote
    Clarifier, Bubble Diffuser, Desalination Plan
    Sai Krupa Enterprise
    Vapi
    13 yrs
  • Dissolved Air Floatation Clarifier

    Dissolved Air Floatation Clarifier

    Get Price Quote
    Dissolved Air Floatation Clarifier, Belt Press, Idler Fram
    Fairtech Engineering Co.
    Gidc, Vapi
    9 yrs
