Clarifier Dealers in Chennai

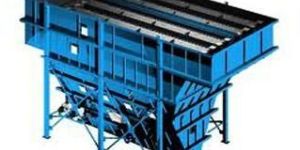

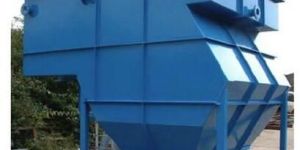

Lamella clarifiers maximize the particle settling by the use of inclined lamella parallel plates to increase the settling surface area. Influent first enters the clarifier through the flash mix tank where it is rapidly mixed with a polymer flocculants to allow the particles to separate from the water and coagulate into larger particles. Then the water enters a slow mix chamber which gently agitates the waterpolymer mix and further increases the particle size. The water flows down a settling chamber in the center channel of the clarifier and enters the plate packs through the sides and bottom. As the water flows up the plate packs the solids settle on the plate packs and slide into the sludge hopper at the bottom of the unit. The clean water at the top of the unit enters into flumes through orifices then flow to the outlet chamber.

The High Rate Sludge Contact Clarifier (HRSCC) that we provide is designed to remove the suspended solids and high turbidity in the water. This system contains clarifloculator tank along with clarifier that comprises lamella type, tube settler or convectional clarifier. Our High Rate Sludge Contact Clarifier has the ability to offer turbidity less than 50 NTU at the outlet of clarifier.    The solid contact clarifier is widely used for treating raw water and waste water; producing clarified water of highest quality. Our High Rate Sludge Contact Clarifier can be used for applications such as pretreatment of surface water source and applications in municipal supply treatment plants, ETPs and STPs. It can also be used for floriculture, agriculture and horticulture farms, sugar factories, fertilizers, chemicals, textiles, power plants and in applications where large capacity is required.Applications : Clarification of surface water Lime soda softening Removal of colloidal silica Colour removal White water recycling Primary (Physico –chemical) treatment of waste water Removal of heavy metals in the chemical and automobile industries Principal Of Operation : The solid contact clarifier works on two basic principles of coagulation / flocculation and hydraulic separation. Coagulation and flocculation occur in the flocculation zone when the feed stream comes into intimate contact with chemical mixtures and suspended sludge particles from previously treated water. This contact also promotes floc growth as smaller particles agglomerate into larger heavier particle. The hydraulic separation principle uses an up flow design to move water into the settling zone for clarification.

Shivpad Clarifier find wide application in the treatment of industrial and domestic water treatment and wastewater treatment plants. They afford better-suspended solids removal in the primary treatment and aid solid liquid separation of biologically treated secondary effluent. These units help to achieve a superior quality effluent as well as to maintain a high underflow solids concentration.

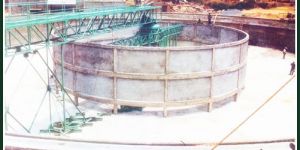

Clariflocculators incorporates the flocculator and clarifier in one compact unit. Agglomeration of the destabilised colloids is achieved as a result of particle transport in the inner flocculation unit. Clarification occurs in the outer clarifier unit.Flocculation, radial and upward flow sedimentation and positive sludge removal combined in a single tank operation is one of the salient features of this equipment.

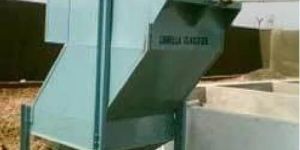

Canadian Clear can design, manufacture and supply clarifiers as per customer requirement. Clarifier is a unit, which is provided to reduce the escape of suspended solids and bio-mass with the sewage. It consist of circular /rectangular tank with a clarifier arm to scrape down the settled sludge through the sloped hopper to the sludge pit from where it is taken to the sludge treatment units. The primary clarifier is a physical unit which is provided to remove suspended solids from the wastewater. The suspended solids is allowed to settle down by means of gravity settling. It consists of a rectangular tank provided with clarifier arm to move down the settled solids from the sloped hopper to the sludge pit from where it is taken to the sludge drying beds.Lamella Clarifier/tube Settler : Canadian Clear can design, manufacture and supply Lamella Clarifiers/Tube Settlers as per customer requirement. Lamella Clarifier/Tube Settler is a physical unit, which is provided to remove suspended solids from the wastewater. The flocs which is form in the flocculator is allowed to settle down the by means of gravity settling. It consists of rectangular tubes / plates, which is placed at an inclination with respect to horizontal. When the wastewater is allowed to pass through the tubes/plates, water tends to move-up while the solids naturally move down because of gravity. The settled solid is collected in the sludge pit at bottom of the tank and it is taken to the sludge treatment units. We offer prefabricated units in MS-FRP and in Civil based systems. Canadian Clear can design, manufacture and supply clarifiers as per customer requirement. Clarifier is a unit, which is provided to reduce the escape of suspended solids and bio-mass with the sewage. It consist of circular/rectangular tank with a clarifier arm to scrape down the settled sludge through the sloped hopper to the sludge pit from where it is taken to the sludge treatment units.   DAF System (Dissolved Air Floatation) Canadian Clear can design, manufacture and supply DAF System as per customer requirement. Dissolved air floatation system is a physical unit, which is provided to achieve nil TSS. FeCl3 (ferric chloride) along with Alum and Poly electrolyte is dozed to support flocculation and sedimentation of total suspended solids. DAF equipment is particularly successful in Paper Mills, Tanneries and in other industries.   Circular Clarifiers : In the circular clarifier, the sedimentation tanks has floor scrapers fixed to a rotating arm scraping the sludge towards a central hopper but in the rectangular clarifiers, the scrapers are conceded along the tank bottom collecting the sludge into a trough at the influent of the tank. The most preferred clarifiers are circular ones as they require less maintenance and sludge removal is faster and higher removal efficiencies can be extracted. Canadian Clear offers you the best of clarifiers according to the requirement of the customers.

High Rate Solid Contact Clarifier are the most popular clarifiers in field of water treatment. They are preferred more than any other clarifier because they can handle large flow rate and provide better effluent quality outlet than other clarifiers.

Canadian Clear can design, manufacture and supply clarifiers as per customer requirement. Clarifier is a unit, which is provided to reduce the escape of suspended solids and bio-mass with the sewage. It consist of circular /rectangular tank with a clarifier arm to scrape down the settled sludge through the sloped hopper to the sludge pit from where it is taken to the sludge treatment units. The primary clarifier is a physical unit which is provided to remove suspended solids from the wastewater. The suspended solids is allowed to settle down by means of gravity settling. It consists of a rectangular tank provided with clarifier arm to move down the settled solids from the sloped hopper to the sludge pit from where it is taken to the sludge drying beds. LAMELLA CLARIFIER/TUBE SETTLER: Canadian Clear can design, manufacture and supply Lamella Clarifiers/Tube Settlers as per customer requirement. Lamella Clarifier/Tube Settler is a physical unit, which is provided to remove suspended solids from the wastewater. The flocs which is form in the flocculator is allowed to settle down the by means of gravity settling. It consists of rectangular tubes / plates, which is placed at an inclination with respect to horizontal. When the wastewater is allowed to pass through the tubes/plates, water tends to move-up while the solids naturally move down because of gravity. The settled solid is collected in the sludge pit at bottom of the tank and it is taken to the sludge treatment units. We offer prefabricated units in MS-FRP and in Civil based systems.   Canadian Clear can design, manufacture and supply clarifiers as per customer requirement. Clarifier is a unit, which is provided to reduce the escape of suspended solids and bio-mass with the sewage. It consist of circular/rectangular tank with a clarifier arm to scrape down the settled sludge through the sloped hopper to the sludge pit from where it is taken to the sludge treatment units. DAF SYSTEM (Dissolved Air Floatation) Canadian Clear can design, manufacture and supply DAF System as per customer requirement. Dissolved air floatation system is a physical unit, which is provided to achieve nil TSS. FeCl3 (ferric chloride) along with Alum and Poly electrolyte is dozed to support flocculation and sedimentation of total suspended solids. DAF equipment is particularly successful in Paper Mills, Tanneries and in other industries. Circular Clarifiers: In the circular clarifier, the sedimentation tanks has floor scrapers fixed to a rotating arm scraping the sludge towards a central hopper but in the rectangular clarifiers, the scrapers are conceded along the tank bottom collecting the sludge into a trough at the influent of the tank. The most preferred clarifiers are circular ones as they require less maintenance and sludge removal is faster and higher removal efficiencies can be extracted. Canadian Clear offers you the best of clarifiers according to the requirement of the customers.

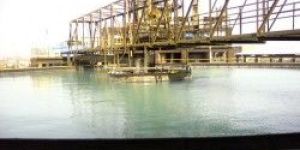

EIMCO-K.C.P.Circular Clarifier are the most common type of sedimentation basin used for separating suspended solids from liquids in the treatment of water, sewage, Industrial waste and industrial process.   EIMCO-K.C.P. Offers Bridge mounted (B) type, Column Mounted (C) Type and Traction driven (T) type Classifiers mechanism for various applications. These operate on the common principle of moving settled solids to the center of principle of moving settled solids to the centre of the tank for removal, and differ principally in the method used to support and drive the rotating sludge removal arms.   EIMCO-K.C.P. Classifiers are designed to handle variety of applications & flows and clarifier includes scum skimming device to remove the floating material.   Primary Clarifiers. Secondary Clarifiers. Brine Clarifiers for Caustic Soda Industries. FGD Reactor Clarifiers. White Liquid Clarifiers & Green Liquor Clarifiers for Pulp & Paper Industries. Lamella Clarifiers.

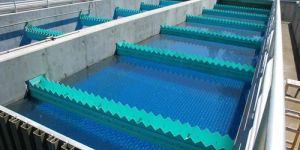

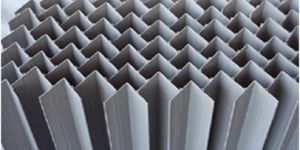

Description Leveraging on the expertise of our skilled professionals, we have been able to manufacture a comprehensive assortment of Tube Settler Media. Enhancing the settling capacity of water clarifiers, the tube settlers make use of isolated tubular channels. Our experts make use of flame resistant raw material, which is procured from the certified vendors of the market. Available at cost-effective prices, the entire range can be custom-designed in accordance with the specific requirements of the clients. Clarification/Sedimentation is the most important stage in the field of waste water treatment. The most efficient sedimentation systems have high settling surface area whilst maintaining a small structure. PROFLEX Tube Settler media provides a large settling surface area within the specified volume thus giving high flow rates. They have a chevron shaped self-supporting structure in a tubular form with six sides. They are primarily used in applications like water treatment, primary & secondary clarifiers in wastewater treatment. We are one of the distinguished manufacturers and exporters of a wide range of Tube Settler Media, which are ideally designed to augment the performance of new and old bio reactors. These products have received wide acceptance in the national and international market for its high usability, durability, cost effectiveness and wide variety. Some other salient features of these products are: Features High shelf and service lifeVery fine bubble aerationEfficient oxygen transfer rateNon-cloggingLow maintenanceGood Mechanical strengthHigh temperature resistance Applications Industrial Effluent TreatmentMunicipal Effluent TreatmentDiffused Aeration TanksSpecification Download

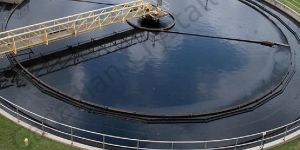

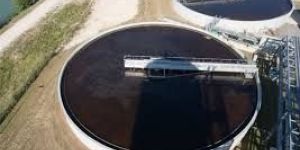

Generally constructed circular in shape with a hopper bottom. A slow moving racker arm rotates around, scrapping and bringing the deposited suspended solids to the centre well, from which it is taken out as sludge.

We are looked upon as one of the reliable Reactivator Clarifier Manufacturers in India. The use of optimum quality materials in the manufacturing of the Reactivator Clarifiers ensures high durability, tensile strength and resistivity to adverse conditions. The High Speed Reactivator Clarifier includes flash mixing flocculation, clarification and sludge thickening into a single operation. Moreover, the Industrial Reactivator Clarifier offered by us is ideally designed to meet applications like removal of turbidity, color, organic matter, odor, iron, manganese, hardness and alkalinity.

Jar Test Apparatus allows efficient and economical flocculation matter and collides in general and also has been specially designed for use in water treatments to correctly estimate the dosing of alum and such other coagulants for treatment of Water sewage and floc formation test in Water Treatment plants.
