Civil Engineering Test Equipment Dealers in Ahmedabad (59 products available)

• Power: 220 V
• Material: Stainless steel

• Material: IRON
• Color: BLUE AND IVERY
• Grade: Semi-Automatic
• Type of Testing Machines: Compression Testing Machine
• Automation Grade: Semi-Automatic
• Display Type: DIGITAL
• Customization: Customized
• Size: 3 FEET
• Brand Name: K.J.
• Load Capacity: 2000KN
• I deal in: New Only

• Temp. Range: 0 to 200ºC

VSP is used to determine the deflection temperature limit for specific application and comparing the heat softening characteristics of thermoplastic material at constant load in oil up to 300º C with specified rate of rise. Plastic materials being heat sensitive in nature has a lot of bearing on its thermal environment for its performance. Though their behavior in thermal conditions is very complex, some simple yield tests are used to predict it’s behavior and performance in given conditions. This is one of such yield point very commonly employed with such demanding application.

We believe in keeping transparency in the transactions and thus we offer an invoice to the clients stating all the necessary details. We undertake both online and offline payment processing methods. As one of the leading Suppliers, we keep our quality in synchronization with our reputation and offer the best Vicat Softening point apparatus to the buyers.

• Application: Soil Testing
• Weight: 2 Kg
• Color: DA Gray
• Power: Electronic
• Body Material: Mild Steel
• Brand Name: DM
• Fall Frequency Of Soil Disc: 120 Beat/ min
• Usage: Determine the Moisture Content

Motorised Model: With consists of a brass cup held on an adjustable bracket. The bowl can be adjusted for a fall raised & dropped on a rubber of standard hardness by cam action. Complete with one casagrande-grooving tool, one ASTM grooving tools and a height gauge block. With counter. Fitted with a motor geared down to give approximately 120 RPM. Suitable for operation on 230 Volts, single phase, 50 cycles, A.C. supply. Relevant Standard: IS : 2720 (Part-V)

• Availability: IN STOCK

The sand content kit is a simple, accurate and inexpensive sieve analysis apparatus for determining the sand content of drilling muds.

• Brand Name: EIE

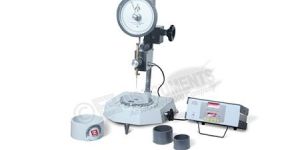

We are offering standard penetrometer. As per is 1448(p-92),is 1448(p-93),is 7401 ip 49 & 50, ip-179, ip-376, astmd 1321, astm d 937 this apparatus is used for penetration test on a wide variety of materials such as grease, petroleum, bitumen, tar, wax, olish, foodstuff, rubber asphalts and pharmaceutical creams. A depression is made in the sample by a needle of a definite weights which is measured intenths of a millimeter and expressed as penetration number. the apparatus consist of a cast aluminium base with an iron stand on which moves an aluminium arm and brass chromium plated rod slide through the lower portion of the arm. A needle with weights is fitted to this rod. The penetration value and penetration time is indicated on digital panel with least count on 0.01mm. Supplied complete with adjustable needle holder, penetration needle, sample container, transfer dish and weight of 50 gms. Salient features. * with geared arrangement for moving the arm with geared unit. * provision to readout penetration value & time of process. * penetration value in 000.0 * penetration value maximum up to 500.0 (50.00mm) * panel cut out size : 92 x 188 mm. * provision to set the time value of from 0.00 to 99.99 sec. * the timer output is 300v dc without load. * provision for tare for penetration. * provision for calibration. * provision for default calibration. * with pcprinter interface with software fir direct printout of calculated results (at extra cost) at extra cost bitumen container 55 mm x 35 mm bitumen container 70 mm x 45 mm bitumen container 55 mm x 57 mm brass cone aluminium solid cone weight (50gms or 100gms) grease container 10 cm dia & 10 cm height bath for penetration test.

• Country of Origin: India
• Application: Paper Testing
• Weight: 50-10kg
• Power: 9-12kw

Our soil testing equipments includes compact soil test equipments that perform a complete range of static and dynamic tests.

We are leading importer & supplier for the products which also includes baby cap booties & mitten sets, baby stretch caps & cap-bootie-mitten sets.

Introduction The compaction factor is defined as the ratio of the mass of the concrete compacted in the compaction factor apparatus to the mass of the fully compacted concrete. It involves dropping a volume of concrete from one hopper to another and measuring the volume of concrete in the final hopper to that of a fully compacted volume. The results of the compaction factor test can be correlated to slump, although the relationship is not linear. This test is difficult to run in the field and is not practical for large aggregates (over 1 inch) Compared to the slump test, the apparatus is bulky and a balance is required to perform measurements.   General Description & Specification: The apparatus, consist of a rigid frame that supports two conical hoppers vertically aligned above each other and mounted above a cylinder. The top hopper is slightly larger than the bottom hopper, while the cylinder is smaller in volume than both hoppers. To perform the test, the top hopper is filled with concrete but not compacted. The door on the bottom of the top hopper is opened and the concrete is allowed to drop into the lower hopper. Once all of the concrete has fallen from the top hopper, the door on the lower hopper is opened to allow the concrete to fall to the bottom cylinder. The excess concrete is carefully struck off the top of the cylinder and the mass of the concrete in the cylinder is recorded. This mass is compared to the mass of fully compacted concrete in the same cylinder achieved with hand rodding or vibration. Complete with trowel and tamping bar 0-60 cms long X 16mm dia.   Optional Accessories: Concrete ScoopStraight EdgeWeighing Balanc

The California bearing ratio test is penetration test meant for the evaluation of subgrade strength of roads and pavements. The results obtained by these tests are used with the empirical curves to determine the thickness of pavement and its component layers. This is the most widely used method for the design of flexible pavement. The laboratory method for the determination of C.B.R. of undisturbed and remolded compacted soil specimens, both in soaked as well as unsoaked state.

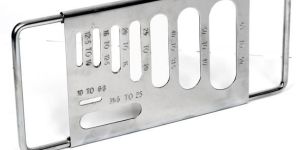

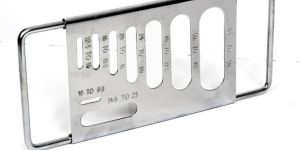

It consists of a frame with sliding panel with accurate slots of different standard width and length, the complete assembly is chrome plated or powder coated.

• Weight: 10-20kg
• Voltage: 110V
• Automatic Grade: Automatic
• Driven Type: Electric
• Certification: CE Certified
• Power: 1-3kw
• Warranty: 1year

By keeping track with latest market development, we are engaged in offering our clients broad array of Digital CBR Test Apparatus. Our offered test apparatus is available from us on numerous specifications to choose from. This test apparatus is developed utilizing premium quality material under the strict observation of our professionals. Offered test apparatus is well tested on various quality parameters to make certain its flawlessness. Customers can avail this test apparatus from us at nominal rates in a given time frame.

• Ground Glass: 10mm thick and about 45 cm square or larger rough glass as per IS 2720 (Part V-1985) for mixing soil and water
• Spatula: Flexible with blade about 8 cm long and 2 cm wide made from stainless steel material as per IS:2720 (part V-1985)
• Evaporating dish: Made from porcelain material having diameter of about 12 to 15 cm with smooth surface as per IS 2720 (part V-1985)

• RELEVANT STANDARD: IS :2720(PART-XV) MAKE : EIE

SINGLE GANG THREE GANG SIX GANG Consists of : Loading Unit, maximum capacity 20 kg/cm2 consisting of a loading yoke connected to a lever arm with a counter- balancing adjustment and having a lever ratio of 1:10, the whole assembly being mounted on a steel frame stand. Consolidation cell assembly, fixed ring type for testing 60 mm dia x 20 mm thick specimens comprising : Fixed ring for specimens 60 mm dia x 20 mm thick with a guide ring. Top porous stone for 60 mm dia specimen. Bottom porous stone for 60 mm dia specimen. Pressure pad, perforated Channeled base with water inlet. Gasket. Flanged water jacket, Set of weights to give a pressure of 10 kg/cm2 on 60 mm specimen. Comprising : 7 off 0.05 kg/cm2, 5 off 0.1 kg/cm2, 6 off 0.2 kg/cm2, 6 off 0.5 kg/cm2, and 5 off 1.0 kg/cm2. Water reservoir with plastic tube, T-connection and pinch cock. Dial gauge, 0.01 mm x 25 mm travel

It will consist of metallic cone with half angle of 15' -30 ±15' and 30.50mm coned length. It will be fixed at the end of a metallic rod with a disc at the top of the rod so as to have a total sliding weight of 148± 0.5 gms. The total rod shall pass through two guides. (to ensure vertical movement) fixed to a stand. Suitable provision will be made for clamping the vertical rod at any desired height above the surface of the paste in the trough. A brass trough 50 mm internal diameter and 50 mm depth will be provided as per IS specification resting on M.S.bars. Optional Accessories Ground Glass : 10mm thick and about 45 cm square or larger rough glass as per IS 2720 (Part V-1985) for mixing soil and waterSpatula : Flexible with blade about 8 cm long and 2 cm wide made from stainless steel material as per IS:2720 (part V-1985)Evaporating dish : Made from porcelain material having diameter of about 12 to 15 cm with smooth surface as per IS 2720 (part V-1985)

• Material: MS
• Automation Grade: Automatic
• Voltage: 220-280V
• Frequency: 50Hz

Swell Test Apparatus (AIM 132)   It is designed to determine the swelling pressure developed by soil specimens moulded to desired densities at known moisture contents, when soaked in water. The load applied to restrain the swelling is transferred on to a load measuring proving ring through a perforated swell plate and a load transfer bar. The proving ring is attached to the lead screw of hand operated load frame. A soaking tank is provided for saturating the specimen and the base of the mould provided has channels and radial grooves with connecting holes.     Application Measurement of Swell pressure. Industry Chemical/Process Agricultural Civil Infrastructure Dams & Tunnels Geophysical/ Seismology Testing Geotechnical (soil/ rock) Testing Irrigation Mining Real Estate Roads, Highways & Bridges Education Architecture Building Technology Civil Department Geotechnical Mining Engineering Science Colleges Traffic & Transportation Railways Roads, Highways & Bridges

UT5000 Intrinsically Safe thickness gauge with CorDEX CONNECT™ measures metal thickness for Non-Destructive Testing (NDT) and Predictive Maintenance (Pdm) on pipelines and fixed equipment within hazardous locations. UT5000 is a next generation thickness gauge packed with proven technologies: CorDEX CONNECT™ uses RFID + Software to tag measurements with their location then organises the data, giving the engineer a view of the pipeline at any specific location. The unique corrosion mode option helps identify spots of thinning; MultiECHO™ technology improves accuracy on uneven surfaces; onboard memory stores up to 1000 readings. The CorDEX UT5000 is ATEX and IECEx certified for Gas & Dust (Zone 21). From storage tanks to dust conveyors, UT5000 can measure thickness and detect safely problems in virtually any explosive environment. The Ruggedized transducer and Brass wear ring prevent undue wear on the transducer surface and ensure the UT5000 is as tougher than most. Designed for rugged environments, the shock resistant skin protects a 3.1 inch (8cm) colour screen and has easy-to-feel raised buttons. The intrinsically safe dual-element, 4MHz transducer is adjustable up to 8Hz with accuracy of +/- 0.05mm (0.002inch).

• Finishing: Polished
• Color: Normal Paint
• Automation Grade: Semi-Automatic
• Material: MS
• Hammer Weight: 2.54, 4.89kg
• Capacity: 1000 cc
• Internal diameter: 100 + 0.1 mm
• Effective height: 127.3 cm + 0.1 mm
• Light Rammer: 2.6 Kg
• Minimum Order Quantity: 1 Number

• Material: Steel
• Automation Grade: Manual
• Weight (kg): 25
• Surface Treatment: Polished

We are the leading manufacturers, exporters and supplier of this products.

Soil compaction is a fundamental requirement for the construction of earth fill for dams, reservoirs, canal embankments, highways, railways and runways. The relationship between soil moisture content and compacted dry density is very useful for deciding construction specifications and quality control of compacted earth fill. While designing an earth or earth retaining structure, the strength and deformation behaviour of soil is evaluated by testing soil specimen compacted to the density as would be achieved during construction. The construction quality control is essentially to check the density of compacted soil achieved in the field, thereby checking its strength. Compaction Test Apparatus, Manual IS:2720 (Part 7)-1987, IS:2720 (Part 8)-1990, IS:9198- 1979, IS:10074-1982, BS:1377 Following models of Manual Compaction Test Apparatus. Compaction Test Apparatus 100mm ID x 127.3mm height and 1000cc volume for Light Compaction Test As per IS : 2720 Part-VII. Complete with Collar Base Plate and Rammer of 2.6 Kg x 310mm. Compaction Test Apparatus 150mm ID x 127.3mm height and 2250cc volume for Heavy Compaction Test As per IS : 2720 Part-VII. Complete with Collar Base Plate and Rammer of 4.89 Kg x 450mm.

• Voltage: 240 to 440 V
• Material: MS
• Fininshed: Coated

• Type: Lump Test Apparatus
• Material: Mild Steel, Stainless Steel
• Certification: ISO 9001:2008
• Application: Lump Testing
• Color: Brown, Grey, Light White, Off White, Silver, White
• Condition: New
• Phase: Single Phase
• Warranty: 1yrs

We are the main supplier of this product.

The compaction factor is defined as the ratio of the mass of the concrete compacted in the compaction factor apparatus to the mass of the fully compacted concrete. It involves dropping a volume of concrete from one hopper to another and measuring the volume of concrete in the final hopper to that of a fully compacted volume. The results of the compaction factor test can be correlated to slump, although the relationship is not linear. This test is difficult to run in the field and is not practical for large aggregates (over 1 inch) Compared to the slump test, the apparatus is bulky and a balance is required to perform measurements. General Descripation & Specifications TThe apparatus, consist of a rigid frame that supports two conical hoppers vertically aligned above each other and mounted above a cylinder. The top hopper is slightly larger than the bottom hopper, while the cylinder is smaller in volume than both hoppers. To perform the test, the top hopper is filled with concrete but not compacted. The door on the bottom of the top hopper is opened and the concrete is allowed to drop into the lower hopper. Once all of the concrete has fallen from the top hopper, the door on the lower hopper is opened to allow the concrete to fall to the bottom cylinder. The excess concrete is carefully struck off the top of the cylinder and the mass of the concrete in the cylinder is recorded. This mass is compared to the mass of fully compacted concrete in the same cylinder achieved with hand rodding or vibration. Complete with trowel and tamping bar 0-60 cms long X 16mm dia. Optional Accessories: Concrete Scoop Straight Edge Weighing Balance

A perfect organization always make sure for the all the product to be manufactured under all the possible atomization which in result can give the perfect shape as the requirement or the need of the market. Following the same rule since more then 5 decades we are trusted manufacturer and supplier of “MARSHAL STABILITY TESTING APPARATUS” to the industry. Having a wast workshops equipped with all the necessary machinery our team used the raw material which are high grade in quality. They also follow all the parameters and norms set by the industry. Our Marshal Stability Testing Machine is used in evaluation & designing paving mass of Bituminous. We provide 2 different type of machine. “Marshal Stability Test Apparatus” & “Modified Marshal Stability Test Apparatus”.

• Display Type: Analog Type
• Weight (Kilogram): 16 kg
• Power: 75W
• Dimensions: 200x300x500 mm
• Measuring Range: 0-50 mm
• Resolution: 0.01 mm

• Voltage: 3 phase
• Country of Origin: Made in India
• Capacity: 560 degree
• Usage/Application: laboratory testing
• Brand: Mark

• Description and specifications: The apparatus comprise of a slump cone with handles made of mild steel sheet, a chrome plated steel tamping rod of 16 mm diameter X 600 mm long, rounded off at one end, with a scale marked on it and a steel base plate with a carrying handle. Etc
• Optional Accessories :: CONCRETE SCOOP. FUNNEL FOR POURING CONCRETE IN CONE STRAIGHT EDGE

Introduction he oldest, most widely used test for determining workability. This test is used to determine the workability of fresh concrete, which would normally be undertaken at the point of delivery to ensure the concrete, is of adequate consistency for placement. The test is applicable to concrete of medium workability. The device is a hollow cone-shaped mould. The mold is filled in three layers of each volume. Each layer is rodded with a 16mm steel rod 25 times. The mould is then lifted away and the change in the height of the concrete is measured against the mould. The slump test is a measure of the resistance of concrete to flow under it own weight.
