Shree Bhagwati Pharma Machinery Company Rakhial, Ahmedabad, Gujarat

APPLICATION & PROCESS : Visual Bottle Inspection Machine is used for visual Inspection of filled bottles to checked for non required foreign particles & leak checking and to ensures maintain quality standard of products as per requirements in Pharmaceuticals & Foods Industries. Inspection table is equipment consisting of a three-track conveyor with a hood with lighting arrangement and visual inspection background of alternate black & white color. Inspection table have stainless steel structure with moving S.S. slat chain. Structure made out of S. S. square pipe & supported on adjustable bolts. The central conveyor belt brings the bottle from the capping machine conveyor. These bottles are automatically bifurcated on the two adjoining conveyor belts & further on the side tables for operators sitting on either side of the table. The operators in turn pick up the bottles & visually inspect the bottles in the alternate white & black background to check for any partials in the liquid filled, sealed & breakage of bottle. After inspection, good bottles are placed in the central track, which is transfer for labeling. SALIENT FEATURES : Designed as per cGMP - Current Good Manufacturing Practices compliance A machine structure is made from AISI 304 with matt finish. High-speed visual inspection with high output. Length can make as per customer requirement. PVC black & white board as per GMP norms Belt drives through gear motor with variable frequency drive. Provides guide for chain of UHMW self lubrication. Adjustable height of conveyor belt, to align with other machine of the line Self-alignment bearing for easy maintenance. Rigid Vibration free Construction for trouble free performance.

Separation of solids from solids. Liquids from solids and gradation of materials in accordance with their sizes have always presented problems. Especially when large quantity of material is to be processed through finer screens. In recent times the most important development that took place is the replacement mechanical sifter & vibro sifter in sleving and straining operation. Even if a particle is small it would pass through a screen only if its configuration relating to the opening is favorable.For a non-isometric particle, the axis must be correctly aligned with respect to the place of the screen and the center of gravity of the particle must be above the aperture at any instant. Further, the amount of material on the screen should be such that passage of small particles is not obstructed by larger particles. It is therefore necessary to impart horizontal rotary motion to the particle by suitable means. Care also has to be taken to ensure that such motions, particularly during dry sleving or grading operation. should not be vigorous so as to cause size reduction of particles themselves or damage to the screen. Sieving, Grading and Straining Machine was specially developed with above design features to provide vibration. The amplitude of vibration is adjustable to processing needs. Salient Features: SS 316 contact parts Portable and compact. Lower energy consumption compared to reciprocating vibratory system. Standard machines are with TEFC motor. All contact parts and screen of 304 AISI Stainless Steel material. Easy dismantling and cleaning facility for contact parts. Wide range of screen sizes 4-300 mesh.

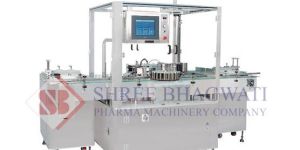

The vial sticker labeling machine multi-pack-120 is a fully automatic equipment; with many user friendly features. This advanced vial labelling machine integrates the most up to date, micro processor controlled, label dispensing system. Moreover it also includes the latest sensing system for labels and other identical products. In fact it is regarded as the perfect machine for labeling tiny and round shaped products such as vials, bottles, and several other similar items. Besides, this robust equipment can quickly label up to 150 units in one minute, depending on the diameter of the product; as well as the size of the label. The vial sticker labeling machine is widely utilized for labeling vials and bottles of small sizes; that are made from materials like glass, plastic, PET, HDPE, PP, etc. This highly versatile and elegantly designed multi pack model – 120 of vial labeling machine even has a special and distinct, single point synchronized speed control system. Further, one of the inherent and preset characteristics of this machine is the label length detection system. This unique feature thereby helps you to avoid the necessity of manually feeding, and storing the information related to the length of the labels within the memory of the machine; and retrieving the same data every time you need to change the size of the label and restart the equipment. Consequently this cost effective and time saving system, saves a considerable amount of time, prevents down time of the machine, and also enables you to enhance the productivity. Another outstanding element of this model is the automatic product alignment system, which is synchronized with the top holding belt system. Actually, this vial sticker labeling machine includes lots of features to fulfill the primary requirements of a standard model. Hence it is commonly used by several industrial segments in various national and international regions.

Power : 1.5 Amp.

Speed : Up to 150 Labels per minute depending on Product and Label Size

Conveyor Height : 830-875 mm*

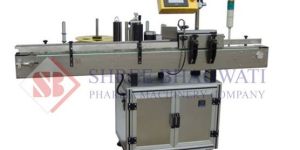

The vial sticker labeling machine is completely automatic and can be operated at extremely high speeds. Moreover this SBSL–300 model is very user friendly, and also has several other outstanding features. In fact, it is built using the most modern micro processor controlled label dispensing system. The vial labeling machine also includes the latest sensing system for labels, and many other products. It is therefore regarded as the ideal machine for labeling round vials, small sized bottles, and several other round objects; which are made from glass, plastic, PET, HDPE, PP, etc. This swift and sturdy equipment has the ability to label at the most 300 units in a single minute; based on the diameter of the product and size of the label. Further, the roller spacing device of this totally automatic vial sticker labeling machine, results in a simple no parts change system. In addition to this, it also helps you to do away with the star wheel or feed worm for evenly separating the products. Besides this SBSL–300 vial labeler machine even incorporates an exceptional, single point synchronized speed control system. Moreover, it also has a programmed label length detecting system. This built-in mechanism thus helps to avoid the manual feeding and storing of the label length data into the memory; and again retrieving that information every time, when you want to change the label size and restart the vial labelling machine. As a result this automated system helps to save your time by preventing machine downtime, and also increases the efficiency. These vial labeling machines are even available with an optional tough glass, or acrylic safety cabinet. This advanced vial labelling equipment actually includes all the basic features that are required in a standard machine, to meet the diverse needs of the customers in the local and global market. No Label Data Input/retrievals require for any Label Size No Change Parts for Product and Label size Single Pot On-line Speed Variation control Synchronized speed of Label Dispensing, Conveyor and Pressing Device Virtually Maintenance free machine Easy to change label application height User Friendly Label Placing Adjustments Self Protected against Voltage Fluctuations Suitable for On-Line Inkjet and Contact Coding System Suitable for Partial, Full Wrap Around and Overlap Labelling Built In A.C. Variable Frequency Drive System. Fully Stainless Steel finishes Machine

The vial sticker labeling machine is completely automatic and can be operated at extremely high speeds. Moreover this SBSL–300 model is very user friendly, and also has several other outstanding features. In fact, it is built using the most modern micro processor controlled label dispensing system. The vial labeling machine also includes the latest sensing system for labels, and many other products. It is therefore regarded as the ideal machine for labeling round vials, small sized bottles, and several other round objects; which are made from glass, plastic, PET, HDPE, PP, etc. This swift and sturdy equipment has the ability to label at the most 300 units in a single minute; based on the diameter of the product and size of the label. Further, the roller spacing device of this totally automatic vial sticker labeling machine, results in a simple no parts change system. In addition to this, it also helps you to do away with the star wheel or feed worm for evenly separating the products. Besides this SBSL–300 vial labeler machine even incorporates an exceptional, single point synchronized speed control system. Moreover, it also has a programmed label length detecting system. This built-in mechanism thus helps to avoid the manual feeding and storing of the label length data into the memory; and again retrieving that information every time, when you want to change the label size and restart the vial labelling machine. As a result this automated system helps to save your time by preventing machine downtime, and also increases the efficiency. These vial labeling machines are even available with an optional tough glass, or acrylic safety cabinet. This advanced vial labelling equipment actually includes all the basic features that are required in a standard machine, to meet the diverse needs of the customers in the local and global market.

APPLICATION & PROCESS : The Vacuum Shelf Tray Dryers are used to het and dry material under the state of vacuum is called vacuum drying and where difficulties in drying materials due to high toxic contents, hygroscopic in nature, heat sensitive. It is widely used in the pharmaceutical, Herbal, chemical & foodstuff. The Vacuum Shelf Dryer is basically a tray dryer working under vacuum conditions. Its use vacuum to pump air and humidity out from the closed heat chamber due to vacuum making the chamber on the vacuum state thus increased drying rate greatly and saved energy. The boiling point of the material to be brought down for drying and the entire system is in closed loops so, no contamination occurs. The evaporation's evolved during the drying process is cooled down through a connected condenser and collected in receiver. The vacuum shelf dryer when combined with solvent extraction system, ensures that almost all of evaporating vapors is recovered and condensed in to a receiver. Vacuum shelf dryer is closed chamber with heavy structure with air lock doors, Jacketed and insulated body. Inside chamber there are shelves for resting tray. Shelves are manufactured in hollow construction with baffles cum stiffeners, inlet and outlet nozzle. Hot media is passed through the Inlet Header to each shelf, so heat transfer to the surface, which in turn heats up trays placed on the shelves. The hot media flows out from the shelves through the Outlet Header. SALIENT FEATURES : Design is cGMP with product contact parts AISI 316. Vacuumize shelves drying on low temperature system for high toxic. Hygroscopic & heat sensitive materials. Vacuumize closed system can be with condenser, Receiver for solvent recovery. Very low value of final moisture even at low drying temperatures. Safety feature: Vacuum relief valve, Safety pressure relief valve, Temperature Controller & Overload protection. Option for heating media can be steam/ hot water / hot tharmic fluid. Option features: condenser & Receiver for solvent recovery & Evaporation cooling, PLC Controls, Explosion Proof Electrical

APPLICATION & PROCESS : The Vacuum transfer system is unique dry material transfer system for dust free and avoid to human touch. The vacuum transfer system is used in Pharmaceutical, Food, Agro Chemical, Sugar Industries and chemical. The system is use full for inline milling, sifting, blending, loading and unloading. The principle of vacuum transfer has been proven to be a better way to move many types of material and a giant step over manual handling. The technology exists for moving virtually any material that can be pulled through a hose or tube. The system is consisting of Blower, Vacuum receiver system with filter, cyclone filter and Pipe. The vacuum conveying systems designed specifically for the direct charge loading of blenders, mixers, sifter, milling, reactors or any vessel capable of withstanding a vacuum. The vacuum system can be provided mobile type with lifting provision to move one room to another room for loading and loading any machine. SALIENT FEATURES : Design is cGMP - Current Good Manufacturing Practices compliance. All contact parts AISI 316 & non contact parts AISI 304. Capacity available 100 Kg to 5000 Kg/hr. Can be used for transfer of products having bulk densities up to 1.0gm/cc. Total Discharge no Retention. No segregation or degradation of Product. No tool required for opening & cleaning. Transfer can be completely automatic to avoid the manual handling of the material.

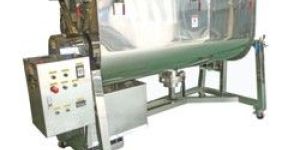

APPLICATION & PROCESS : The Vacuum Paddle Mixer Dryer is suitable for mixing and drying the material which can not operate at low Temperature easily oxidized, poisonous in nature. It operates at low Temperature efficiently under vacuum. It is used for raw materials drying and mixing powder or granules of Pharmaceutical Materials, Crystalline, Insecticides, Pesticides, and Food industry and heat sensitive products. Material that cannot undertake high temperature. Material that is easy to oxidize. Material that do not permit to destruct. To recover material with residual volatile. Material with vigorous irritative and toxicity. The Vacuum Paddle Mixer Dryer consists of a jacketed cylindrical shell with rotating with specially designed Paddle Agitator type blade by rigid fabricated structure motor, gear box. There is provision for application of vacuumized inside the shell and circulation of heating media in the jacket during the rotation of the stirrer. The large heating surface area presented by the internals surface of the shell ensures uniform drying of the product, as the product gently moving & fluidized while the Paddle stirrer rotates. The diffusive action induced by the mixing stirrer constantly presents a fresh layer to come into contact with the indirectly heated walls of the shell. A well designed sealing system enable maintenance of deep vacuum inside the shell, and also ensures positive circulation of a heating media in the jacket. In operation, material is filled to the top of the shell. The shaft rotates at relatively low speed and the moving paddles push and fluidized the material back and forth mixing it. The outer Paddle rotation displaces the material from the ends to the center while the inner paddle rotations move the material from the center to the ends. This counter-current action results in homogenous blending. Mixing is achieved in 15 to 20 minutes with 90 to 95 % or better homogeneity. The bottom discharge provided for unloading of the material and easy cleaning of the mixing drum. Specially designed self adjusting sealing arrangement of unique design is provided to ensure that no black particle enters into the mixing drum. SALIENT FEATURES : Design is cGMP- Current Good Manufacturing Practices compliance. All contact parts AISI 316 & non contact parts AISI 304. Continuous rotation of paddle stirrer, material will make continuous movement and fluidized in the container and reach to uniform mixing and drying at low temperature. Dust free operation. High vacuum operation Fast and uniform homogeneous mixing & draying at low temperature. Solvent recovery Continues vacuum maintain during process. Very low value of final moisture even at low drying temperatures. Option for two type design of shell 1. Cylindrical type and 2. "U" shape. Continues vacuum maintenance during process. Vacuumized closed system with condenser, Receiver for solvent recovery & Cyclone separator to recovery the solid particle. Rapid & Complete discharge / Zero holdup after discharge Heating media can be used steam/ hot water / hot oil. Rigid drive with reduction gear box, motor and stuffing box for shaft sealing. Charging pot, Vacuum connection,, sight glasses, Vacuum relief valve & gauge are provided on top of the shell. Connection at jacket will be provided for steam Inlet, safety valve, Pressure gauge and steam trap. The discharge with butterfly valve/Slide valve at bottom side of the shell OPTIONAL FEATURES : Option for two type designed of shell 1. Cylindrical type and 2."U" shape. Option for Flame Proof Electrical. Option for Automatic Charging Option for lump breaker. Option for condenser, Receiver & Cyclone for solvent recovery. Option for advance PLC Controls with HMI touch screen. SAFETY FEATURES : Temperature controls, Vacuum relief Valve, Over load protection and Emergency stop.

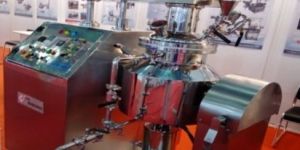

APPLICATION & PROCESS : Vacuum Homogenizer Mixer is applicable for a wide variety of viscosity product, i.e. emulsions and semisolid. It integrates with pressure, heating, cooling and vacuum for Agitating, Mixing, Emulgating, Dispergating, Suspending, Homogenizing & agglomeration functions into single machine. AGITATOR MIXER: Two low speed agitator; Counter rotating mixer with outer anchor stirrer with self pressure Teflon scrappers and contrs rotating inner paddle blade. Ultra Mixer is a combination of counter - rotating inner paddle agitator and outer anchor agitator, generating a disturbance in the normally circular flow pattern and dampens vortex formation. The blades of paddles are pitched to promote top - to bottom flow. In addition, self adjustable scrapers are utilized to prevent the build-up of a stagnant film between the agitator and the vessel, and assure efficient heat transfer to product during heating and cooling steps. HIGH SPEED HOMOGENIZER : Toothed rotor/stator type Homo disperser, locates at the bottom of the vessel, accomplishes emulsification by physical action and centrifugal forces created by high speed rotation of the rotor. These actions would break up oil phase/ aqueous phase liquid stream into tiny and discrete droplets. DESIGN FEATURES : Design compliance with cGMP Integrated Cleaning in Place-CIP. Sterilizing In Place-SIP as an Option. Batch Size Available model 10 Liter to 6000 Liter working Capacity. Materials Product Contact AISI 316L. Food Grade silicon rubber for seal. Water Phase Vessel Jacket for heating & cooling. Vacuumize process. Vessel Inside Pressure (-1 /+2 Bar) Heating Jacket Pressure (-1 /+6 bar) Tilting vessel up to 500 Liter. Heating by steam or hot water circulation. Direct cooling with water. Temperature controller & safety pressure Valve. Bottom discharge with valve. Agitator mixer with scrapper Mixing flow top to bottom in vertical axis. Outer Anchor agitator with paddle with 45°C. Inner paddle agitator with 45°C. Teflon scrappers on outer agitator. Scrapper cleanly working on both side. Optimize heat transfer. RPM steplessly with variable speed drive. High speed Homogenizer Toothed Rotor - stator type. RPM steplessly with variable speed drive. High shear & pressurization of the homogenizer. Thus homogenization of high viscosities up to 400.000 mPas. Homogenizer mounted on lower position in the centre of vessel. Can be homogenization in circulation. Top Lid Motorized top lid for lifting & lowering. Safety Interlock process with limit switch. Connection for Vacuum, Charging, Eye glass window, Light glass, CIP,SIP, Pressure gauge & safety valve. Vacuum System Water Ring Vacuum Pump. Vacuum gauge & Vacuum relief valve. Machine Structure Rigid modular structure with AISI 304. Mounting on Anti vibration pad so, No foundation require. Controls & Visualization Electric Controls with digital display. Optional PLC Controls with HMI Touch screen. RPM and Process time entries. Temperature controls- Heat/cool. Vacuum start- Stop. Integrated Data Recording for batch. SAFETY FEATURES Emergency stop button Safety vacuum relief valve & Indicator Gauge. Safety Pressure Valve. Limit switch at top lid

APPLICATION & PROCESS : 'V" Shape Blenders are used for mixing, lubricating and blending in Pharmaceutical, Nutraceutical, Food, Chemical, cosmetics, ceramics, pesticide, plastics and other Allied industries. The product containers have 'V" shape so it crated continuously split and recombines of the material with more tumbler and friction effect to the material for fast and homogenizing mixing. It can perform homogenously dry mixing of free flowing powders, granules requiring low shearing force, Mixing and Blending of particles with rapid intermixing of particles irrespective of varying specific gravities. The material is loaded into the 'V" shape blender drum. The 'V" shape blender is tumbles the material in the container and spread out. The mixing is achieved in 5 to 15 minutes with better homogeneity. SALIENT FEATURES : Design is cGMP - Current Good Manufacturing Practices compliance All Product contact parts AISI 316/ 316L & non contact parts AISI 304. 'V' shape product container for Ideal dry mixer for lubrication of granules and homogenization mixing of multiple batches in to single batch. Available Capacity model in octagonal blender 25 kg to 2500 kg batch size. Enclosed rigid drive with reduction gear box and motor. "A" type rigid structure of the machine with two sides resting of product container. Product container having discharge with butterfly valve and man hole. 2 Nos. Charging hole with hinged lid with seal for charging and cleaning. Safety reeling provided for rotating area of product container. Fixed baffles provided for lumps braking. Electric controls panel with cycle time. OPTIONAL FEATURES : Charging Option : Loading & Unloading by Product container with Jacking trolley. Vacuum conveying system. Bin loading by hydraulic hoist. Interchangeable with different capacity 'V" shape product container. Rotary Intensifier with AC variable drive. AC Frequency variable drive for product container. PLC Controls with HMI touch screen, Flame proof motor and Push Button station. Inline milling and loading with vacuum transfer systems. SAFETY FEATURES : Safety reeling with limit switch. Overload protection and emergency stop.

Optional Features: All exposed parts of S. S. or Aluminium to avoid any rusting. Reduction Gear ensures jerk free and Noiseless performance. Square Frame imparts Vibration free performance and allows absolute cleanliness even inside.

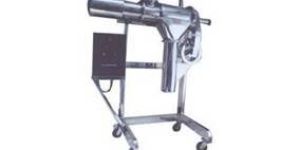

APPLICATION & PROCESS : The Turbo Sifter is used to combine process for sieving and milling. The turbo sifter mainly used in pharmaceutical formulation for raw material sifting and milling process. The turbo sifter is having two chambers for sifting and milling with separate drives. The separation of coarse and fine product size happens in the sifting chamber. The sifting chambers having rotary sieve with drive so fed material powder after entering the turbo sifter is pushed towards the sieve area by screw in the sieve chamber gets sifting so, fine powder falls in to directly discharge pot. While coarse particles are proceed to the adjacent milling process. There are sieve and blades with rotary drive in milling chamber, which while rotating push and mill the material against the sieve so coarse particles are broken in to fine and falls to the discharge pot, thus attaining the uniform product size. SALIENT FEATURES : Total drive transmission system enclosed Limit switch installed at the sifting and milling chamber. Overload relay Protection and Emergency stop button

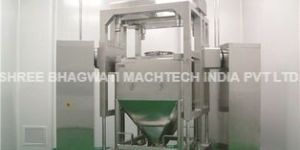

APPLICATION & PROCESS : Tumbler blenders or IBC Container tumblers are used mainly for blending of dry powders for tablet production and capsule, which facilitates better flow for tablets and capsules. This is a closed contained, totally dust free single step transfer system. It can handle more than one size of IBC container tumblers. In granulation room the dry granules enter to the IBC container for blending through a dust free connection and the same IBC container is loaded over to the blender for blending. The IBC bin locked in the resting frame in 15° then lifted by hydraulic system to up ward for moving height after that the IBC bin rotates for blending. This same IBC container after blending raised over the tablet press for unloading in to the tablet press hoppers. SALIENT FEATURES : Design is cGMP - Current Good Manufacturing Practices compliance All Product contact parts AISI 316/ 316L & non contact parts AISI 304. IBC Bin Tumbler Blender for Ideal dry mixer for lubrication of granules and homogenization mixing and conveying of the material to further process. Interchangeable different capacity IBC Bin can be used on same machine use for mixing. This is a closed and contained system where by a single step transfer material from Container of the Conta blender is transferred to the tablet press hopper. In granulation room the dry granules enter to the container for blending through a dust free connection and the same container is loaded over to the blender for blending Totally dust free. Also another advantage is adaptability of this system to handle more than one size of bunkers or containers so processing of different sizes of production batches in single equipment. Enclosed rigid drive with reduction gear box and motor in the machine pillar structure. Hydraulic power pack system for lifting of product bin for mixing. A suitable reeling around the cage with one entry point for the bin on detachable trolley The charging hole with cover is provided on top with quick opening and closing arrangement with dust proof joints for particle free transfer. IBC Bin having discharge with butterfly valve and trolley for easy mobility. Electric controls panel with cycle time OPTIONAL FEATURES : Interchange able product container. AC Frequency variable drive for product container. PLC Controls with HMI touch screen, Flame proof motor and Push Button station. SAFETY FEATURES : Limit switch. Overload relay protection & Emergency stop button.

Power : 220V 50Hz 3000W

Number Of Flower : Labeling Machine

Certification : ISO9001

Condition : New

Automatic Grade : Automatic

Packaging Type : Tubes

Availability : 300 kgs

APPLICATION & PROCESS : Tube Filling Machine is an used for fills of ointment, cream, tooth paste, gel and semi solid materials in aluminum or in plastic tube and sealing of the tube. Application of the machine is in pharmaceuticals, cosmetics, foods, adhesive, paint, chemicals and others industries. Tube filling and sealing machine is designed with filling and sealing process to be completely untouched and single machine process. The unit comes in various batch capabilities to handle a large range of tube sizes and shape by change of parts. Tube filling machine is equipped with high accuracy filling systems, provides clean and accurate filling at optimum speed providing high quality and product. Tube filling machine is have tube holding cups and manually tubes are positioned in cups and then fills, seals and ejected to discharge hopper. Filling volume can be easily adjustable as per desire weight and there are sealing option for aluminum tube by folding & crimping device and PVC tube seal by thermo heat sealing device. After sealing of tube then coding can be do on sealing area by coding device. Before filling tubes are to be clean by compressed air for removes of dust. SALIENT FEATURES : Designed as per cGMP - Current Good Manufacturing Practices compliance All contact parts AISI 316 & non contact parts AISI 304. Completely fully automatic operations for filling, sealing & discharge. Tubes are manually load in cups. Simple Mechanism & Operator Friendly Machine. NO TUBE-NO FILL device. Charging Hopper is provided with jackets for heating and agitator assembly. Cup holder is made from nylon materials. Filling change parts for (1) 1 to 5 ml. (2) 10 to 50 ml (3) 50 to 100 ml. Air blow system for tube cleaning. Synchronize variable speed drive for rotary head and filling head. Folding & Coding at Individual Station.

Net Weight : 480 Kg.

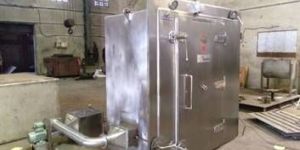

APPLICATION & PROCESS : Tray Drying Ovens are used for drying of pharmaceutical powders, granules, Pigments, Food, Bakery, Electrodes, Chemical, and Plastic etc in an effective and economical way by hot air re-circulation. Tray dryer is an enclosed insulated chamber in which trays are placed on top of each other. Heat transfer is done by circulation of hot air by electric heaters or any other heating media. Blower fans are installed inside to ensure proper circulation and transfer of heat. SALIENT FEATURES : Available in 24, 48, 96 & 192 Trays. Design is cGMP - Current Good Manufacturing Practices compliance. All contact parts AISI 316/304 & non contact parts AISI 304/ M.S. with painted. Highly effective uniform air re-circulating system by low speed fan. Inlet air filter and damper at inlet and exhaust air damper for air flow controls. Controls panel with Digital temperature controller and process timer controller. Mobile trolleys are provided which are used to load and unload the trays into the dryer. OPTIONAL FEATURES : Heating system Electrical / Steam / Gas Heating. Separate Inlet AHU with HEPA Filtration. Perforated tray. Standard Painted Model. SAFETY FEATURES : Automatic Temperature & controls, Process cycle controls. Overload relay Protection and Emergency stop button.

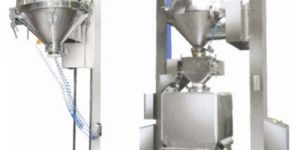

APPLICATION & PROCESS : The Tippler-Lifting and tipping device is a hydraulic device which is having an arm used for lifting and turning FBD bowl by 180. Thus it is used to unload fluid bed dryer bowl material in to Cone mill OR Multi mill OR Oscillating granulator in a dust free way for down sizing or dry milling. The operation is completely dust free and eliminates manual handling or scooping. The FBD Bowl is placed beneath the Tipper. The inverted cone of the Tipper is lowered so that the brim flange of the bowl touches the inverted cone. Both are clamped together with quick fixing clamps. The whole assembly is raised. SALIENT FEATURES : Design is cGMP - Current Good Manufacturing Practices compliance. All contact parts AISI 316 & non contact parts AISI 304. Capacity available 30 Kg to 600 Kg. Unloaded material with inline process with cone mill, granulator with IBC Bin for dust free process. Fully automatic system, with hydraulic lifting and tipping arrangement for quick and easy handling. Eliminates tedious and unhygienic manual handling of products. Tilting arrangement with a single point pivot ensures GMP with ease of operations. 180 degree swiveling of vertical mast with vertical lift and tippling ensures motion in all three dimensions as required. Discharge cone is fitted with a 250mm diameter butterfly valve at bottom with silicon rubber seat. Can be provided with pneumatic actuator for opening or closing butterfly valve without reaching for it by pneumatic controls. Hydraulic power pack can be mounted over the service floor so the column of the tipper acts as pendent and through the hollow pivot shaft, hydraulic lines along with electric cables can travel above the working area slab. Suitable view glass window provided on the conical tapering portion of the tipper, which acts like a view window. Stainless steel lift yoke with integral rotation drives for rotation of discharge cone and container.

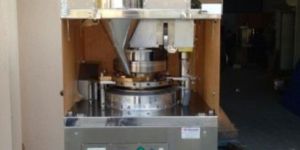

APPLICATION & PROCESS : Double Sided Tablet Press Machine is used for production of simple and precise tablets from powder in Pharmaceutical and relevant Industries. Double sided rotary tablet press GMP model is suitable for medium size batch production. The PTCM-B4 Tablet Press designed in an effort to exceed the highest cGMP requirement with used of advance technology and ensure the most ergonomics and efficient tablet production. The PTCM-B4 Tablet Press is offered in three different model Viz. Tooling "D", "B" & "BB" Tooling. THE MACHINE ERGONOMICS DESIGN CONCEPT : The Machine has been completely new designed according to the most modern ergonomic aspects. cGMP confirm. Machine's basic construction with separate compression zone and drive zone. Stainless Steel and Acrylic Glass Surrounding. Easy to Operate and Maintenance. SALIENT FEATURES : Design is cGMP - Current Good Manufacturing Practices compliance. All contact parts AISI 316 & non contact parts AISI 304. AC Frequency variable Drives for turret. Electro Magnetic Clutch. Rigid gravity feed frame and stand with fine flow setting of powder. Electronics Tablet / RPM Counter. Upper Punch penetration. Paint free tablet compression area. Lower Punch scraper seal. Easy to cleaning and changeover. Two Sided upper lifting cam. Dust Extraction for nozzle for dust suction. Upper guard with interlock for safety. Central oil lubrication system with manual hand pump. OPTIONAL FEATURES : Rotary Force Feeder system with VFD. Two layer tablet attachment. PLC Controls with touch screen. Auto Lubrication system. SAFETY FEATURES : Interlocked upper guard and Overload relay protection. Overload pressure release mechanism. Emergency stop button.

APPLICATION & PROCESS : The metal detector is designed for the detection and removal of minute pieces of ferrous, nonferrous and stainless steel contaminations in tablet. Such particles sometimes enter the product stream from deteriorating processing equipment components such as worm sieve wires or splintered dies. This metal detector removes metallic contaminants automatically and without production interruption from a stream of tablets or capsules. A metallic contaminant in the product change the high frequency field within the detector coil, which in turn activates a reject flap by pneumatic solenoids. The metallic contaminant is reliably rejected with very little loss of material due to the extremely fast and short activation of the reject flap. The metal detector chute can be quickly and easily dismantled for routine cleaning and product changeover. Conforms to the hygiene requirements of the pharmaceutical industry this system can be combined with all high performance Tablet Press with Deduster Unit. Flexible operating height, angle and frame with lockable castor to allow for easy integration to any production facility. The Metal detector incorporates a simplified and refined design of automatic Balance Coil Principle, which eliminates all setting up controls and permits long consistent performance. SALIENT FEATURES : The Machine construction and components in accordance with cGMP standard. All contact parts AISI316 Quality and Non contact parts AISI304 Quality. Automatic Balance Principle. Manual set up of sensitivity all other parameters through potentiometers. Easy to install and operate. Easy changeable electronic module. Easy to cleaning and movability. Search head 180 º rotations and inclination 0-30º. Solid- state relays for arc free switching. Continuous operation. Adjustable height Single pillar stand with 4 nos. castor wheel. Food grade nonmetallic white chute having authentic certificate designed in one piece (closed) to avoid cross contamination.

APPLICATION & PROCESS : Tablet Inspection Machine is used for visual Inspection of Tablets, both coated and uncoated type of all sizes, most conveniently and at a very high speed, ensuring strict Quality control at the same time maintaining good checking rate. The tablet to be inspected are filled in the Hopper and is automatically placed on the Conveyor belt through vibration, while at One end of the belt an operator inspects the 'Front' side of the tablet and at the other End the second operator inspects the 'Reverse' side of the tablet. Further, the Machine consists essentially of an Endless Nylon Conveyor Belt, driven by a variable speed motor and designed to offer for inspection the front and Reverse of a Tablet. Optional Dust extractor provides collects the dust. Rejection tablet trays are filled to collect rejected and 100% perfect tablets fall into the collection drum. SALIENT FEATURES : Fully automatic operations and designed as per cGMP - Current Good Manufacturing Practices compliance All contact parts AISI 316 & non contact parts AISI 304. Compact Design No change part required. High-speed visual inspection with high output. Both coated and uncoated tablets & caplets of all sizes can be inspected. Imported endless nylon belt. Magnifying lens provide for better viewing Complete tablet surface is inspected on both faces. Angular guides provided on the edge of the Conveyor make tablets to rotate to inspect the tablet edge. Perforated vibratory plate for dust extraction provides. Hopper & fluorescent inspection light are provided with height adjustment. Two foot switches are provided for operators. OPTIONAL FEATURES : AC Frequency drive with variable speed. Inspection system of missing tablets could be incorporated to eliminate manual labour. Flame proof Electricals.

APPLICATION & PROCESS : De-Duster is pharmaceutical processing equipment that removes the fine surface dust from tablets through using vibratory effect. This machine can be linked directly to any type of high speed tablet press. In spiral deduster there is vibrated spiral path perforated sieve. The tablets enter in centre of perforated sieve from directly Tablet Press then they are gently vibrated and the tablet to move forward, turning and rotating along the spiral path of perforated plate to outer peripheries. In Elevating Deduster there is vibrated up hill type sieves. The tablets enter bottom inlet of perforated sieve from directly Tablet Press then they are gently vibrated and the tablet to move forward, up ward , turning and rotating along the spiral up hill path of perforated plate to outer at top of the sieve. These remove the layer of surface dust and edges of tablet. The dust is collected by a dust extraction system through a hose pipe spigot connection and the tablet fall into the container. SALIENT FEATURES : Design is cGMP - Current Good Manufacturing Practices compliance. All contact parts AISI 316 & non contact parts AISI 304. Geometrically designed tablet route to ensure remove dust and burrs. Easy to install with all types of Tablet Press with inline metal detector. Option for Spiral OR Elevating-Up hill type Deduster. Adjustable height. Easy to mobility. Easy and simple dismantle for cleaning of all contact parts.

Optional Features:   Speed Variation using AC Variable Drive Multi-Product Packing Pneumatic Perforating Cutter Print Registration on one side/both sides Polycarbonate protection cabinet

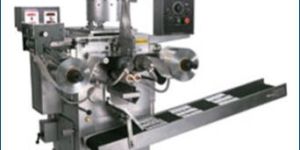

APPLICATION & PROCESS : Strip packing the versatile design of the machine makes it eminently adaptable for packaging a variety of products like pharmaceuticals Uncoated and coated tablets, soft gelatin capsules, hard gelatin capsules, confectionery products, chewing gums, toffees, Buttons, pins, ball bearings, rubber and plastic products, electronic components, ball-pen refills and many more. Strip Packing machines are designed to handle a wide range of products with utmost precision and speed upto 2400 units per minute. The products from the hopper passes through a stainless steel feeding system and goes to sealing roller cavities where laminated foils, drawn from two rollers, packs and seals the products in a continuous strip. The strip then passes through vertical and horizontal cutter assemblies to deliver the desired sizes of strip packages. SALIENT FEATURES : Completely fully automatic liquid / oral manufacturing plant with fully automatic operations and designed as per cGMP - Current Good Manufacturing Practices compliance All contact parts AISI 316 & non contact parts AISI 304. Available in different models of 2,4,6,8,10 and 12 Tract, capacity from 400 to 3000 tablet minimum with maximum sealing width of 250 mm. Standardized, quickly interchangeable parts. Compact steel fabricated body with adequate inspection windows. Adjustable foil cutting and slitting device. Noiseless, trouble-free smooth operation. Vibratory feed control for higher output. Cavity shape and knurl design of choice. Cartridge type heaters and thermostatic temperature control suitable for all types of packing materials. Ensures air tight leak-proof packing. Suitable for most heat sealable foils like Paper Poly, Aluminum Poly, Cello Poly, Cellophane, and Glassine Poly. OPTIONAL FEATURES : Performing rollers to pack coated tablets, capsules and caplets for economy of packing material. Conveyer belt as per requirement. Disc feeding system for odd shaped products. Electric temperature control system with indicator to read foil sealing temperature while machine in use. Strip counter and Batch coding attachment. Pusher mechanism for feed chute. Flame proof Electricals. SAFETY FEATURES : Protective Grill in front.

Brand Name : Shree Bhagwati

Packaging Type : Bottles

Driven Type : Electric

Certification : ISO, CE

Availability : 150kg

Application : Beverage, Chemical, Food, Medical

Country of Origin : 0.75 Kw

Power : 1.5 Amp.

Condition : New
