Ball Valves Dealers in Vatva, Ahmedabad

“Y” TYPE Flush bottom valves are used to discharge Liquids &Slurry from the bottom of Reactors, Receivers & huge Tanks. “IVE” Flush Bottom valves are available in design of Disc opening into the Tank ( vessel opening design) & Disc lowering (inside valve opening design) into the valve body. Flush bottom valves with disc opening into the tank or opening upwards is the most commonly used. It is used where enough space is available between bottom pad and the starrier of the tank. The mass load inside the tank helps closing & tight shut off the flush bottom valve. KEY FEATURES AND BENEFITS :- Unique design of IVE flush bottom valves assure “Zero- Hold Up” in the bottom pad of the tank. And facilitate the free flow and quick discharge of the liquid or slurry through the valves. Casted and fabricated in all available metallurgy, Carbon Steel, S.S 304, S.S 316, S.S 304L, S.S 316L, Alloy 20, Hast alloy and as per special specifications. Conical Metal to Metal disc seating/ PTFE seating with option of fixed or Renewable seat. Further metal seating can be hard faced by Stellite TM where distortion of seat by aggressive liquid or slurry is common. Valves available in the size range of 15 NB to 250 NB in BS, ANSI & DIN standards. Available in the design of Jacketed, Actuated & Lined. Offered for Sanitaryaseptic application. IVE Flush Bottom vales can also be provided with the temperature sensors to measure the temperature in the vessel. Bolted Stuffing Box (Gland), easily adjustable & with Repackable service. Rinsing & Non Rinsing stem with outside ACME thread.

One of the best companies of the Drip Irrigation industry engaged in the manufacturing of Union Ball Valve is English Agro. Best quality raw material along with latest modern technology is used for the manufacturing of Union Ball Valve. Union Type Ball valves are available in Screw End & Plain Socket End connection. ONLINE maintenance possible in this Union type Ball valve as all internals can be replaced without removing the valve from the pipe-line. Union Ball Valve can be used in Farms, Green house, Irrigation System, Horticulture & Agriculture. This Valve can also be used in Sugar Industries. SIZE AVAILABLE 2”, 2½”, 3” COLOR AVAILABLE BLACK, GRAY FEATURES and SPECIFICATION Union Ball Valve is manufactured from polypropylene, a chemical inert thermoplastic. Protective from corrosive chemicals and chemical resistance, Because of no metal parts available in this union ball valve. So widely used by chemical industries. Excellent ultraviolet resistivity due to presence of carbon black. Hydraulically tested up to 200 lbs/sq. (10 kg/cm2 ) Available in threaded screw end & plain socket end. It’s easy to replace all internal part of this ball valve without removing the valve from pipeline, Because of its union ends. Easy movement of opening & closing by quarter turn. Can be used up to 80o C working Temperature. We take proper care for full strength & leakage proof of this valve. Union Ball Valve is approved and used by many drip irrigation manufacturers.

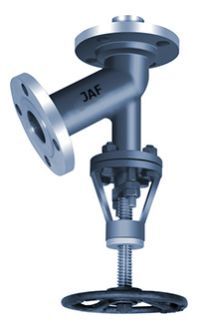

We are offering flush bottom tank valve. Body material options ductile iron ggg40.3 astm a395 cast steel astm a216 gr.wcb lining material options pfa – astm d 3307 fep – astm d 2116 technical specification flange : as per ansi b16.5 b16.42 lining thickness : 3 to 5 mm test & inspection data hydraulic test : seat – 10 kgcm2 pneumatic test : sea t – 6 kgcm2 spark test : 15 k.v. D.c

We are dedicated occupied with offering a praiseworthy run of Ball Valve Single Piece Plan. Other than being produced from high-grade crude material and most recent innovation, the offered reach is assessed fittingly by our master experts. Owing to characteristics like sturdiness and solidness, the offered extent is uncommonly esteemed by our valuable customers. The offered reach is accessible with us in different sizes and shapes at reasonable cost.  Features:» Enhanced durability» Resistant against corrosion» Precisely design

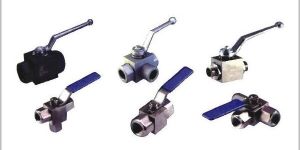

Materials: Carbon Steel / Stainless Steel Ball Seat: POM/PEEK/PTFE/GFT/CFT Body & stem Seals: PTFE/NBR/FPM Size “1/4" [6MMNB] - 4" [100MMNB] Pressure Range: up to 1000 Bar Temp. Range: 40c + 200c 2 Way   3 Way (L Type   T type) Available Size: 1/4", 3/8" , 3/4",1",1 1/2", 2"

Two-way and three-way control valve are available with electrical/pneumatic actuators.   3 piece ball Valves are quarter turn, full bore, rotatory valves used for on - off application and are extensively used to control flow in the pipe line.

Heavy duty Bolted Cover, Renewable Seatring for Carbon Steel Valves, Integral for Stainless Steel Valves. Valves with most advanced design features provide the ultimate in dependable, economic flow control

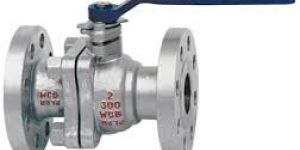

BODY ASTM A 216 Gr. WCB | WC1 | WC6 | WC9 | LCB ASTM A 361 Gr. CF8 | CF8M | CF3 | CF3M BALL ASTM A 351 Gr CF8 | CF8M SEAT PTFE | NYLON | PEEK DESIGN 2 PIECE | 3 PIECE MFG STD API 6D INSP & TEST STD API 6D CLASS 150# | 300# | 400# | 600# | 900# | 1500# | 2500# ENDS FLANGED TO ASME B 16.5 RF | RTJ BUTTWELD TO ASME B 16.25 OPERATION MANUAL | GEAR | ELECTRICAL ACTUATED FIRE SAFE API 607 SIZE RANGE 2" TO 28"
