Specifications Same As 6784 But,Number Of Chamber :- 2Measurement Method :- Infrated radiation and detection of weight loss.Temperature Control :- . Platinum temperature sensor,Sample Weight :- 10 gm to 100gm (Optional upto 300gm)

We offer Seed Germinator(single chamber). A) it’s specification as above with chamber of anodized aluminum. Chamber size 555(w) x 910 (h) x 605 (d) mms. B) as above but chamber of stainless steel.

Most suitable for conducting various experiments on a variety of seeds under different conditions of temperatures and humidity. Atmospheric conditions are created with the chamber to perform different experiments without going onto the field. The walled unit has inner chamber made up of anodized aluminum or stainless steel and outer outer chamber of M.S sheet duly painted. Full view inner glass door permits inspection of specimens. Both compartments are provided with independent controls. Each chamber can accommodates 14 perforated trays of size 430*480m.m. each. Humidity (NOT ADJUSTABLE) IS created in a S.S. water reservoir filled at bottom in both chambers to create 90% to 95% -+ 3% RH humidity. INSIDE CHAMBER SIZE (WXHXD) (a)One chamber can control temperature from ambient to 50%c -+ 1 degree c. and the other chamber is fitted with ISI marked SHRIRAM compressor so as to maintain temperature from 5 degree to 50 degree c. -+1 degree c. (b)-do- same as above but fitted with heating and cooling system in both chambers, so as to control temperature from 5 degree c. to 50 degree c. -+ 1 degree in both chambers. OPTIONAL ACCESSORIES (a)Interior illumination with 3 nos. fluorescent tubes (for each chamber) (b)Exterior illumination with 3 nos. fluorescent tubes (for each chamber) (c)Automatic 0-24 hour timer to regulate cyclic illumination conditions(for each chamber) (d)Humidity control arrangement from 55% to 95% -+3% RH, controlled by humidistat. (e)Electronic digital temperature indicator-cum-controller (for each chamber) (f)Dual setting digital temperature controller for setting two different temperatures for day night (g)Automatic voltage stabilizer 3 KVA (for each chamber)

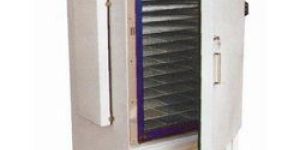

Our range of Seed Germinator is most suitable for conducting various experiments on a variety of seeds under different conditions of temperature and humidity. Seed Germinator is used for germination of seed samples. Our Seed Germinator is used to know about field planting value of the seed and to provide results which can be used to compare the value of different seed lots. It’s having a provision to maintain temperature and light levels for different time intervals.   Features Atmospheric conditions are created within the chamber to perform different chamber which is made up of anodized aluminum or 304 S.S The Outer is made out of S.S 304 or M.S. sheet duly powder coated. The water reservoir fitted at the bottom to provide 90% to 95% ±3% RH humidity The door is having a viewing glass window or double door to view the germination of seeds inside the chamber The unit is fitted with Eco-friendly Kirloskar/Tecumseh Compressor/ Condensing Kit supplied complete The capacity of 14 adjustable perforated trays in chamber size is  555 x 910 x 605mm (W x H x D) 300lit

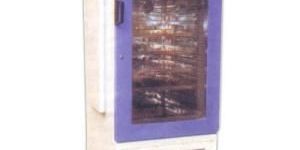

We are engaged in providing supreme single chamber seed germinator to our esteemed clients. Fabricated from high grade material, our single chamber seed germinator is checked under strict quality tests to ensure its quality. These single chamber seed germinators can be availed at market leading price rates. most suitable for : conducting various experiments on a variety of seeds under different conditions of temperature and humidity construction : double walled unit inner chamber made of anodized aluminum or s.s.304 grade outer chamber of m.s. Sheet duly paintedtemperature from 5oc to 50oc + 1oc is controlled by digital temp. Indicator -cum-controllerhumidity (not adjustabloe) is created in a s.s. Water reservoir fitted at the bottom to provide 90% to 95% + 3% rh humiditysupplied complete with 14 adjustable perforated trays. Complete with cord and plug to work on 220/230 v a.c. Supplyinside chamber size : 555m.m. (w) x 910 m.m. (h) x 605

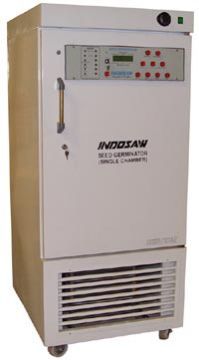

No. of chambers : One (heating and cooling). Capacity : 10 cuft. (Approx.) Chamber size : Length 550mm, Height 950mm, Width 550mm. Inside chamber : Stainless steel grade 304. Outside chamber : Painted steel of 20SWG. No. of trays : 3 adjustable stainless steel wiremesh trays. Tray size 530mm x 530mm. Humidity : Humidity with Ultrasonic Humidifier. Water Purifier : To provide purified water to Ultrasonic Humidifier. Temperature & Humidity sensor : Imported Hygro-clip for measurement of temperature & Humidity. Non-condensing type. Temperature : 10°C-50°C±1°C. Compressor : Hermetically sealed type of standard make. Kirloskar / Copeland make. Evaporator : Finned tubes. Electronics : Micro controller based. Operating voltage : 220V, 50Hz Ac±10%. Panel switches : Large 2cm diameter switches with silver plated contacts. Backup : Data logging facility to record 1000 readings. Programming : User friendly programming for temperature, humidity and light level with time steps. In-built UPS : Keeps monitoring the panel during power failure (optional). Watch dog timer : Checks the program all the time. Program lock : Physical key type. Display : Large LCD display (2x16 characters). Interface : RS232 port. (RS485 Optional) Door panel : For fitting of all electronic circuits and control panel so that maintenance is easy and control panel is at a convenient.   ULTRASONIC HUMIDIFIER This type of Seed Germinator consist of Ultra-sonic Humidifier. Low power consumption app. 50 watt as comparison to 1 kw in steam humidifier. Humidity created by Piezo-Electric Crystal is very fine which is very helpful in germination process. It is safer since in the earlier Seed Germinator had a water tank inside the machine.

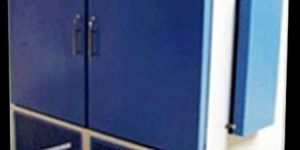

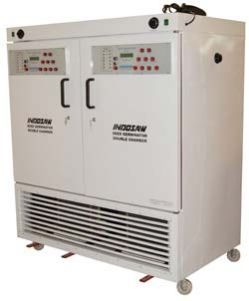

Having positioned ourselves as prominent Manufacturer, Supplier and Exporter, we bring forth Double Chamber Seed Germinator. It is manufactured using first-class raw material ensuring its durability and longer service life. Our team of experienced professional takes care of the designing and fabrication. We leave no stone unturned to ensure that our products match the various parameters and standards set by the industry. It is available at economical rates.   Specifications : Used for germination of seed samples. Large users in Govt. & Non Govt. Sector. Fully programmable for light & temperature. Membrane Keyboard. Data storage capacity (1000 readings ). Programmable lock. Watch dog timer for smooth running of the Current rogramme. 16 x 2 line alphanumeric LCD display. Audio visual alarm. Display panel in the door. Number of chambers : Two

We provide high quality seed germinator specially used in agriculture field to inspect any type of seed. Double walled-inner ssouter ms *75 mm gap filled with puff insulation; digital display preset electronic controllers for temperature and dew point. *hermetically sealed compressor unit for cooling system; *castor wheels for easy movability – pilot lamps and switches for all controls 230v ac 50hz mains. *temp. Range: 10ºc to 60ºc±1ºc, *humidity: 40% to 95% rh±3% rh. *direct rh indicator ss water tank is provided with a ball valve & front door is provided with a full view glass window for inner observation.

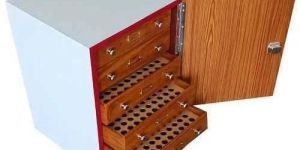

For keeping insect storage & display showcase of Size 45 x 30 x 6.5 cm. Cabinet frame of plyboard with melamine lamination. Hinged door is provided with lock and handle and is lined with velvet.

The double walled unit has inner chamber made up of Stainless Steel and outer chamber of Mild Steel Sheet duly painted. Temperature from 5 ° Centigrade to 50°. C +- 1° C. is controlled by Digital temperature indicator-cum-controller. Humidity (Not Adjustable) is created in a stainless steel water reservoir fitted at the bottom 90% to 95% +- 3% RH Humidity. Complete with 8 or 14 adjustable perforated trays. Supplied complete with cord and plug to work on 220/230 V 50 Hz A.C. Supply. Inside Chamber size 1. 505 x 500 x 415 mm.       Capacity 6 cu.ft. No of trays 8 2. 555 x 910 x 625 mm.       Capacity 12 cu.ft. No of trays 14 Optional Digital Temperature Controller Cum-indicator 0-24 hrs Timer for regulating cyclic illumination condition.

Size 95x50x50 cms with sloping front. Acrylic sheet front and side doors (full visible Transparent) 3' germicidal ultraviolet tube and 2' fluorescent tube for white light with necessary choke blast, starter and switches fitted. Also main lead and plug provided. Two holes with rings and sieves for insertion of arms provided. ( b) -do- fitted with small tube.
