Refractometers Dealers

We deal in highly efficient Portable Refractometer that is used in experiments related to optics. Laboratory Refractometer is utilized for measuring the index of refraction of a substance. We manufacture it from the best quality raw materials available in the market. Apart from that, we are one of the reputed Refractometer Manufacturers and Suppliers in India.

Refractometer :- Analytical Lab Instruments » refractometers » Refractometer Refractometer – Analytical Laboratory Equipment • We are a reputed entity in the industry, actively engaged in offering an optimum quality range of Refractometer.. • Refractometer is used to measure the total plasma protein in a blood samples. • In drug diagnostics, a refractometer is used to measure the specific gravity of human urine. Features: • Easy to use • Precisely designed • Less maintenance

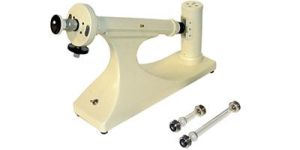

Smart Choice for Pharmaceutical & Laboratory Examinations. Complete and latest polarimeter equipped with finest optical components and designed to accept observation tubes upto 220mm length. Its improved rotating half shadow system at the front ensures perfect focus and clear defination during examination of all type of specimens.

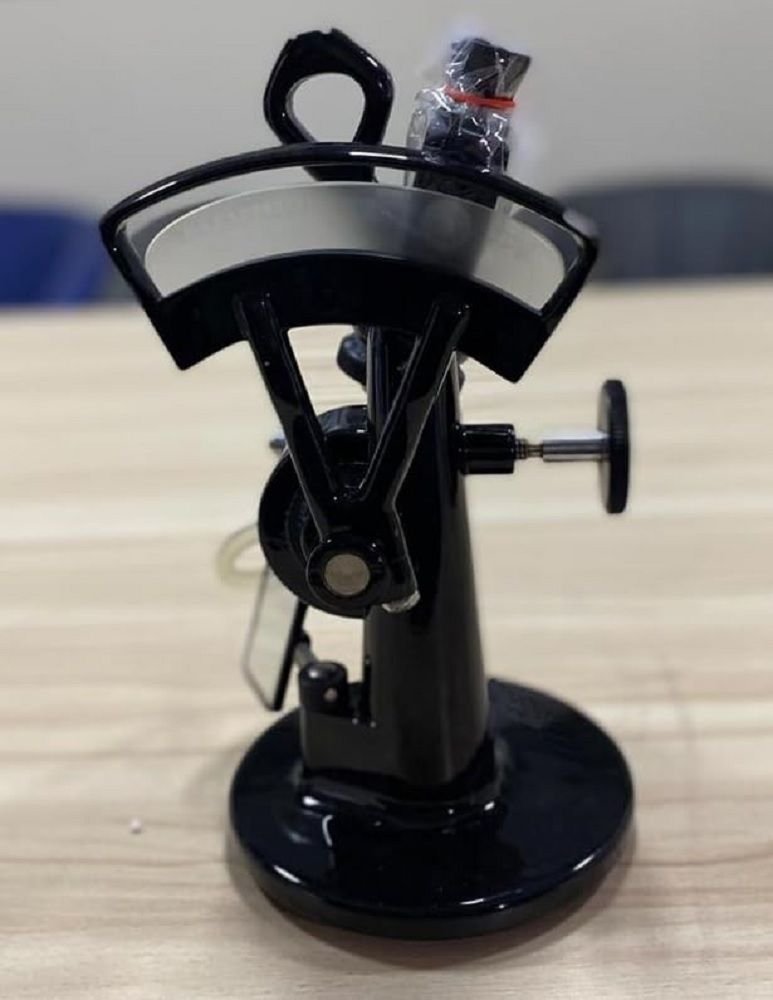

Heavy casted round base with aluminium body and all other parts of plated brass. Fixed body leaned at 600 angle, Abbe double prisms with the thermostat, compensator, telescope mirror, limb, graduated sector, reading magnifier and radial arm which carries vernier. Abbe’s double prisms leaves a narrow space between the adjoining faces of the prisms. Compensator consists of the amici prisms which serve for rendering the line of achromatic separation. Adjust the eye pieces of both telescopes and reading magnifier, so that well defined images of cross lines and scales is obtained. Open the Abbe’s double prism and put two or three drops of liquid upon the adjoining face of the prism for measuring. When the prisms are closed the liquid spreads over the whole surface of the prisms forming a thin layer. Adjust the mirror to get proper incident light, and also the compensator and radial arm, so that the boundary line of bright and dark is clearly seen in the visual field of telescope. Turn radial arm by means of fine adjustment to bring the line precisely on the cross line and read of scale on the sector. For the dark color substance to be examined as molasses, fructose or jam, the light from the mirror is not sufficient for observation, take off the cover of the circular opening. Then the light proceeds so as to be reflected on the boundary surface and the prism for convenient observation.   Abbe double prisms are heated by a double jacket metal casing in which warm water under 70°C circulates. Temperature of water can be adjusted and read by the thermometer fitted at the double prism. To check the instruments for its accuracy with the aid of the standard plate and liquid that accompanies. Apply a small drop of standard oil on the standard plate and place it with a gentle pressure upon the face of the polished refractometer prism. Critical line should then be achromatized by means of compensator. Repeated readings should be taken, and compare the result of readings with the value of index mentioned on the standard plate. Complete with standard glass test plate, 4 ml. Monobrom Naphthalene (contact liquid), thermometer in a metal jacket, zero aluminium knob, brush, dust cover in a wooden cabinet.

Having association with the leading names enable us to deliver high quality products to our worthy clientele. In addition to this, we procure the basic material from the trusted places only. In order to ensure efficient handling of the payment procedure, we have developed our own model that helps us a lot in making safe and secure transactions.   Size : 0 - 32% 0 - 50% 28 – 62% 58 – 52% 40 – 85% 0 – 95%

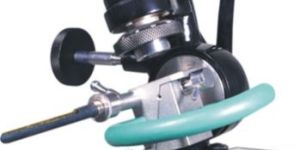

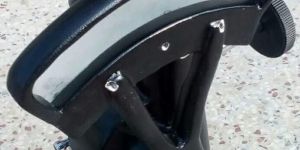

We bring forth Abbe Refractometer that is specially designed for quick & convenient measurement of refractive index and also dispersion of liquids and solids. Our wide range of Refractometers is highly appreciated owing to its accurate measurement and longer working life. We are counted as one of the leading Manufacturers, Exporters and Suppliers of Refractometer. Specifications : Model GE-138 & Model GE- 138 BMeasuring Range of Refractive index nD 1.300 to nD 1.700Sugar percentage scale 0 to 95 % BrixAttachable thermometer 0 to 50oC in metal jacketStandard glass plate having refractive index of 1.509 and contact solution for standardizationAluminum alloy casted rigid bodyNicely packed in plywood box with instruction manual, dust cover & cleaning cloth Suitable For Testing And Control Of Purity / Quality Of : OilsSugarParaffin’sWaxes Animal and plant fatsGlycerinAlcohol

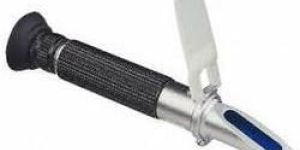

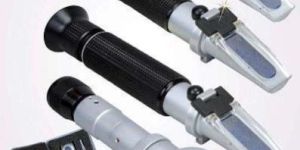

We offer hand refractometer. Hand held refractometer model ge-139 a pocket refractometer designed on the principle of total reflection for measuring the refractive index . The built in occular scale gives direct reading for percentage of sugar density. Packed in a beautiful velvet box. A) sugar scale 0-32% in division of 0.2 % b) sugar scale 0-50% in division of 0.2% c) sugar scale 58-92 % in division of 0.2% d) sugar scale 28-62% in division of 0.2% combined with nd 1.377 to 1.440 for nacl reading.

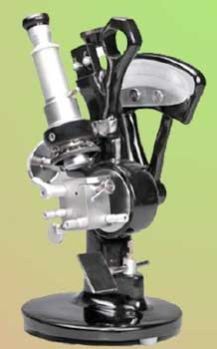

We are Manufacturer and Supplier of the best quality ABBE Refractometer from Ambala Cantt. The ABBE Refractometer is specially designed for quick and accurate measuring optical system by using only a few drops of the sample. The ABBE Refractometer is suitable for industries that are involved in the process of manufacturing various products such as sugar, paraffin, waxes, glue, animal & plant fats, glycerin, alcohol, etc. The ABBE Refractometer is also used for various education and training purpose of lab chemists in institutions. Attributes : QuickAccurateEfficientReliable Standard Specifications : Measuring Scales : Refractive Index nD 1.300 to nD 1.700Brix Scale : 0 to 95%Temperature Reading : By mercury filled attachable thermometer 0-50deg.CStand / Body : Aluminium caste one-piece bodyLight Source : Reflecting mirror

The instrument is robust in design, all metal in construction with satin chrome finish and supplied in a strong carrying case suitable for the pocket. A Pocket refractometer designed on the principle of total reflection for measuring the refractive index. Built in ocular scale, on inspection, gives direct reading for percentage of sugar density. Range 0 : 32% in division of 0.2%Range 28 : 62%in division of 0.2%Range 58 : 92% in division of 0.2% Typical applications include Concentration measurement of: Fruit JuicesBattery AcidsSugar SolutionsPlating SolutionsProtein and SerumsSoluble Oil EmulsionsWines and Soft DrinksConfectionery ProductsStarches, Glues & GumsUrine Specific Gravity

Designed fro quick and accurate measuring system by using few drops of liquid. This instruments quite suitable for education and training institute, industries. Suitable for testing and control of quality of oils, sugar, paraffins, waxes, animal and plant fats, glicrin, alcohol etc. Measuring range refractive index nD 1.300 to nD1.700. Sugar percentage scale 0 to 95 % Brix. Attachable thermometer 0-50 degree standard glass plate having reflective index 1.509 and contact solution for standardization. Aluminum alloy casted body rigid in construction. Plywood packing case, instruction manual, dust cover.

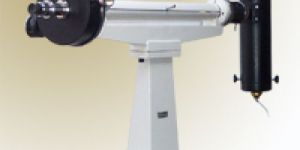

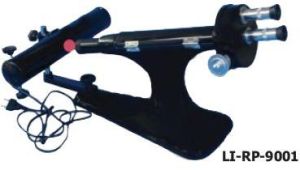

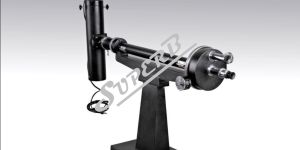

FOCUS RESERACH POLARIMETER (200MM) MODEL RP-36 A complete and latest polarimeter equipped with imported optical components and designed to accept observation tubes upto 220 mm length . Its improved rotatating half shadow system at the front ensures perfect focus and clear definition during examination of all types of specimens. Its highly accurate glass scale is divided to read angular degrees and also carries sugar scales in I.S.S. Units. The angular scale from 0 to 360o as subdivided to 1o measuring accuracy by estimation 0.01o. The sugar scale from 130o to 130o I.S.S. Units enables direct reading to 0.1 and by estimating of 0.0 to sugar degrees. Supplied complete with polarimeters tubes 200mm, instruction manual and dust cover in asturdy wooden cabinet.

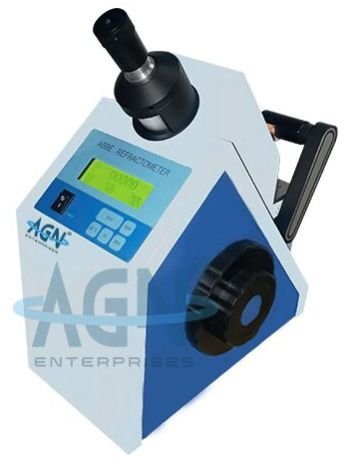

Digital Refractometer Designed in combination with superior components and latest technology, Our Digital Refractometer is popular in the world market for delivering precise and instant calculations. We are identified as one of a reputed Digital Refractometer Manufacturers in the market. Available in two models viz DG-NXT ,; DG-ERT Attributes : Digital readout Easy to operate Automatic temperature compensation for Brix Scale ,; Distilled water Dust proof prism cover Serial interface apt for data print-out Fully eliminates reading errors.

The instrument is robust in design, all metal in construction with a satin chrome finish and supplied in a strong carrying case suitable for the pocket. Typical applications include Concentration measurement of :- Fruit Juices Battery Acids Sugar Solutions Plating Solutions Protein and Serums Soluble Oil Emulsions Wines and Soft Drinks Confectionery Products Starches, Glues & Gums Urine Specific Gravity

This instrument is designed to make an elementary study or optically active substances. The polarimeter consists of two polaroids (polariser and analyser), a nessler's cylinder as a solution tube, a (12V, 21Watt) lamp, a rotatable mirror (to use external light source) and a circular scale (graduated in degrees) at the top to make the measurements.

We provide high grade Polarimeter that is developed from premium quality raw materials. Our Polarimeter is available in various shapes and sizes as per the requirements of the clients. Above all, we offer Polarimeter at the most discounted price in the Industry. Salient Features : Dimensional accuracyLong lastingHighly efficientHigh performance Used in : SchoolsResearch InstitutionsColleges

Used in Medical, Pharmaceutical and Chemical Research Laboratories. Consist of a Imported Half Shade Nicol Polariser, Analyser, 100mm. Diameter Circular Scale Divided in Degrees 0-360 Deg. X 1 Deg. and a Sugar Scale Divided –30 Deg. to + 130 Deg. X 1 Deg. Iss, a Divided Micrometer Drum is Given to Read 0.05 Deg. (3 Minutes) and 0.1 Deg. Iss, the Scale is Properly Illuminated for Taking Readings, the Body is Very Sturdy and Separate Sodium Lamp is Stand is Provided. Complete with Polarimeter Tube, Bubble Traps At the Center, 400mm. Sodium Lamp with Stand and Transformer

ALPHA CHEM- 1034 Butyro Refractometer This instrument can be used for measurement of fats in ghee and other such products giving a reading directly in terms of the oil scale also known as butyro scale, the micrometer eye-piece allows an accuracy on this scale of 0.1 and the oil scale may also be converted into a retrative index scale using conversion tables. This allows measurements on materials with index of refraction in the range of 1.42 to 1.49 with an accuracy of 0.0002 as tables are supplied for converting oil scale reading into index of refraction, relative to mean sodium lines. The pism box is water jacketed for temperature control and a sample achromatising device enable the removal for all colours from the border line thus enabling the instrument to be used what white light.     The instrument is provided with a test liquid for checking and resetting the scale if necessary and is encased in apratable wooden box. Refraction range from 1.42 to 1.49 with accuracy of 0.0002 fitted width sugar and oil scale sugar scale 50-80% and oil scale 0-100%.
