RF Passive Components Dealers in Kuldeep Nagar, Ambala

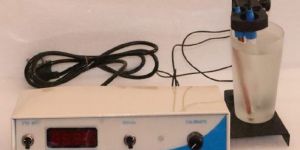

Medical Potentiometer  an economical, highly accurate, reliable, rugged & stable instrument for field & laboratory use. Model available me 984 k. Range 0 to 200 mv, 0 to 2000 mv display 3 ½ digit led display accuracy ± 1 mv ± 1 digit resolution 0. 01 mv temp. Compensation – slope correction 80% to 120% input resistance 1012 ohms ambient temp. 0° c to 50° c recorder output – power 230 vac ± 10% 50 hz ac size (lxbxh) 275 x 175 x 85 mm weight 2. 0 kgm. (approx) accessories glass, reference silver & platinum electrodes, dust cover, stand & instruction manual.

Medical Potentiometer  an economical, highly accurate, reliable, rugged & stable instrument for field & laboratory use. Model available me 984 k. Range 0 to 200 mv, 0 to 2000 mv display 3 ½ digit led display accuracy ± 1 mv ± 1 digit resolution 0. 01 mv temp. Compensation – slope correction 80% to 120% input resistance 1012 ohms ambient temp. 0° c to 50° c recorder output – power 230 vac ± 10% 50 hz ac size (lxbxh) 275 x 175 x 85 mm weight 2. 0 kgm. (approx) accessories glass, reference silver & platinum electrodes, dust cover, stand & instruction manual.

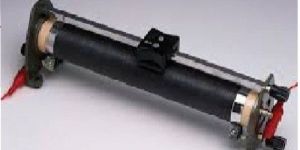

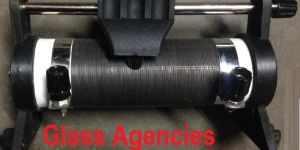

Comprising a layer of resistance wire wound on an insulating, heat resistant tube (porcelain) which is supported by cast metal feet. A sliding contact & three 4mm socket terminals are provided, one terminal being connected to the sliding contact & the other two to the ends of the winding, enabling the unit to be used as a Rheostat or potentiometer.

Direct reading of potentiometer range 0.0005 to 1.75 volts. Circular slide wire is divided into 250 parts on a white perpex scale. Coarse and fine Rheostats provided to control the range. Rotary dials also in six steps to control by a knob. Two set of terminals are given on the panel for E.M.E. and standard cell. Two set of terminals for galvanometer and Battery. A selector switch is provided to control rapid change. Coils are perfectly aged and dry. Accuracy ± 0.1%. All coils are calibrated on Imported Testing Bridge

Meter Bridge 'Insif' Or Wheatstone Bridge (Expo) with Sunmica Top. Code No.: P - 792B We are engaged in manufacturing and exporting world class Meter Bridges. The Meter Bridges that we provide are manufactured by skilled technicians by using very fine quality materials. The quality, durability and prices of our Meter Bridge are beyond comparison.

We are offering air cooled dc shunt. The air-cooled dc shunt type 9410 covers a wide range of current from 1.5 ampere to 3000 ampere. The shunts are constructed from high grade manganin. The manganin strips are mounted on all the current terminals with the help of high quality silver brazing solder wire. The entire dc shunt is mounted on a strong base and whenever required is fitted with a protecting cover to enable the convection currents to keep the dc shunt cooled to the ambient temperature.

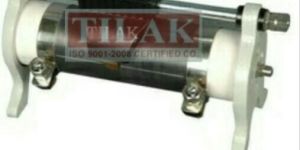

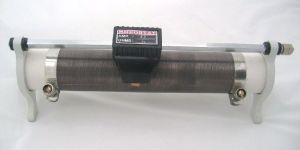

We are offering rheostats wounded with eureka wire on porceleen pipe . available in 6 inch, 8 inch , 10 inch and 12 inch. metal feet or plastic feet as per customer choice. the rheostats are also manufactured according to the ohms and ampere given by the customers.

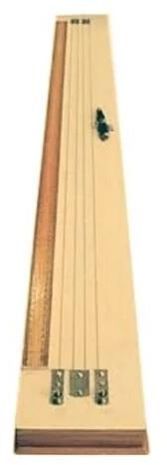

slide wire, single and double tube. Different ranges available, details can be provided other Opto-mechanical Assemblies as per customer requirements and design.

Meter Bridge Manufacturers Meter Bridge (Wheatstone Bridge) One meter, two gaps type or four gaps with plywood base with full sunmica top with graduated scale constantan wire base C.P. strip and brass terminals.
