RF Passive Components Dealers in Ambala

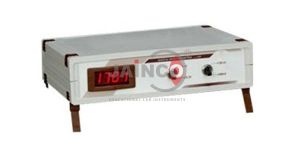

ALPHA CHEM- 321 Digital Potentiometer Extensively used for undertaking all types of potentiometric measurements. This instrument is known for its  commendable accuracy. All the results in Volts are displayed on the 3½ digit LED display in the form of a digital readout. It is offered at competitive price to our customers.       Range  0 to 1.999 Volt   Accuracy  +-0.2% +- 1 digit   Resolution  1 mV   Maximum Reading 1.999   Auto  Zero and Polarity    Standard Cell    Output  1.018 Volt   Accuracy  +- 1 digit   Maximum Output Current 100mA.    General Specifications    Display  3½ Digit LED display Power Supply  230V +- 10%, 50 Hz AC

slide wire, single and double tube. Different ranges available, details can be provided other Opto-mechanical Assemblies as per customer requirements and design.

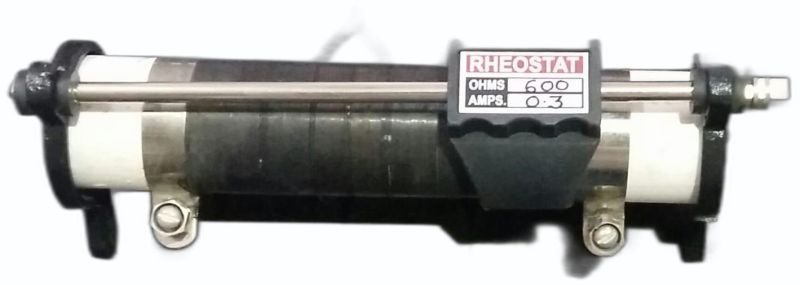

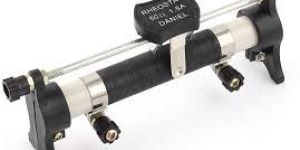

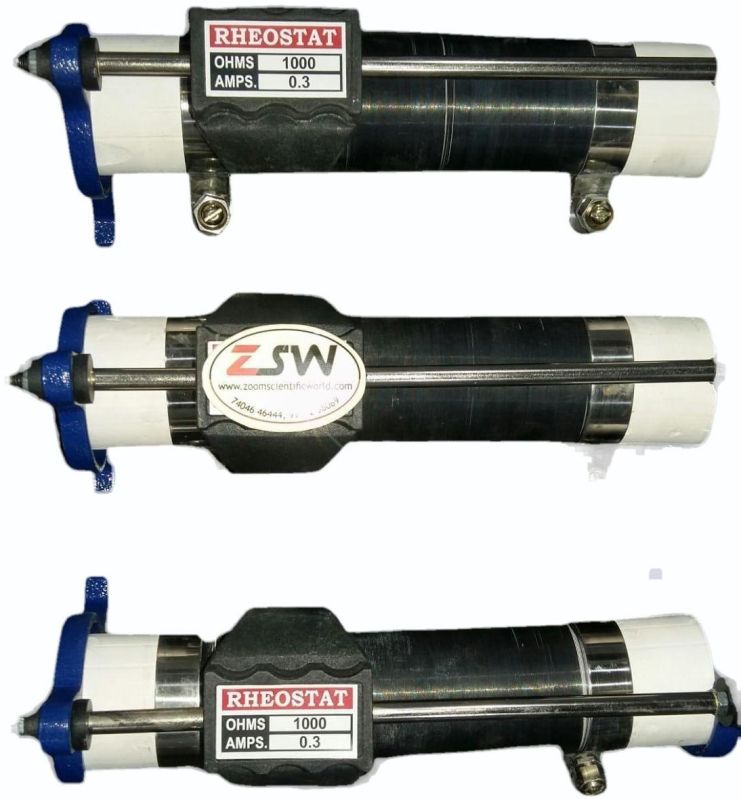

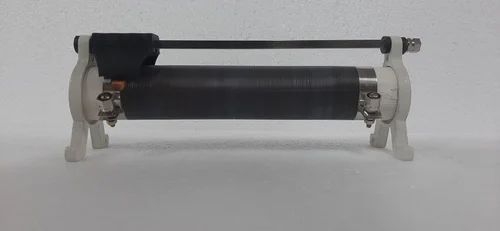

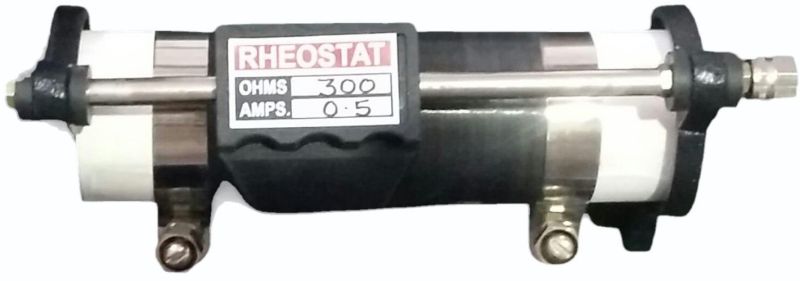

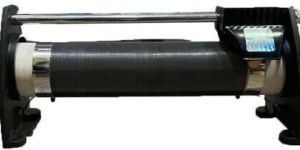

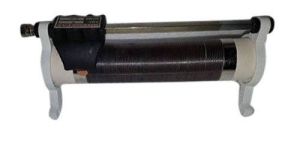

Comprising a layer of resistance wire wound on an insulating, heat resistant tube (porcelain) which is supported by cast metal feet. A sliding contact & three 4mm socket terminals are provided, one terminal being connected to the sliding contact & the other two to the ends of the winding, enabling the unit to be used as a Rheostat or potentiometer.

Medical Potentiometer  an economical, highly accurate, reliable, rugged & stable instrument for field & laboratory use. Model available me 984 k. Range 0 to 200 mv, 0 to 2000 mv display 3 ½ digit led display accuracy ± 1 mv ± 1 digit resolution 0. 01 mv temp. Compensation – slope correction 80% to 120% input resistance 1012 ohms ambient temp. 0° c to 50° c recorder output – power 230 vac ± 10% 50 hz ac size (lxbxh) 275 x 175 x 85 mm weight 2. 0 kgm. (approx) accessories glass, reference silver & platinum electrodes, dust cover, stand & instruction manual.

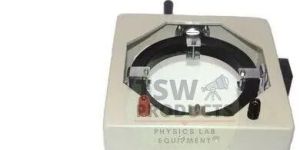

We are offering earth inductor al. Metal ring : (6” dia) on which a coil is wound (of either 500 or 1000 or 2000 turns ) of 36 swg. A stop limiting rotation : to 180° of ring is provided with the help of a spring. The cradle supporting : the coil non-magnetic alloy 200 x 210 x 115 mm high may be placed either on its base or side so that the axis of rotation of the coil is either horizontal or vertical. Provided with the terminals.

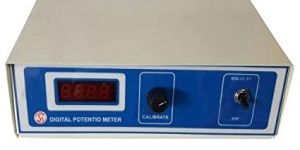

Digital Potentiometer is broadly used in chemistry labs, pharmaceutical industries, colleges etc for performing potentionmetric, ORP and acid base titrations. With optimum digital display, our Digital Potentiometer has a rugged and highly stable construction. Our Digital Potentiometer is highly appreciated by the clients for accuracy, easy adjustment, versatile applications, higher compatibility, reliability and durability. We are well-known Manufacturer, Exporter and Supplier of Digital Potentiometer. Specifications 3½% digit LED Display Range : 0 to + 1999 mv Resolutions : 1 mv Accuracy : +1 %, Power supply : 230v +10% AC Supplied with O.R.P. Electrodes Electrode Stand & Dust Cover

This is for the study of field between the charged parallel plates and also to study the effect of area of plates, separation between them and medium in between the plates. Consists of two aluminium plates 250 mm square, 6 mm thick and each has been made to plug a 4 mm male plug inserted, at the edge of plates. Supplied complete with a 2.0 mm perspex sheet 250 x 250 mm and spacers made of same sheet of perspex.

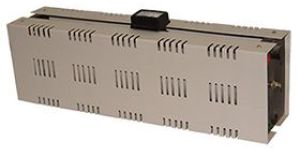

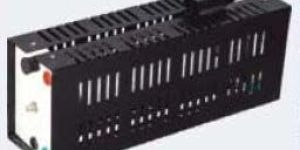

If you need long-lasting Rheostat Single Tube Protected from Ambala, Haryana, India, place your request for a bulk order with us. Being one of the acknowledged manufacturers and exporters, we offer superior quality tubes at market leading prices. Our team of dedicated workers carefully processes the product using high-grade materials. The offered product is loved in the market as these promise superior finishing, impeccable texture, and longer functional life. We source this product from trusted vendors in the market.   Detail : Variable up to 345 ohms at 1.2 A rating for use as a series resistor or a potentiometer. Enclosed type, in metal case with windings on porcelain former 350 mm long x 56 mm dia, three 4 mm socket terminals and four mounting lugs tapped.   Model Number : GP-673

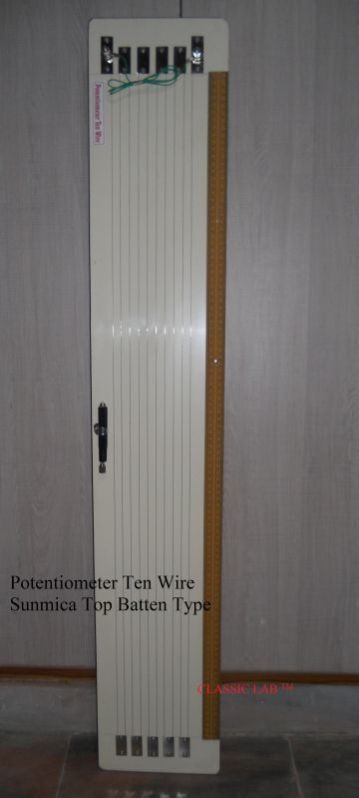

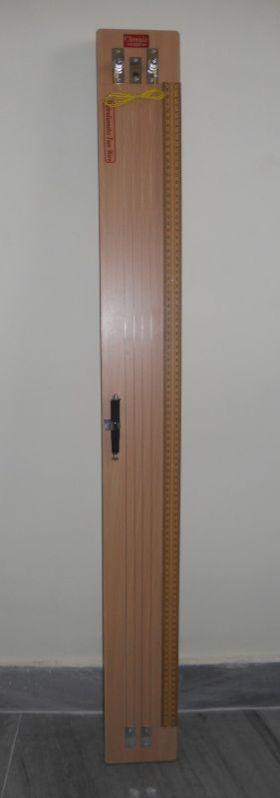

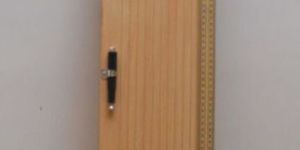

Potentiometer A one metre long single resistance wire passes over a metre scale and is firmly clamped to stout brass end-plates,on wooden base. Complete with knife-edge jockey.

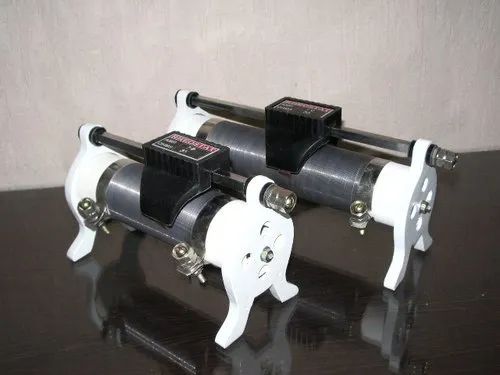

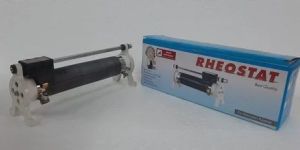

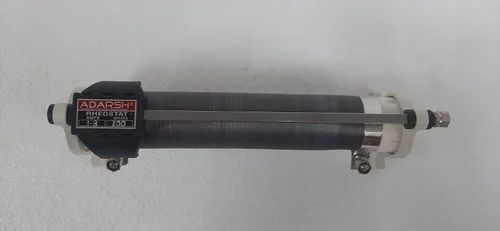

Power Rheostats are made with a variety of resistance & current carrying capacity so as to satisfy every need. They are wound with heavily oxidized eureka resistance wire upon a porcelain tube dia 44 mm aprox. The tube is carrying upon Bakelite rider and the heavy duty sliding contact is of the phosphor bronze with brass rod. 4 mm socket terminals are fitted, allowing for rheostat or potentiometer connection. Total resistance and maximum current capacity is marked on the slider. Total Permanent current loading should not exceed 75% of the marked values. The actual resistance of Wire Wound Rheostats shall be +20% -5% of the rated resistance as per our resistance chart. (as per ISI specification no. IS : 9051 S. No. 10.3), we are recognized as one of the major Electronic Rheostats Manufacturers and Exporters from India.

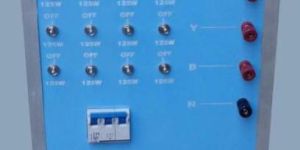

Our range of rheostats is manufactured suing quality approved raw material and is known to have variable resistance. Offered in various specifications, these find applications for loading transformer, power generator and supply main. Attributes : Robust constructionDimensional accuracyLong lastingHigh efficiencyCompetitive pricing Used for loading : TransformerPower Generator

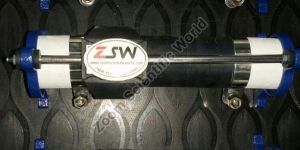

Available in 150 mm of size, our sliding rheostats is used in varied applications. The sliding rheostats that we provide to the valuable customers contains high grade copper as well as oxidized nickel. We are one of the reputed sliding rheostats manufacturers, exporters and suppliers in india. popular for slide wire and openreliableresistance powerhigh capacity for carrying currentperfect insulationenhanced functioning with socket terminals of 3 to 4 mmmetal made supports of 43 diameters used in series resistorspotentiometervarious industries

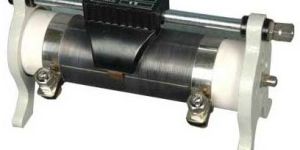

We are listed at the top in the list of the most dependable Rheostat Exporters and Suppliers in India. A layer of oxidized resistance wire is wound on a porcelain tube which is supported by end supports and a sliding contact and 4 mm socket terminals are provided in the structure of Electronic Rheostat. Additionally, customers are eased with the availability of the Laboratory Rheostat that meets the norms of national as well as international standards.

at the outset, we extend our greetings to you and everyone in your esteemed organization.we wish to introduce our company ms newtech scientific devices as menufacturer, supplier & exporters of all kind of scientific and laboratory equipment's (since 1996). we are an iso 9001-2015 certified company. thanks & regards

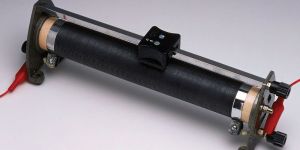

For use as series resistors or potentiometers. Open slide wire type with a variety of resistance and current carrying capacity. Copper nickel alloys wire is oxidized to provide perfect insulation.
