RF Passive Components Dealers in Pune

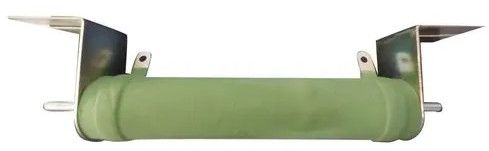

Clients can avail from us a wide range of Wire Grid Resistance that is widely used for earthing applications. It is precisely designed and manufactured with the aid of cutting edge technology from quality approved raw material. Provided product is employed in alternative current distribution networks and limit the restricted earth current to a safe value that flow from the transformer star point without surpassing specified temperature. The offered product is quality tested before delivery to ascertain their durability at clients end. In tune with the variegated requirements of our clients we provide this Wire Grid Resistance in various specifications. Features: Resistance wire is would on ceramic insulator to form a coil for wire wound. Tapping can be taken at any place. These Resistors are economical for low current. Available in ratings of 1 Amp and above. Specifications: Dissipation is negligible & the temperature rise for the resistor element depends on its capacity to store the energy generated in proportion to the mass & specific heat of the material used. Theses NGRS are connected between the neutral point of transformer / generator & the earth. In Earth fault condition continuous current of 5 % to 10 % of full load current pass through the resistor due to unbalance in systems. In Earth fault condition the Restricted earth fault current passes through the Metallic Resistor protecting the system till automatic protection takes place by absorbing the earth pressure, protecting the winding etc. Hence these resistors are designed for allowing maximum heat dissipation Internal Features Of Resistor Enclosure Group of Resistance elements are mounted together to form a Bank. Banks are then connected in series or parallel to provide the current and ohmic value required. All Resistance Bank to Bank interconnections will be done by solid stainless steel / copper. In case of continuous current ratings for better heat dissipation, perforated sheet / jali with welded GI wire mesh is provided at the bottom. Foundation channels have welded or bolted to the angle iron structure on two sides with arrangement to fix on foundation by bolts at site. Terminals are brought through Porcelain bushings of appropriate voltage class or brought down as per requirement of customer. In case of higher voltage, the banks are placed on stand off insulators housed inside the enclosures, or the enclosures is also insulated from ground by using stand off insulator if asked by customer TESTS (A) Routine Tests: - Following Tests Will Be Conducted. Visual and Dimensional. Insulation resistance value measurement by using 500V / 1000V megger before and after dielectric test. Resistance value measurement with Ã?â??Ã?± 10 % tolerance. H.V. Test of twice the rated voltage +1000 volts for voltage class below 660 volts or 2.25 times of rated voltage +2000 volts for voltages above 1100 volts. (B) TYPE TESTS :- Temperature rise test i.e., Heat run test if required will be conducted by passing equivalent / rated current for rated / equivalent time keeping IT Constant through a part of Resistor.   Technical Information: Line to neutral voltage rate Normally Full load current rate is same System Voltage is divided by root3 i.e. 1.732. Initial current flow through resistors when it is cold Time length rate for NGR must tolerate rated voltage. NGR construction includes resistor assembly, internal connections, plus required insulators, etc Generally temperature rise rating is restricted to 375 deg.c. above ambient temperature as per BS-587. It can be 760 deg.c. as per IEEE-32 Normally 10 % of full load current is require for continuous functioning rate of neutral grounding resistor of 5 % to 10 % of full load current Such resistor elements material are made from any stainless steel or FeCrAl or Cu-Ni or Ni-Cr or any other resistance material. Normally formed stainless steel element are best   Information To Be Furnished To Us: Material of Resistor Ohmic Value Current Rating Duty rating 10 sec.,30 sec.,60 sec., & continuous etc. If details against and cannot be given then inform details of transformer such as KVA rating, full load current, Primary & Secondary Voltage. System voltage / operating voltage. Type of Enclosure and material for enclosure ( protection class as per IS- 12063) Location: Indoor or outdoor. Temperature rise allowed over an ambient temperature. Whether space heater, current transformer , isolating switch on load / off load, manually / motorised, or any other accessories are required. Details of atmospheric conditions at site and height above sea level

DC Drive Chokes made by Trutech are used on the output side of rectifiers & controllers. As the Chokes have a tendency to resist sudden change in current, they are therefore very useful in reducing the ripple current of the rectified DC output. They also help in protecting the DC load or motor from high starting current, harmonics & ripple content present in the DC supply line. Features Of Electric DC Choke High efficiency Easy to operate Long service life Protect from damage Suitable for reducing the rectified DC output

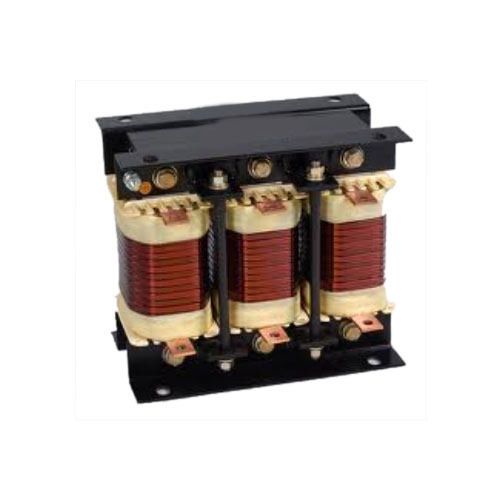

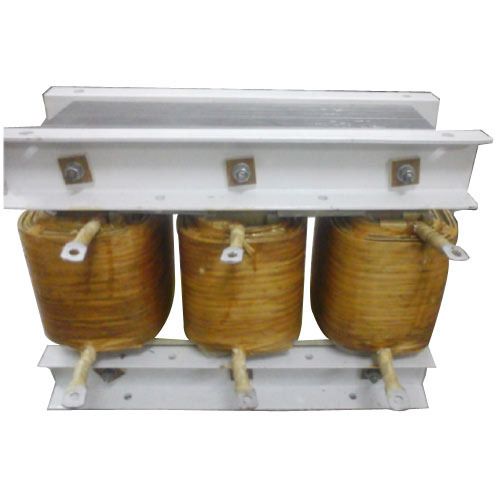

With highly driven technical excellence and advanced infrastructure, we have been able to offer our clients a vast array of Three Phase Line Choke. The offered range of products is manufactured using top-notch grade components and sophisticated technology in complete compliance with the set international standards. The products offered by us are stringently tested under the supervision of our adroit professionals against several parameters. Apart from this, the offered product range is provided with premium quality that is designed to furnish maximum satisfaction to our clients. Features: Precision engineering Compact design Long service life

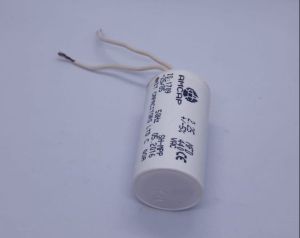

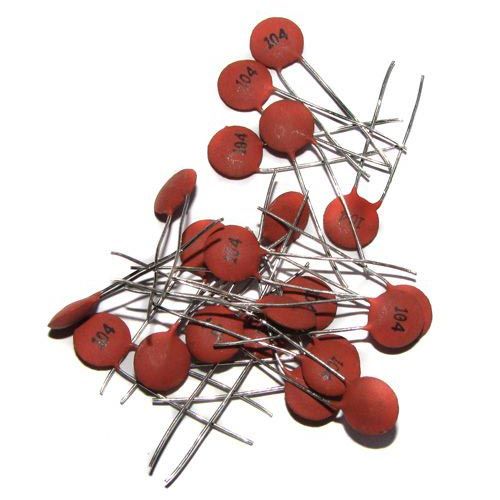

We provide Capacitors that are available in different capacitances and sizes. Our Capacitors are widely used for different kinds of specific requirements as an electronic component. Our Capacitors are supplied to all over India to fulfill the requirements of our clients. We offer our Capacitors at an affordable market price for our customers.

Global Disc Metal Oxide Varistor Market research report gives a systematic and competent approach to gather important statistics of Global Disc Metal Oxide Varistor industry. In which includes industry chain structure, Disc Metal Oxide Varistor market classification, dominant market players, product definition, and product scope. Global Disc Metal Oxide Varistor Market research report also interprets different market scenarios along with future market trends. Global Disc Metal Oxide Varistor research report performs SWOT analysis to gain better insights on Strengths, Opportunities, and Threats muddled in Disc Metal Oxide Varistor industry. Disc Metal Oxide Varistor Market dynamics, production capacity, consumer volume, supply to demand ratio, Disc Metal Oxide Varistor market share and revenue is also deliberated in this research report.

UDHAN' Mixed Dielectric Capacitors - MD Capacitors are manufactured using one layer of tissue paper and one layer of plain Polypropylene film as dielectric between two electrodes of thick soft annealed, 99.35% purity of Aluminium foil and have extended foil construction. Power leads are soldered to the extended portion to make a strong and positive electrical contact which can withstand Heavy inrush and discharge current. Capacitors are impregnated with NPCB, bio-degradable impregnant and are hermetically sealed. Three layers of Impregnating oil adds to dielectric strength, increase protection against failure and provides cooling effect.

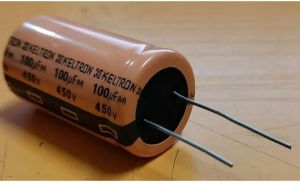

Electronic Capacitors are the passive components widely used in energy storage applications, pulse power & weapons, power conditioning, etc. Electronic Capacitors store the charge across the two plates attached to them. The capacitance value marked on our Electronic Capacitors applies only at low frequencies and at a specified room temperature.
