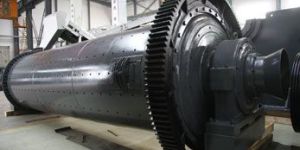

Ball mills are used primary for single stage fine grinding, regrinding, and as the second stage in two stage grinding circuits. According to the need of customers, ball mill can be either wet or dry designs. Ball mills have been designed in standard sizes of the final products between 0.074 mm and 0.4 mm in diameter.
Features
Suitable for grinding material with high hardness
The shape of the final products is circular
No pollution for the powder with ceramic ball
Stable performance Easy installation
The capacity and fineness can be adjusted by adjusting the diameter of the ball.
Application
The ball mill is key equipment in grinding industry, especially in mineral ore dressing plants. It is widely used for the cement, the silicate product, new type building material, fire-proof material, chemical fertilizer, black and non-ferrous metal, glass, ceramics and etc.
SMA connector power divider micro power splitter 4 way 2 way 3 way 2Ghz-8Ghz wide band
350 - 10,000 / Piece
MOQ100 Piece
ConditionNew
Number Of Flower4 WAY
Frequency2-8ghz
Country of OriginIndia
ProductPower Divider
Impedance50 Ohm
ConnectorSMA female
Operating temperature-55°C to 100°C

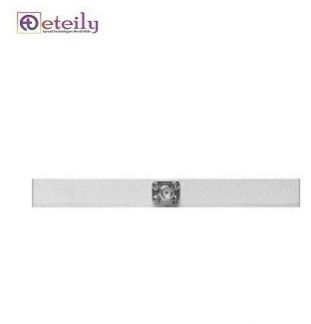

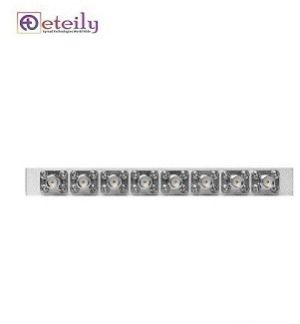

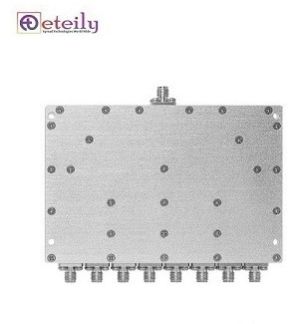

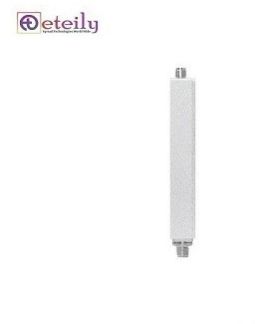

The described product is a high-performance RF splitter designed for efficient signal distribution in a variety of applications. It supports a wide frequency range from 2000 MHz to 8000 MHz, with the option to customize the frequency range to suit specific needs. The device is capable of handling 20 W of RF input power or higher, making it suitable for both commercial and industrial environments.
The splitter has 1 input port and 4 output ports, providing flexibility for signal distribution. It features 50 Ohm impedance to ensure optimal signal matching, and the connectors are SMA female, a standard choice for RF applications. The splitter delivers minimal amplitude unbalance (≤ 0.02 dB) and phase unbalance (≤ 0.8°) at 3000 MHz, ensuring signal integrity and accuracy across all output ports.
With an insertion loss of ≤ 6.7 dB and isolation of ≤ 6.7 dB among ports, the splitter ensures efficient signal splitting with minimal interference. The VSWR of ≤ 1.23:1 indicates good impedance matching, reducing signal reflection. The device operates efficiently with a dissipation of ≤ 4.5 W and is designed for use in extreme temperature conditions, with an operating range of -55°C to 100°C.
This RF splitter is ideal for use in applications like telecommunications, radar systems, and satellite communications, where high performance, low signal loss, and reliability are crucial. Its durability, low power dissipation, and minimal signal distortion make it a dependable solution for signal distribution in demanding environments.
