Grinding Mill Dealers in Ahmedabad

According to customers' requirements, CMMAC success in absorbing foreign experience and world-advanced technology, and in producing our vertical products, with self-owned intellectual property right.

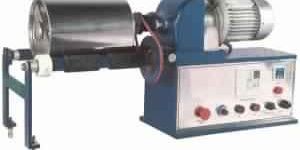

A ball mill, a type of grinder machine, is a cylindrical device used in grinding (or mixing) materials like ores, chemicals, ceramic raw materials and paints. Ball mills rotate around a horizontal axis, grinding is taking place with the heavy balls filled with material to be ground in the ball mill. There are two types of Ball Mills we Manufacture;1. Continuous Type: This type of ball mill provides continuous production in terms of kgs or tons per hour basis. At one end material is fed at controlled feeding rate while at the exit end material is sucked by air attaching pneumatic system or comes out by flotation. It is often provided in complete closed circuit where under sized material is thrown back to feeding end after classifying the particle size through efficient dynamic type classifier.2. Batch Type: Material is being charged into ball mill once and the lid of the mill get closed. The mill is being rotated at certain speed and time as long as desired particle size achieved. Once the material is ground, the lid gets opened and the material is being discharged manually or gravitationally. Ball Mill Shell with suitable liners such as High Alumina, Hyper steel, High Manganese, ceramic liners etc. Grinding medium, balls, of various sizes in diameter made of High Alumina, High Manganese, natural pebbles, hyper steel etc. Continuous Ball Mill System includes blower, dust collector, cyclone, classifier, and necessary duct line. Feeding arrangement with hopers.

We are backed by a well-structured and capacious storehouse that assists us in furnishing urgent and quick requirements of the clients. Moreover, we ensure complete safety of the stored items. Due to our commitment towards providing quality approved products to the clients, we source the raw materials only from the well-known and trusted vendors of the market. GMP Model Suitable for Homogenizing, Emulsifying Dispensing, Mixing, Commuting of liquids to highly viscous products Jacketed (Optional) It is based on rotor-stator principle Particle size reduction 5 to 10 micron Output-120 to 12000 Kg./shift 3.0 HP 440 volts Motor

 Pug mixer inner walls are constructed of SS or MS sheets. The mixer consists of a centre shaft of appropriate diameter and is either made of S.S or M.S materiaI. The centre shaft is fitted with specially designed agitator blades in order to provide contraflow action. Contraflow ensures constant circulation of mix/blend ingredients from one end to another to homogenise the batch.  Both the ends of the vessel are provided with stuffing boxes on the shaft. Blend ingredients are prevented from leaking and entering into bearings by the stuffing box. The shaft is supported by heavy duty pedestals. For models below 300 kgs the unit is provided with a pulley drive system along with tilting arrangement for discharge.    For models above 300 kgs the unit is provided with a gearbox drive coupled to a motor and the discharge valve provided at the bottom

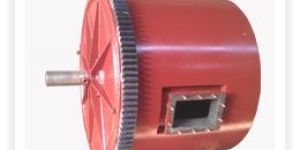

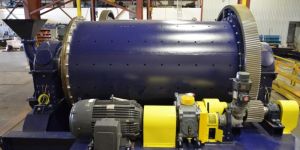

Ball mills are used primary for single stage fine grinding, regrinding, and as the second stage in two stage grinding circuits. According to the need of customers, ball mill can be either wet or dry designs. Ball mills have been designed in standard sizes of the final products between 0.074 mm and 0.4 mm in diameter. Features Of Ball Mill Suitable for grinding material with high hardness The shape of the final products is circular No pollution for the powder with ceramic ball Stable performance Easy installation The capacity and fineness can be adjusted by adjusting the diameter of the ball.   Application Of Ball Mill The ball mill is key equipment in grinding industry, especially in mineral ore dressing plants. It is widely used for the cement, the silicate product, new type building material, fire-proof material, chemical fertilizer, black and non-ferrous metal, glass, ceramics and etc.

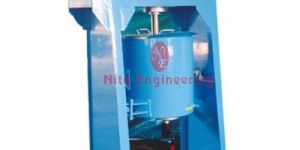

Attritor mill is used for grinding and blending process for wet or dry materials. Attritor mill performance is great and highly efficient. Attritor mill unique design consists of a top cover that can be locked on to the main vessel. It is provided in two halves. It also has mild steel jacket for cooling and an entire m. S inlet, outlet and drain fitting. Attritor mill stainless steel ball valve and strainers are specifically designed for providing corrosion resistant and easy to clean equipments. These attritor mill are used in various applications in the manufacturing of paints, inks, coatings and others.

We offer our clients a wide range of Alkyd Resin Plants. Based on our vast experience, we have been able to comprehend the minutest needs of our clients. Our constant endeavors to offer our clients with best services and products have been appreciated by our clients and helped us in building a positive brand image. We provide assistance to our clients in making the correct choice based on their budget and attempt to meet their requirements on time. Our professional attitude and valuable and efficient services have helped us garner a wide client.Bead Mill is batch process equipment designed for optimum efficiency with very low energy requirement. Horizontal bead mills is used for coating, paint, printing, dye & pesticide manufacture. It is suitable for grinding and dispersion of medium viscosity products.

15 Models (Upto 200 HP) * Ideal For Precrushing & Coarse Grinding * 50 To 25,000 KgsHr.Cap. * Cool Grinding * Low Power Consumption * 3 in 1 Unit (pulverizing, Sieving & Conveying) * Available with Negative Pressure System also. * Wet milling also available. * Grinding element in different shape to application. * Bottom Discharge Also * Side Screen Opening Also * With Star Type Hammer * M.O.C. In MSSS

We offer customers automatic suction hammer mill that comes in capacity ranging from 6 H.P. To 85 H.P. Available under the brand name 'Techno Wings' these automatic machines maintain due to continuity flow through automatic suction through motor. Further, the ampere of motor does not fluctuate, hence increasing the working capacity of machine. The basic principle is straight forward. A hammer mill is essentially a steel drum containing a horizontal rotating shaft or drum on which hammers / blade are mounted. The hammers are free to swing on the ends of the cross, or fixed to the central rotor. The rotor is spun at a high speed inside the drum while material is fed into a feed hopper. The material is impacted by the hammer bars / blade and is thereby shredded and expelled through screens in the drum of a selected size. Key features of auto suction hammer mill Less operating cost due to automatic feeding. The size of cyclone body tank is bigger in these hammer mills. Automatic operations less production cost Easy to work & collect ground material without air pressure, due to dust collector. Through rotary suction machine red chili, cumin, coriander, husk of ground nut, rice bran, seeds of aratictrec (batool) soya bean are automatically sucked. Due to availability of beater carbides in automatic machines, it is not necessary to change beater frequently, which also ensures that production is not effected. Separate motor for hammer mill, blower, and rotary feeder, thus ampere of motors does not fluctuate, hence increasing the working capacity of machine. Operating principle of auto suction hammer mill The materials to be ground into the crushing chamber of auto suction hammer mill from feed hopper by gravity or through an automatic rotary feeder the carbides blades inside the crushing chamber accelerate the material to a very high speed to the toothed liner placed at the upper half of the crushing chamber. Shearing pulverises the material. The ground materials are continuously sucked by a centrifugal blower through screens placed at the bottom periphery of the crushing chamber and conveyed through a pipe into the cyclone dust collector for bagging. Excess air filtered through an air classifier. Particle size varied using screens with different size holes. Standard accessories of auto suction hammer mill 3 numbers motor pulley. 2 number cotton balloon. Anti-vibrating foundation stand with adjustable rail for motor. A set of perforated round holes screen are supplied with the machine. Extra accessories of auto suction hammer mill Suitable totally enclosed fan cooled three phases or single phase sq. Cage motor as per is: 325 or 996. {electricity (special power can be accommodated): 220/380/415 volts, 50/60 Hz, 3 phase} Suitable miniature circuit breaker as per is: 8828 with 3 meter cable & 3 pin top as per is: 1293 for single phase electric motors. Starters, main switch, ampere meter, capacitor for single phase electric motor. Foundation bolts V belts Magnetic hopper All contacting parts stainless steel 304 / 316 van be accommodated Application of auto suction hammer mill Hammer mills are exclusively meant for the grinding of turmeric, red chili, cumin, coriander, mango powder, sugar, wheat for ladu, salt, coffee, ayurvedic / homeopathic medicines herbs, roots, leaves, bark, dry fish, cattle and poultry feeds, food colors and so on so forth at large scale basis. Construction of auto suction hammer mill Rotary feeder is supplied with gear box. Hammer mill made from heavy duty mild steel fabricated body. Grinding chamber lined with serrated wear plates, which protects the body from wear and tear. Grinding is done by a set of swinging blades or hammers on a balanced rotor. A screen classifier forms the lower half of the grinding chamber. Blower is driven on a separate shaft with the help of a 'v' belts & separate motor.

There is no standard solution for mineral industry and wear rate of grinding media varies from mine to mine, ore to ore and even for the same ore time to time. Different alloys are recommended depending on ore type and mill particulars in order to arrive at the most cost economic solution. Based on our world wide experience, AIAE can help select optimum alloy for specific application ranging from Chromium 10 to 32 % and Hardness ranging from 58 to 69 RC.

Product is feed to the operating area of a rotor, having a speed of 2800 R.P.M by specially designed feed device. The product is processed by high sheer, pressure and friction between the stator and rotor, the angular gap becomes narrower towards the discharges section. This processed product continuously leaves the mill through the drain pipe, if required, it can be re-circulated.
