Air Damper Dealers in Chennai

Industrial Dampers are critical equipment in various places of the ducting system from the boiler to the chimney. They can be used for isolation or flow control. Different designs can be used to give 100% seal tightness for man-safe operations. Dampers are designed on the basis of: Design and Operating values of the medium temperature, pressure and flow rate Composition and nature of the medium flowing in the ductwork Dust content in the medium Special requirements with regard to installation Space availability etc. Each Damper is custom built to suit the application in question with regard to: The temperature ranging from -65°C to +1200°C Choice of material and composition Steel part and steel quality

Dyrocon Butterfly dampers provide a simple & cost effective method of control and isolation. Stainless steel dampers for high temperature applications are available in a variety of sizes. Various sealing arrangementscan be used to provide the correct efficiency for your application.Sealing efficiency can be increased to 100% with the addition of twin seals and a sealing air fan. Butterfly dampers can be actuated pneumatically, electrically or manually by a simple hand lever or reduction gearbox. Key Features:• Louver damper• Butterfly damper• Emergency shut off dampers• Double louver dampers with sealing air feature• Guillotine damper with double cable drive• Guillotine Isolator with rack and pinion drive• Guillotine Isolator with sealing air feature• Diverter dampers• Flap isolators• Stack dampers• Toggle disc shut off valve• DTPA valves• Dampers are supplied with Electrical, pneumatic and hydraulic actuators as per customer needs.• Expansion joints• Rotary air locks• Double flap valves• Screw operated slide gate• PIN gate

Multi Louver Damper as the name implies consists of multiple louvers placed along the cross section of duct rotating simultaneously about their own axis which cause the louvers to align themselves along the direction of flow or block the flow. They serve as a better option as compared to butterfly dampers. Dampers ‘IGVs (Inlet Guide Vanes) are designed to pre-rotate or spin the air in the direction of fan/compressor rotation. This has a flow-modifying and a resistance effect and hence allows operating a constant speed fan at different process conditions. AIGV’s (Adjustable inlet guide vanes) will allow more efficient operation than an inlet butterfly damper at reduced head requirements for a constant speed driven single stage centrifugal fan. Butterfly damper is a disk-shaped valve turning on an axis along its diameter, serving especially as a damper in a pipe or as a choke or throttle in a duct. The butterfly damper does not decrease the power consumption when throttled, in contrast to IGV.

Industrial Fans India offers a complete range of heavy duty guillotine dampers to meet customers' requirements. We have installed guillotine dampers in sizes as large as 5100mm dia. Guillotine dampers are being used for shut-off of dust laden flue gas volumes. The material of construction of blade and housing is carefully selected to meet specific operating condition and to withstand heat stresses, fatigue, corrosion, and distortion. We have proven reliable designs in some of the most demanding thermal environments such as the Gas turbine outlet, and high corrosion environments such as coal fired power plants. The damper blade with its grid support structure is designed in such a way that it can only distort minimal when exposed to high temperatures. The heart of our Guillotine damper is a proven and robust Rack & Pinion design. The design of the rack and pinion system has been specially to make it suitable for very high temperature and severe dust loads in the flue gas. It is operated by an electric actuator in conjunction with rack and pinion systems engaging it on each side, which ensures a parallel blade movement.

Installed in branches of Air Distribution ducts, these Opposed parallel Blade Dampers are used to carry out a rough air system balance with closer control being carried out at the individual grilles or diffusers. Available in Aluminium or Galvanised steel. Aerofoil profile with opposed parallel blades. Nylon bushes. Motorised, Pneumatic duct damper.

Fire damper without sleeve model are fixed for duct mounting and the extended sleeve fire dampers are suitable for wall mounting by means of bolts and nuts.Available in three model as follows fire dampers with shutting mechanism by thermal fusible link, Motorized fire dampers with spring return Actuator, Control panels and motorized fire damper with extended sleeve type especially for mounted on the walls. In this sleeve model the damper actuators and optional accessories are normally externally mounted on one side of the dampers sleeve, these items are kept on the right side of the sleeve normally.

We provide Butterfly Damper which is a disk-shaped valve mounted around the diameter of its axis. It is designed to serve throttle in a duct and damper in a pipe or as a choke. Our Butterfly Damper is fabricated from high grade components that render high strength to the finished structure.

Zeal Air’s duct dampers are manufactured in high-quality mild steel or galvanized iron. Designed to control air volume in all air handling applications, both opposite blade and parallel blade configurations are available. Custom sizes can be manufactured to suit your application requirements. Choose Zeal air for your air damper requirements, we are a leading air damper manufacturer in Chennai. Features: Manufactured in High-Quality Mild steel or galvanized iron. Designed to control air volume in all air handling application. Opposite blade and parallel blade configuration are available. Standard finish: Heat resistance paint. Custom made size.

Motorized Damper valve On Off Three Phase and Modulating 4-20mA Size range starts for 1.12" to 80" Manual over ride provided available valve MOC WCB,SS304,SS316 & SS316L.

A damper is a device that deadens, restrains, or depresses Dampers Technology Ltd offer a wide range of damper products to suit many applications A damper - mechanical, acoustical, or aerodynamic oscillations Automatic dampers are used to regulate airflow constantly and are operated by electric or pneumatic Actuators .A damper is a valve or plate that stops or regulates the flow of air inside a duct, chimney, VAV box, air handler, or other air handling equipment A damper may be used to cut off central air conditioning (heating or cooling) to an unused room Dampers will regulate it for room-by-room temperature and climate control.

Liku-Tech provides the complete ductwork solutions. The ducts are fabricated to withstand the most aggressive media & environmental solutions for all water & wastewater field.

The frame and blades are of high quality extruded aluminium profiled construction with the advantages of corrosion resistance and rigidity.Diffusers are coned type with each cone manufactured by extruded aluminium louvered profiles or one piece die formed aluminium construction arranged in concentric cones to deflect air equally in four directions.

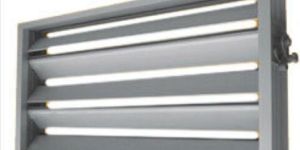

The main and basuc  function of Volume Control Damper is to control the exhaust air quantity from individual Exhaust Hood as per requirement and balance the entire exhaust system to give maximum efficiency at individual requirement,   Chennai Exhaust Air System specialise in their fields and execute their works with their confidence. We make Kitchen Exhaust Systems ,M.S Exhaust Blower, Exhaust Fans, Exhaust Hood , Fresh Air System, Air Handling Unit, Grills, Micron Filters, Hefa Filters, Air Washer System, M.S Blowers, (S.S, Aluminium GI), G.I Ducting,Openable & Closed Oil Filters and many more.

Butterfly dampers used in controlling flow of gases in connected pipes, we have wide range of butterfly dampers, 100 dia 1200 mm dia operated manually, pneumatically by cylinder and electrically by electrical actuators, we supply our Dampers to heating applications, dryers , kilns and air handling in fume exhaust and ventilation systems, and the material of construction mild steel and stainless steel . We also manufacture dampers to client drawings.

Manufactured in High Quality Mild Steel or Galvanized Iron. Designed to closed Automatically to seal of Draft of a incase of fire. Fire damper can be Operated by Fusible link. Standard Finish: Heat Resistance paint.

Pressure Relief Damper, Portable Chillers, Glass Safety Film, Cold Plate

Guillotine Dampers, Material Handling Equipment, Air Control Equipmen

Vibration Dampers, Transmission Line Hardware, Suspension Hardware, Spacer

Damper Actuator, Electric Actuator, Electrical Multi Turn Actuato

Chrome finished air volume controller . Required to controll air to venturi systems.

Vibration Dampers, Adjustable Height Clamp, Hydraulic Dampers, Gas Spring

Isolation Damper, Bag Filters, Blowers, Dust Collectors, Guillotine Dampe

Vibration Dampers, Crank Shaft, Auto Componen

Rubber Vibration Dampers, Exhaust Rubber Hangers, CNG Gas Car Kit
