SOLAR ENTERPRISES Sarai Rohilla, Delhi

Features • Scratch and chemical resistant crystal • Smooth movement with water proof design • "O" ring set between the body and bezel • Rubber boot over the spindle • Flat back and back lug supplied • Individual serial numbers with corresponding calibration certificate • Supplied in plastic case

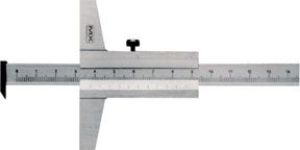

Description The Measumax Vernier Depth Gauge is suitable for depth, step, internal and external groove measurement Instrument are manufactured to ISO 10012:2003 Features • Mono block stainless steel construction • With screw at the back of the far end of the caliper bar • Clear laser engrave graduations • Supplied in plastic case

Measumax Vernier Calipers are manufactured from stainless steel with laser engraved graduations for clear reading. The vernier caliper are supplied in a protective wallet for easy use Features • Metric/Imperial scale • Mono-block vernier • 4-Way measurement • Made of stainless steel • Accuracy ±0.03mm • Supplied in foam lined plastic case

Range : 0-150mm/6"

Accuracy : ±0.05mm

Description The Measumax telescopic gauge set is used to measure internal dimensions of workpieces by comparing the dimension taken with an external micrometer Features • Capacity 8-150mm • Spring loaded movement • Supplied in plastic pouch Specifications

Surface Plate 600x600mm Description Granite surface plates have virtually replaced the cast iron plates which were used before World War II because of price and maintenance costs, corrosion (rust) resistance, superior accuracy, less response to temperature changes, no humping when damaged by a severe blow, warp resistance, non-seizing surface, and non-magnetic. Because of granite's lower coefficient of thermal expansion, granite will respond less than cast iron (steel) to temperature changes, which may distort the accuracy of the surface plate. PRECISION GRANITE SURFACE PLATES are made of black granite which is stronger and denser than light colored granite, more stable, and wears longer. The granite properties determine the stiffness of the granite and accuracies can be guaranteed with less thickness than other types of granite. This translates to less freight and handling whenever the plate is shipped or moved. MeasuMAX Granite Surface Plate include an adjustable levelling metal stand. The granite surface plate sits on 3 adjustable jacks for easy levelling Each plate is calibrated in a controlled environment at 20° Features • Manufactured to Grade De Precision DIN00 • Flatness within 3.253?m • Hard wearing • Test Certificate • Does not include NATA certification

Size : 600x600x100mm

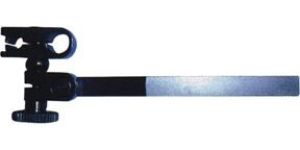

Features • Accepts all MX Dial Test Indicators • Dovetail Slide Clamp

Features • Easy to read graduations • Metric graduations on one side and imperial graduations on the reverse side • Rust and wear resistant for durability • Made of hardened & tempered stainless steel with satin chrome finish • Supplied in plastic pouch

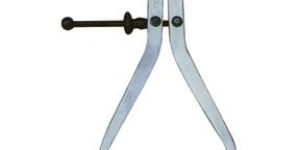

Description Made from carbon steel with uniformly hardened spring and working edges. Features • Hardened Spring and legs • Polished finish

Description Made from carbon steel with uniformly hardened spring and working edges. Features • Hardened Spring and legs • Polished finish

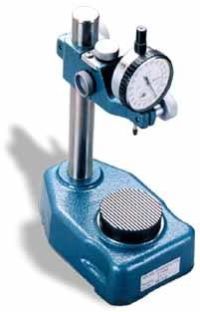

We are offering small comparator stand. * made of graded cast iron finely machined & stabilized * base and rod are made of high quality tool steel hardened ground , stabilized & lapped * supplied without dial gauge

Description Measumax single column Digital Height Gauge with sturdy base and clear LCD display. Features • Power ON/OFF • Zero at any position • Metric/Imperial conversion • Carbide tipped scriber • Large base and thick column for rigidity, lapped for flatness • Stainless steel • Fine adjustment carriage. • Engage and disengage hand wheel • Supplied in foam packing with cardboard sleeve

Range : 0-300mm/12"

Accuracy : ±0.04mm

Screw Pitch Gauge Description Made from hardened steel accurately milled gauges for checking internal and external thread. Features • metric and imperial threads • enclosed in protective case

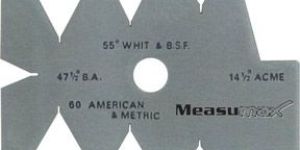

Description Made from stainless steel. Used for setting and grinding thread cutting tools. Features • 60° Metric and American threads • 55° Whitworth/BSF threads • 47.5° British Associated threads • 14.5° ACME

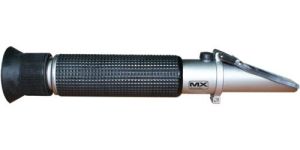

Refractometer An industrial fluids testing device that will quickly and accurately measure the concentrate to water ratio of metal Working coolants, parts cleaners, chromating solutions and many other types of aqueous based solutions and emulsions. Economy hand held refractometer With automatic temperature compensation (ATC) Supplied in hard protective case Features • Scale 0-18 Brix • Dirty and old coolant is also shown as blurred line. Clean new coolant is shown as a sharp line.

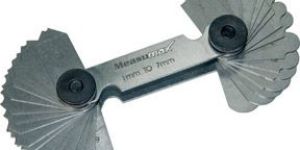

Description Accurately formed blades for checking internal and external radii. Features • Sizes marked on each blade • Provided with steel locking screws • Made of stainless steel

We offer R-8 MT Adapter. * Made From Case Hardened Steel * Fully Hardened 5055 HRC *Precision Ground Internally & Externally * Concentricity Within 0.010 mm * Drawbar Thread -716" NF 20

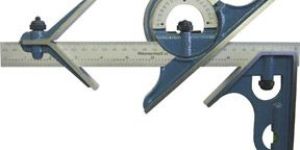

  Combinaton Set 12"/300mm Features • 4 piece set • Cast iron construction and finished ground • Engraved graduations on protractor • Satin Chrome Rule: 12"/300mm rule (35-200), 300mm rule (35-200A) • Foam lined plastic case

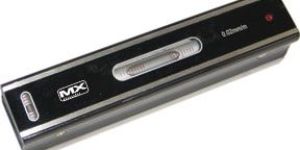

Precision Machine Level 200mm Description The Measumax Precision Machine Level can be used to measure straightness and parallelism of the guide ways of various kinds of machine tools and other equipment, and to inspect the horizontal position after the installation of equipment. The measuring surfaces are both flat and "V" and are lapped and scraped for accuracy. The "V" shaped base allows the level to be used on cylinders Manufactured from Seasoned Cast Iron. The Measumax Precision machine level is fitted with 2 adjustable vials. The main vial is marked with 9 graduation lines each side of the bubble for greater range and accuracy. Accuracy 0.02mm/meter

Description The Measumax Precision Machine Frame Level can be used to measure straightness and parallelism of the guide ways of various kinds of machine tools and other equipment, and to inspect the horizontal and vertical positions after the installation of equipment. The measuring surfaces are both flat and "V" and are lapped and scraped for accuracy. The "V" shaped base allows the level to be used on cylinders Manufactured from Seasoned Cast Iron. The Measumax Precision machine frame level is fitted with 2 adjustable vials. The main vial is marked with 9 graduation lines each side of the bubble for greater range and accuracy. Accuracy 0.02mm/meter

Size : 200mm

We offer power magnets. * High Power T-Handle Permanent Magnets * Mainly Used For Lifting , Handling & Sorting Small Ferrous Parts

Offers pot magnets. * permanent magnet is inserted concentrically in a mild steel pot * the best gripping magnets having wide and varied applications * having tapped hole of 14 " -20 * each magnet provided with keeper.

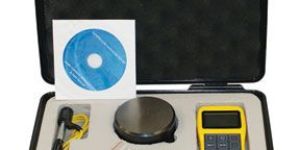

Description The 50-520 is an advanced Leeb type portable hardness tester with a wide measuring range suitable for most metals. The large LCD screen displays readings in hardness scales HRB, HRC, HRA, HV, HB, HS, HL Large memory for storage of 100 groups of data. User calibration function. A range of optional special impact devices can be supplied on indent. Technical Specifications: • Measuring range： (170-960)HLD, (17-68.5)HRC, (19-651)HB, (80-976)HV, (30-100)HS, (59-85)HRA, (13-100)HRB • Measuring direction： 360°（↓↖↗↘↙→←↑） • Hardness Scale： HL, HB, HRB, HRC, HRA, HV, HS • Display： segment LCD • Data memory： max. 100 groups（relative to impact times 32～1） • Working voltage： 3V（2 AA size alkaline battery） • Continuous working period： about 100 hours（With backlight off） • Communication interface： RS232 Main Application Die cavity of moulds Bearings and other parts Failure analysis of pressure vessel, steam generator and other equipment Heavy work piece The installed machinery and permanently assembled parts. Testing surface of a small hollow space Material identification in the warehouse of metallic materials Rapid testing in large range and multi-measuring areas for large-scale work piece

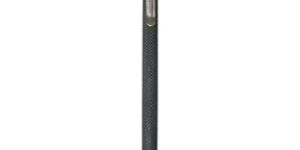

Description This durable carbide tipped scriber is designed to etch or mark very hard objects including metals, stones, glass, plastics, ceramics, hardwoods, and concrete. Features • Diamond knurled for comfortable and secure grip • Precision ground tungsten carbide scribe tip • Includes pick up magnetic end

Features • The dial thickness gauges are used to measure the thickness of paper, leather, rubber, fabric, metal plate, glass and plastic plate etc • Standard steel contact point and anvil ø10mm Diameter • Compact design • Ideally suited for quick inspection
