Beaker Dyeing Machine Dealers

Specification:Beaker carriage rotating in 360* (25-45RPM) with programmable direction reversal.Flexible beaker carriage suitable to adopt beakers of various capacities (75ml. to 1000ml.) in the same carriage.Automation with microprocessor controller PC-03 having 99 programmer memories. Outside/ inside chamber, beaker carriage and beaker stand of SS304 Beaker -SS 316 material. Auto cooling.

In order to ensure the safety of the products, we carefully store the lot under hygienic conditions and safe environment. Moreover, the lot is stringently and regularly checked by the experts. As we have the fastest transit facility, we are capable of delivering the orders within the postulated time. Features : Precision engineered Rugged construction High productivity

• • Electric Supply : Single phase 220 Volts, AC Supply • Capacity of Beaker : 250 ml Beaker X 12 Pcs: • Carriage Rotation : 30 rpm. (±2 rpm) • Maximum operating Temperature : 135°C.
• • Maximum rate of heating : 3.5°C/Min. • Controller : Microprocessor Controller(DP 01): • Maximum rate of heating : 3.5°C/Min. • Controller : Microprocessor Controller(DP 01)
• • Heater rating : 3 x 2 KW • Medium used for Heating : Glycerin: • Electrical Supply : Single Phase A.C • Motor : Reversible Synchronous Geared Motor

Features : The machine comprises of  tank, beaker and gear box The beakers are capable of withstanding pressure upto 5.0 Kg/cm square. The machine is complete in stainless steel Ensures a sound free and smooth working. Microprocessor based programmer is provided which ensures temperature control. Promises long life and leak proof service even after many years of use.

With the help of our efficient workforce, we have been successfully providing our clients with a comprehensive range of High Temperature & High Pressure Beaker Dyeing Machines that is a conventional table top model type, in which glycerine is used as a heating medium. Our machine is best suited for polyester dyeing in fiber, fabric & yarn form, and is availablefor different sizes of beakers. All machines are stringently tested by our team of quality controllers to assure zero manufacturing defects. Specifications : Glycerine is used as a heating medium. Machine is best suited for polyester dyeing in fiber, fabric & yarn form.

• Dimension: 700 (L) 470 (H) 370 (W)
• Max Temp: 135 ˚C

We offer you an H.T.H.P. Beaker Dyeing Machine embedded with microprocessor to ensure the temperature control during the sample testing. This machine includes beaker, tank and gear box to accomplish the comprehensive testing process. The core benefit of the H.T.T.P. Beaker Dyeing Machine is you can perform dyeing of fabric and yarn at atmospheric pressure also. While you are performing a dyeing with this equipment, maintaining a very specific condition is demanding to ensure the fixation of dye molecule on the fabric or yarn.

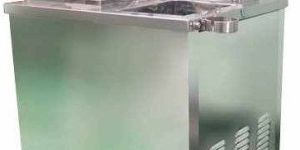

HTHP Beaker Dyeing Machine is ideally suitable for sample dyeing of fabric and yarn at high temperature and pressure. This machine is a versatile, compact and maintenance free apparatus suitable for both Polyester and cotton sample dyeing. In fact it is suitable for dyeing of any fiber in form. The apparatus is of immense use for dyeing and processing units, research/testing labs, and dyes manufacturers.Specification Model :- 12 x 1000ml size Outer M.S duly powder coated, inner S.S with insulation Heating Load – 3 x 2.0 KW Maximum rate of rise – 1.5 C/min Drive – 2HP (25 or 32)rpm geared Motor coupled with rotor shaft Forward / Reverse movement of rotor thru programmer. Beaker / rotor made from S.S 316. Frame, tank and top made from S.S 304 With Microprocessor based temperature Programmer Cooling – through cold water inlet in copper coil Power – 440v, 3 Phase, Neutral, 50 Hz Specifications of HTHP Beaker Dyeing Machine: Standard Model : 12x250 ml., 12x100 ml., 6x500 ml., 12x500 ml. Electric Supply : Single phase 220 Volts, AC Supply Heater Supply : 3000 watt Single Phase Overall dimensions of the Unit : 700 ±05mm (L) x 470±05mm (H) x 370±05mm (W) Capacity of Beaker : 250 ml Beaker X 12 Pcs. Carriage Rotation : At 22 rpm. (±2 rpm) Maximum operating Temperature : 135°C. No. of Heater : 3 x 1500 W Maximum rate of heating: 1.50C Maximum rate of cooling 1.50C ( Water temperature max 250C ) Net Weight of the Unit : 35 Kg. Net Weight of the Beaker (250ml) : 10.980 Kg. Motor : Reversible Synchronous Geared Motor Medium used for Heating : Glycerine Beakers : 12x250 ml., SS-316 grade

• Voltage: 380V
• Main Motor Power (kW): 5.5
• Speed Ratio of Rolls: 1:1.35
• Max. Roll Nip (mm): 4.5

• Driven Type: Electric
• Power: 3-6kw
• Voltage: 440V
• Packaging Type: Wooden Box
• Price: Rs 80000/ Piece
• MOQ: 1 Piece

Utilizing the best-grade wrapping supplies, we pack our products securely to endure shipping and tag it correctly to offer product details such as address of manufacturer/ distributors, MRP, quantity etc. Our fast and modern transit facilities enable us to deliver the orders within the stipulated time frame.Features : Rugged construction User-friendly Long service life

JOGSON has designed a Versatile, Compact and maintenance free Glycerin Bath Beaker Dyeing Machine which is suitable for developing Dyeing Recipe for Polyester, Cotton, Viscose, Acrylic, Silk Yarns, Zipper Tapes, Narrow Fabric, Sewing Threads & any form of fiber or blended Yarn. This machine is of immense use for dyeing plant, processing units, research and development labs, testing labs, textile institutes and dyes manufacturers. The Machine is Equipped with Temperature Controller Microprocessor TPR-14 which controls upto 8 programs with battery backup, Electric Gear Motor, Electric Heater, Heating / Cooling Coil, Operator Call & Memory Retention in case of Power Failure. Option of main power control panel with PLC touch inter face he is also available. Glycerine Bath Beaker Dyeing Machine is provided with Human / Machine safety interlocks & Sensors for added safety. It is available in various option having no. of beakers like 6, 8 and 10 with different capacity i.e 150 ml. and 250ml. each.   Features Machine body and all parts coming into contact with the dye liquor are made of AISI SS 316Ti/316L, highly corrosion resistant. MLR of 1:20 The apparatus comprises of tank, beaker and gear box Beakers are capable of with standing pressure upto 6.0 Kg/cm2 Control panel with JOGSON Temperature Programmer TPR14/PLC & touch interface (Optional) Limit switch installed at top cover for operator safety Heating & cooling coil made of stainless steel AISI SS 316Ti/316L Gear driven energy efficient electric motor Ideal for recipe developing & shade matching for large batches Installation at floor level   Advantages Uniform dyeing Hassle free plug and play model Low running cost Semi automatic operation Inching switch for rotation Ensures a sound free and smooth working Suitable for nearly all fibers and narrow fabrics Longer functional life Unmatched performance   Options Variable beaker sizes i.e. 150 ml, 250 ml or customised Variable beaker quantity i.e. 6, 8 or 10 beakers Automatic functioning model   Technical Data Maximum Design Temperature 140°C Heating Gradient 25°C - 130°C approx at 1.5°C /min. (Dry Saturated Steam pressure at 7 bar) Cooling Gradient 130°C - 85°C approx at 1.5°C/min. (Cold Water of 25°C at 3 bar)

  Ideal machine for dyeing of fabric, yarn & loose stock samples. • The rocking bars, apart from up-down motion, rotate at 70 RPM. • Direction reversal of rocking bars rotation after every 3 mins.This ensures proper contact between substrate & liquor due to constant agitation in liquor. • Number of beakers: 12. • S.S. Cover plates provided for all beakers to avoid oxidation during dyeing & to prevent spillage of liquor. • Automation through Microprocessors programmer PC-05 F/R. • Special Cages available as option for dyeing of loose stock. • Dyeing temperature upto 95°C is possible.

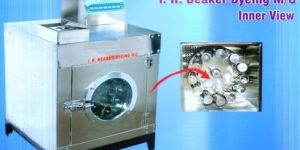

Infra Beaker Dyeing Machine is designed for dyeing of loose fibers / Yarns / samples in SS pot in very small quantity. It can be substitute for Glycerin Bath Beaker Dyeing Machine (H.T.H.P Beaker Dyeing Machine). As compare to Glycerin bath dyeing machine, Infra Beaker Dyeing Machine avoid the smell of heated Glycerin and heat is directly given to the potS and also measured from pot, so accuracy in process. It is less hazardous and convenient in working. infra dyeing machine heating enables efficient heating of beakers resulting in optimum dyeing conditions. as infrared radiations are used for heating there is no contamination of beakers with messy heating medium and hence the working is cleaner.more dyeing cycles are possible with infracolour as preparation and cleaning time is greatly reduced.injection dosing system is provided for making time to time additions to the beakers without opening the beakers. Variable speed roatation of beaker carriage assembly facilities dyeing of all types of fabric and yarn samples with all classes of dyes. Automation is through microprocessor programmer. Infra colour is environment friendly easy to use sample dyeing machine with infracolour there is no pollution, no smoke or bad smell in working area as is the case with conventional baths.

• Material: Stainless Steel
• Capacity: 250 ml x 12 beakers
• Phase: Single
• Brand Name: B-TEX
• Automation Grade: Automatic
•  :
• Weight (Kilogram): 50kg
• Power Consumption: 220 v, 3 kilo watt single phase
• Condition: New
• Minimum Order Quantity: 1 Piece

• Approx Price: Rs 1.45 Lakh / Piece
• Motor: 0.25 HP
• Phase Type: 3 phase
• Heaters: 2 KW X 3 heaters
• Temperature controller: Digital pre-set temperature indicator cum Controller
• Timer: Digital type for setting the dying time of the rotor.

We are a quality-driven firm and make sure that our offerings are properly kept and processed. For this, we have installed all the in-house storage facility that helps us in meeting bulk and urgent requirements of the clients. This is due to our streamlined packaging system that we are able to meet the customized and standard packaging requirements of the clients. Moreover, we ensure complete safety of the products.   Details : Ajay Tex Beaker Dyeing Machine is used for high temperature dying of fabric and yarn. This machine is used for sample dyeing of Yarn / fabrics at a max temperature of 98°C. The equipment is basically a doubled walled stainless steel tank. The inside/ outside tank are of SS 304 Grade sheet & jars are of SS 304 Grade. A motor & a cam – assembly are provided to give to & fro movement to SS rods to which yarn or fabric samples are tied.   The machine is model. Models are available on request. 12 Beakers X 250ml 6 Beakers X 250ml 6 Beakers X 500ml 10 Beakers X 250ml

For fibre/yarn/fabric dyeing purposes in lab conditions. Heating media is advanced infra-red rays. Eliminates use of glycol & frequent cleaning of beakers. Economical yet high performance. You can measure temperature of solution inside the beakers. Special dosing system for chemical addition. Table top, ergonomically design – maintenance free and noise free. 0-140 degree centigrade temperature range.12 beakers of 250mm each is beaker capacity. Multi step temperature controller for adjusting heating rate, time & buzzer. (Option for floor model also available) Net weight: 92 kg for table top model & 180 Kg for floor model. Net Dimension: length×depth×height 29”×15”×24”for table top model & 38”×27”×33” for floor model.

• Capacity: 250 ml
• Brand Name: NTF
• Machine Type: Automatic, Semi-Automatic
• Power Consumption: 220 Volts Single phase , AC Supply
• Beakers: 250 ml
• Medium used for Heating: Glycerin
• Carriage Rotation: 47 rpm
• Minimum Order Quantity: 1 Piece

• Material: Mild Steel
• Voltage: 420 V
• Phase: Three Phase
• Brand Name: Maxima
• Frequency: 50 Hz
• Machine Type: Automatic
• Power Source: Electric

• Automatic Grade: Manual
• Application: Sample Dyeing
• Material: Stainless Steel 304
• Machine Type: Automatic
• Phase: Single Phase
• Operating Temp.: Ambient to 100 deg c
• Wash Motor Power: 1/4-2 HP
• Speed: 32 rpm
• Heat Load: 3 x 2.0 KW
• Maximum rate of rise: 60 C/Min
