Horizontal Autoclave Dealers

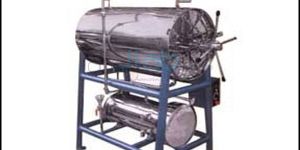

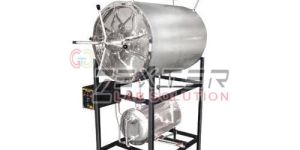

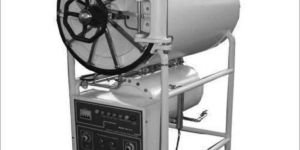

This is a double walled unit mounted horizontally on a sturdy, heavy mild steel tubular stand duly painted . the inner wall is made up of 18 SWG stainless steel sheet duly argon arc welded . outer wall is of thick s.s. plate and is provided with radial locking system which ensures complete risk free and leakproof sterilization . door when in operation or under pressure . pressure is adjustable from 10 to 20 p.s.i. fitted with pressure gauze. Safety valve and steam release valve. Horizontal autoclaves are available with or without s.s. boiler for units fitted with S.S. boiler, separate valves for injecting the steam into the main chamber and releasing the steam in atmosphere after use re provided hydraulically tested up to 40 P.S.I. . automatic vacuum breaker is provided to break the vacuum in case of vacuum due to steam condensation . fitted with automatic pressure gauze control switch and automatic low water level cut off device. To work on 220 volt, A.C. supply; Available in following sizes:

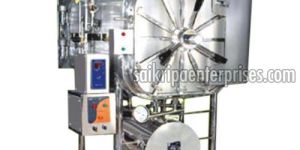

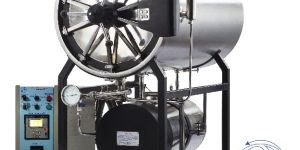

Horizontal autoclave (plt-102) applications of horizontal autoclave double walled horizontal autoclaves are most ideal for critical applications requiring assured and reliable total destruction of all living micro- organisms it is based on the principle that microbiological action of saturated steam at elevated temperature is rapid and through. autoclave horizontal is low cost options for general sterilization ideal tool for laboratories, hospitals, nursing homes, agricultural r&d labs etc, pharmaceutical, food & beverage industries and institutions. suitable for sterilizing hospital dressings, linen, rubber, plastic goods, surgical instruments, glasswares, utensils etc. salient features & construction of horizontal autoclave double walled unit horizontally mounted on a sturdy, heavy m.s. Duly painted or stainless steel tubular stand. chamber & boiler (steam generator) are constructed from s.s. 304 grade. lid (single piece door) made of stainless steel tightened by radial locking system. sealing of lid by neoprene rubber gasket chamber insulated by mineral/glass wool to minimise the heat losses and is covered by polished stainless steel sheet. fitted with pressure gauge, safety valve and steam release valve. sterilizing temperature up to 1340c. sterilizing pressure : 1.2 to 1.5 kg/cm2 (15 psi to 22psi) hydraulically tested up to 40 psi. these autoclaves work on the principle of downward displacement of air which is the most economical method of obtaining sterilization fitted with separate valves for injecting the steam into the main chamber. fitted with automatic vacuum breaker to break the vacuum in case of formation of vacuum due to steam condensation. fitted with automatic low water level cut-off device for prevention of heaters. fitted with automatic pressure control switch to economizes power consumption by reducing frequent opening of the steam release valve. It cuts off the power supply to heaters when the set pressure is achieved and re-energizes the heating elements when pressure falls below the set point. fitted with dial thermometer to indicate the inner chamber temperature. voltage: 220 volts ac (50 hz).

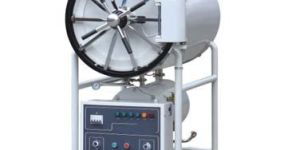

The sterilizer is based on the principle that micro biological action of saturated steam at elevated temperature is rapid and through . All models work on principle of downward displacement of air which is most economical method of obtaining sterilization . Construction :- Triple Walled with Steam jacket. Inner chamber and steam jacket made of S.S with leak proof argon welding. Lid Made of S.S. Autoclave mounted on tubular steel frame with ground leveling screwed flages.Pressure Control :- The pressure control device is incorporated in all electrically operated sterilizer. It economies on power consumption and reduces the frequent opening steam release value and prevents the release of steam in room .Operating Temp & Pressure Sterilizing Temp : 120o C Sterilizing pressure : 1.2 to 1.5 Kg/c m2 (15 psi- 20 psi) Power : Suitable to operate on 440V, 3ph, 50 Hz , Ac Supply.

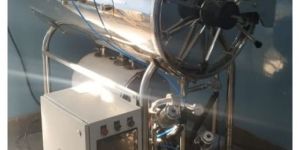

Sterilization at standard 121°C & 134CC cycles which are pre-programmed in the memory of the PLC / Microprocessor. The user can define custom cycles. ? Electrical Steam Generator of SS 304/316L provided for all cylindrical models. ? Temperature uniformly and accurately maintained throughout the chamber to within ± 0.5°C of the set sterilization temperature. ? Double pressure switches used for reducing energy consumption and preventing accidents. Float Switches provided for low-water cut-off thus preventing damage to heaters.

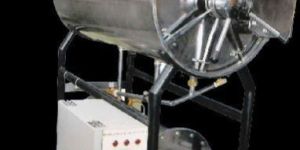

We are offering All contact parts is made of S.S 316 with food grade joints silicon gasket load in trolley and with door safety locks. When door is in under pressure and jacket is provided for storage of steam and boiler is electric operated with heaters and digital temperature controlled and display pressure. Switch is provided for controlling of pressure and safety .Valve is provided for complete stainless steel. The sterilizer is based on the principle that microbiological action of saturated steam at elevated temp is rapid and thorough. All models work on downward displacement of air principle which is most economical method of obtaining for all types of bulk sterilization which are commonly needed in Medical, Agricultural and Pharmaceutical institute Suitable for sterilizing hospital dressings, linen, rubber plastic goods, surgical instruments, glassware’s and utensils etc. Construction Robust and rugged all weld construction which is leak proof unlike riveted construction. Inner chamber & Outer chamber is made of stainless steel of 304316 quality and jacket is made out of rolled steel. Sterilizers will have single door made out of rolled steel lined with S.S. sheet on both sides. All the sterilizers are hydraulically tested to withstand 2.5 times the working pressure. The steam jacket is lined on the outer side with asbestos sheet or glass wool which prevents heat losses due to radiation and is covered by strong rolled steel sheet duly painted.Boiler Made of thick stainless steel plate suitably located under the sterilizer. High grade flanged type heating elements are fitted from front side for easy replacementrepair. Fitted with water gauge glass for water level, safety valve, water inlet and drain valves. It is also provided with Low Water Level cut off device. This device protects the heater in the generator from burning out dry. The steam pressure in the boiler is indicated on an individual pressure Gauge. Safety Lock for Door Every horizontal rectangular sterilizer is fitted with SELF LOCKING SAFETY DOOR which cannot be opened when the chamber is under pressure. The Chamber Two separate valves provided for evacuating air and steam from inner chamber and jacket as and when desired. A steam trap is fitted in the chamber discharge line to eliminate the condensate automatically. Switch Box Houses the Pressure control switch, Main switch, Pilot lamps, relays etc. and mounted on the stand of the sterilizer for easy operation.Technical specification S.S. Load & carry Transfer trolly. Watering type vacuum pump with S.S. condenser and starter. Automatic recording cycle with printer Microprocessor controller with fully automatic. Fully automatic printer thru. PC with graphical display. PLC Provided HMI PLC, HMI, sensors RTD and pressure transmitter, Pressure gauge etc would be reputed make. Other Features Triple Safety : The sterilizer is provided with triple safety. By a pressure control switch which automatically limits the pressure to the required set valve. Two spring loaded safety valves one each at chamber and boiler level. A dead weight safety valve at chamber level. A Plug Screen : Prevents the discharge line from choking. The plug is easily removable for routing cleaning. A powerful Ejector (for drying sterilized linen) circulates air through the chamber. The circulating air passes through a corrosion resistant metal wool filter. A Dial thermometer is provided to show the chamber temperature. Automatic Vacuum Breaker : Automatic Vacuum Breaker is provided to break vacuum case of vacuum formation due to steam condensation. Operating. Temperature and pressure : Sterilizing Temp. : 121°C. Sterilizing Pressure : 1.2 to 1.5 kgCm2, (15 psi to 22 psi) Optional Accessories ChamberJacket of S.S. 316 Door of S.S. 304316 Additional TrayShelves Carriage & Trolley Direct steam supply from centralized boiler Temperature recorder High pressure High vacuum model Additional door (Double door)

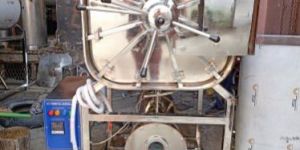

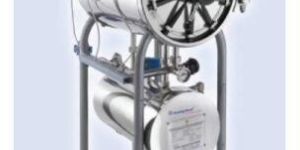

iLabot brings to you wide range of horizontal autoclaves for hospitals, laboratory research and waste decontamination etc. Our horizontal autoclaves are constructed in both cylindrical and rectangular designs. Each unit is made to match national and internal sterilization standards and feature easy operation, rugged construction and safe working throughout long years. We are horizontal autoclave manufacturers and suppliers in India. We have been manufacturing these horizontal type autoclaves for over 25 years. At iLabot, we represent most innovative and advanced manufacturing technologies supported by our most reliable customer support network throughout India. Our horizontal autoclaves are made in triple walled construction and feature steam stock provision, digital temperature cum timer controller, pressure safety valves and double safety of radial locking system. Each unit is tested at 2.5 times the working pressure in order to ensure you that you are buying the most reliable machine at very competitive price in India.
