Programmable Counter Dealers in Ghaziabad

(2 products available)
  • Programmable Counter

    Programmable Counter

    1,300 / Piece
    • BrandCountronics
    • ApplicationIndustrial
    • Size96mm x 96mm. Depth 50mm
    • AvailabilityApprox. 375 gms.
    • RangeMaximum Count of 9999
    • Set PointsSingle set points programmable from 1-9999
    • Batch LimitBatch limit setting from 0 to 999
    • Sensor Supply10V DC, short circuit protected
    • MountingPanel Mounting
    • Operating Temp.0-50 ̊C
    • Humidity95% RH

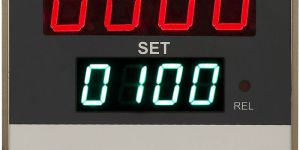

    • PROGRAMMABLE COUNTER - MODEL 254D Features  4 Digit Preset Counter with separate displays for Count and Set Limit  Large 0.8” display for count, 0.56”  Programmable Multiplying and dividing factor  Pre-settable Batch Counter  Up/Down Counting Selectable  Normal/Auto-Reset with Time setting  Non-Volatile memory to hold settings and counts    Password for Program configuration lock Specifications  Display : 4 Digit, 7 segment LED display (0.8” height) for Count                 4 Digit, 7 segment LED display (0.56” height) for Limit  Range : Maximum Count of 9999  Set Points : Single set points programmable from 1-9999  Batch Limit : Batch limit setting from 0 to 999  Operating Modes : a. Auto Mode (Time Settable) b. Manual Mode (Delay set to Zero)  Count Inputs : a. Voltage Pulse : 3V to 30V DC amplitude from proximity switch                          b. Potential free contact from limit switch, relay or micro switch  Input Frequency : 0 to 1 KHz  Sensor Supply : 10V DC, short circuit protected  Multiplying Factor: Programmable from 1-99  Division Factor : Programmable from 1 to 99  Reset Input : a. Front Panel b. Remote reset by rear terminals  Relay Outputs : NO-Pole-NC contact rated at 5Amp @ 230 V AC  Memory Retention: 10 years  Configuration Lock: By Password  Mounting : Panel Mounting  Size : 96mm x 96mm. Depth 50mm  Weight : Approx. 375 gms.  Operating Temp. : 0-50 ̊C    Humidity : 95% RH
    ...more
    www

    Countronics

    Sahibabad, Ghaziabad
    GST 1 yr
  • Programmable Counter

    Programmable Counter

    Get Price Quote
    Owing to our rich experience and knowledge of this domain, we have been able to offer Programmable Counter to our valuable customers. These programmable counters are used to perform up-down counter or length counter with Rate Indication in various industrial applications. Used in various plastic and textile industries, these counters are manufactured as per the industry set norms.
    ...more

    Global Instrumentation

    Mohan Nagar, Ghaziabad
    9 yrs
