Programmable Counter Dealers in Chennai (3 products available)

• grey: red
• grey: red

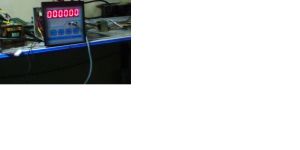

It is a micro controller based counter which accepts input as pulse input / event generation / object counting used in the measurement objects and events or engineering units like length measurement in 4 / 6 / 8 digit version. This unit has the facility to count and control the event generation or object detection involved in various operations in industrial atmosphere. The operation mode has the facility to count in both up or down counting selected thorough programming. The front panel programmable set value generates the necessary control output at the rear side. It has the data storage facility for storing the set values. The rs 232c communication output also available on request. (eg. Length measurement, batch counting, object counting etc.,).

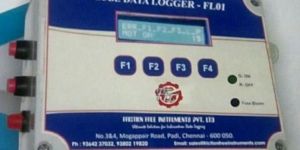

Programmable On Time & off time anywhere in the ranger of 23hrs:59mins:59secs 5 feedback monitoring of Errors from 3limit switches & level & pressure occurrence of error & retrieval of errors against real time are logged in the memory for later retrieval and analysis Retreval of the data collected is essential for the maintenance dept to monitor & correct the errors for normal operation else which leads to downtime of the vehicle or machinery

The Selec XC200NX is a 6 digit Counter with push wheel setting suitable for counting operation of equipment, machinery, systems or processes in a wide range of industrial applications. It has following operating modes on-delay, Interval delay, auto reset, time pulse repeat. Accepts input from - Proximity switches, Encoders, Potential free contacts with optional 10 years memory retention, with input speed from 0 to 5 KHZ and 9999 counts and 4.00 RPM/RPH to 99999 RPM/RPH and to operate two independent relay output contacts with two set point which are isolated from the supply voltage. These counters are housed in a compact panel mounting enclosure and are powered from 85 to 270V AC/DC.   Features 5 digits RPM indicator, 6 digts counter LED status indicator: Relay 1, Relay 2 2 setpoints Programmable input scaling Up, Down, Quadrature & Bi-directional
