Dryers Dealers in Navi Mumbai

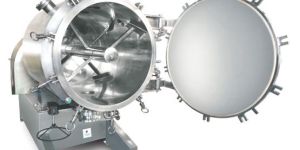

  Capacity: 5 Litres to 5000 Litres chamber volume M. O. C: SS 316, SS 304, Carbon Steel They are used with particular success in agglomeration free rapid drying, heterogeneous reactions with systems of different substances, sterilization and in general for vacuum application. Heating arrangement can also be provided along with the unit. Choice of product contact materials: AISI 304L, AISI 316L, Hastelloy optional HALAR/PTFE Coating available. Volume of the wet material loaded into the dryer is restricted to 40-45 % of gross volume. Salient Features Fast dry product discharge :- Dried material is discharged quickly by pushing action of the blade towards the discharge valve Large size front door allows full accessibility for easy and thorough inner cleaning Full door opening & Dismantable blade, not in hollow blade d,esign helps for Cleaning / Validation Standard manufacturing high geometric accuracy of the body surface ensuring efficient removal of the product from the heated walls Full process automation possible by means of PLC & DCS (* Optional) Internal heating is through a hollow shalf. The blades are provided with scrappers with minimum clearance versus heated wall which increases the rate of heat transfer. It is possible to install the dryer through a partition wall separating its loading unloading connections from its drive assembly, vacuum system water heating system etc. High speed chopper contributes to the drying process We are manufacturer, supplier and exporter of agitated vacuum dryers according to ISI guidelines and user’s requirements since 1990 from Mumbai to India and all over the world. Application: To dry heat sensitive and air sensitive material under vacuum thus accomplishing the drying at moderate temperature avoiding contact with air. Working Principle Agitated Vacuum Dryers The entire drying chamber is well machined to bring about a close encounter with the agitator blade thus ensuring proper shuffling of the material and thus avoiding localised over heating. The leak proof front opening door ensures easy cleaning of the entire chamber. The top loading and bottom unloading facility provides for easy charging and discharging of the material. The cyclonic trap prevents the fine dust of the dry material from flying into the vapour condenser. The condenser and the condensate collection tank prevent the vapours from entering the vacuum pump. Appropriate vacuum pump and accessories are provided with the unit with valves to adjust the right vacuum in the unit. The entire unit is mounted on a steel frame.

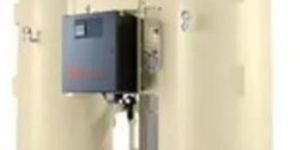

We are offering internally heated air dryer. The drying unit has 2-vessels filled with activated alumina or molecular sieves desiccant. One vessel remains in drying cycle for 4 hours, while other vessel simultaneously regenerates at atmospheric pressure. Around 3% flow of dryer capacity is used as purge for regeneration. Electrical heaters are provided in a central finned stainless steel pipe in both drying vessels. Heating cycle is for 2 hours and in this time hot purge air increases desiccant temperature to around 1000c. At this temperature regeneration is complete (due to dry air purge). Dew point achieved is around (-) 400 c. If still lower dew point is required, air purging rate is slightly increased to 5% for (-) 600 c and to 7.5% for (-) 800 c dew point.

We manufacture, export and supply premium quality Automatic Scrubber Drier (50 E). Known for its easy to use interface and efficiency, the Automatic Scrubber Drier is used for various scrubbing purposes all around the world. The Automatic Scrubber Drier (50 E) is tested on various parameters to ensure its quality and durability. Salient Features DurableEasy to use designOptimum performanceReasonably priced

The packaging procedure is supervised by our experts holding immense domain experience. Moreover, we make use of only quality packing material for ensuring complete safety of the orders during transit. We are flexible in making deliveries in the committed time span owing to the well-organized and maintained transportation system.

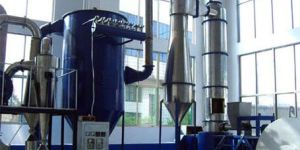

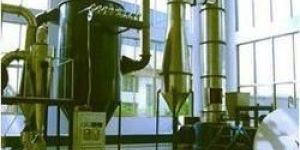

To fulfill the divergent needs of our valued clients, we are betrothed in offering Spin Flash Dryers. Use for continuous drying of cohesive and non-cohesive pastes, these dryers are Pramoted by using supreme quality material & coated with powder from feed, which is viscous. Offered dryers are highly applauded for its flawless range. We are giving these dryers to our patrons in customized options. Features: Require less maintenance Easy to operate High efficiency Other Details: Function and principle of operation Spin Flash dryers are designed for continuous drying of cohesive and non-cohesive pastes and filter cakes, as well as high-viscosity liquids The main components in a complete Spin Flash Drying System are a feed system, drying chamber, bag filler and Exhaust Blower The feed system consists of a feed vat where a discontinuous flow of product is buffered and fragmented by an agitator prior to continuous drying A variable speed feed screw (or pump in the case of fluid feed) forwards the product to the drying chamber Drying chamber The disintegrater at the base of the drying chamber fluidizes product particles in a drying-efficient hot air flow pattern in which any wet lumps are rapidly disintegrated Hot air is supplied by a temperature-controlled air heater and speed-controlled fan, entering the drying chamber at a tangent in order to establish a turbulent, whirling air flow Airborne, fine particles pass through a classifier at the top of the drying chamber, while larger particles remain in the air flow for further drying and powdering The drying chamber is rigidly designed to withstand pressure shock in the event of explosive combustion of flammable particles All bearings are effectively protected against dust and heat Bag filter Powder from the drying chamber is collected in a bag filler, while the outlet air leaves the system at the top via a suction fan

Spin flash dryer, This flash dryer is useful for mechanical dispersion and for adjusting the granule size of high humidity paste type material.Under the action of hot air and mechanical dispersion, the wet cake appears granular and gets fluidized.

Conveyor Dryers manufactured by us are widely used for conveyor drying process. The moist or wet feed is positioned on a perforated plated and then hot air is passed through it. The belt, heat sourced and feeding mechanism and fixed in a frame and whole systems is insulated. Applications Food Bagasse Mineral Chemicals Fertilizers Wood Chips/ Saw Dust Feature Low running cost Choice of heating medium Easy to clean and maintenance Designed to ensure smooth operation Specially designed feeders to spread the feed uniformly Fully automatic operation based on PLC control/ Without PLC control

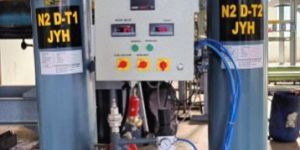

Compressed air coming from the Receiver containing solid, liquid & vapour contaminants enters the Dryer through the Pre-filter (where solid & liquid contaminants are removed). It then passes through Oil Removal Filter and enters into Adsorption Tower A1 through a 3-way valve (CV-1) where it gets dried and then passes out of the Dryer through the After-filter. A part of this dry air passes through Tower A2 through the Purge Control Valve, where it picks up the moisture from the adsorbent thereby regenerating it and making it ready for the adsorption cycle. The purge air exhausts out of the Dryer through Purge Exhaust Valve (CV-2) of Tower A2.

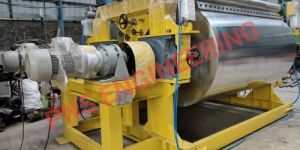

The Rotary Drum Flaker consists of a cylindrical drum, having provision for cooling drum surface. One end of the drum shaft is connected to a gear box which is driven by a motor. The heating cooling media will be circulated in drum during operations, the drum rotates at a slow speed. A thin layer of the product to be dried / cooled, adheres to the outside of the rotating, drum and internally cooled drum. The product gets solidified and is after an almost complete rotation, scrapped off drum surface and at the same instant granulated in the form of flakes, falls on screw conveyor. At the bottom of conveyor, filling point is provided to fill the bag. The entire process is continuous operation, does not require manpower except bag filling. Pneumatic / hydraulic operation of scraper assemblies can be provided.

Cooling tunnels maybe fabricated – two blowers force ambient or outside air in while drawing the heated air from the parts out the opposite end. Simply passing air over a part results in significantly faster cooling.

Hospital infection control is a serious problem, which no Hospital Administrator can afford to ignore. Proper attention needs to be focused on the system of Cleaning, Disinfection, Packaging, Sterilization and Storage of different surgical appliances and instruments. The continuous advancements made in the field of Bio Medical Engineering have resulted in the development of a range of surgical appliances and instruments with very intricate and delicate profiles. Any sterile supply chain must have a system, which can clean and disinfect these components with a very high degree of accuracy and repeatability. Machinfabrik’s “DISINFECTOMAT” Washer Disinfectors have been designed with just that in mind. The system is not only flexible but also very user friendly to take care of your every need. HIGH IMPACT CLEANING SYSTEM: The DISINFECTOMAT is provided with three rotary spray arms with six spray nozzles. The design and location of the nozzles ensure that every surface of the load is uniformly cleaned. The arms rotate due to water pressure there by eliminating any mechanical drive system. FLEXIBLE LOADING SYSTEM: AUTOMATIC DETERGENT DOZING: IN BUILT HEATING SYSTEM:

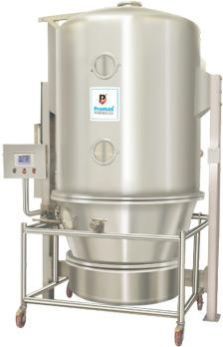

Fluid Bed Processing involves fast drying, cooling and agglomeration of particulate materials. It is ideal for heat sensitive and non heat sensitive products in Pharmaceuticals, Chemicals and Biochemical, Food and Dairy Industries. The Fluid Bed Dryer have a bed of solid particles which are fluidized by passing a stream of air upward through a specially designed perforated sheet. The upward velocity of air is so maintained so as to slightly lift the solid particles and set them in motion. This motion can be utilized to bring about mixing as well as forward movement of the solids particles. The air is heated and the process hot air evaporates the fluid and dries the solids. Fines get agglomerated to larger granules particles thus providing large size The machine is designed with correct volume of bowl, air velocity, direction and the temperature of the clean inlet air is maintained throughout the fluidization, retarding and expansion chambers, filtration area, pitch of the perforations of the plate at the bottom of product container, the leak-proof fluidization space by proper sealing, material of the filters and process controls with electrical & pneumatically. The uniform drying is achieved by exposing the full surface of every particles of the solid mass to the incoming high velocity hot air. Option for the process parameters are controlled by using latest PLC controls with HMI touch screen thus making equipment operationally safe and eliminating the possibility of human error. The process consistency with batch records is maintained for every batch every time. The equipment can be inbuilt CIP system gives a thoroughly cleaned equipment for every batch eliminating contamination of subsequent batches. Salient Features : Design is cGMP - Current Good Manufacturing Practices compliance. All contact parts AISI 316 & non contact parts AISI 304. Single piece construction with Integrated retarding expansion chamber cum filter bag housing Batch type dryer with available capacity 30 kg to 500 kg. Batch size Pneumatic Sealing of Filter Bag and Product container by inflatable silicon rubber tube. Inlet Air handler with Air Filter- Micro, HEPA and Heat Exchanger Steam or Electric. Exhaust air blower with dynamic balance fan. Built in Explosion vents and isolation valve protect equipment. Automatic Temperature controls for Inlet Air and Process cycle time controls. Washable filter media, FDA approved. Auto pneumatic filter bag shacking system. Sampling pot on product container. Electric and Pneumatic controls panel. Optional Features : Additional Product container. Advance PLC controls with touch screen Double scan AHU with Dehumidifier. Steam or Electric Heater Exhaust AHU with Filter Silencer at exhaust blower. CIP - WIP system. Explosion proof motor and push button. Solid flow detection System. Differential Pressure gauge for filter. Safety Features : Product Bowl interlocking mechanism. Automatic Temperature & controls, Process cycle controls. Explosion flap ensure at retarding chamber. Safe earthling system for static current. Air pressure switch installed to ensure pressure is in limit. Overload relay Protection and Emergency stop button.

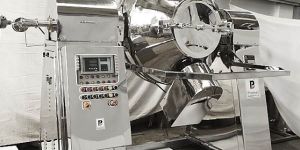

  RVD's have a wide range of application in pharmaceutical, dyes/dye intermediates, inorganic chemicals, agrochemicals, organic chemicals, and other allied industries.   We manufacture agitated RVD with or without internally heated shaft, depending upon the heat transfer requirements. We manufacture RVD's with external heating both through jacket/limpet coils. The scrapper plates provided scraps almost 100% of the inner surface of the shell to ensure efficient separation. The discharge valve and charging doors may be both manual and pneumatic/hydraulic type. They are provided with either mechanical steels of stuffing box depending upon the applications.

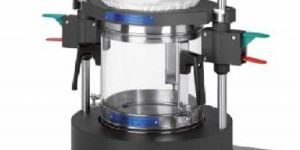

  Capacity: 5 kilograms to 300 kilograms Application: To dry material by fluidisation with hot and or dehumidified air. Working Principle of Fluid Bed Dryers The atmospheric air is sucked in the dryer through 5/10 micron filter by an efficient dynamically balanced fan driven by an electric motor. The clean air then passes over the electric heaters steam or oil radiator provided with temperature controller. The hot air passes through the product and fluidisation dries the product. Dryer is provided with dehumidifier (Chilled water system) at the inlet of the dryer so as to dry the product at low temperature under fluidized condition. The blower speed is controlled by A. C. frequency drive so as to control the fluidisation avoiding choking of the filter bag. A raking system provided to avoid lump formation in the container to achieve uniform fluidisation & uniform drying. A model with complete automation and PLC, automatic bag shaking and with mimic is also offered. Promas Engineers is manufacturer, supplier and exporter of fluid bed dryers according to ISI guidelines and user’s requirements since 1990 from Mumbai to India and all over the world.
