Dryers Dealers in Hyderabad

The cascading rotary dryer is a continuously operated direct contact dryer, Rotary dryers are the most common high volume dryer used in industry, All rotary dryers have the feed materials passing through a rotating cylinder termed a drum. It is a cylindrical shell usually constructed from steel plates, slightly inclined, the material is introduced at the upper end move towards the lower discharge end. Depending on the arrangement for the contact between the drying gas and the solids, a dryer may be classified as direct or indirect, con-current or counter-current. The drum is mounted to large steel rings, termed riding rings, or tires that are supported on fixed trunnion roller assemblies. The rotation is achieved by either a direct drive or chain drive, which require a girth gear or sprocket gear, respectively, on the drum. As the dryer rotates, solids are picked up by the flights, lifted for a certain distance around the drum and showered through the air in a cascading curtain. Most of the drying occurs at this time, as the solids are in close contact with the gas. Flight action is also partly responsible for the transport of solids through the drum.

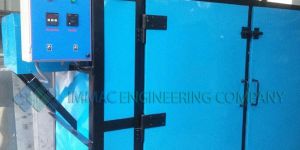

We are instrumental in manufacturing and supplying a compressive array of Cashew Tray Dryers that is widely used for heating, roasting, drying and many more purpose. Our range of these ovens is designed to keep the material in the proper place that results in increase the production and also saves batch time through easy loading and unloading. Owing to the superior quality of products, our cashew tray dryers are widely demanded in the market.   FEATURES OF CASHEW TRAY DRYER Complete Insulated body  Circulating fans for the uniform temperature inside body Timer and digital indicator or controller are provided.

The platinum pharmatech rotocone vacuum dryeris an innovative, integrated device addressing mixing & drying in a single enclosure. The key design goals being easy to clean, 100% discharge of raw materials apart attaining high degree of drying. Better shop floor aesthetics and easy to operate the device lowers significantly costs of operations, labor. The dryer can be used with equal efficacy across chemical, and processed foods with great success.

 tray dryer (pbxtd) is specially designed for pharmaceutical, food, chemical, paint and textile industries. It is an electrical/steam heated thermostatically controlled hot air oven fitted with time switch to facilitate working day and night. Pbx drying ovens are well accepted for fast economical drying of granules, effervent salts and other materials. Uniform air circulation, controlled temperature, sturdy construction and large working space are the valuable features of the oven. A highly effective re-circulating air system provided by belt driven axial fan. The filtered air is heated and re-circulated with fresh air. salient featrues / moc : inner in ss306 outer in ss304 trays in ss316 trolly and steam coil in ss316 silicon door gasket flp motor and electricals digital temperature indicator(flp) door fitted with strong hinges and special lock arrangement 10 micron air filter at inlet adjusttable air outlet damper explosion vent for safety constructionand finish as per cgmp standards. optionals: outer in ss316 ss316 trays in 18g(without back folding) self operating temperature controller(sotc) range 40-100°c

Our Spin Flash Dryer is a pneumatic system primarily used as an inexpensive solution for drying powders and granular. We are reputed Manufacturer, Supplier and Exporter of Spin Flash Dryer from Andhra Pradesh. These Spin Flash Dryers are used to dry products in many industries including food, chemical, mineral and polymer. A broad range of feed materials including powders, cakes, granules, flakes, pastes, gels, and slurries can be processed in our Spin Flash Dryer.

Conforming to international quality management systems, our product range is of unparalleled value. The packaging commences under the strict supervision of experts and other team members; they ensure that the products are packed sternly to circumvent loss during transit. Our avant-grade grain dryer is designed for high strength, superior performance, easy operation and low maintenance.

We manufacture and offer Vacuum Tray Dryers which are fabricated using high grade material. The range of Vacuum Tray Dryers finds immense usage in various industries. Stringent quality tests are carried out at each stage of production such that dimensionally accurate Vacuum Tray Dryer is sent to the market. Vacuum Tray Dryers are offered to the clients at rock bottom prices within a stipulated time frame. Suitable For Drying thermal sensitive material that canResolvePolymerizeDeteriorate easily under high temperature conditionsEliminates the configuration damage of the drying material Widely Used In Chemical industryPharmaceutical industry

The drying process is mostly used process in chemical Industries. Industrial Dryers are used for efficiently processing large bulks of material that need their respective moisture levels reduced. Depending on the amount and makeup of material needing to be dried, effective dryer will be selected.

We are a well-known Manufacturer and Supplier of Spices Dryer. Our Spices Dryers are made using high grade stainless steel. They are used to efficiently dry the spices so that the moisture doesn̢۪t lead to their contamination. These Spices Dryers are widely demanded in Food industry. Attributes High performanceEasy to operateLong service lifeCorrosion resistantLow maintenance costReasonably priced

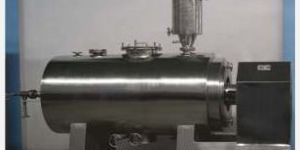

Rotary vacuum paddle Dryer or Paddle Dryer is used to obtain dry Powder from wet cake or solutions. The efficiency is very high and the operating costs are low compared to other types of dryers. It is a closed system in which hot water ,steam, or hot fluid is used as a heating medium in the jacket, in the hollow paddle and in the hallow shaft. Dust collector, condenser, receiver and vacuum pump are part of the system. The continuous agitation by means of heated rotating paddles and minimum clearance between scrapers and heated walls provide a good heat transfer to the wet feed. This results in the solvent/moisture evaporating off and renders the wet material dry, to the required degree. The vapors formed are removed by means of vacuum. Absence of large air flows virtually eliminates dust problems and also the energy consumption remains low. Some of the salient features of a Rotary vacuum paddle Dryer made by us are described below FEATURES: Common base frame is unique to this system. This eliminated the need of foundation cost and reduces the maintenance cost. Drying optimization, this is done by means of external and internal heating. External heating is by means of jacket or limpet coils, while internal heating through a hollow shaft and a set of hollow paddles. Hallow paddles are provided with scrapers having very low gap from wall to maximise heat transfer. Scrapers move material to all parts of the dryer and also help in discharging the material. The hollow rotating agitator shaft imparts heat to the product, scrapes the shell wall ,tumbles the product for maximum heat transfer and discharge product when required. The large heat transfer area available on the wide paddles and hollow shaft give maximum heat transfer efficiency to the product. Mechanical seals at Shell ends/Stuffing Box. The vessel is well design to take temperature stresses during vacuum drying. Low power consumption by the use of helical bevel gear box. Special floating bearing design to combat temperature stresses. To remove the condensate formed by steam heating in the hallow shaft, Special rotary joints are also designed to introduce heating media in the hollow shaft. Product Filter is very efficiently used to arrest valuable product carried away with the vapours in a filter bag The arrested product particles are thrown back into the dryer by reverse flow of pulsating air.Generally the product filter are heated to avoid condensations of vapors in the filter bag. User friendly discharge valve design provides vacuum tight closing when the material is processed and quick opening lever facilities filling of bags when material discharge and packed. Breaker bars are incorporated in the RVPD to break the lumps where the product forms lumps during drying. Insulation with Cladding will provided on heating jacket/Limpet coil. These dryers give optimum performance with very high heat transfer rates.These dryers have been successfully used for reaction, crystallization, and extraction operations in addition to the primary function of drying.Low temperature drying for heat sensitive product is possible.Complete solvent recovery is possible with this Rotary vacuum paddle Dryer. The Cantilever Model have following versatile features: Full door opening for ease of operation, cleaning and validation.Clean area installation possible with stainless steel partition wall between the process area and drivesThe paddle dryer is also supplied with machined and mirror polished inside surfaces with PTFE Scrapers.

We are engaged in manufacturing, exporting & supplying of Rotary Vacuum Dryer. We deal in SS 316/IS2062, MOC Rotary vacuum Dryer. Clients can avail the Rotary Vacuum Dryer in various specifications and sizes. We supply efficient, durable and highly functional Rotary Vacuum Dryer at the market leading prices.

Buyers can purchase Pharmaceutical Tray Dryers from us. High in quality and efficiency, our Pharmaceutical Tray Dryers are reliable in operation. The Pharmaceutical Tray Dryers that we provide are available in different specifications to attain maximum customer satisfaction. We have priced Pharmaceutical Tray Dryers fairly. In addition, we are a major Manufacturer & Supplier of Pharmaceutical Tray Dryers. Why Our Pharmaceutical Tray Dryers? Manufactured from quality materialFlawless constructionDurable Easy availability

We are service providers and export a wide range of Chemical Dryer finds applications in various pharmaceuticals, chemical and many other applications using for heating dehumidifying of materials and chemicals in pharmacy. We fabricate these Chemical dryers using optimum quality raw materials based on well-developed machinery and innovative technology in comply with the quality standards and norms.
