Industrial Valve Dealers in Warje, Pune

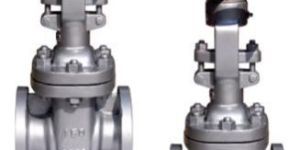

VOLFRAM make Cast Steel Flex Gate Valves are tight sealing, easy operation, isolation valves for liquid and gaseous fluids over a wide range of line pressures and temperatures.   Self-adjusting flexible wedge assures tight sealing and minimizes stress concentration under varied service conditions. Stem-wedge thrust closer to wedge centre for accurate wedge movement. Long guide ribs in the body to minimize seat wear. Gate valves are of rising stem, outside, screw and yoke (OS & Y) and with Bolted Bonnet construction. The rising stem indicates open or close position of the valve. The outside screw ensures easy lubrication and prevents corrosion and erosion by line fluids. On request, valves can be supplied with special features like NACE Requirement, Radiography, Magnetic Particle Test, LGC Test and for Oxygen Service etc. Features of Gate Valve: Body & Bonnet: The body is designed for strength to meet the operating conditions and contoured to minimize erosion and resistance to flow. The bonnet is provided with renewable seat arrangement. Flexible Wedge: The one piece, case flexible wedge minimizes stress concentration and assures tight sealing over a wide range of different operating temperature and pressure conditions. Body Seat Ring: The seat ring is welded to provide a bubble tight joint. Back Seat Arrangement: The back seat is designed to relieve back pressure on the stem packing when fully seated. Seating Surface: Gate valves can be offered with stellite seat, if specified. Stellated seat ring provides increased resistance to ware, abrasion and erosion of the sealing surface. Gland Arrangement: The stuffing box holds an adequate packing rings to enhance gland tightness and increases the life of packing rings. Flanged: ASME B 16.5 Raised Face Butt Weld: ASME B 16.5 to suit the corresponding pipe schedule. Standards: Design : API 600 Face to Face / dimensions : ASME B 16.10 Testing : API 598 Valves can also be offered with IBR certification. Accessories: Valves can be supplied with accessories like extended Stem Arrangement, Gear Operation, Pneumatic and Electric Actuators, Chain Wheel Arrangement, Drain Plug and By-pass Arrangement.

Rotary airlock valve, also known as rotary feeder or rotary valves, are commonly used in industrial applications as a component in a bulk or specialty material handling system. Rotary airlock are primarily used for discharge of bulk solid material from hoppersbins, receivers, and cyclones into a pressure or vacuum-driven pneumatic conveying system with good airlock condition.

Brass (IS 319) - Standard (AL MS S.S. also available). Finish Nickel plated-Standard. (TinCadmiumChrome also available) Threads BSC - Standard (In PGMetricNPTBSP-also available) Ref. Standard IS 2148 - 1981 CMRI Certificate No CMRITCPH638, Application Flamepoof used in flammable gas vapor area (Gas l, llA and llB)

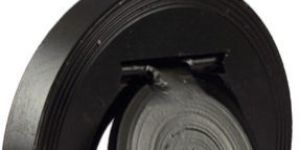

Industrial Globe Valves, Butterfly Valves, Check Valves, Non Return Valv

Our Manufacturing & Supply Scope   Body Stem Neck Disc

RUTCON Series 3230 Three Way Globe Control Valve is ideal for blending two separate flows, by having two inlets and a common outlet, or dividing a flow into two proportional parts by having one common inlet and two outlets. We are known as one of the leading Three Way Globe Control Valve Manufacturers, Exporters, and Suppliers in India. Our Three Way Globe Control Valve is offered at the market leading prices. Details Sizes : ½� to 8� (15mm to 200mm) Higher sizes available on requestRatings : ANSI B 16.5 150# and 600# other standards available on request Applications For high temperature fluid and particularly for textile industries, to mix or divert fluids Design & Performance Features High flow capacityHigh range abilityLeakage capability better than ANSI class IV & consistent with normal single seat valveLeak proof packing are available on requestOption of inner or outer seated design minimizes flow instabilityValve is used for mixing or diverting services depending on customers requirement

The IndiTech Series 220 3-way control valve is used for converging (flow mixing) or diverging (flow splitting) service in a process control system. This valve is ideally suited for applications involving thermic fluid, water, steam, oils & other industrial fluids. Both mixing and dividing type valves are designed so that flow tends to open plug passages, thereby avoiding vibrations and leading to stable process control. The simple valve construction ensures reliable performance and easy in-line maintenance.   Features Valve body design optimized to handle high capacity flows. Slotted plug with inherent linear flow characteristics for regulating control. Double seated design with flow tending to open both ports. This provides flow stability with excellent process control. Trim provided with both top guiding & seat guiding, thus helping to eliminate problems of vibrations. Easy in-line maintenance facilitated by both top and bottom entry access to valve internals. Modular design with interchangeable parts for both mixing and dividing designs. Approved under IBR (Indian Boiler Regulation Act).

PVC Butterfly Valve, Lined Butterfly Valve, Resilient Seated Butterfly Valv

Hygienic design according to EHEDG. No leakage during the openingclosing of the valve. Balanced lower seat. Single-acting pneumatic actuator. Easy assemblydisassembly of internal parts by loosening a clamp fastener. Open lantern allows visual inspection of shaft sealing. 360º adjustable body.

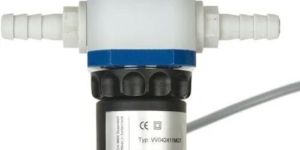

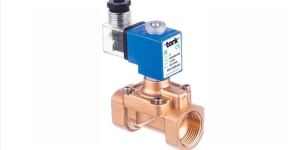

We are offering solenoid valve. A device to switch off the flow of air, fuel in o hydraulic circuit. We have inline solenoid valve with extremely low pressure drop across inlet & outlet range : 12v 24v dc wattage : 15 w max

Egr Valves, Automotive Exhaust System, Precision Turned Component

The Series 8300 range of Pressure & Vacuum Breather Valves minimize vapour losses from storage tanks during operations, whilst preventing internal pressure and vacuum conditions from exceeding the tank design limits. Hence, both product and vessel are protected, as well as the tank environmental conditions

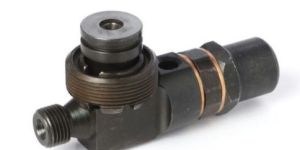

Delivery valve supplies 75kg/cm2 high pressure fuel from plunger element to the Injector at 1300 RPM. Used on : BMP I & II tanks engines.
