Level Gauges Dealers in Pune

Gauge Hatches have been designed to provide secure, vapor-tight, non-sparking access ports for storage tank dipping and sampling functions.   CONSTRUCTION & OPERATION   LOCKABLE GAUGE HATCH SIZE – 3” (75 mm)All brass construction with 3” API screwed connection. The thick elastomer ring dovetailed into the recess in the cover provides maximum vapor tightness and security against sparking.Brass body and cover. Screwed 3” API. PRESSURE TYPE GAUGE HATCH SIZES – 4” (100 mm), 6” (150 mm), 8” (200 mm)Cast iron cover incorporates a heavy synthetic rubber ring dovetailed into a recess, In 4” and 6” sizes a special moulded plastic seat inserted into the base ensures maximum vapor tightness and security against sparking. A drip ring drains condensate away from the joint face to minimize the effects of freezing. Uniform tightness at all points between the cover and the base is provided by a spherical self draining connection between the lever and the cover. Should sticking occur due to infrequent opening the handle use to screw down the cover can be removed and used to loosen the cover by continuing to rotate anti-clockwise until the cover lifts.Steel body – cast iron cover – bronze lever. 150 lbs ASA flange. SPARK-PROOF GAUGE HATCH SIZE – 8” (200 mm)Cast steel base can be supplied undrilled for welding directly to tank roof plates, or drilled for fitting to tank roof nozzle.A brass insert ring in the base is machined to give radial contact with the conical seating of the brass cover thereby ensuring an effective long term seal. Base has gauging notch located just below the insert ring.Cast steel base – brass cover – bronze handle. Flange 150 lbs ASA flat face (FF). GAUGE HATCH SIZES – 4” (100 mm), 6” (150 mm), 8” (200 mm)The aluminium base, with gauging notch, incorporates a self draining seat and has 8 slotted holes to facilitate mounting on the range of tank roof flanges listed opposite. The aluminium cover is secured to the base with a stainless steel hinge pin. A nitrile rubber “O” ring seal is fitted into the cover to provide tight closure and to cushion the effects of repeated operation. The units can accommodate service temperatures of -300C to +900C. SCREW DOWN GAUGE HATCH SIZES – 4” (100 mm), 6” (150 mm), 8” (200mm)The aluminium base, with gauging notch, incorporates a self draining seat and has 8 slotted holes to facilitate mounting on the range of tank roof flanges listed opposite. The aluminium cover is secured to the base with a stainless steel hinge pin. A nitrile rubber “O” ring seal is fitted into the cover to provide tight closure and to cushion the effects of repeated operation. The cover of the Fig. 5072 is slotted to accept the eye bolt and hand nut used for clamping the cover. The units can accommodate service temperatures of -300C to +900C.

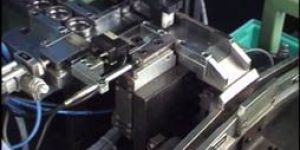

We offer Auto Gauging System. Electronic Autogauging System for Cylinder Liner to check the Inner and Outer Diameter at 3 different places of total measuring length. Measures collar Width and Runout of Outer Diameter w.r.t. Inner Diameter. After manually loading the component all required parameters are measured automatically. Display of the result on computer. Manual unloading of the component after measurement is complete. Enables SPC Analysis immediately after measurement.

Over the years, we have emerged as a noteworthy Supplier offering a huge array of boiler gauges glass. Functioning efficiently from Maharashtra(India), we are known for bringing forth quality products at competitive price.

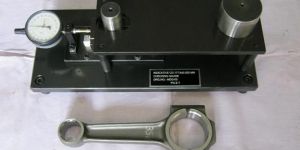

This Gauge Is Used For Checking Connecting Rod Small End & Big End Hole Centre Distance Gauge Repeatibility Is Within 5 Microns We Use High Quality Steel For Making The Gauges

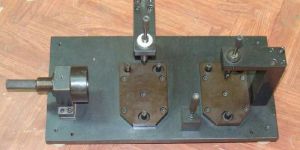

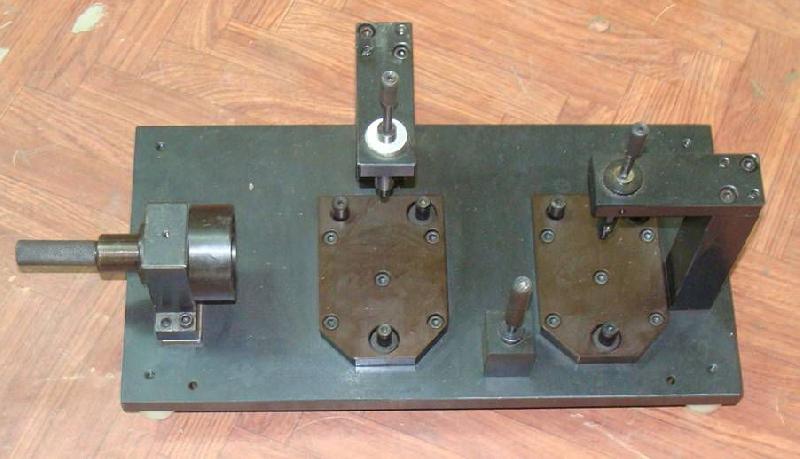

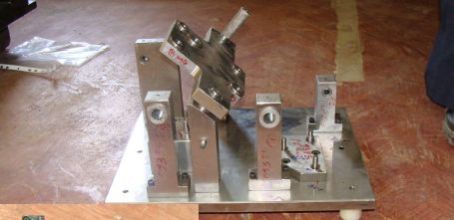

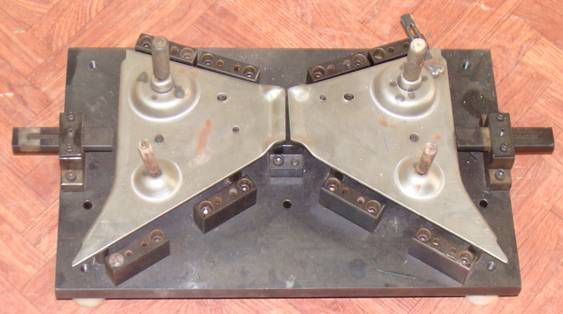

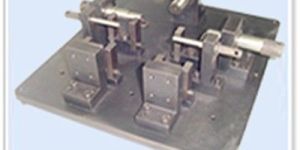

We are considered as the best Relation Gauge Manufacturer and Supplier in the industry. Our Relation Gauges caters to many industries such as Forging industry, Auto industry and Pumps manufacturing industry.

Made in conformation with ASTM Standard, Magnetic Field Indicator that we offer is an effective gadget to set the current parameters essential for testing a component. Magnetic Field Indicator quickly indicates the current’s adequacy and direction passing through the component. This indicator is offered with a Test Certificate including excellent traceability. Moreover, the Magnetic Field Indicator, we offer, comes packaged in a wooden box.

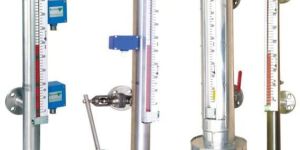

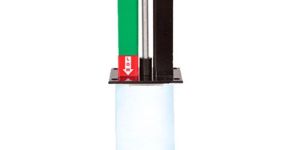

We are the leading manufacturer, exporter and suppliers of Magnetic Liquid Level Gauges in Maharashtra, India. This Glandless gauge comes a with magnetic coupling for visual level indication of Inflammable, Hazardous or Toxic Liquids, where glass is unsafe and dilute caustics where glass is unsuitable. The offered range of level gauges find applications in textile dyeing, Sewage Water Processing, Power Generation, Chemical Processing, Heat Transfer Petrochemical and Pharmaceuticals. We are capable of handling bulk orders as per specifications of the client.   Details : Glandless gauge with magnetic coupling for visual level indication of Inflammable, Hazardous or Toxic Liquids, where glass is unsafe and dilute caustics where glass is unsuitable. Range - 300 to 5000mm Density - ≥0.5 g/cm3 Wetted Parts - SS304/316,PP, PTFE or PVDF Indication - Bicolored Flappers or Follower Capsule Max Temp - 400oC Max Pressure - 20 Kg/cm2 Options - Alarm Switches, X’mitters , HART, Steam Jktg, Electrical Heat Tracing, High Temp. Insulation Applications : Textile Dyeing, Sewage Water Processing, Power Generation, Chemical Processing, Heat Transfer Petrochemical & Pharmaceuticals.

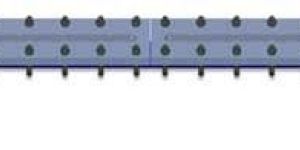

We offer high precision Level Gauges that are quite popular in the industry. All our Level Gauges have been designed and developed to operate reliably and efficiently in all applications where accurate liquid level measurements are required. Our Magnetic Level Gauge is accessible in a variety of Reflex or Transparent type with lengths from 300mm onwards, with an arrangement to fit a pressure gauge on the Level Indicator itself. Each gauge is ruggedly constructed for durability and maximum resistance to corrosion.

Gauge Hatches have been designed to provide secure, vapour-tight, non-sparking access ports for storage tank dipping and sampling functions.All brass construction with 3” API screwed connection. The thick elastomer ring dovetailed into the recess in the cover provides maximum vapour tightness and security against sparking. Brass body and cover. Screwed 3” API.

• 'O' Ring type construction • FACE TYPE : 3" & 5" between Bolt centers • FACE TYPE : 1/5" to 1 1/2" BSP (M) connection

We are offering liquid level gauges. Unique features and applications of our liquid level gauges :- * tempered by boro silicate glass, resistant to chemical thermal & mechanical shocks. * large chamber for boiling, flashing or surging liquids. * safety ball gauge valve provided. * option for frost free valve * suitable for monitoring liquid refrigerant & oil level for vessels as follows o receiver o accumulator o oil transfer drums o low temp. Accumulator o low temp. Oil transfer drums etc

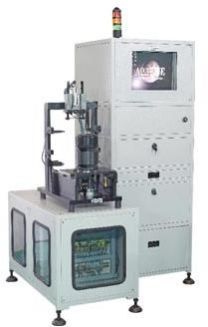

Previous Next An Auto Gauging System is a equipment used to make measurements or parameters. A wide range of tools exist which serve such jobs, ranging from simple parts of material against which sizes can be measured to complex parts of machinery. Depending on usage, an Auto Gauging System can be described as "a system for measuring a physical quantity", for example "to define thickness, pressure of flow, diameter of materials, gap in space." We at Global Autocon, offer Auto Gauging Systems. Electronic Auto Gauging System for cylinder liner to check the inner and outer diameter at three different places of total measuring length. Measures collar width and runout of outer Diameter with respect to inner diameter. After manually loading the component all required parameters are measured automatically, display of the result on computer, manually unloading of the component after measurement is complete. We offer comprehensive, efficient and superior solutions from a single source. With our systems you can rely on top performance with maximum adaptability and flexibility suited to a host of different test situations and vehicle models. Global Autocon offers solutions for various industrial gauging and measurement processes for precision level of measurements of parts, such as manufacture of engine and power train parts, in automotive and non-automotive engines. At Global Autocon, Auto Gauging Systems can measure, validate and stimulate the functionality of automotive electronic control units, mechanical parts and systems. Important factors include high test completeness, low system upgrade costs and high test throughput. With the growing complexity of automotive sector, it’s important to have a flexible Gauging Systems.

We manufacture fuel level gauges with great precision as they play an important role in indicating the crucial levels. Our level gauge system has no moving parts except the needle on the cockpit which makes it more durable and long lasting. Available at a competitive price range, this product is used to indicate the level of fuel in a fuel tank. It has a horizontal dial for easy reading.

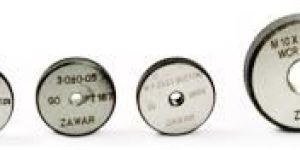

Used for checking wear out gauges For plug gauges wear check ring gauge are used For ring gauges wear check plug gauges are used Specification: as per gauges wear limit gauges are designed

Fawcett Christie Hydracushions are non-repairable  and have been specially designed for high volume,  low cost applications where it is more economical to  replace a unit than to refurbish it after a long service  life.

Due to our strict packaging guidelines, we ensure that the packaging is done using quality packaging material. We have an advanced packaging system and we use only high quality materials for ensuring complete safety during warehousing and transportation. We have online payment processing system to avoid security issues. In order to make it more reliable, we have maintained payment logs accessible for the convenience of our customers. Made of high-quality raw material, our Relation Gauge is available in different sizes and quality tested.

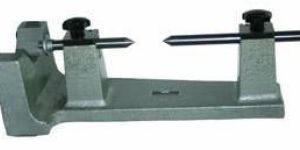

The company is a prominent Squareness Checking Gauges Manufacturer, Exporter, and Supplier in India. The Squareness Checking Gauges, that we provide, are used for testing run out, coaxiality, parallelism, and squareness of cylindrical products. The Squareness Checking Gauges can be availed from us at the most competitive prices. Specifications Admit between centre : 200mm max Centre height : 75mm Caters To Automobile industrymechanical industryGear manufacturing units Price : As per request

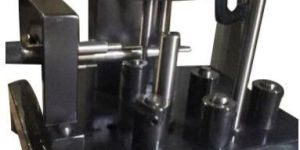

We are counted among the top Relation Gauges Manufacturers and Suppliers. The Relation Gauges are precisely designed using first grade raw material. These Relation Gauges are well known for low maintenance costs and long working life. We offer Relation Gauges at market leading prices. Attributes Accurately designedPerfect finishingSmooth operationHighly durable
