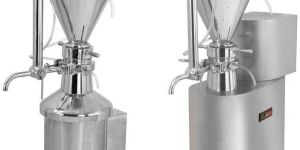

Colloid Mill
Get Price Quote
special features:
round shape colloid mill body, base and top cover made out of ci material having ss cladding in vertical type standard model, suitable for pharmaceutical, veterinary and ayurvedic industries.
ss fabricated square body on which machine and motor both are mounted, in vertical type deluxe model.
all contact parts are made out of stainless 304 material. (ss 316 optionally)
circular ring shaped, internally conical stator having two different tooths stages.
toothed conical rotor directly coupled with the motor shaft in vertical standard model and coupled with belt in vertical deluxe model.
stator & rotor assembly is balanced and housed in the stainless steel housing.
grinding accuracy of 5 – 10 micron due to the perfectly matched & specially designed conical shaped stator & rotor assembly.
extended bearing housing specially designed to facilitate fine adjustment of bearing clearances of backlash to avoid metal contact of rotor in vertical deluxe model.
special designed adjustment of the grinding gap by an exterior screw by means of two handles even during the operation.
three-way cock system for draining and re circulation of liquids provided as standard, in water-jacketed models.
extra discharge spout provided as a standard for viscous material.
...more
