Electrical Components Dealers in Mahesh Nagar, Ambala

Spark length approx 30mm, operates on 6 to 8 V D.C. Similar to Cat No. P-7975 as above. A fully adjustable trembler system is incorporated and spark suppression capacitors are housed in the base.

Electrode Pair, Carbon, Spare[carbon Elect] for Use with Hoffman Electrolysis Apparatus Described Above. Size (l X D), 100 X 5mm. Inserted in a Rubber Stopper with Insulated Lead Wire.

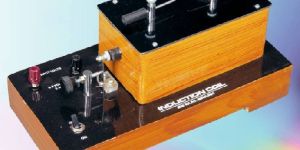

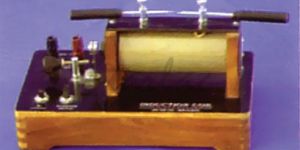

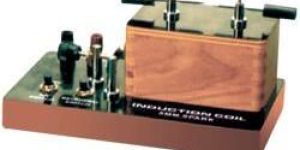

Adjustable vibrating arm, with tungsten contacts and coil with core mounted on rigid wooden base. Baised off switch to prevent continuous running. Input voltage 6V D.C. at 2A via 4 mm. socket terminals. Spark length obtainable in air 5 mm.

Electrical Lab Trainers & Equipments Comprise Of The Following Training Panel Boards & Kits: - Electrical Machine Trainer (Complete Setup). - Panel for Measurement of Power in Three Phase Circuit by Three Wattmeter Method. (Complete Set-up). - Measurement of Power in 3 Phase Circuit by Two Wattmeter Method (Complete Set-up). - Measurement of efficiency of Single Phase Transformer (Direct Loading) (Complete Set-up). - Determination of Parameter and Losses in a Single Phase Transformer by OC and SC Test (Complete Set-up). - Study of Single Phase Energy Meter (Complete Set-up). - Earth Resistance by Fall of Potential Method (Complete Setup). - Calibration of Wattmeter by DC Potentiometer (Complete Setup). - Calibration of Voltmeter & Ammeter by DC Potentiometer (Complete Setup). - Starting and Reversing of DC Shunt Motor (Complete Set-up). - Speed Control of DC Shunt Motor By Voltage Control Method (Complete). - Parallel Operation Single Phase Transformer (Complete Set-up). - Voltage Relationship of Three Phase Transformer in Various Connections (Complete Set-up). - Speed Control of D.C. Shunt Motor (By Armature and Field Current Control Method) (Complete Set-up). - Load Test of DC Shunt Motor (Complete Set-up). - To Plot Magnetizing Curve of a DC Series Generator (Complete Set-up). - Angular Displacement Measurment of Synchronous Motor (Complete Set-up). - Measurement of Power & Power Factor in Single Phase Circuit (Complete). - Measurement of Power in 3 Phase Circuit by CT, PT & 3 Phase Wattmeter (Complete Set-up). - Panel for Load Test of DC Series Motor (Complete Set-up). - To Connect, Start & Reverse the Direction of Rotation of a 3 Phase Induction Motor (Complete Set-up). - To Perform the Block Rotar Test of 3 Phase Induction Motor (Complete).

Aii New Thevenin Theoram According to Thevenin's theoram, any two terminal linear network can be replaced by an equivalent circuit consisting of a voltage source (Vth) and a series resistance (Rth). the Thevenin voltage Vth is the open circuit voltage at the output terminals and the Thevenin resistance Rth is equal to the resistance between the output terminals, when the voltage sources in the network are replaced by their internal resistances. (The Thevenin resistances is also equal to the ratio of the open circuit voltages to the short circuit current at the output terminals). By making an electrical network and its Thevenin equivalent circuit, the voltages and currents in the two circuits, for various load resistances are compared. Specifications: Power Supply: 0 - 6 V DC Variable at 1000 mA Resistances: 5 of different values 100, 220, 330, 520, 560 ohms etc. Potentiometer: For variable Resistance/Step Switch Voltmeter: 0 to 6 Volt DC 65 mm round Optional: Digital Multimter (for Resistance). Complete with Manual and Connection Wire.

As a reliable name, we ensure that payment procedures remain secured with us. For this, we issue invoice to the customers stating the products, quantities and agreed prices. Noteworthy Supplier of electronics engineering lab equipment, we are customers' favored option in this domain.

A: In bakelite case with 4mm socket and captive head terminals. Bobbins non-inductively wound with double silk covered constantine wire. B: Non-inductively wound with double silk covered constantan coils on plastic rod enclosed in transparent plastic tube with two terminal and values figured. Accuracy + 0.2%. Rating 1 watt. Individually packed, available in different ohms.

This is a DC motor with the above specifications. The shaft of this motor is coupled mechanically to a break drum. A belt moving over this break drum provides necessary torque to the shaft of the motor, and in turn loads the shaft with a finite torque. Two calibrated spring balances are connected to either side of the belt, which is moving over the break drum. This is a method to load the shaft of the motor with a loading arrangement. By taking reading on these spring balance readings, the loading value may be calculated.

Code: EEF0003 Capacitive Load. Capacitive Load ManufacturerFeatures:-    1 Phase capacitors load ISI marked of suitable raiting.    Connected instar with safe discharging resistors.    Variable steps with the help of rotary switches in steps of 1 amp approx.    Housed in trolley typed M.S. Box with powder coated.    Ammeter and voltmeter are used to study the current and voltage at different loads.Rating available :    5A/10A/15A both is single and three phase

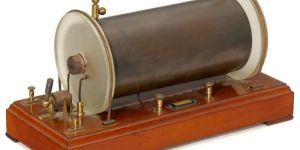

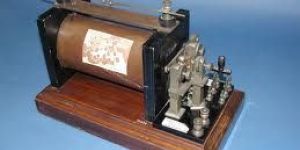

We offer duly insulated, long life induction coils, input 6-12 volts dc @ upto 5 amps, output spark length in air 5 mm to 200 mm or above, with adjustable handles, on off switch, indication light, on base upto 25 mm, and in covered wooden box with locks and key. Also available induction coils worked on 220 v ac mains, with built in transformer, and rectifier to provide proper voltage at proper amperes.

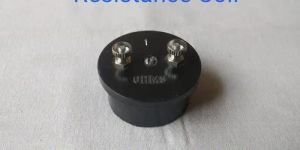

Resistance Coils are used in several physics laboratories for doing experiments based on coils. They have a round case and captive head terminals. Our Resistance Coils are of supreme quality with a nice finishing. Fully customizable, they are able to give topnotch performance and accurate results for a long period. In addition to this, Resistance Coils are corrosion and abrasion resistant.

We provide a large array of Brass Electrical Parts that is characterized by excellent durability and performance. Our Brass Electrical Switch Parts are designed to suit various industrial and commercial electrical applications. Known for better functionality and high efficiency, our brass electrical parts are available at very competitive prices. We have carved a niche as the most predominant Brass Electrical Components Manufacturer and one of the ecstatic Suppliers of the same.

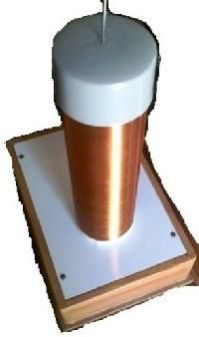

Now procure tesla coils at extremely reasonable prices from us. Our organization is its famous supplier. Located in Chandigarh(India), our organization is involved in catering to the market with a qualitative array of products.

We offer air conditioning trainer. The unit consists of ducting fitted with various air conditioning components. Airflow is generated by an axial flow fan and in the airflow, heaters, cooling coil and steam humidifier connection is provided. Cooling circuit consists of a hermetic compressor; air cooled condenser, thermostatic expansion valve and evaporator (i.e. Cooling coil). Measurements of various parameters torn cooling cycle and heating cycle are provided and students can easily visualize and understand the basic principles of air conditioning. specifications 1. Cooling circuits - it consists of: • hermetic compressor, having the capacity of 23 ton of refrigeration (approx.) using r-22 refrigerant. • rotameter for liquid refrigerant flow measurement. • pressure gauges for high and low pressure. • prescott (i.e. High and low pressure cut-out). • thermometers for temperature measurement at various points in the cycle. • energymeter for compressor input measurement. • condensate measuring arrangement. 2. Heating circuit - air heaters with input control provided with energymeter for input measurement. Maximum heating capacity 1 kw. 3. Steam generator and injector for humidification of air. All above components are connected to a duct of size 200mm. X 200mm. In which airflow is generated by axial flow fan. 4. Anemometer for measurement of air velocity, (range 0-15 msec. Following experiments can be conducted on the unit • cooling of atmospheric air. • heating of atmospheric air. • humidification of atmospheric air. • dehumidification and heating of atmospheric air. (cooling coil acts as dehumidifier at reduced airflow.) services required: • 440 v, 15 a, 3 phase supply with earthing connection. • floor space area about 3 m. X 2 m.

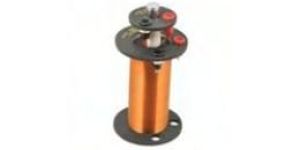

Heavy gauge enamelled copper wire, approximate resistance 0.5 ohms wound on former 110 x 30 mm length x diameter. Secondary coil of fine enamelled copper wire, approximately resistance 100 ohms on former 110 x 82 mm length x diameter. Both coils fitted with 4 mm sockets. Iron core 120 x 15 mm length x diameter.
